Description

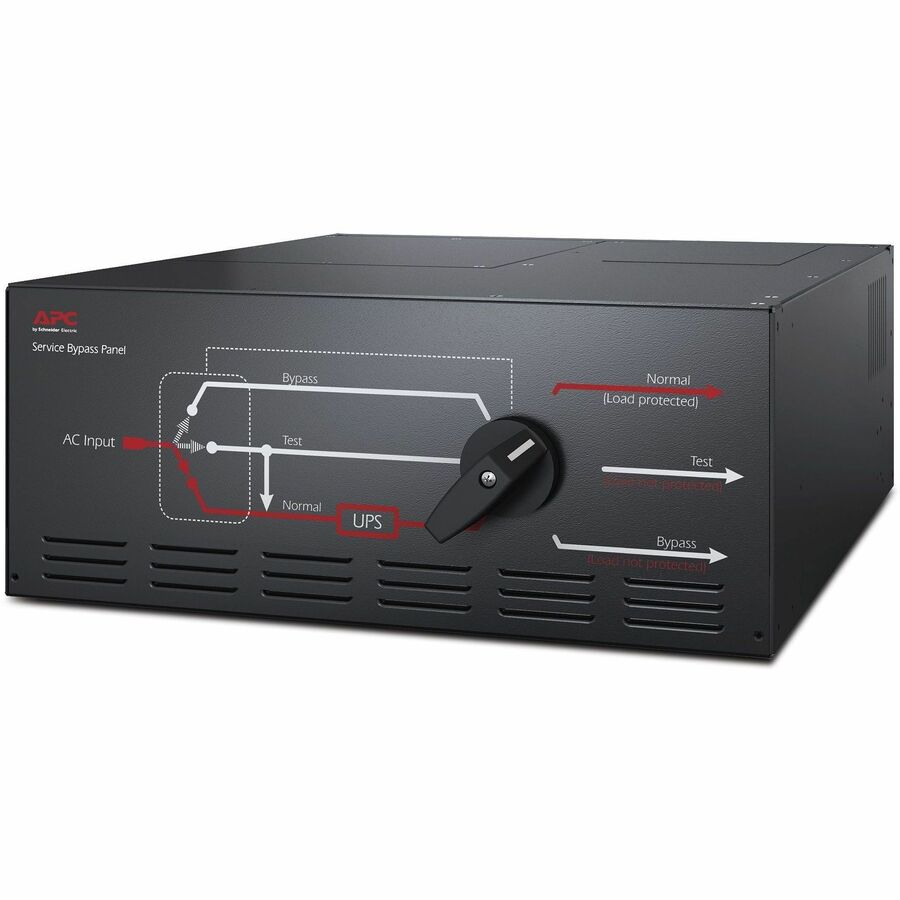

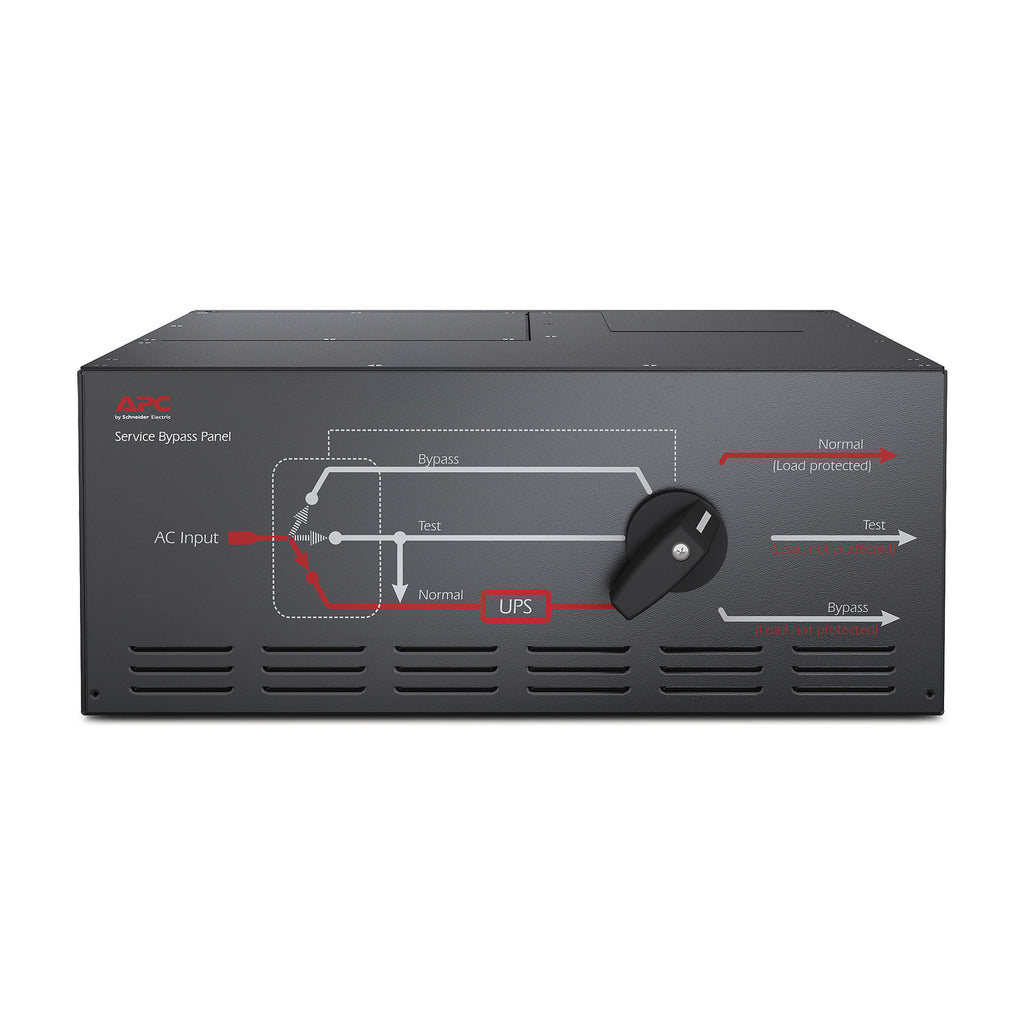

Ensure uninterrupted power availability during UPS maintenance with the APC SBP20KRMT4U Service Bypass Panel. Designed for compatibility with APC InfraStruXure® Type A, Smart-UPS, and Symmetra systems, this 4U rack-mountable panel supports hardwired 200/208/240V input and features (2) L6-30R and (4) L6-20R outputs. With 125A capacity, 99% efficiency, and comprehensive circuit protection, it's an ideal solution for mission-critical environments needing continuous uptime during system servicing.
| Category | Details |
|---|---|
| Brand | APC by Schneider Electric |
| Model | SBP20KRMT4U |
| Product Type | Service Bypass Panel |
| Rack Units | 4U |
| Input Voltage | 200 / 208 / 240 V |
| Output Voltage | 200 / 208 / 240 V |
| Input Connector | Hard wire 3-wire (2P + E) |

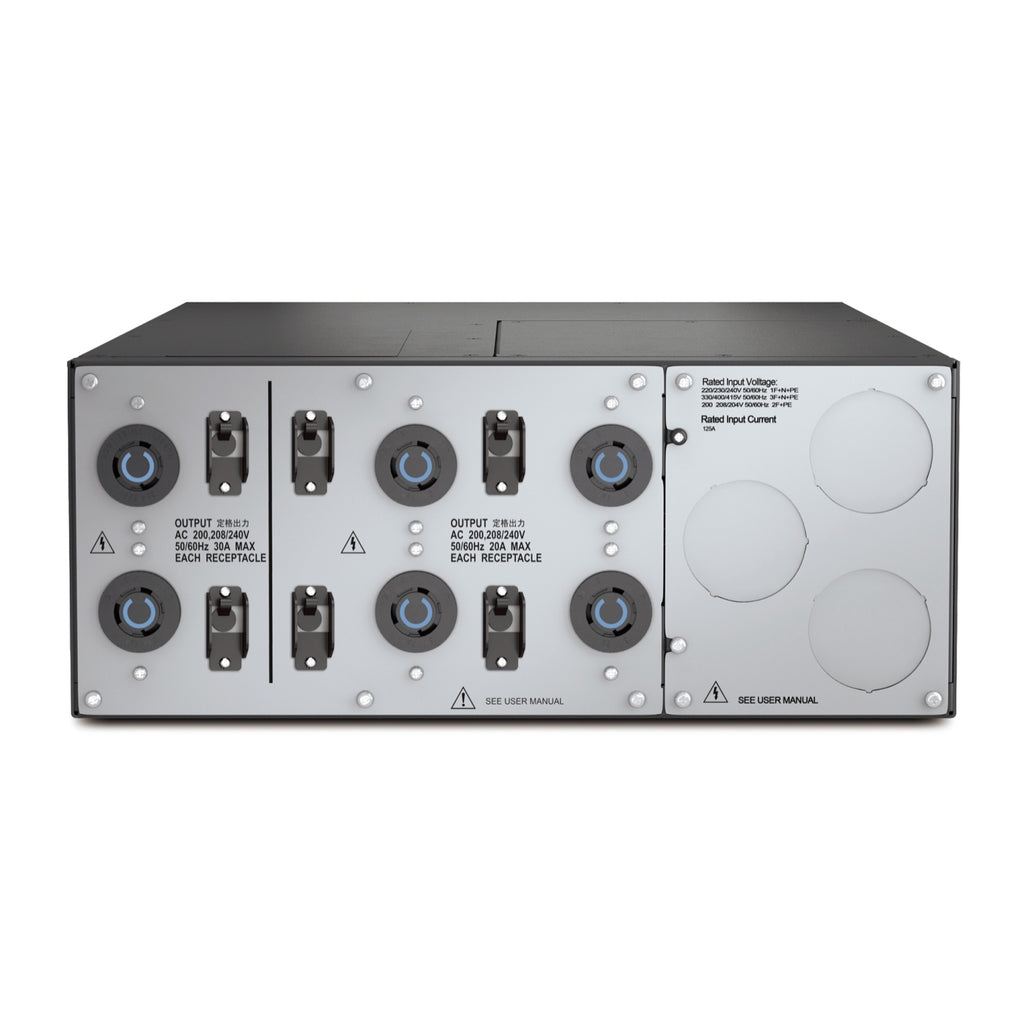

| Output Connectors | (2) NEMA L6-30R, (4) NEMA L6-20R |
| Max Line Current | 125 A |
| Load Capacity | 20,000 VA |
| Power Factor | 0 to 1 |
| Efficiency | 99% |
| Protection Type | Circuit Breaker |
| Mounting | Rack-mounted (Front, Lower) |
| Color | Black |
| Dimensions (H x W x D) | 17.8 x 43.2 x 57.2 cm |
| Net Weight | 18.78 kg |
| Operating Temp. | -20 to 50°C |
| Relative Humidity | 0–95% RH (operating & storage) |
| Altitude (Operating) | 0–15,000 ft |
| Certifications | CSA, GOST |
| Included Accessories | Installation guide, User manual, Rack mounting brackets |
| Warranty | 2 years (parts only) |
