Description

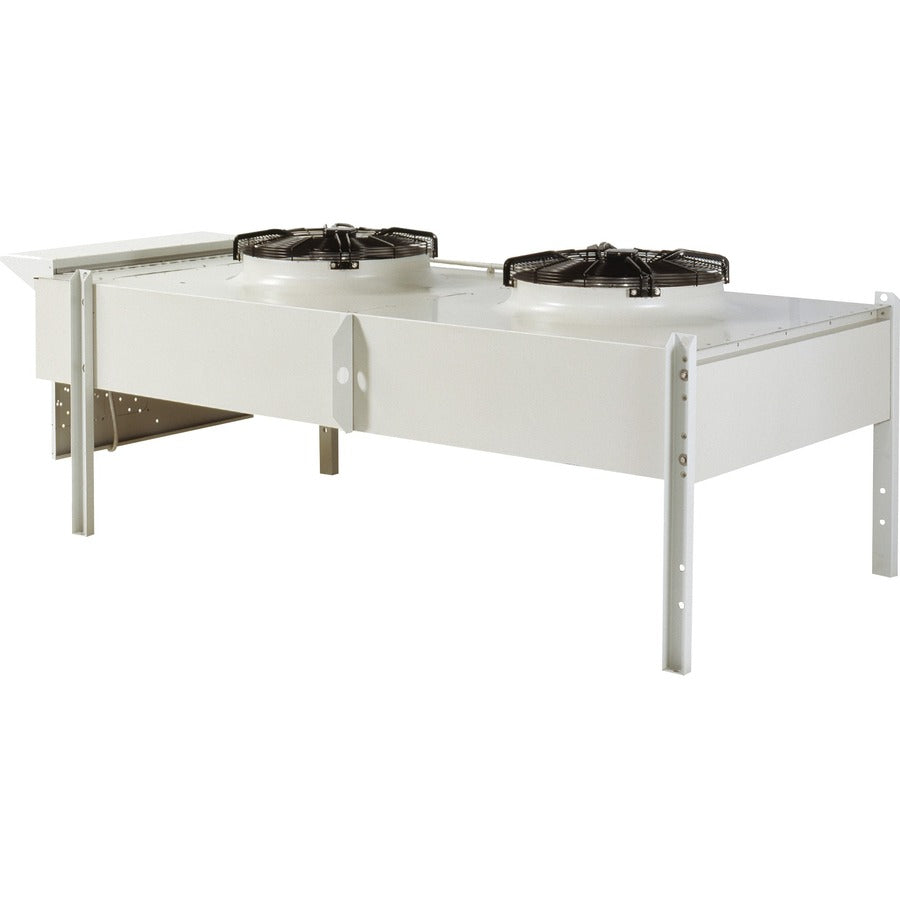

The APC by Schneider Electric ACCD75232-C is a high-performance air-cooled condenser delivering 46kW of cooling at 95°F/115°F (35°C/46°C). It features horizontal air discharge and is ideal for use in Uniflair InRow Direct Expansion cooling systems. Operating on 230V single-phase at 50Hz, this unit is CE certified and built for environmental reliability, supporting conditions from -20°C to 50°C with quiet operation at 56.6 dBA. Its robust and compact design ensures efficient heat rejection for critical IT environments.
| Specification | Details |
|---|---|
| Model Number | ACCD75232-C |
| Cooling Capacity | 46 kW |
| Operating Temp Range | -20°C to 50°C |
| Condensing Temp | 95°F/115°F (35°C/46°C) |
| Air Discharge Type | Horizontal (Upflow) |
| Airflow Rate | 5191.4 L/s |
| Input Voltage | 230 V |
| Phase | Single Phase |
| Frequency | 50 Hz |
| Inrush Current | 6 A |
| Audible Noise | 56.6 dBA @ 1m |
| Certifications | CE |
| Mounting Mode | Floor-standing (non-rack mountable) |
| Product Dimensions (H x W x D) | 134.4 cm x 111 cm x 209 cm |
| Net Weight | 135 kg |
| Shipping Dimensions (H x W x L) | 139.7 cm x 228.6 cm x 127 cm |
| Shipping Weight | 150 kg |
| Warranty | 1 Year (Parts Only) |
| Sustainability Notes | Recycled cardboard packaging, RoHS exempt |
