Description

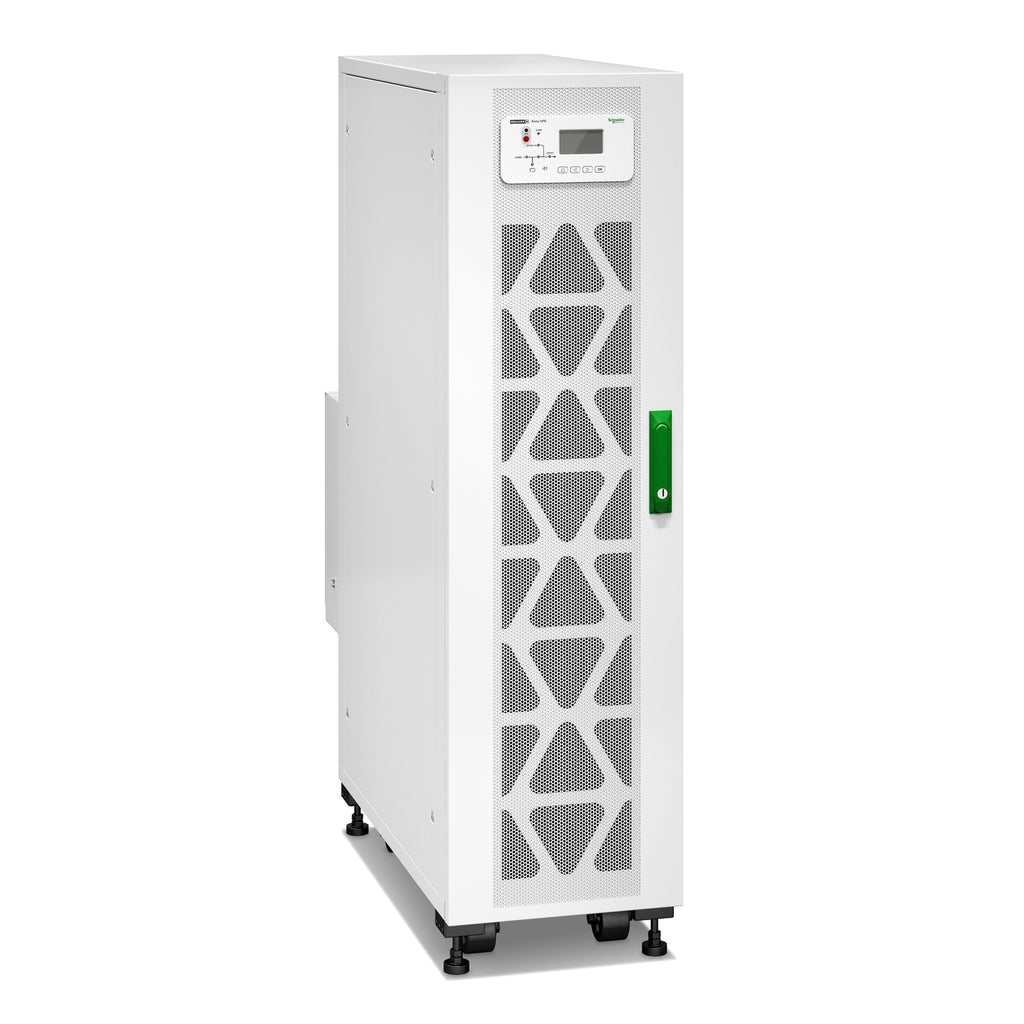

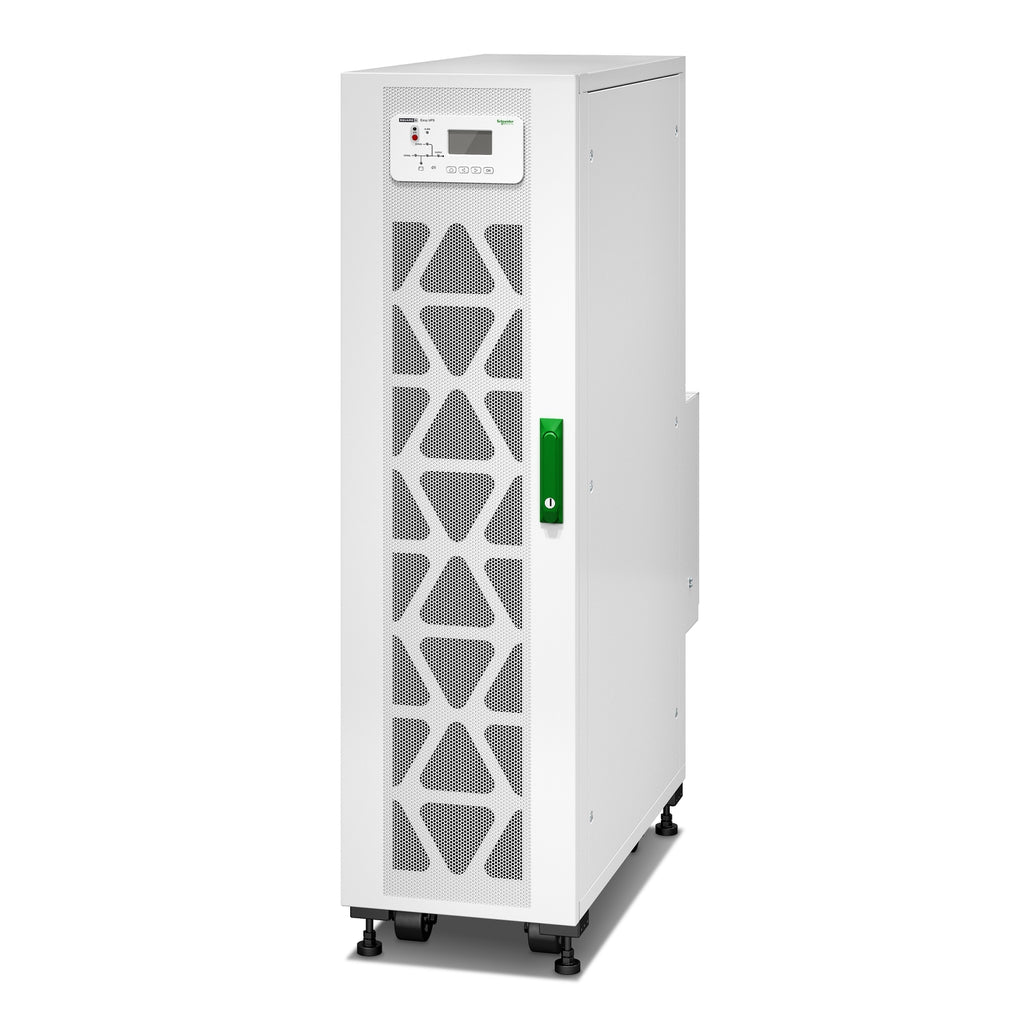

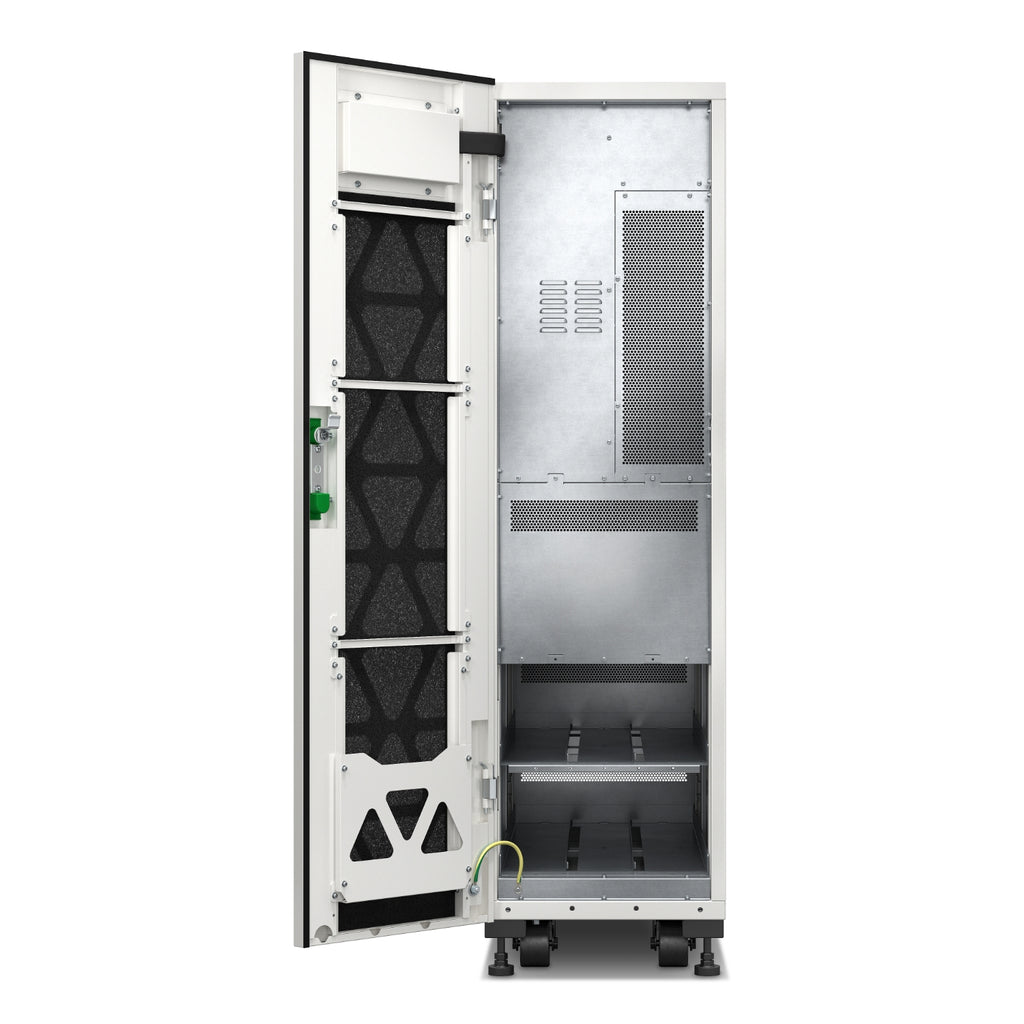

The APC Easy UPS 3S E3SUPS10KFBS is a robust 10kVA, 208V 3-phase uninterruptible power supply designed for small to medium businesses seeking high availability and adaptability. This high-efficiency, double-conversion online UPS is ideal for electrical rooms and small data centers. It features a built-in static bypass, touch screen LCD, and conformal-coated boards for harsh environments. Supplied without batteries, it allows for customized runtime configuration. Includes a 5x8 start-up service and 1-year on-site warranty.
| Category | Details |
|---|---|
| Model | E3SUPS10KFBS |
| Power Capacity | 10 kVA / 10 kW |
| Input Voltage | 208V 3-phase (Also supports 220V) |
| Output Voltage | 208V 3-phase (Also supports 220V) |
| Topology | Double Conversion Online |
| Efficiency | View Efficiency Graph |
| Battery Type | Modular internal (batteries not included) |
| Battery Voltage | +/- 120 V |
| End of Discharge Voltage | +/- 96 V |
| Short Circuit Withstand | 10 kA |
| Input Frequency | 40–70 Hz |
| Output Frequency | 50/60 Hz (Sync to mains) |
| Overload Capacity | 10 min @ 125%, 60 sec @ 150% |
| Bypass | Built-in Static Bypass |
| Display Interface | Touch Screen LCD |
| Protection Class | IP20 |
| Certifications | UL 1778 5th Ed, FCC Part 15 Class B, cTUVus, IEC 62040 |
| Dimensions (H x W x D) | 55.12 x 14.96 x 37.80 in (140 x 38 x 96 cm) |
| Net Weight | 264.6 lb (120 kg) |
| Acoustic Level | 65 dBA |
| Ambient Operating Temp | 32–104 °F (0–40 °C) |
| Humidity Tolerance | 0–95% RH (non-condensing) |
| Altitude (Operation) | 0–4921 ft (0–1500 m) |
| Startup & Warranty | 5x8 Start-Up Service Included; 1-Year On-Site Warranty |
| GTIN | 731304433675 |
