Description

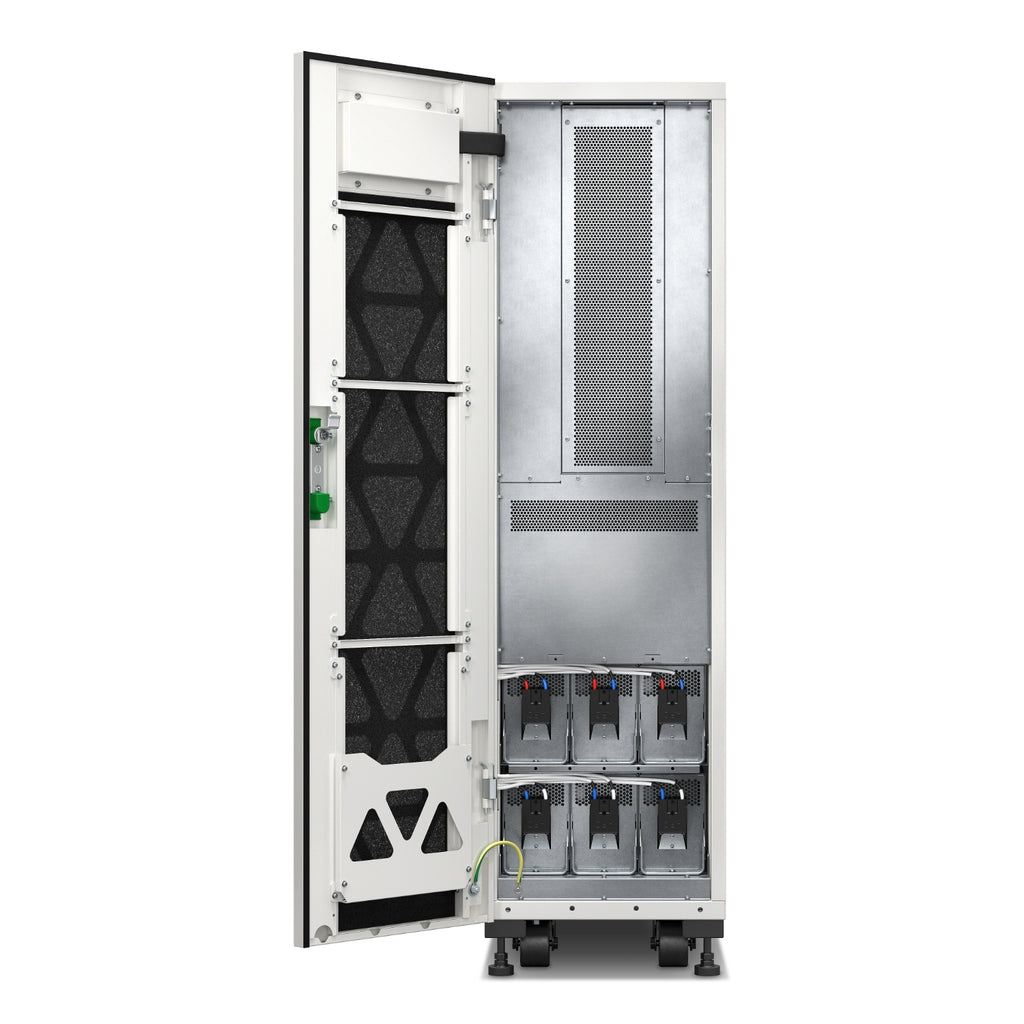

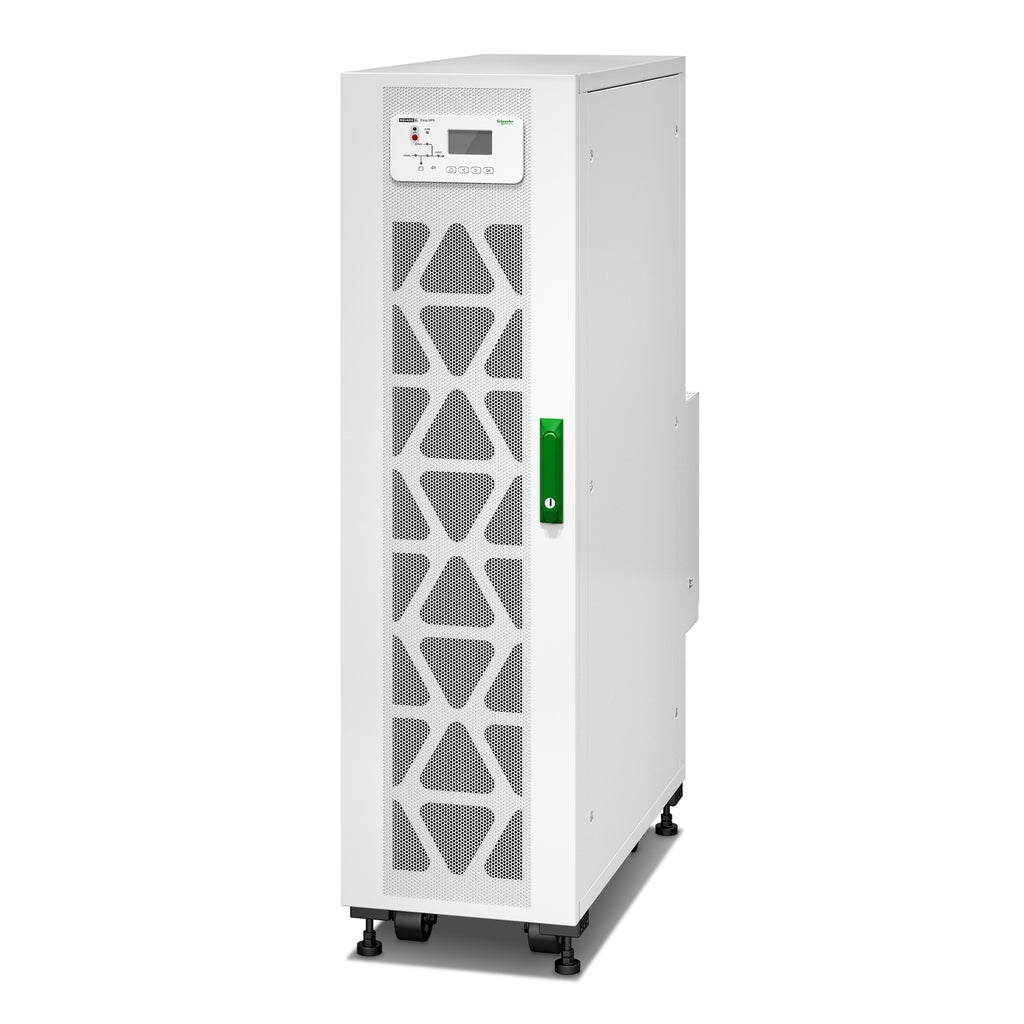

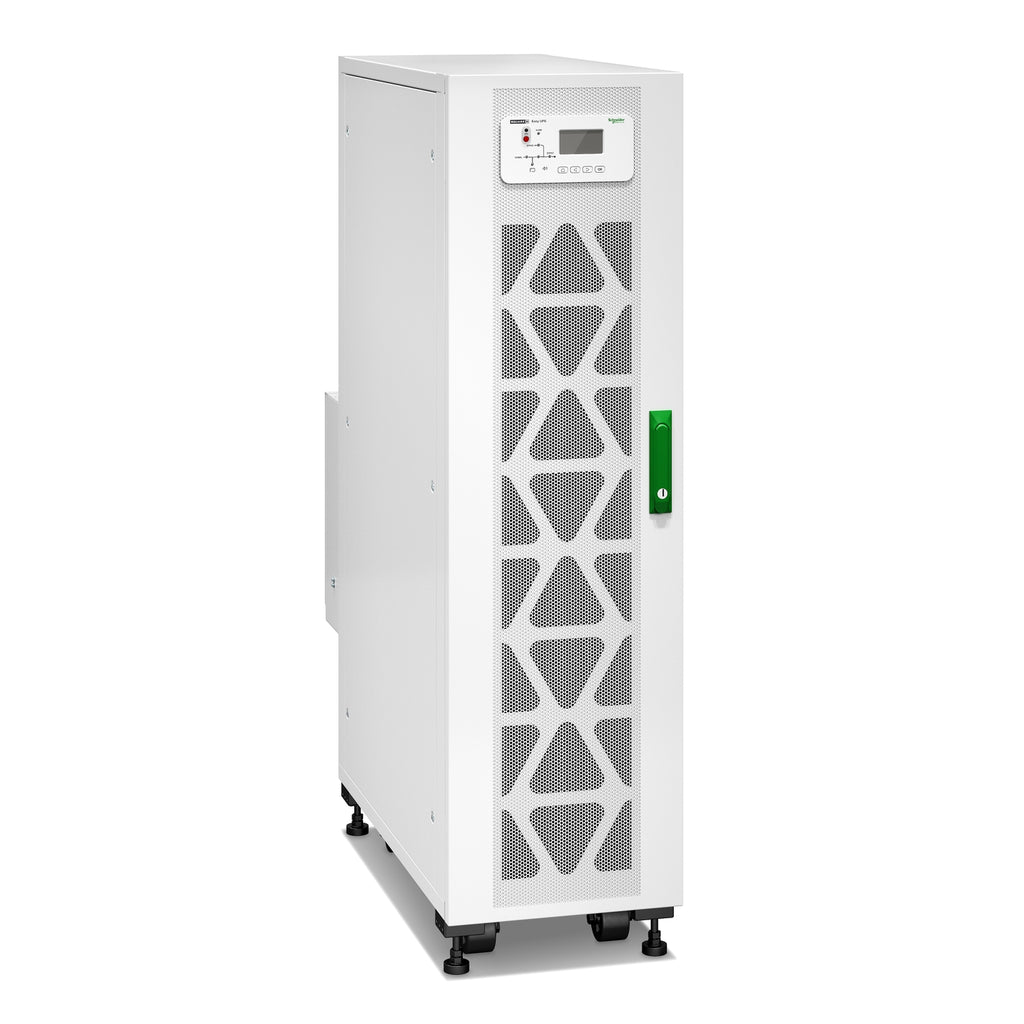

The APC Easy UPS 3S 15kVA is a high-efficiency, 3-phase double-conversion online UPS designed for superior electrical performance and simplified deployment. Ideal for small to medium businesses, this model supports internal modular batteries (sold separately), allowing customized runtime flexibility. It features coated boards and a dust filter for enhanced durability in harsh environments. The unit includes 5x8 factory-authorized start-up service for optimal installation.
| Category | Details |
|---|---|
| Model | E3SUPS15KFBS |
| Type | 3-Phase Online UPS (Double Conversion) |
| Power Capacity | 15 kVA / 15 kW |
| Input Voltage | 208V / 220V (3-phase) |
| Output Voltage | 208V / 220V (3-phase) |
| Input Frequency | 40–70 Hz |
| Output Frequency | 50/60 Hz (Sync to mains) |
| Efficiency | High (see efficiency graph in datasheet) |
| Battery Type | Internal modular battery (not included) |
| Battery Voltage | ±120V (End of Discharge: ±96V) |
| Bypass Type | Built-in Static Bypass |
| Overload Capacity | 125% for 10 mins; 150% for 60 sec |
| Input Current (Max/Phase) | 46 A |
| Short Circuit Rating | 10 kA |
| THDi | <4% at full load |
| Load Power Factor | 0.7 leading to 0.7 lagging (no derating) |
| User Interface | Touch Screen LCD |
| Environmental | 0–40°C; 0–95% RH (non-condensing); Altitude: ≤1500m |
| Noise Level | 68 dBA |
| IP Rating | IP20 |
| Dimensions (HxWxD) | 55.12 x 14.96 x 37.80 in (140 x 38 x 96 cm) |
| Net Weight | 291.01 lbs (132 kg) |
| Included | Dust Filter, Installation Manual, 5x8 Start-Up Service |
| Certifications | UL 1778, IEC 62040-2/-3, FCC Part 15 Class B, ISTA 2B |
| Warranty | 1-Year On-site Repair or Replace w/ Factory Start-Up |
