Description

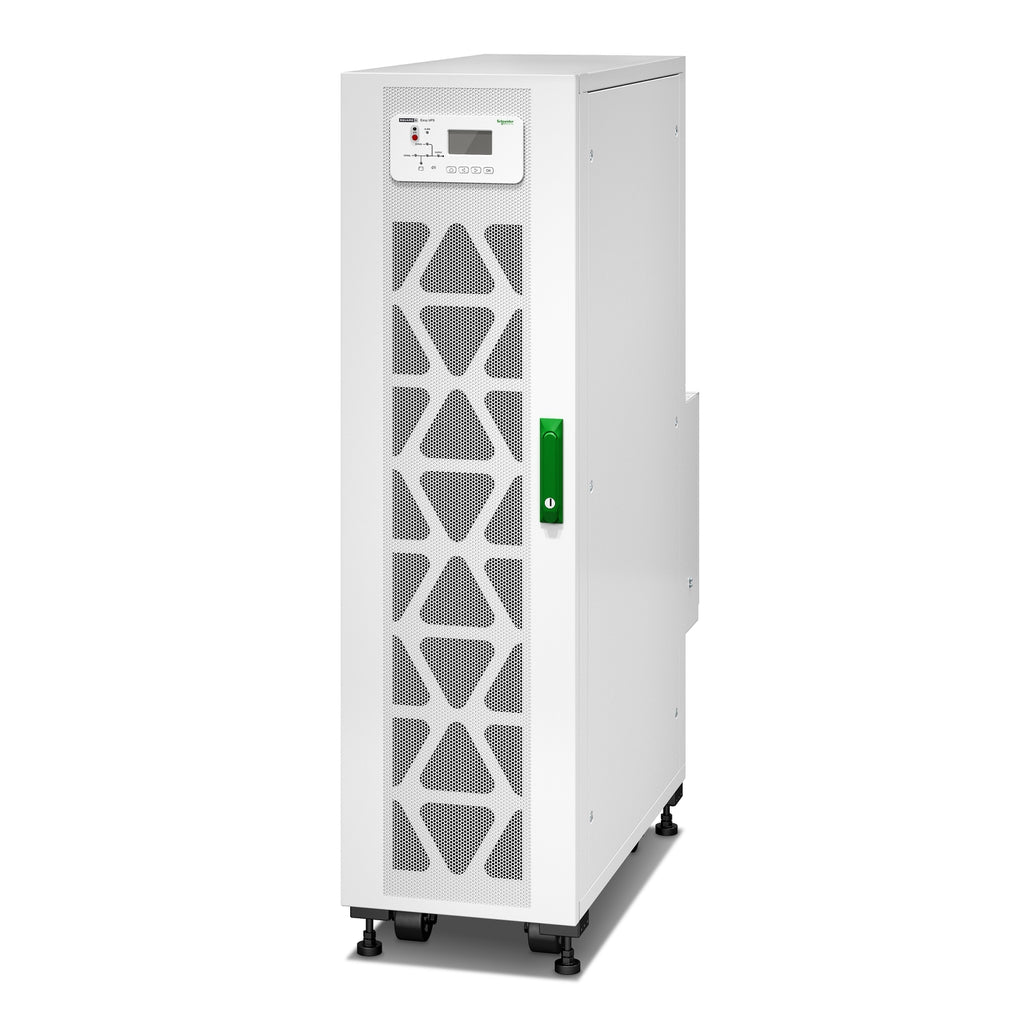

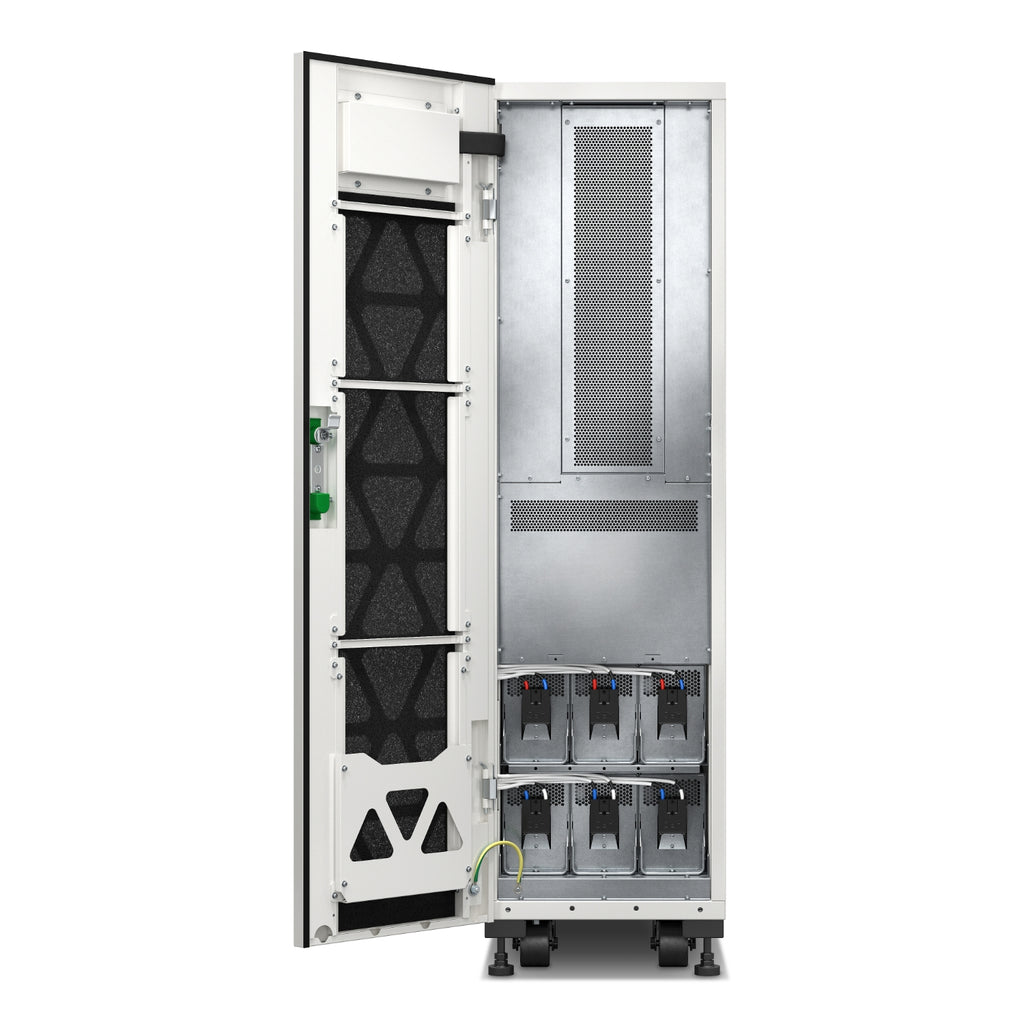

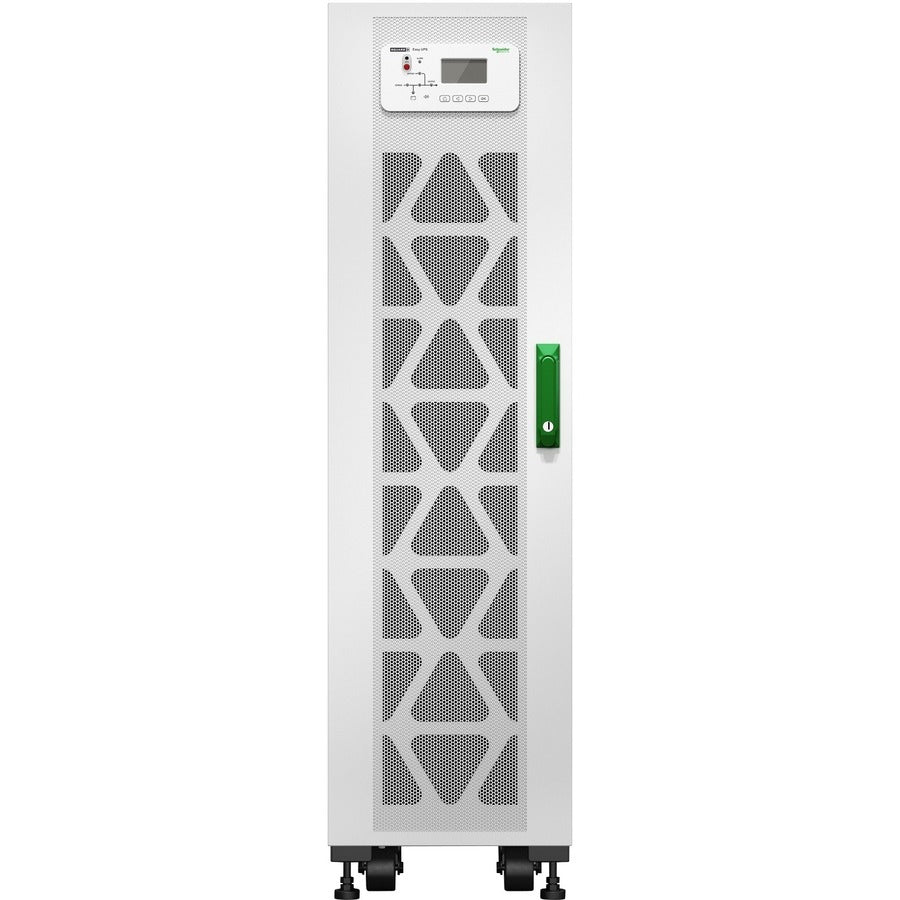

The APC Easy UPS 3S 20kVA 208V is a high-efficiency 3-phase uninterruptible power supply designed for small to medium businesses requiring reliable power protection. Engineered with a robust electrical design, this unit simplifies installation, operation, and service. Ideal for electrical rooms and data centers, it includes a dust filter and conformal-coated boards for enhanced durability in harsh environments. Supplied without batteries, it allows customizable runtime. Includes 5x8 factory start-up service for seamless deployment.
| Category | Details |
|---|---|
| Model | E3SUPS20KFBS |
| Brand | APC by Schneider Electric |
| Product Type | Uninterruptible Power Supply (UPS) |
| Range | Easy UPS 3S |
| Power Rating | 20 kVA / 20 kW |
| Input Voltage | 208V / 220V 3-phase |
| Output Voltage | 208V / 220V 3-phase |
| Input Frequency | 40–70 Hz |
| Output Frequency | 50/60 Hz (sync to mains) |
| Efficiency | High efficiency with double-conversion topology |
| Bypass Type | Built-in Static Bypass |
| Battery Type | Internal modular (batteries not included) |
| Battery Voltage | ±120V |
| End-of-Discharge Voltage | ±96V |
| Max Input Current/Phase | 61 A |
| Short Circuit Withstand | 10 kA |
| Load Power Factor | 0.7 leading to 0.7 lagging (no derating) |
| Overload Capacity | 125% for 10 min / 150% for 60 sec |
| Control Panel | Touch Screen LCD |
| Color | White (RAL 9003) |
| Dimensions (H x W x D) | 55.12 x 14.96 x 37.80 in |
| Net Weight | 291.01 lb (132 kg) |
| Operating Temp | 32–104°F (0–40°C) |
| Relative Humidity | 0–95%, non-condensing |
| Altitude (Operation) | 0–4921 ft (0–1500 m) |
| Noise Level | 68 dBA |
| IP Rating | IP20 |
| Certifications | UL 1778, IEC 62040-2/3, FCC Part 15 Class B |
| Warranty | 1-year on-site repair with authorized start-up |
| GTIN | 731304433699 |
| Shipping Dimensions (LWH) | 31.5 x 47.2 x 62.8 in |
| Shipping Weight | 363.8 lb (165 kg) |
