Description

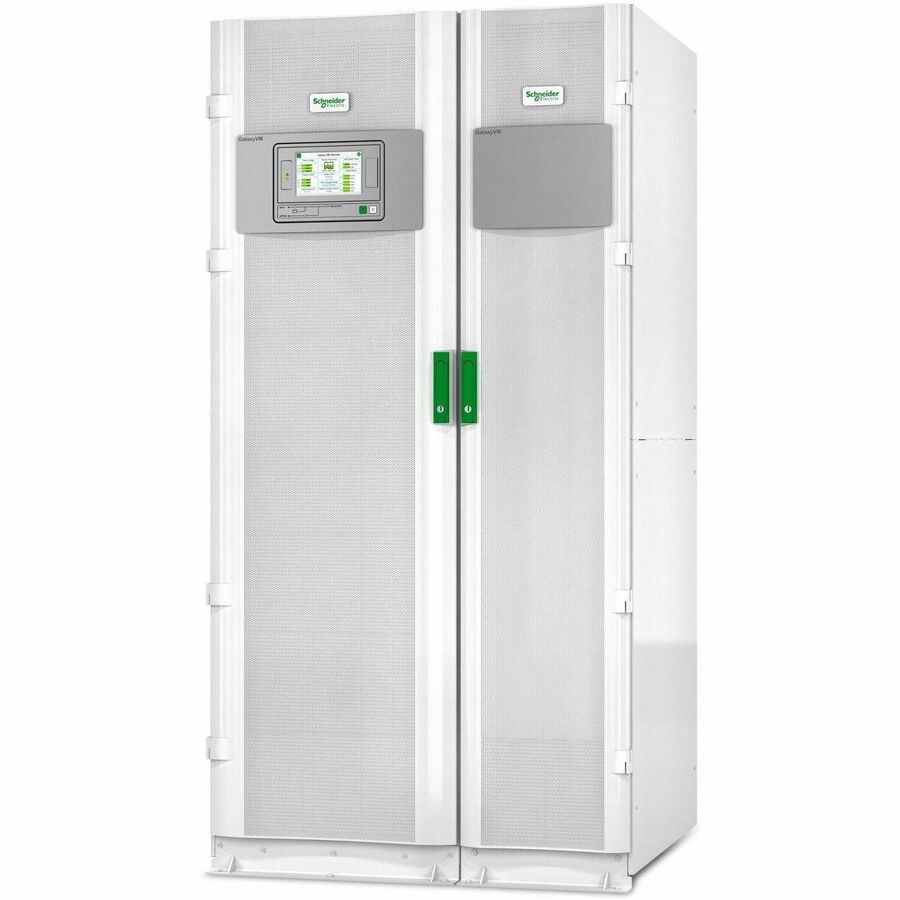

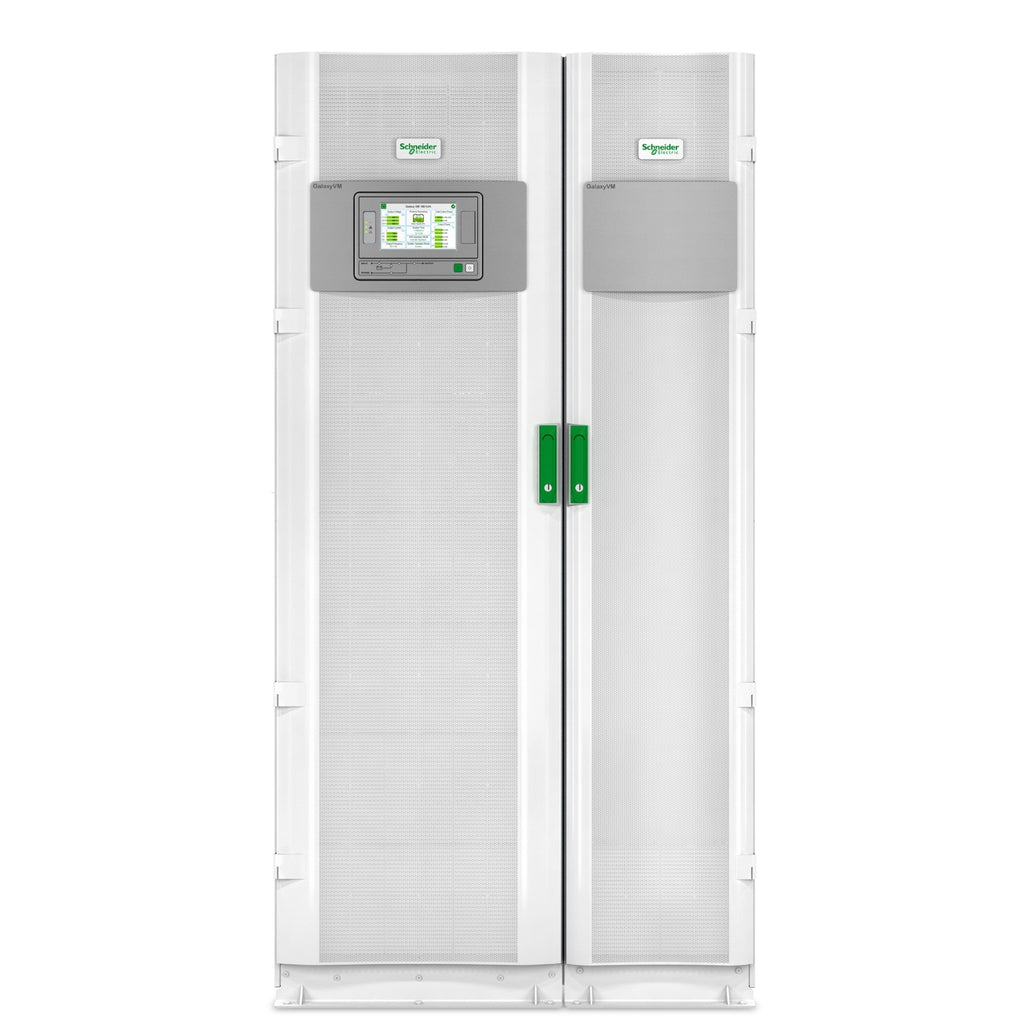

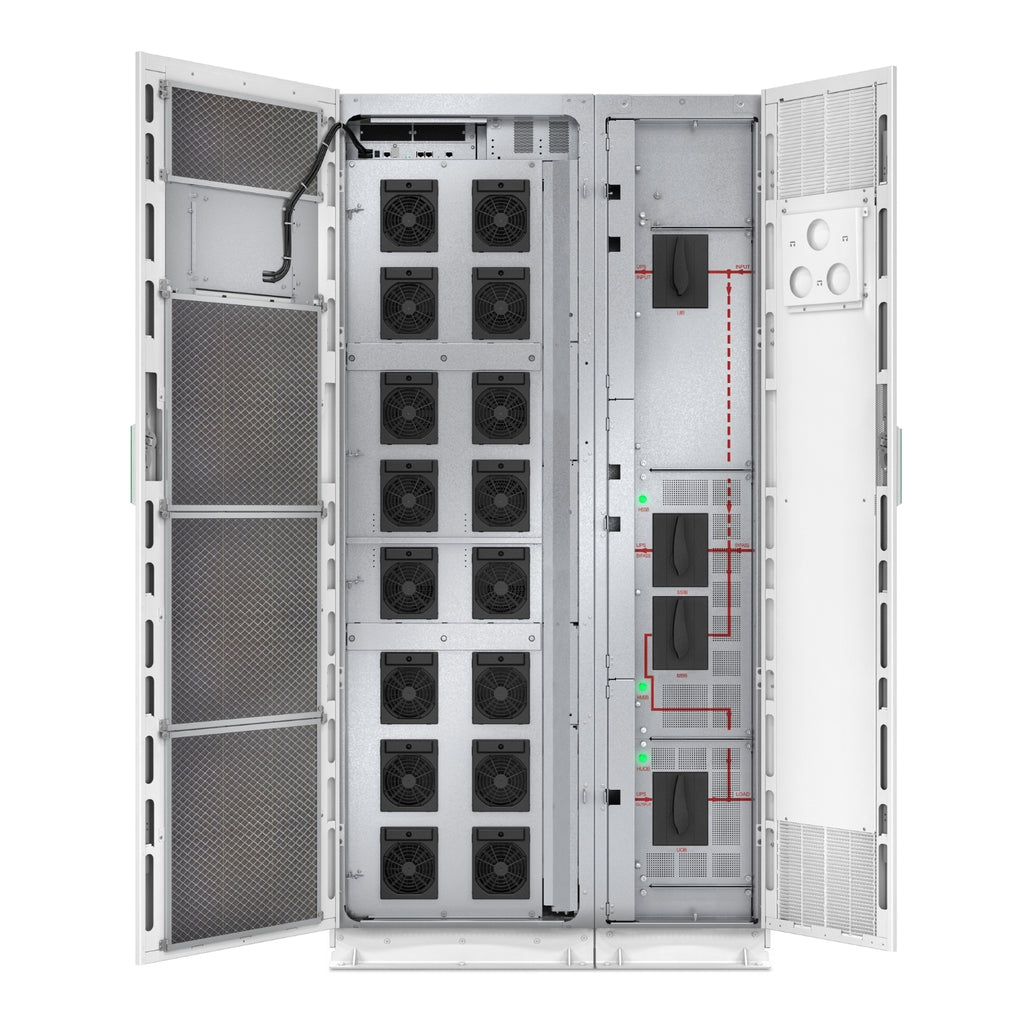

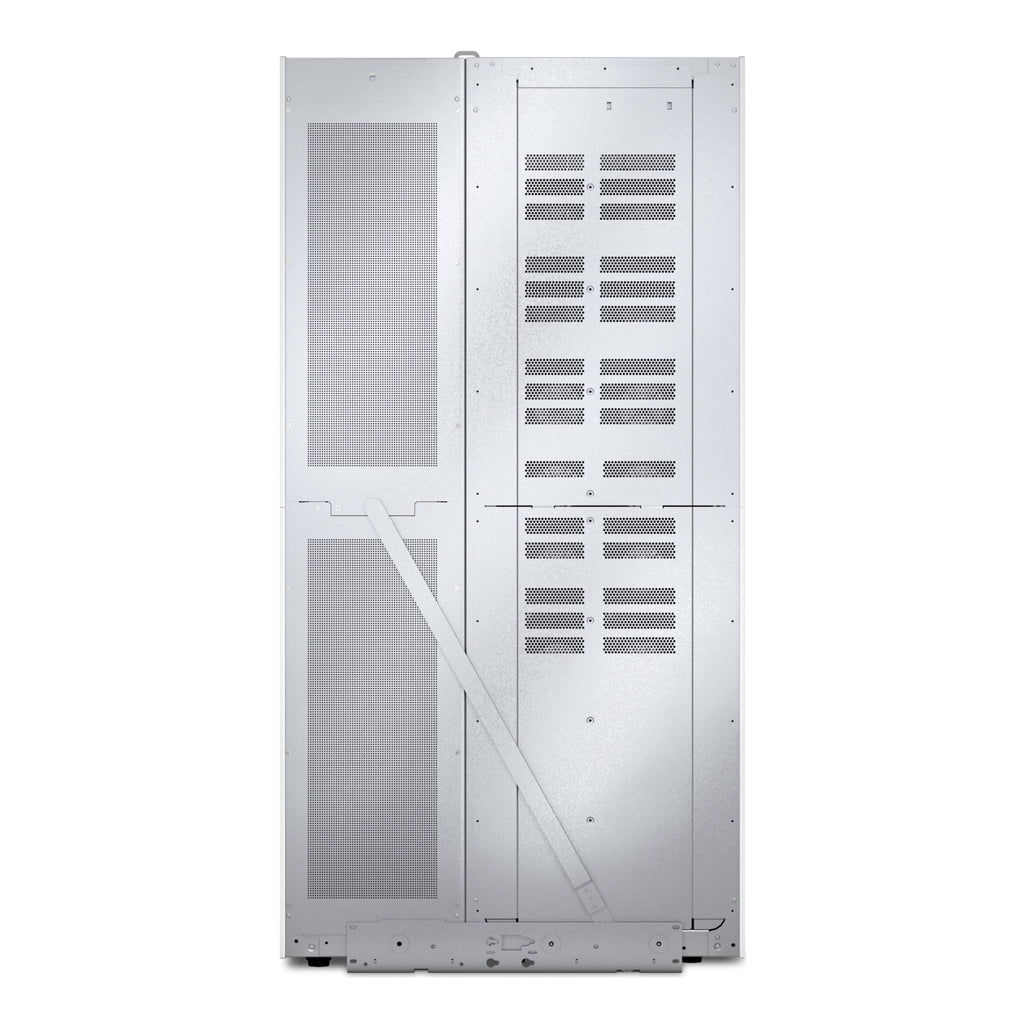

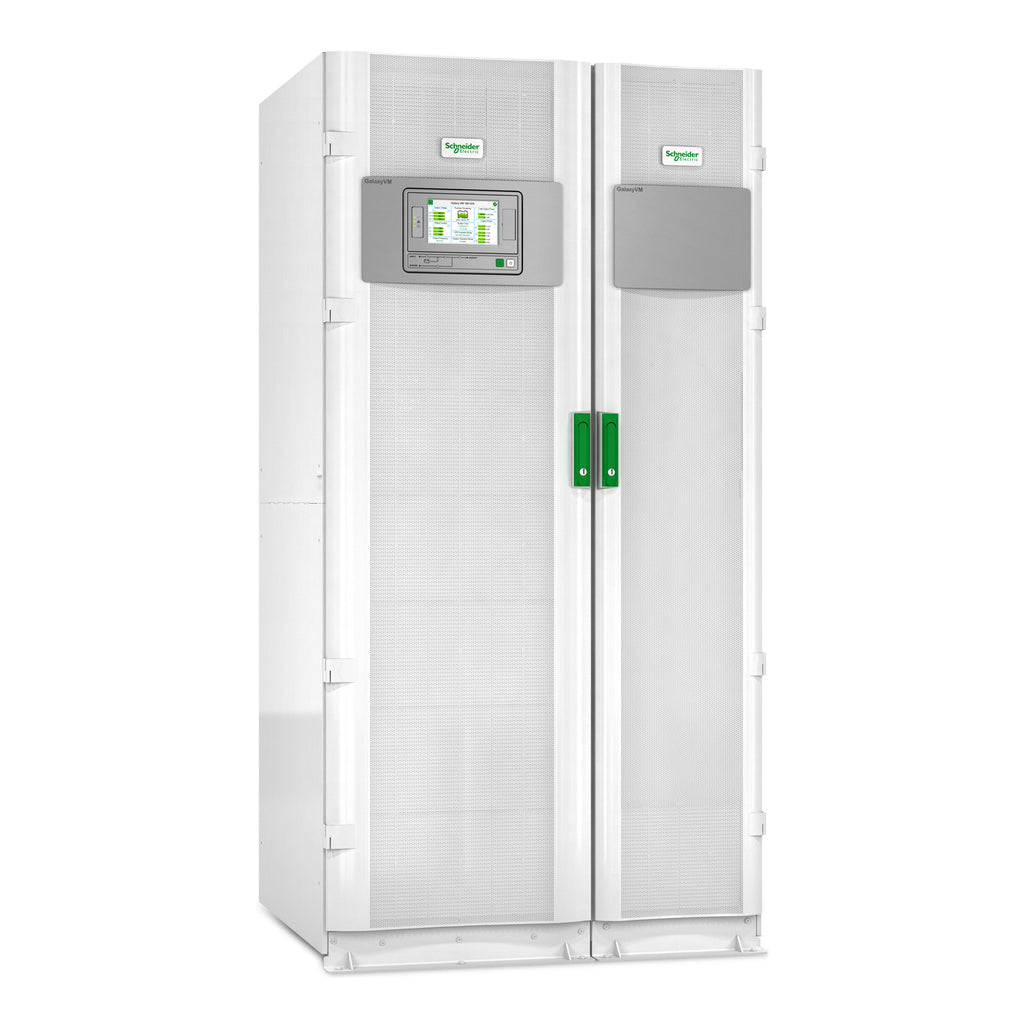

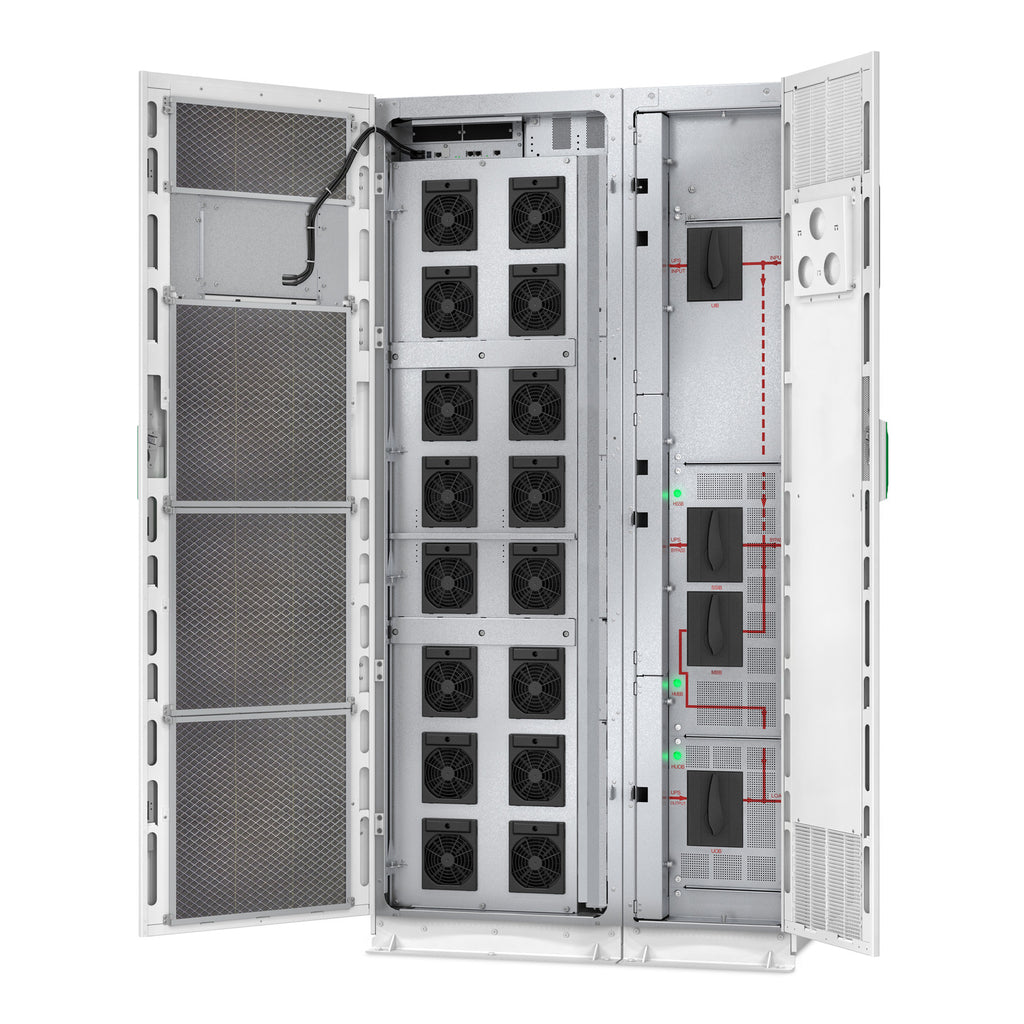

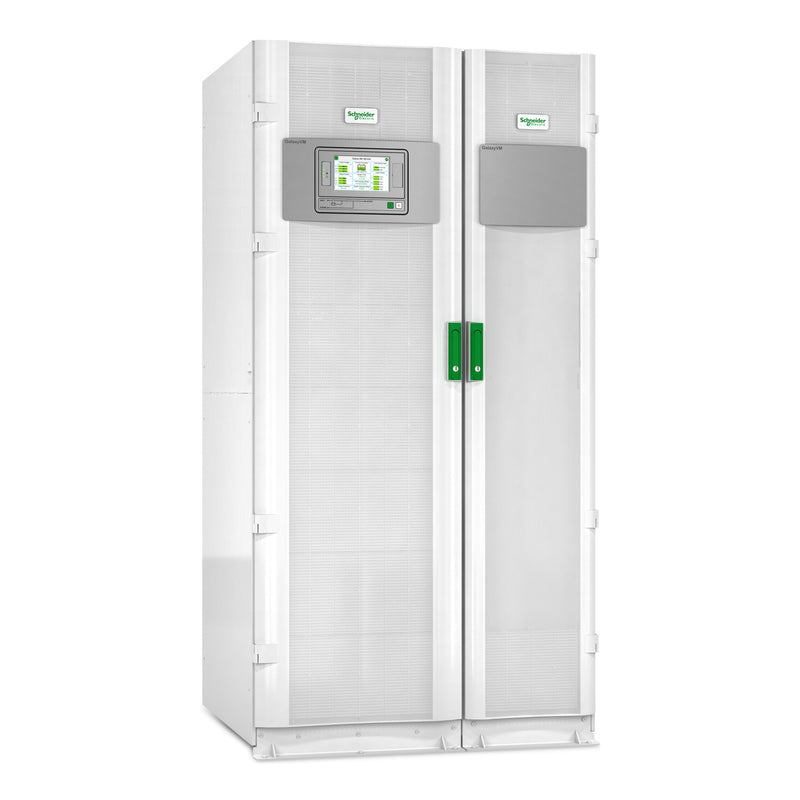

The Schneider Electric Galaxy VM GVMPB160KHS is a highly compact, energy-efficient 160 kVA 3-phase UPS system designed for data centers, industrial operations, and critical facility applications. Operating at 400V with parallel capability and built-in backfeed protection, this model ensures robust power continuity. It features a wide input range, low harmonic distortion, and a high output power factor. This system supports external battery cabinets and comes with an integrated network management interface, seismic compliance, and user-friendly 7" touchscreen controls. Includes 5x8 Start-up service.
| Specification | Details |
|---|---|
| SKU | GVMPB160KHS |
| Power Rating | 160 kVA / 144 kW |
| Input Voltage Range | 250–600 V adjustable; nominal 400 V (3-phase) |
| Output Voltage | 400 V 3-phase (380V and 415V compatible) |
| Battery Type | External Battery System |
| Input Harmonic Distortion | < 3% at full load |
| Output Harmonic Distortion | < 2% (linear load), < 3% (non-linear load) |
| Efficiency | High efficiency, optimized design |
| Waveform | Pure Sine Wave |
| Bypass Type | Built-in Static Bypass |
| Cooling | Internal fans |
| Display | 7" Touchscreen Display |
| Communication | Integrated network management, Modbus adapter |
| Protection Features | Backfeed protection, seismic compliance |
| Mounting | Floor-standing |
| Dimensions (H x W x D) | 1970 x 1052 x 854 mm |
| Weight | 699 kg |
| IP Rating | IP20 |
| Environmental | 0–40 °C, 0–95% RH, max altitude 3333 ft |
| Compliance | CE, UL 1778, ETL, VFI-SS-111, IBC 2012, OSHPD |
| Warranty | 1-Year On-site with Factory Authorized Start-up |
