Description

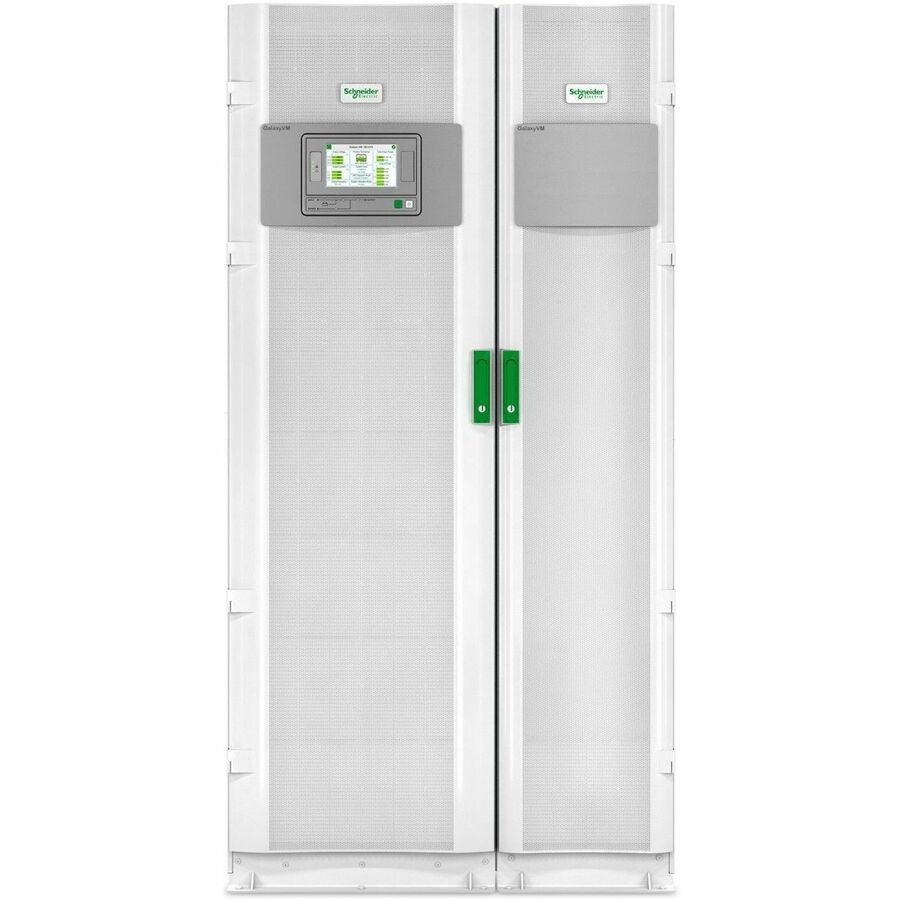

The Schneider Electric Galaxy VM GVMSB160KHS is a highly compact, energy-efficient 160kVA three-phase uninterruptible power supply (UPS) engineered for data centers, industrial, and facility environments. Operating at 400V input/output with integrated backfeed protection, it features external battery support, top/bottom cable entry, and a robust network management interface. This model includes factory-authorized Start-Up (5x8) and delivers exceptional efficiency, reliability, and sustainability compliance.
| Specification | Details |
|---|---|
| Brand / Series | Schneider Electric / Galaxy VM |
| Model Number | GVMSB160KHS |
| Power Capacity | 160 kVA / 144 kW |
| Input Voltage / Frequency | 400V 3-Phase / 40–70 Hz |
| Output Voltage Options | 400V / 380V / 415V 3-Phase |
| Waveform Type | Pure Sine Wave |
| Backfeed Protection | Included |
| Battery Type | External battery system (not included) |
| Battery Voltage | 480V (Discharge: 384V) |
| Efficiency | High-efficiency design (see energy graph) |
| Output Harmonic Distortion | <2% (linear load), <3% (non-linear load) |
| Crest Factor | Unlimited |
| Start-Up Service | Included (Factory Authorized, 5x8) |
| Input/Output Connection | Hard wire 3P+E and 3P+N+E |
| Bypass Type | Built-in static bypass |
| Interface | 7" Touchscreen Display, Modbus, Network Mgmt |
| Physical Dimensions (HxWxD) | 1970 x 1052 x 854 mm |
| Weight | 699 kg (UPS only) / 744.5 kg (with packaging) |
| Enclosure Protection Rating | IP20 |
| Operating Temp. / Humidity | 0–40°C / 0–95% RH |
| Certifications | CE, UL1778, IEC 62040, OSHPD, IBC 2012 |
| Warranty | 1-Year On-Site Repair or Replace w/ Start-Up Included |
