Description

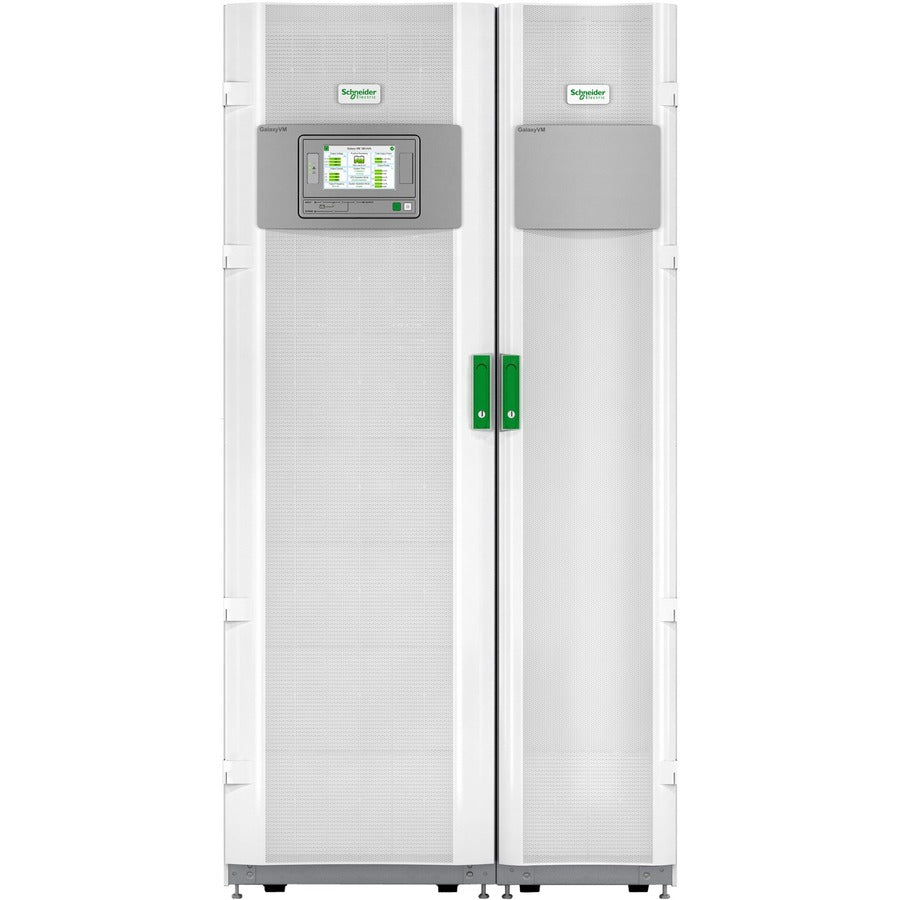

The Schneider Electric Galaxy VM GVMPB225KG65S is a high-performance 225 kVA uninterruptible power supply (UPS) designed for data centers, industrial, and facility power applications. With a 65kAIC short circuit withstand rating, parallel capability, and optimized energy efficiency, this 3-phase UPS provides robust protection and reliable power continuity. Featuring top and bottom cable entry, seismic compliance, and ENERGY STAR® certification, it offers a compact, eco-conscious solution with industry-standard safety and performance compliance. Includes 5x8 Start-Up Service for fast commissioning and peace of mind.
| Specification | Details |
|---|---|
| Model | GVMPB225KG65S |
| Power Capacity | 225 kVA / 202.5 kW |
| Input Voltage | 480V 3-phase |
| Output Voltage | 480V 3-phase |
| Input Frequency | 40–70 Hz |
| Efficiency (Full Load) | 95.5% |
| Max Short Circuit Withstand | 65 kA |
| Bypass Type | Built-in Static Bypass |
| Overload Capacity | 60 sec @ 125%, 30 sec @ 150% |
| Battery System | External batteries (not included) |
| Battery Voltage | 480V nominal / 384V end of discharge |
| Battery Life Expectancy | 7–10 years |
| Certifications | UL 1778, cUL Listed, ENERGY STAR V2.0, FCC A |
| Control Interface | 7" Touchscreen Display |
| Dimensions (H x W x D) | 1970 x 1002 x 854 mm (77.56 x 39.45 x 33.62 in) |
| Weight | 704 kg (1552 lb) |
| Start-Up Service Included | 5x8 Business Hours Start-Up |
| Environmental Rating | IP20, 0–40°C Operating Temp, 0–95% RH |
| Mounting/Entry | Floor-standing, Top and Bottom Cable Entry |
