Description

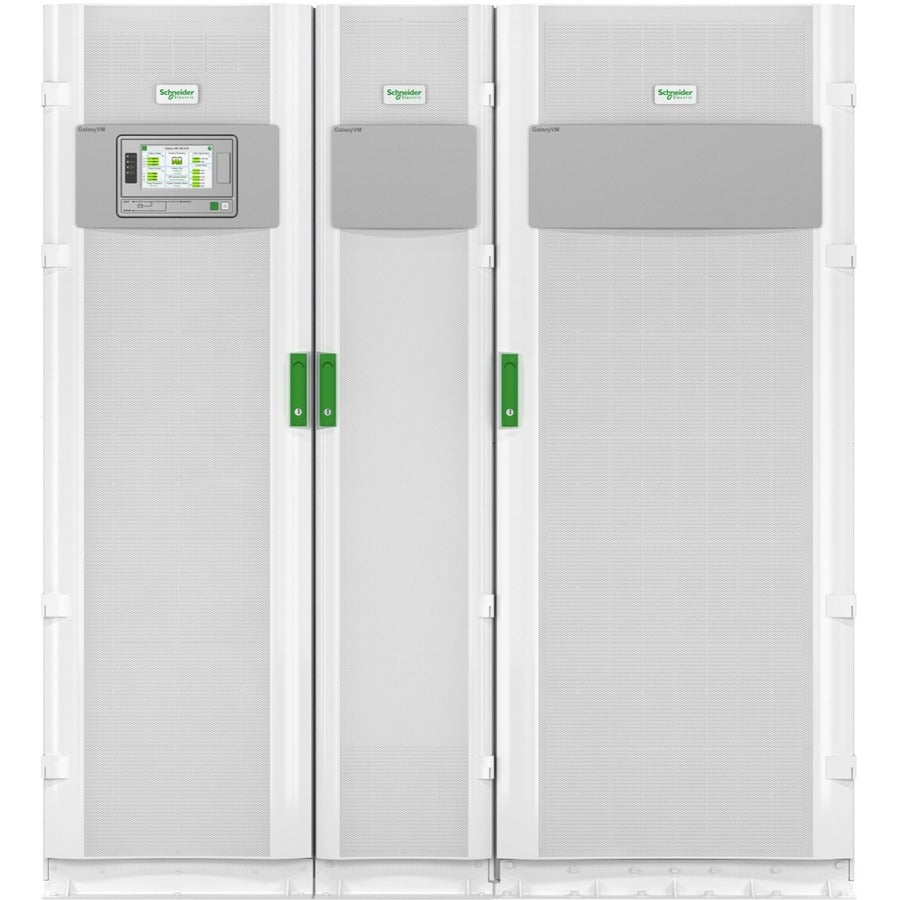

The Schneider Electric Galaxy VM GVMS225KGF65S is a compact, energy-efficient 3-phase UPS designed for critical infrastructure in data centers, industrial sites, and commercial facilities. Delivering 225 kVA (202.5 kW) of reliable power with integrated 480V to 208V transformation and built-in static bypass, it ensures uninterrupted operation during power disturbances. The system supports external batteries and includes start-up service (5x8), seismic compliance, and advanced network management.
| Specification | Details |
|---|---|
| Model | GVMS225KGF65S |
| Power Capacity | 225 kVA / 202.5 kW |
| Input Voltage | 480V 3-phase |
| Output Voltage | 208V 3-phase |
| Frequency | 40–70 Hz input / 50/60 Hz output |
| Efficiency | Up to 95.5% (battery operation) |
| Short-Circuit Withstand | 65 kAIC |
| Overload Capacity | 60 sec @ 125%, 30 sec @ 150% |
| Battery Type | External (480V nominal, 384V end-of-discharge) |
| Integrated Transformer | Yes (480–208V) |
| Cooling & Protection | Top/bottom cable entry, seismic compliance |
| User Interface | 7" touch screen display |
| Dimensions (H x W x D) | 77.56 x 41.73 x 33.62 in (197 x 106 x 85.4 cm) |
| Weight | 4,135 lbs (1,875.6 kg) |
| Certifications | UL 1778, FCC Part 15 Class A, cUL, EN/IEC 62040-3 |
| Warranty | 1 Year On-site Repair or Replace w/ Start-up |
