Description

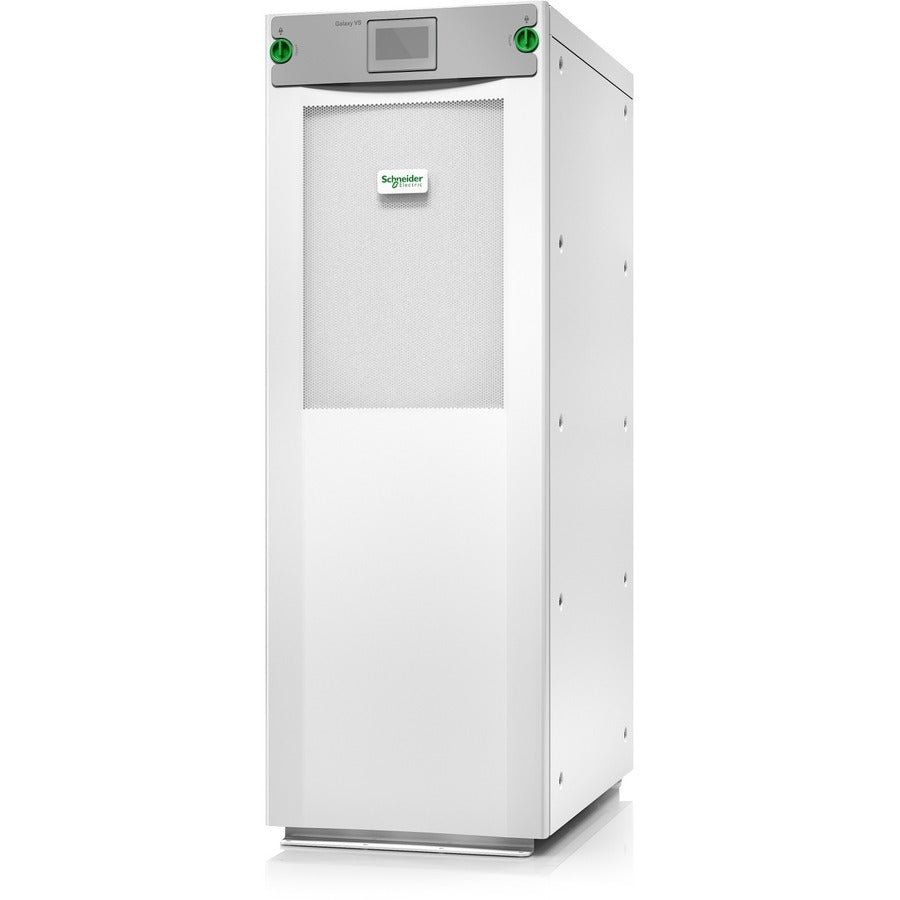

The Schneider Electric Galaxy VS GVSUPS100KRHS is a highly efficient, modular 100kW 3-phase UPS system engineered for critical applications in edge, small, and medium data centers, as well as industrial and commercial environments. With 400V output and support for external batteries, it features N+1 power module redundancy and integrated EcoStruxure IT connectivity. Delivering up to 97% efficiency in double conversion mode and 99% in ECOnversion, it ensures superior energy savings and availability. Includes factory-authorized 5x8 start-up service.
| Specification | Details |
|---|---|
| Model | GVSUPS100KRHS |
| UPS Type | Three-Phase Online Double Conversion |
| Power Capacity | 100 kW / 100 kVA |
| Input Voltage | 400V (3-phase); also supports 380V & 415V |
| Output Voltage | 400V (3-phase) |
| Efficiency | Up to 97% (Double Conversion); 99% (ECOnversion) |
| Battery Type | External VRLA or Li-ion |
| Battery Voltage Range | 480–576 VDC |
| End of Discharge Voltage | 384 VDC |
| Redundancy | N+1 Power Module Redundancy |
| Overload Capability | 10 min @ 125%; 60 sec @ 150% |
| Output Waveform | Pure Sine Wave |
| THD (Total Harmonic Distortion) | <1% linear load; <5% non-linear load |
| Input Harmonic Distortion | <3% at full load |
| Operating Temperature | 0 to 40°C (32 to 104°F) |
| Humidity | 0–95% RH, non-condensing |
| Altitude | 0–3300 ft for operation |
| Noise Level | 68 dBA |
| Bypass | Static Bypass Built-in |
| Communication | Integrated Network Management; LCD Touchscreen |
| Color | White |
| Dimensions (H x W x D) | 58.46 x 20.51 x 33.35 in (148.5 x 52.1 x 84.7 cm) |
| Weight | 639.3 lbs (290 kg) |
