Description

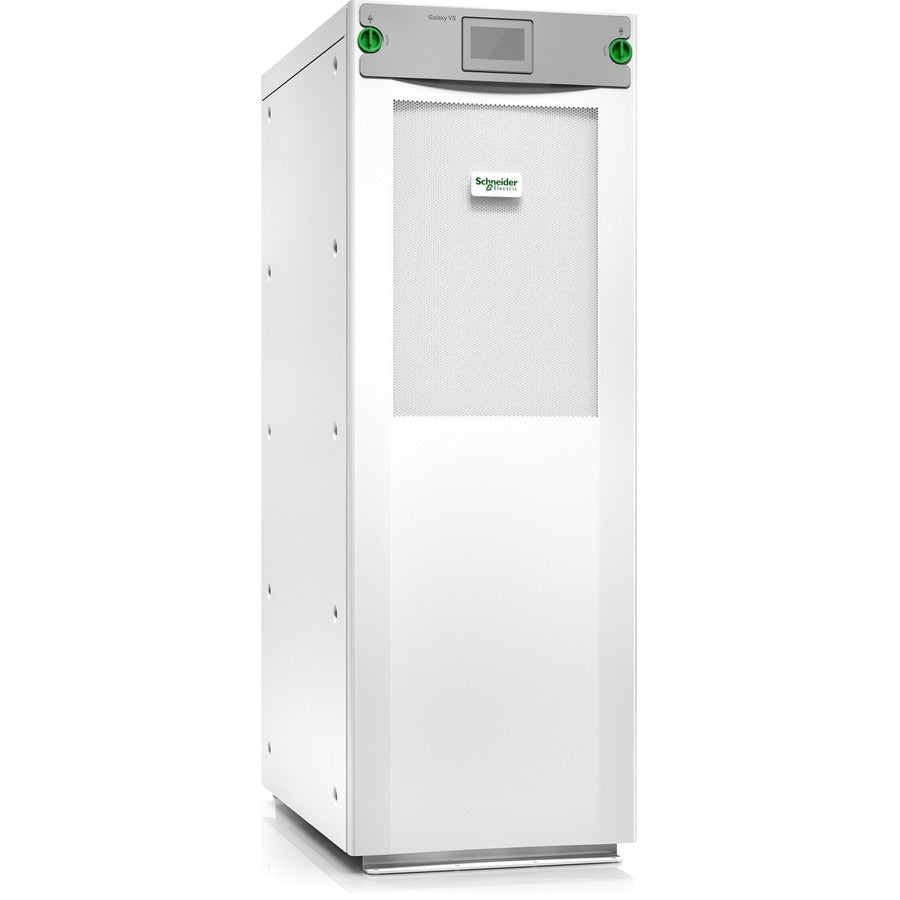

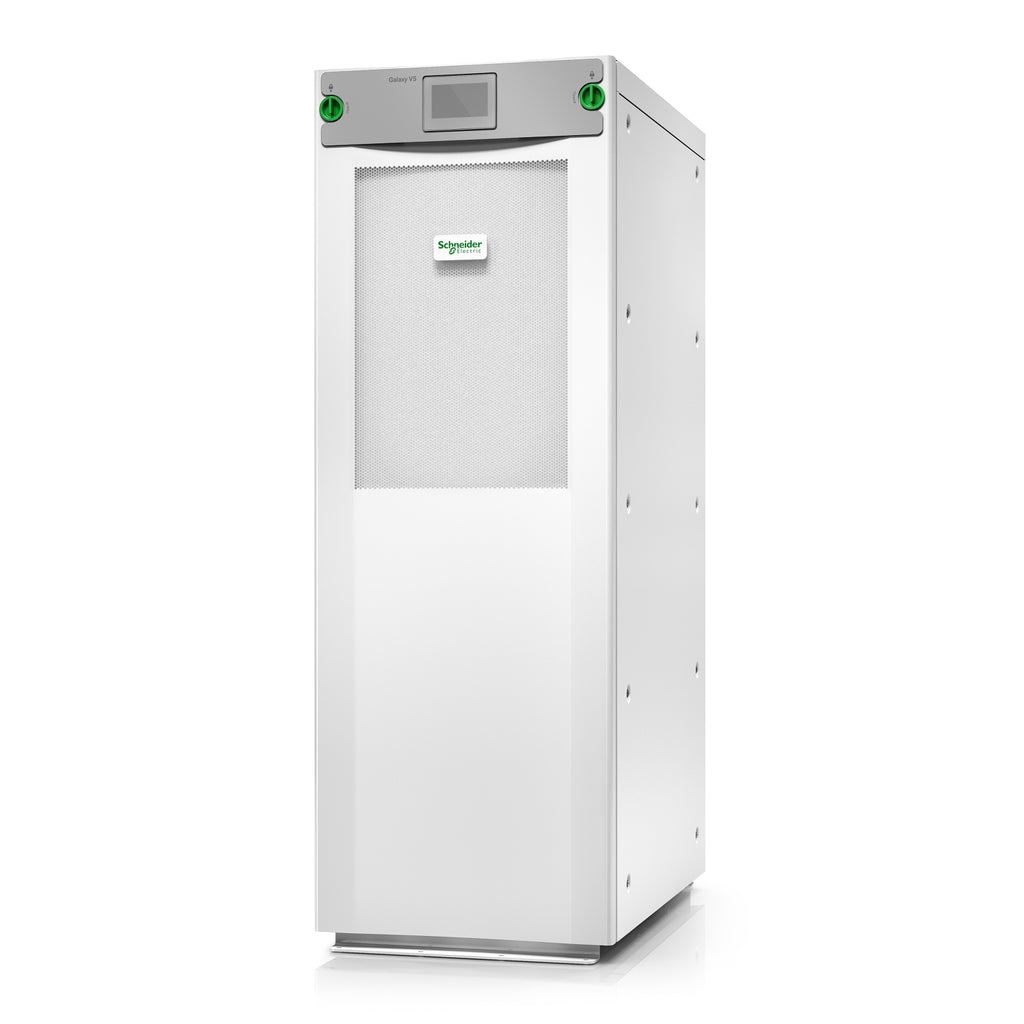

The APC Galaxy VS 10kW UPS is a compact, high-performance 3-phase uninterruptible power supply designed for edge, small, and medium data centers as well as critical commercial and industrial infrastructure. Operating at 208V, it supports up to four smart modular 9Ah battery strings (not included), allowing customized runtime configurations. Engineered for maximum efficiency (up to 97% in double conversion, 99% in ECOnversion), it features EcoStruxure Ready monitoring, integrated network management, and a built-in static bypass. The system comes with a 5x8 start-up service to ensure optimized installation and operation.
| Category | Details |
|---|---|
| Product Type | Uninterruptible Power Supply (UPS) |
| Series | Galaxy VS |
| SKU | GVSUPS10K0B4FS |
| Power Capacity | 10 kW / 10 kVA |
| Input Voltage | 208V 3-phase (200V/220V compatible) |
| Output Voltage | 208V 3-phase (200V/220V selectable) |
| Efficiency | Up to 97% (normal), 99% (ECOnversion) |
| Battery Support | Up to 4 internal 9Ah smart modular strings (batteries not included) |
| Battery Type | VRLA |
| Battery Voltage | 480V |
| Battery Current (Max) | 27 A |
| Waveform Type | Sine Wave |
| Output Frequency | 50/60 Hz (sync to mains) |
| Output Voltage THD | <2% linear, <5% non-linear |
| Overload Capacity | 125% for 10 min, 150% for 60 sec |
| Bypass Type | Built-in Static Bypass |
| Control Interface | Touchscreen LCD |
| Connectivity | Integrated Network Management, EcoStruxure Ready |
| Color | White |
| Dimensions (HxWxD) | 58.46 x 20.51 x 33.35 in (148.5 x 52.1 x 84.7 cm) |
| Weight | 440.9 lb (200 kg) |
| Acoustic Noise Level | 55 dBA |
| Protection Rating | IP20 |
| Standards Compliance | UL 1778 5th Ed, IEC 62040-1-1/2/3, FCC Part 15 Class A |
| Operating Temp | 32–104 °F (0–40 °C) |
| Humidity | 0–95% RH (non-condensing) |
| Included Accessories | Dust filter, Installation manual, Network management, Start-up service |
| Warranty | 1-year on-site repair or replace with authorized start-up |
| GTIN | 731304409762 |
