Description

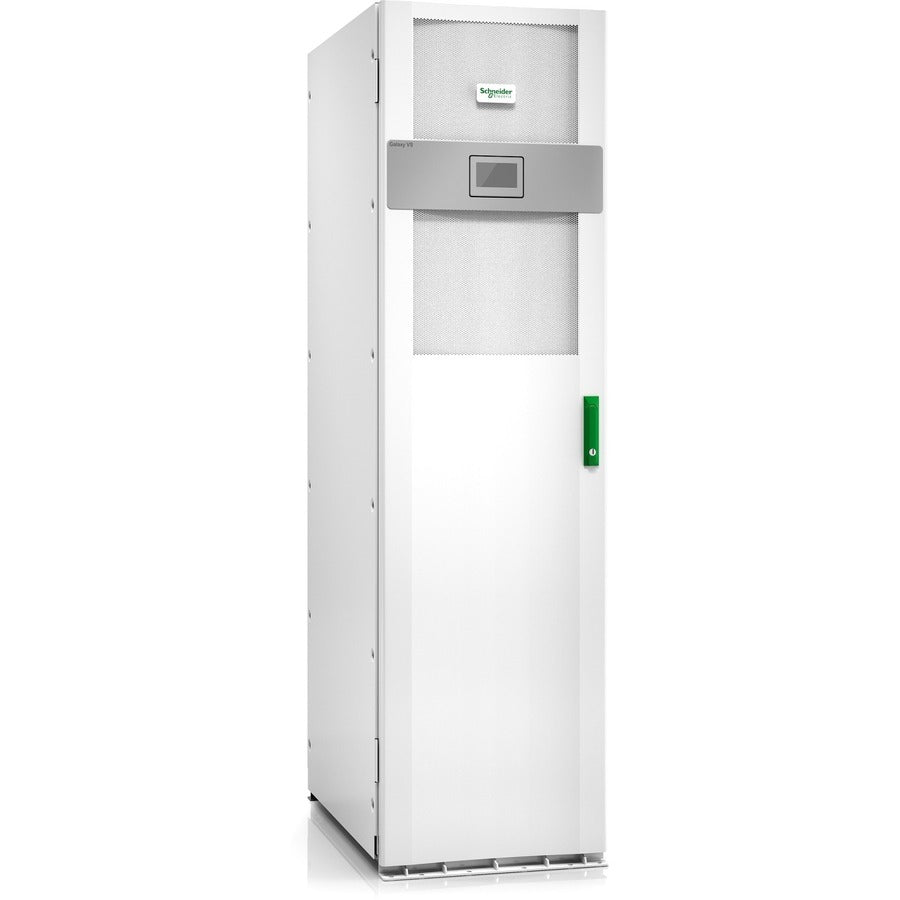

The Galaxy VS UPS 100kW 400V by Schneider Electric is a highly efficient, compact, and scalable three-phase uninterruptible power supply designed for edge, small, and medium data centers, as well as critical commercial and industrial applications. This model includes three internal 9Ah smart modular battery strings, expandable to five, allowing tailored runtime for business continuity.
Equipped with integrated network management, a touchscreen LCD interface, and EcoStruxure-ready capabilities, it offers seamless remote monitoring and superior availability. The UPS comes with a Start-up 5x8 service, ensuring professional commissioning for peace of mind.
| Specification | Details |
|---|---|
| Model Number | GVSUPS100KB5HS |
| Power Capacity | 100 kW / 100 kVA |
| Input Voltage (3-phase) | 400V (380V/415V compatible) |
| Output Voltage | 400V (380V/415V compatible) |
| Battery Type | Internal modular VRLA |
| Battery Strings Installed | 3 x 9Ah smart modular strings |
| Battery Expandability | Up to 5 strings total |
| Bypass Type | Built-in Static Bypass |
| Efficiency | High – Viewable via online efficiency graph |
| Input Frequency Range | 40–70 Hz |
| Output Frequency | 50/60 Hz (sync to mains) |
| Output Waveform | Sine Wave |
| Overload Capacity | 125% for 10 mins, 150% for 60 secs |
| THD (Input/Output) | <3% / <1% linear, <3% non-linear load |
| User Interface | Touchscreen LCD |
| Enclosure Protection Rating | IP20 |
| Dimensions (H x W x D) | 1970 x 550 x 847 mm |
| Weight | 680 kg |
| Included Services | Start-up 5x8, battery modules installed, manuals |
| Warranty | 1-year on-site repair or replace |
