Description

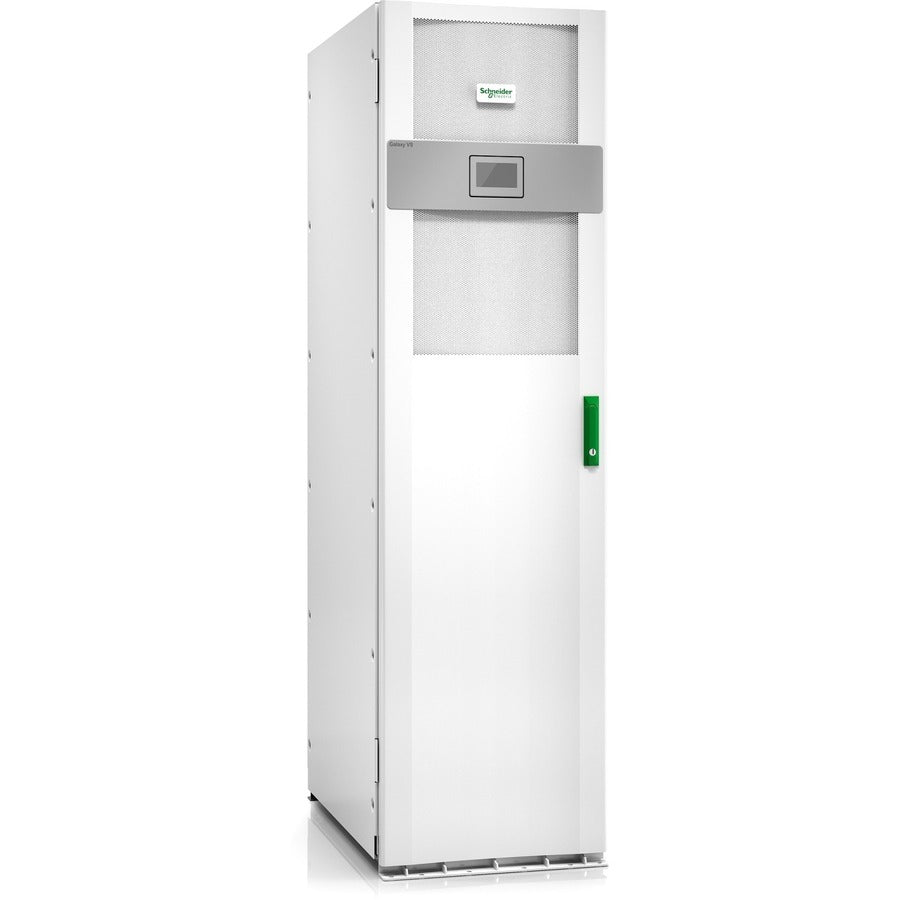

The Schneider Electric Galaxy VS GVSUPS100KB5GS is a high-efficiency, modular 100kW three-phase UPS operating at 480V, designed for mission-critical applications in edge, small, and medium data centers as well as commercial and industrial facilities. This compact system includes three internal 9Ah smart modular battery strings, expandable to five, to meet extended runtime demands. With N+1 architecture, EcoStruxure connectivity, ENERGY STAR® compliance, and up to 99% efficiency in ECOnversion mode, this UPS ensures peak availability and energy savings. Includes 5x8 Start-Up Service for assured commissioning and performance.
| Category | Details |
|---|---|
| Model Number | GVSUPS100KB5GS |
| Power Capacity | 100 kW / 100 kVA |
| Input Voltage | 480V 3-phase |
| Output Voltage | 480V 3-phase |
| Battery Type | Internal modular VRLA (3x 9Ah strings, expandable to 5) |
| Battery Voltage | 480 V (EoD: 384 V DC, Max Current: 271 A) |
| Efficiency | Up to 97% normal mode / Up to 99% ECOnversion mode |
| Input Frequency | 40–70 Hz |
| Input Power Factor | 0.99 |
| THD (Input/Output) | <3% |
| Waveform Type | Pure Sine Wave |
| Overload Capacity | 10 min @ 125%, 60 sec @ 150% |
| Bypass Type | Built-in Static Bypass |
| Interface | Touch Screen LCD |
| EcoStruxure Ready | Yes |
| Certifications | ENERGY STAR V2.0, UL 1778 5th Ed., IEC/CSA/FCC, OSHPD |
| IP Rating | IP20 |
| Operating Temp | 0 to 40°C (32 to 104°F) |
| Dimensions (H x W x D) | 1970 x 550 x 847 mm (77.56 x 21.65 x 33.35 in) |
| Weight | 680 kg (1499.1 lb) |
| Warranty | 1-Year On-Site with Factory Authorized Start-Up |
| Lead Time | Usually ships within 2 weeks |
