Description

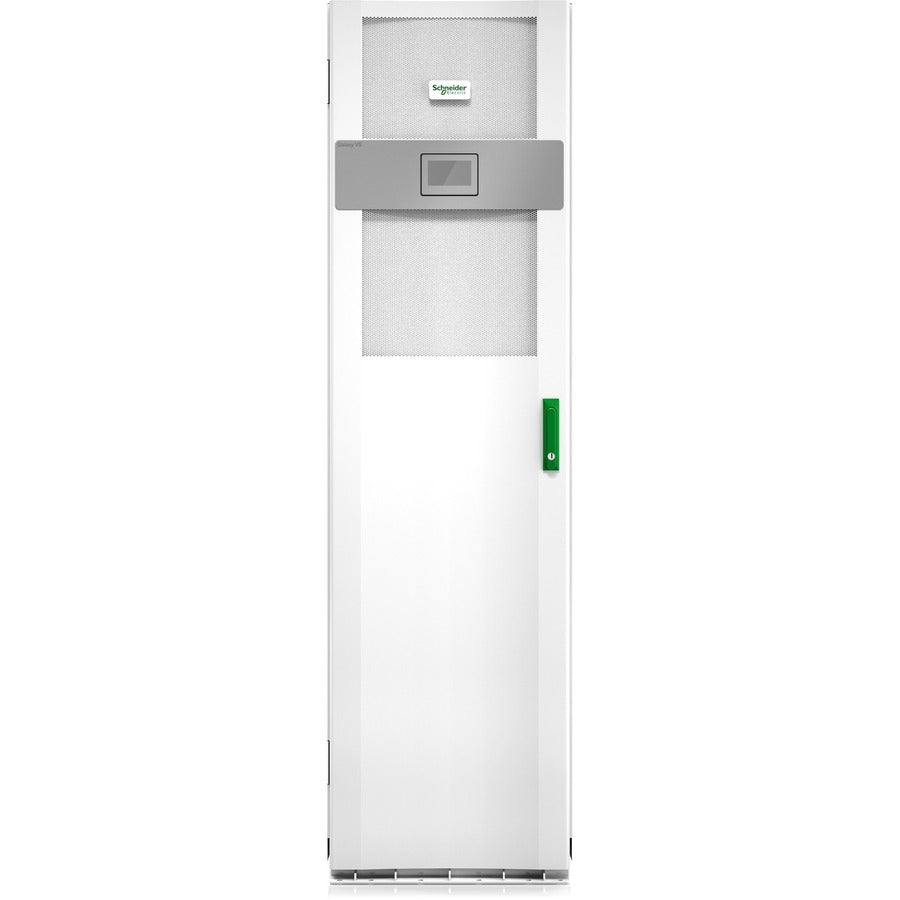

The Schneider Electric Galaxy VS GVSUPS100K0B5HS is a highly efficient, modular 100kW 3-phase UPS designed for small to medium data centers and mission-critical infrastructure. Operating at 400V, this compact tower UPS supports up to 5 internal 9Ah smart modular VRLA battery strings (batteries not included), providing scalable runtime and N+1 redundancy. It features a built-in static bypass, advanced energy-saving modes (up to 99% efficiency), and is EcoStruxure Ready for remote monitoring. Start-up service (5x8) is included to ensure optimal performance.
| Category | Specification |
|---|---|
| Model | GVSUPS100K0B5HS |
| Power Rating | 100 kW / 100 kVA |
| Input Voltage | 400V 3-phase (also supports 380V/415V) |
| Output Voltage | 400V 3-phase (also supports 380V/415V) |
| Input Frequency | 40–70 Hz |
| Output Frequency | 50/60 Hz (sync to mains) |
| Battery Type | Internal modular VRLA (up to 5 battery strings; batteries not included) |
| Battery Voltage | 480V |
| Bypass | Built-in Static Bypass |
| Redundancy | N+1 Capable |
| Efficiency | Up to 97% (Double Conversion), 99% (ECOnversion mode) |
| Form Factor | Tower |
| Control Interface | Touch Screen LCD User Interface |
| Communication | Integrated Network Management, EcoStruxure Ready |
| Dimensions (H x W x D) | 197 cm x 55 cm x 84.7 cm (77.56 in x 21.65 in x 33.35 in) |
| Weight | 250 kg (551.2 lbs) |
| Operating Temp | 0–40°C (32–104°F) |
| Noise Level | 65 dBA |
| Altitude (Operation) | Up to 1,000 m (3,300 ft) |
| Certifications | IEC 62040-1-1, IEC 62040-2, OSHPD |
| Included Services | Dust filter, installation manual, start-up 5x8 |
| Warranty | 1-Year On-Site (Repair or Replace with Start-Up) |
