Description

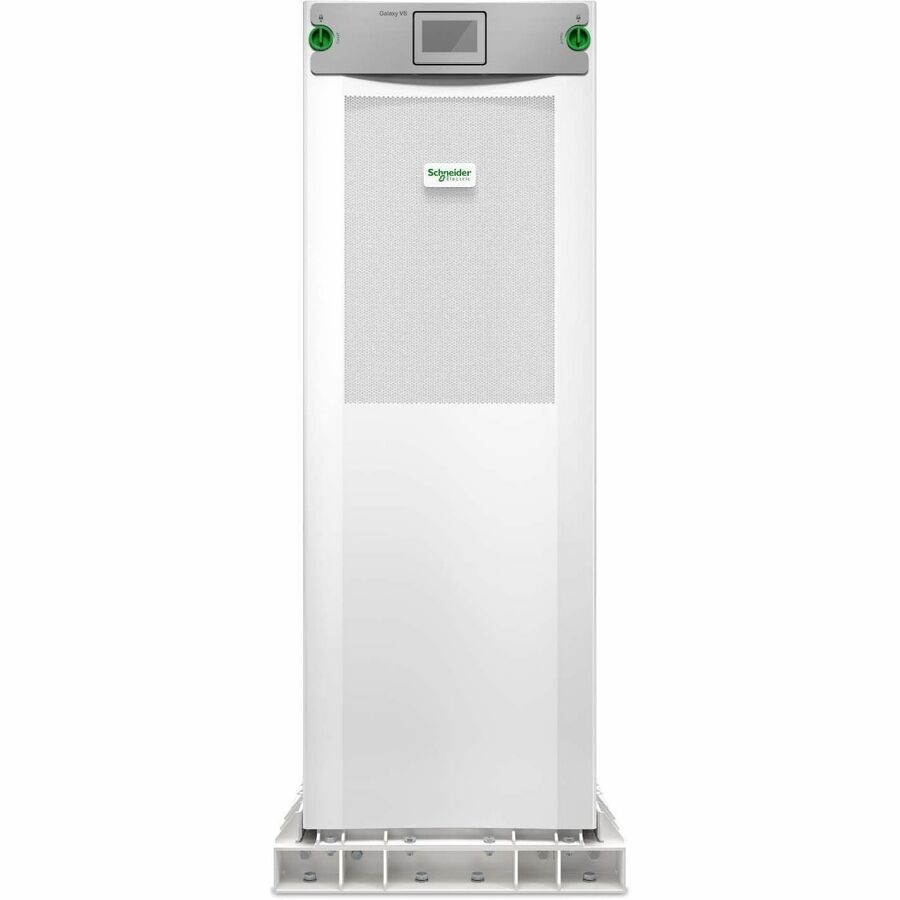

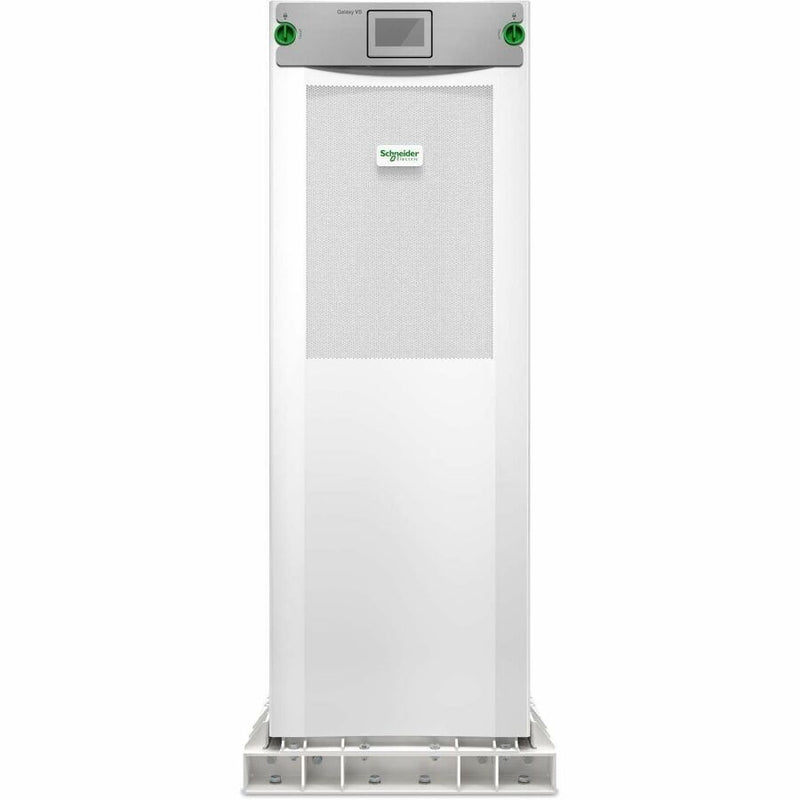

The Galaxy VS GVSUPS100KMHS is a highly efficient 100kW 3-phase UPS designed for demanding commercial and industrial environments. Operating at 400V, it supports external VRLA or lithium-ion battery systems and features halogen-free cables for enhanced safety. This marine-certified solution is ideal for edge, small, and medium data centers, offering EcoStruxure IT readiness and start-up service (5x8) included.
| Category | Details |
|---|---|
| Model | GVSUPS100KMHS |
| Power Rating | 100 kW / 100 kVA |
| Input Voltage | 400V 3-phase (380V / 415V compatible) |
| Output Voltage | 400V 3-phase |
| Input Frequency | 40–70 Hz |
| Output Frequency | 50/60 Hz (sync to mains or ±0.1% free run) |
| Battery Type | External VRLA or Li-Ion |
| Battery Voltage Range | 480–576VDC (End: 384VDC, Max Current: 271A) |
| Efficiency | High efficiency with <3% THDi |
| Output THD | <1% linear / <5% non-linear loads |
| Bypass Type | Built-in Static Bypass |
| Overload Capacity | 125% for 10 min / 150% for 60 sec |
| Redundancy | Not redundant |
| Certifications | Marine Certified, EN/IEC 62040-1, UL 1778, FCC A |
| IP Rating | IP21 |
| Start-Up Service | Included (5x8) |
| Dimensions (HxWxD) | 148.5 cm x 52.1 mm x 84.7 cm |
| Weight | 250 kg (Product), 290 kg (Packaged) |
| Color | White |
| Control Panel | Touchscreen LCD |
| Noise Level | 68 dBA |
| Operating Temp | 0–40°C (32–104°F) |
| Altitude Limit | Up to 3300 ft |
| Warranty | 1 Year On-Site with Factory Authorized Start-Up |
