Description

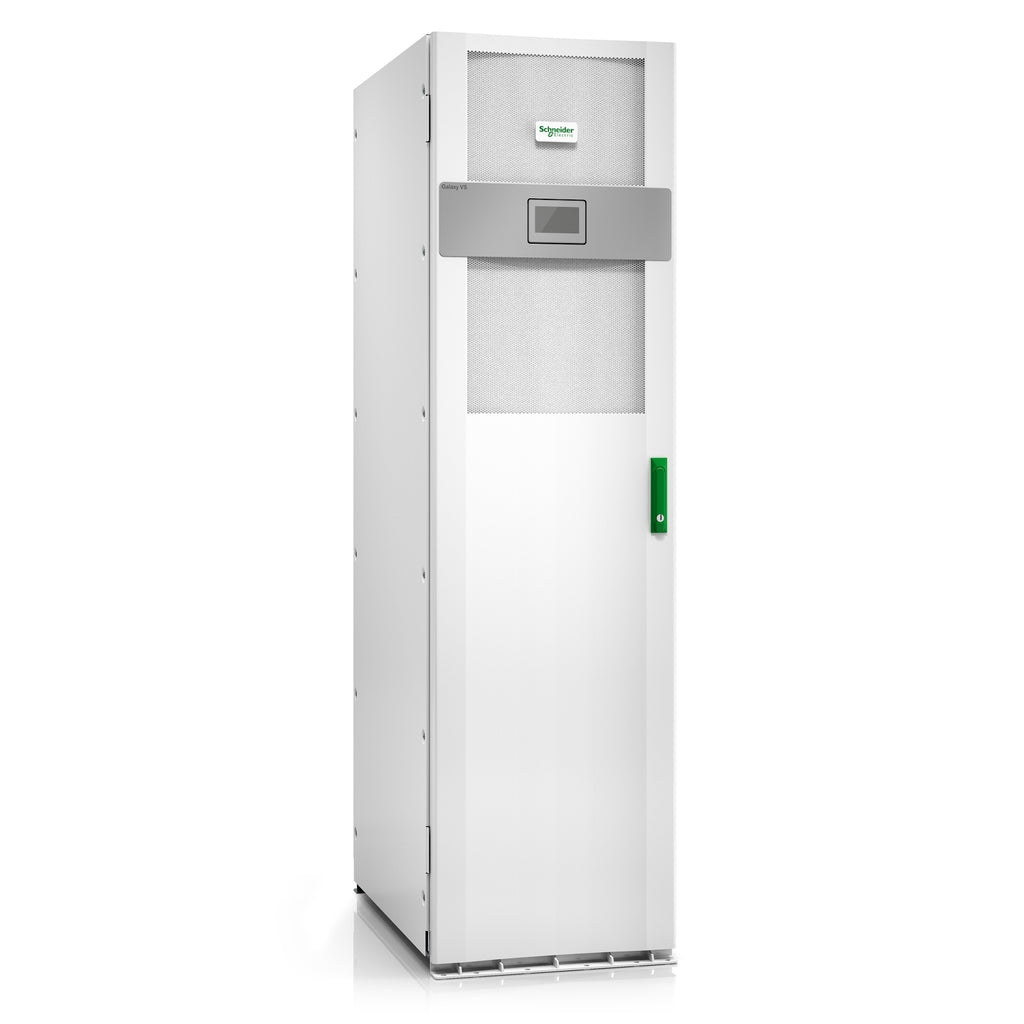

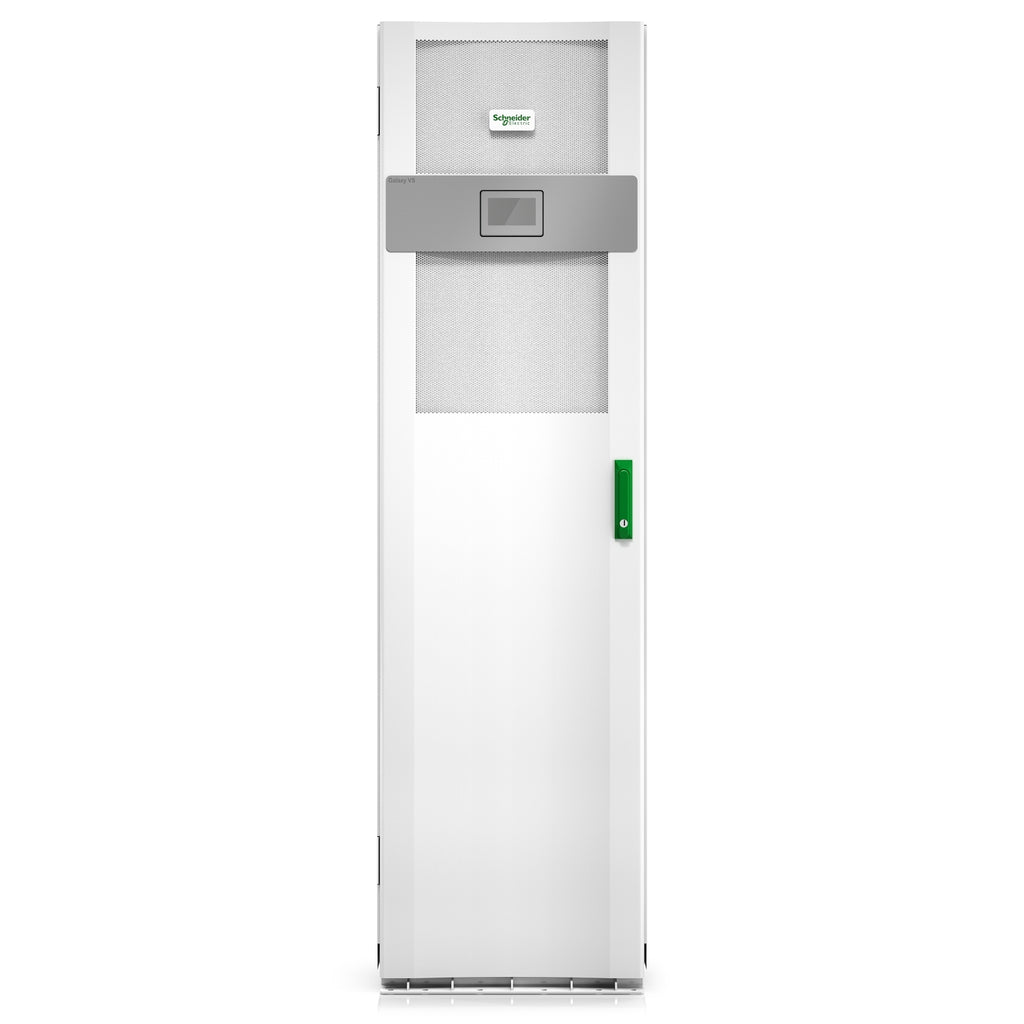

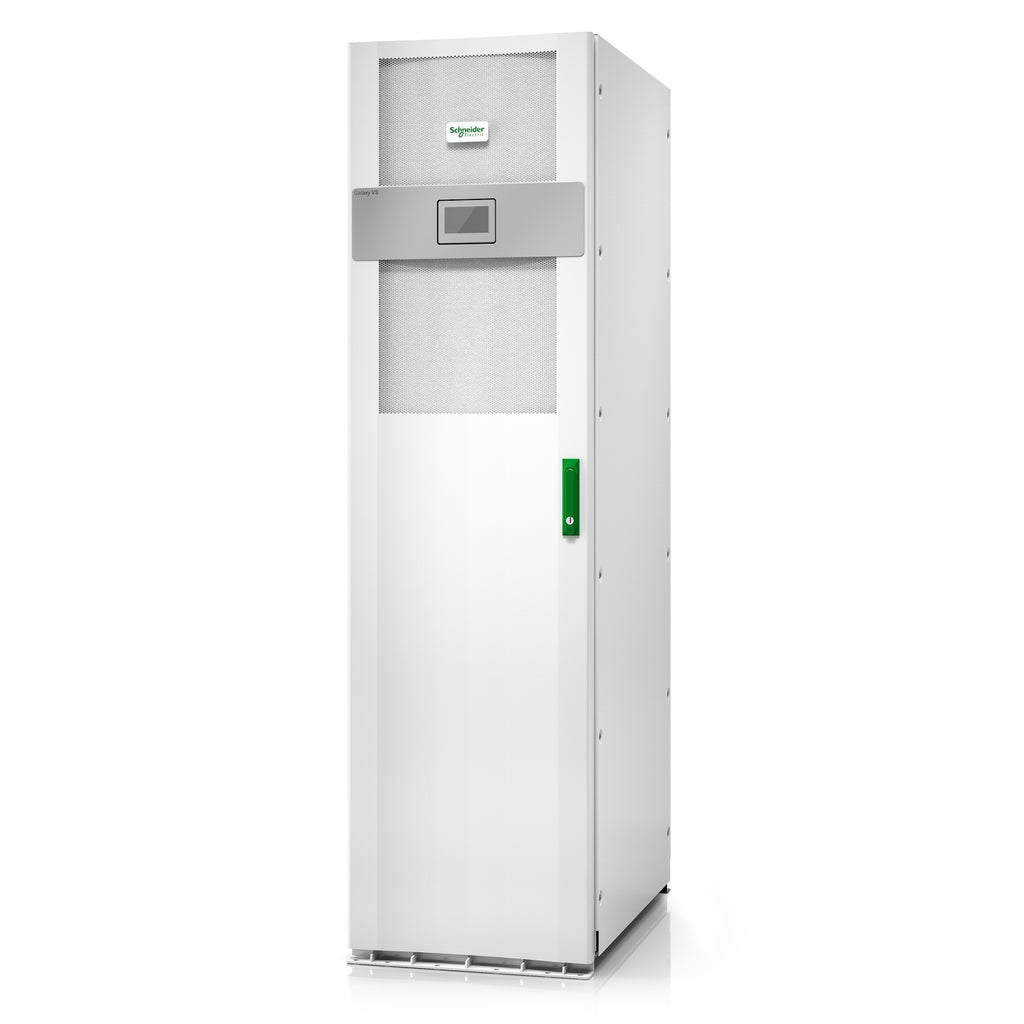

The APC Galaxy VS GVSUPS10KR0B5FS is a high-performance 10kW, 208V three-phase UPS built for edge computing, small and medium data centers, and mission-critical infrastructure. This scalable UPS supports up to 5 smart modular 9Ah battery strings (batteries sold separately), offering tailored runtime options. Featuring N+1 power module redundancy, it ensures continuous uptime even during single module failure. Designed for space-constrained environments, it combines high energy efficiency—up to 97% in double conversion mode and 99% in ECOnversion mode—with a compact footprint. Includes 5x8 factory-authorized start-up service and is EcoStruxure™ Ready for real-time remote monitoring.
| Category | Details |
|---|---|
| Brand | APC by Schneider Electric |
| Model | GVSUPS10KR0B5FS |
| Product Type | 3-Phase Uninterruptible Power Supply (UPS) |
| Power Capacity | 10kW / 10kVA |
| Voltage | Input/Output: 208V 3-Phase (200V / 220V compatible) |
| Redundancy | N+1 Power Module Redundancy |

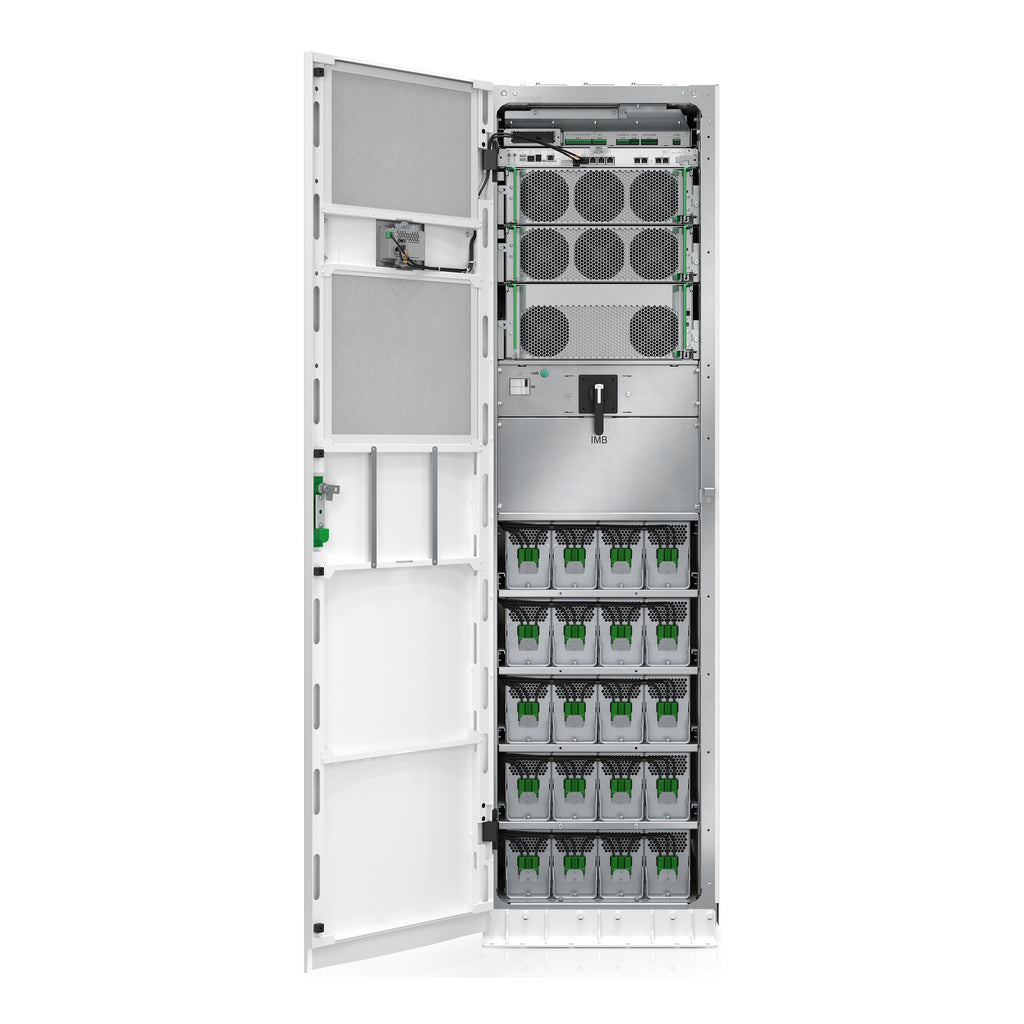

| Battery Support | Up to 5 smart modular 9Ah internal batteries (VRLA) |
| Batteries Included | No – user-configurable runtime |
| Efficiency | Up to 97% in double conversion, 99% in ECOnversion |
| Control Panel | Touch Screen LCD |
| Connectivity | Integrated network management, EcoStruxure Ready |
| Bypass Type | Built-in Static Bypass |
| Form Factor | Tower, Compact Footprint |
| Included Accessories | Dust filter, Installation manual, Start-up 5x8 service |
| Input Frequency | 40–70 Hz |
| Input Power Factor | 0.99 at full load |
| Output Waveform | Pure Sine Wave |
| Overload Capacity | 10 min @ 125%, 60 sec @ 150% |
| Operating Temp | 32–104°F (0–40°C) |
| Humidity (Non-Condensing) | 0–95% |
| Acoustic Noise | 54 dBA |
| Dimensions (HxWxD) | 77.56 x 21.65 x 33.35 in (197 x 55 x 84.7 cm) |
| Weight | 586.4 lb (266 kg) |
| IP Rating | IP20 |
| Certifications | UL 1778, CSA, IEC 62040-1-1/-2/-3, FCC Part 15 Class A, OSHPD |
| Warranty | 1-year on-site with authorized start-up |
| GTIN | 731304409830 |
