Description

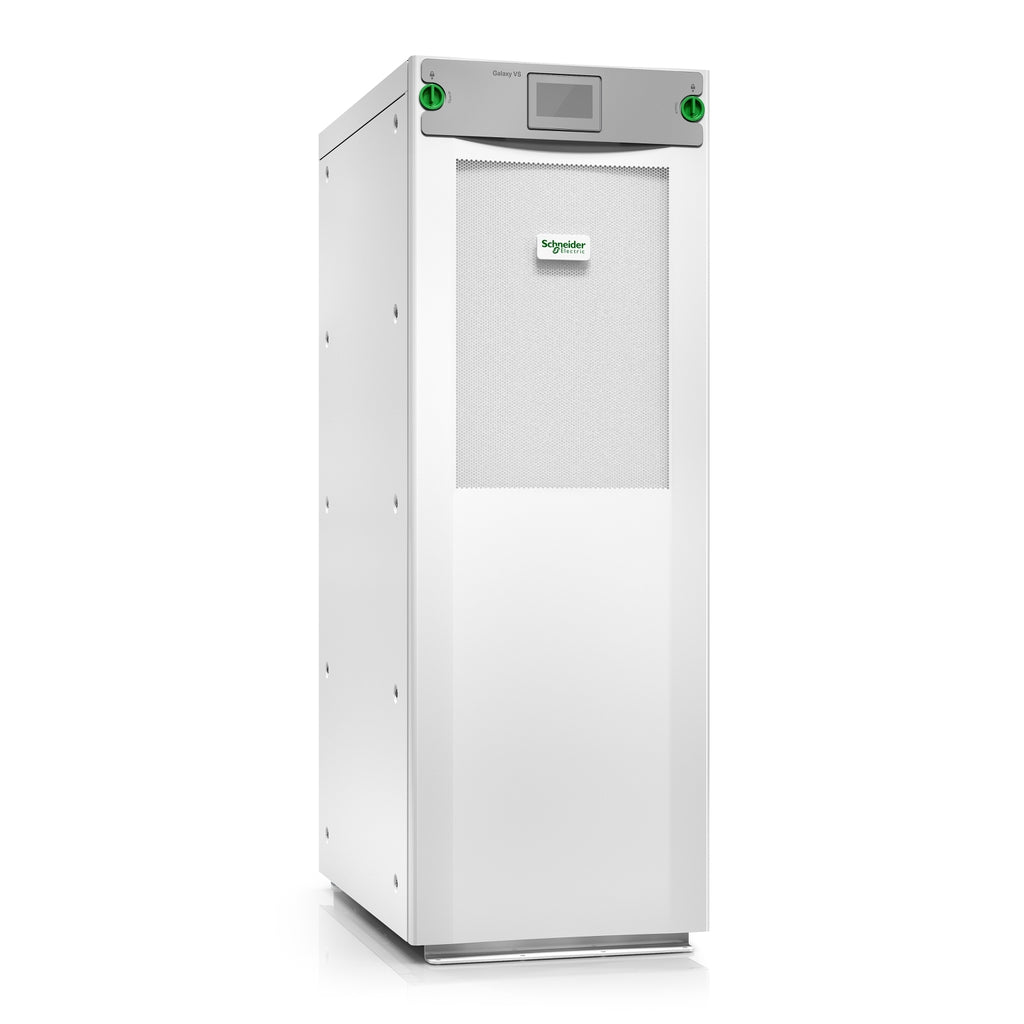

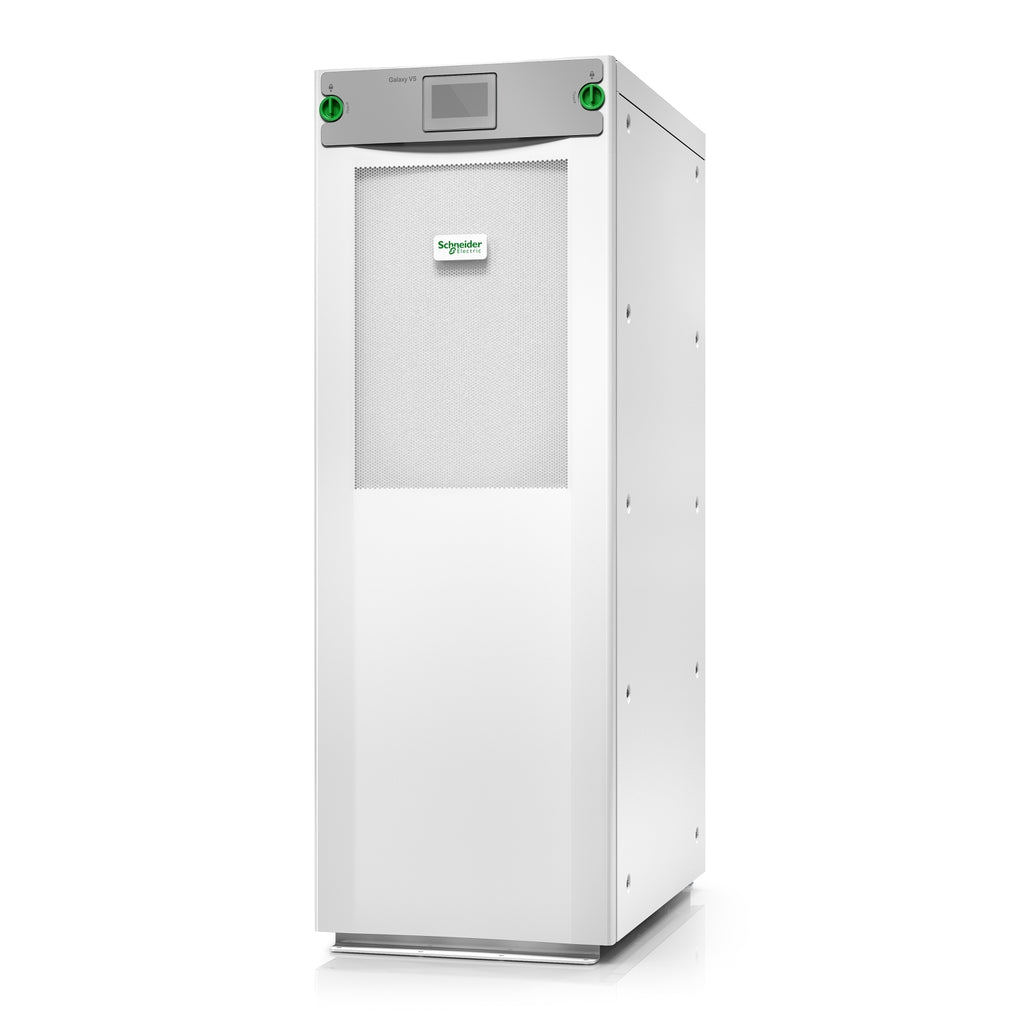

The APC Galaxy VS GVSUPS10KB4FS is a compact, high-efficiency 10kW (10kVA) three-phase uninterruptible power supply engineered for edge computing, small and medium data centers, and critical infrastructure. Designed to minimize footprint and maximize uptime, this unit includes one internally installed 9Ah smart modular battery string and supports expansion up to four strings for extended runtime. Delivering up to 97% efficiency in normal mode and 99% in ECOnversion mode, Galaxy VS helps significantly reduce energy costs. It comes preinstalled with power modules and an integrated network management card and includes 5x8 start-up service for optimal commissioning. EcoStruxure Ready for remote monitoring.
| Category | Details |
|---|---|
| Model | GVSUPS10KB4FS |
| UPS Type | 3-Phase Online Double Conversion |
| Power Capacity | 10 kW / 10 kVA |
| Input Voltage | 208V 3-phase (200–220V supported) |
| Output Voltage | 208V 3-phase (200–220V supported) |
| Battery Type | Internal Modular VRLA |
| Installed Battery Strings | 1x 9Ah Smart Modular Battery |
| Expandable Battery Strings | Up to 4 Total |
| Efficiency | Up to 97% (Normal), 99% (ECOnversion) |
| Bypass | Static Bypass (Built-in) |
| Communication | Touchscreen LCD, EcoStruxure IT Ready, Network Card |
| Redundancy | N+1 Capable |
| Dimensions (H x W x D) | 148.5 x 52.1 x 84.7 cm (58.46 x 20.51 x 33.35 in) |
| Weight | 320 kg (705.5 lb) |
| Color | White |
| Certifications | UL 1778, CSA C22.2, IEC 62040-3, FCC Part 15 Class A |
| Operating Temp | 0–40°C (32–104°F) |
| Humidity | 0–95% RH (non-condensing) |
| Altitude | Up to 1000m (3281 ft) operating |
| Noise Level | 55 dBA |
| Warranty | 1-Year On-Site Repair or Replace with Factory Authorized Start-Up |
