Description

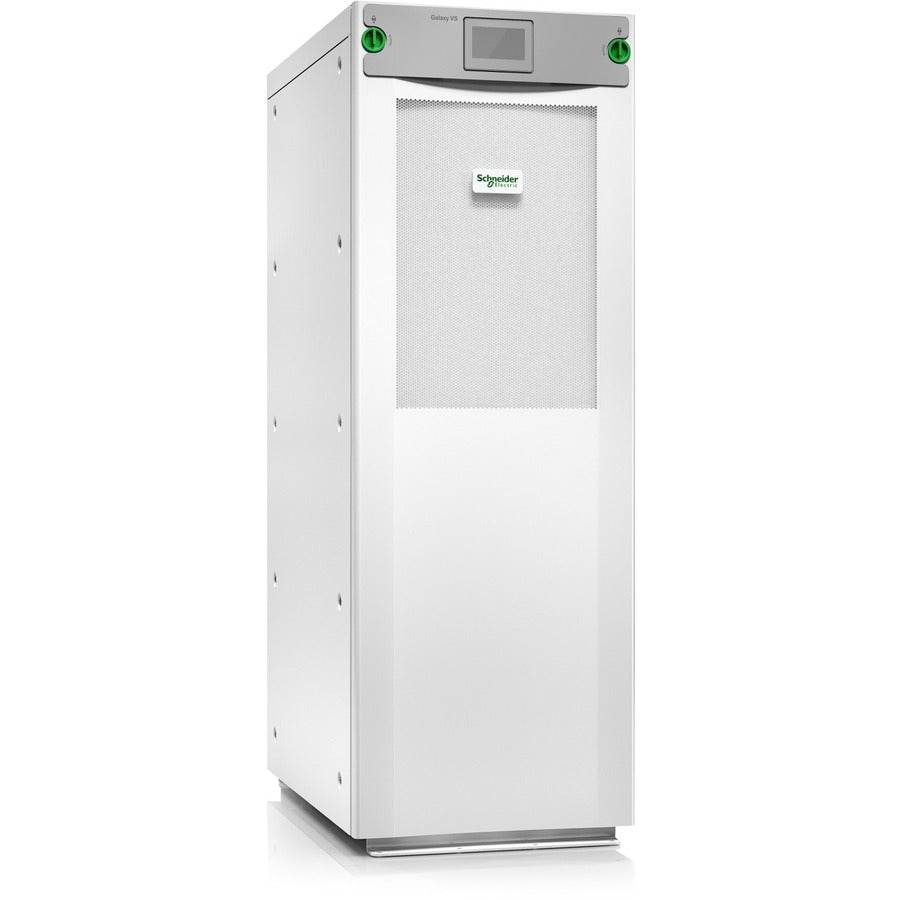

The Schneider Electric Galaxy VS GVSUPS10KB4HS is a highly efficient, 10kW 400V three-phase uninterruptible power supply designed for edge, small, and medium data centers, and critical commercial or industrial applications. It includes 5x8 start-up service and comes with one internal 9Ah smart modular battery string, expandable to four for extended runtime. With its compact footprint, touch-screen interface, and EcoStruxure IT readiness, it ensures scalable, reliable, and energy-efficient power protection.
| Specification | Details |
|---|---|
| Model Number | GVSUPS10KB4HS |
| Power Capacity | 10 kW / 10 kVA |
| Input Voltage Range | 340–460V (400V nominal, 3-phase) |
| Output Voltage | 400V (configurable to 380V/415V) |
| Input Frequency | 40–70 Hz |
| Output Frequency | 50/60 Hz (sync to mains or fixed) |
| Battery Type | 1x Internal VRLA 9Ah Smart Modular Battery String (Expandable to 4) |
| Battery Voltage | 480V |
| Efficiency at Full Load | High efficiency, EcoStruxure IT ready |
| Bypass Type | Built-in Static Bypass |
| Output Connectors | Hard Wire 5-wire (3PH + N + G) |
| Control Panel | Touch Screen LCD User Interface |
| Certifications | UL 1778, CSA C22.2 No 107.3, EN/IEC 62040-1/2/3 |
| Environmental Specs | 0–40 °C Operating Temp, 0–95% RH (non-condensing), 55 dBA Acoustic Level |
| Form Factor | Tower, White Finish |
| Dimensions (H x W x D) | 1485 x 521 x 847 mm (58.46 x 20.51 x 33.35 in) |
| Weight | 320 kg (705.5 lb) |
| Included Services | Start-Up Service 5x8, Installed Power/Battery Modules, Dust Filter, Guide |
| Warranty | 1-Year Repair or Replace |
