Description

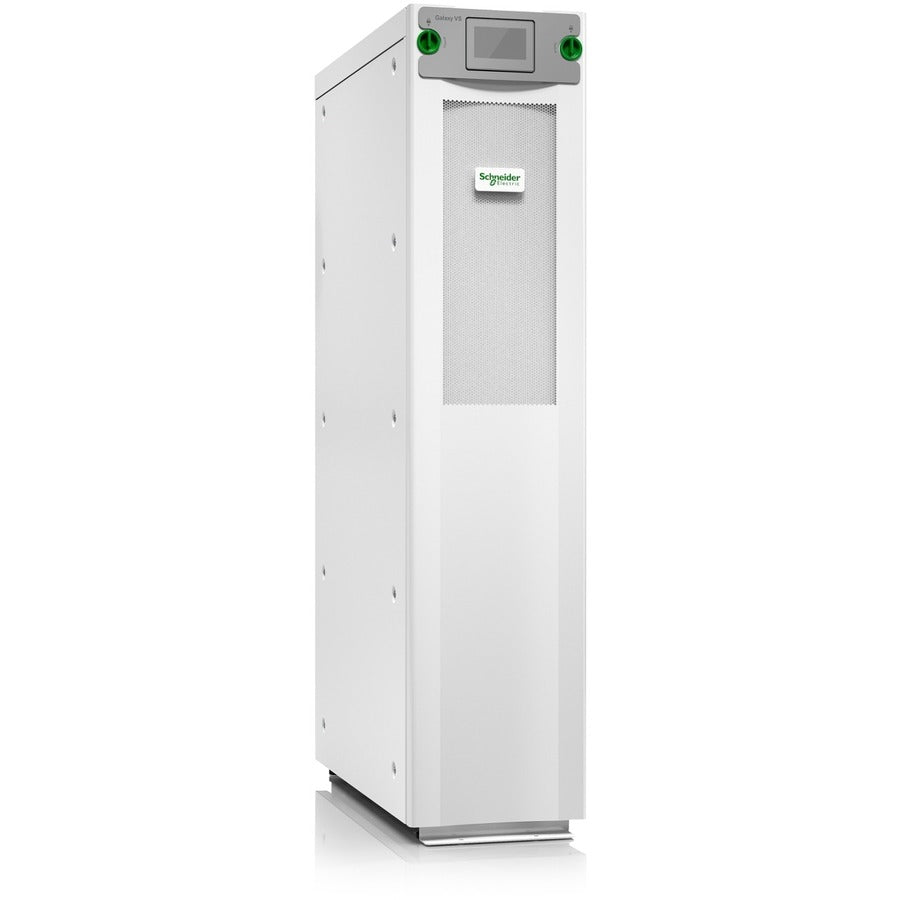

The Schneider Electric Galaxy VS UPS (GVSUPS10KB2HS) is a highly efficient, compact 10kW three-phase uninterruptible power supply system designed for edge, small, and medium data centers, as well as critical infrastructure applications. Operating at 400V, it features 1 internal 7Ah smart modular battery string, expandable to 2 for extended runtime. Includes a factory-authorized 5x8 Start-Up service and EcoStruxure IT readiness for remote monitoring.
| Specification | Details |
|---|---|
| Model Number | GVSUPS10KB2HS |
| Power Rating | 10 kW / 10 kVA |
| Input Voltage | 400 V 3-phase (380V / 415V compatible) |
| Input Frequency | 40–70 Hz |
| Max Input Current/Phase | 18 A |
| Output Voltage | 400 V 3-phase (adjustable: 380V / 415V) |
| Waveform | Pure Sine Wave |
| Battery Type | Internal modular VRLA, 1x 7Ah (expandable to 2) |
| Battery Voltage | 480 V |
| Efficiency | > 96% at full load |
| Overload Capacity | 10 mins @ 125%, 60 sec @ 150% |
| Bypass Type | Built-in Static Bypass |
| Display | Touchscreen LCD |
| Communication | EcoStruxure IT Ready, 1 free communication slot |
| Certifications | UL 1778 5th Ed, EN/IEC 62040 series |
| Enclosure Protection | IP20 |
| Ambient Temp (Operating) | 0 to 40°C (32 to 104°F) |
| Relative Humidity | 0–95%, non-condensing |
| Dimensions (H x W x D) | 1485 x 333 x 847 mm |
| Weight | 245 kg (540.1 lb) |
| Warranty | 1-year on-site repair with Start-Up |
