Description

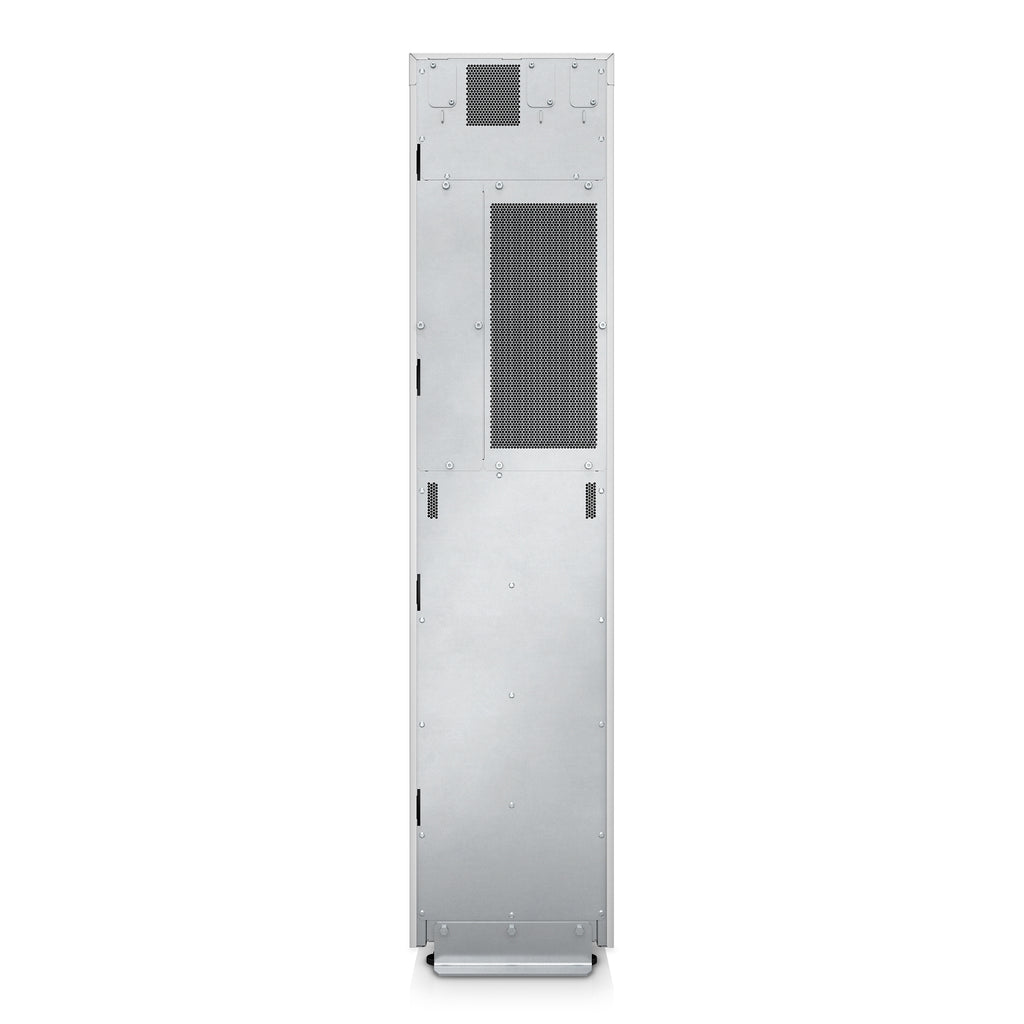

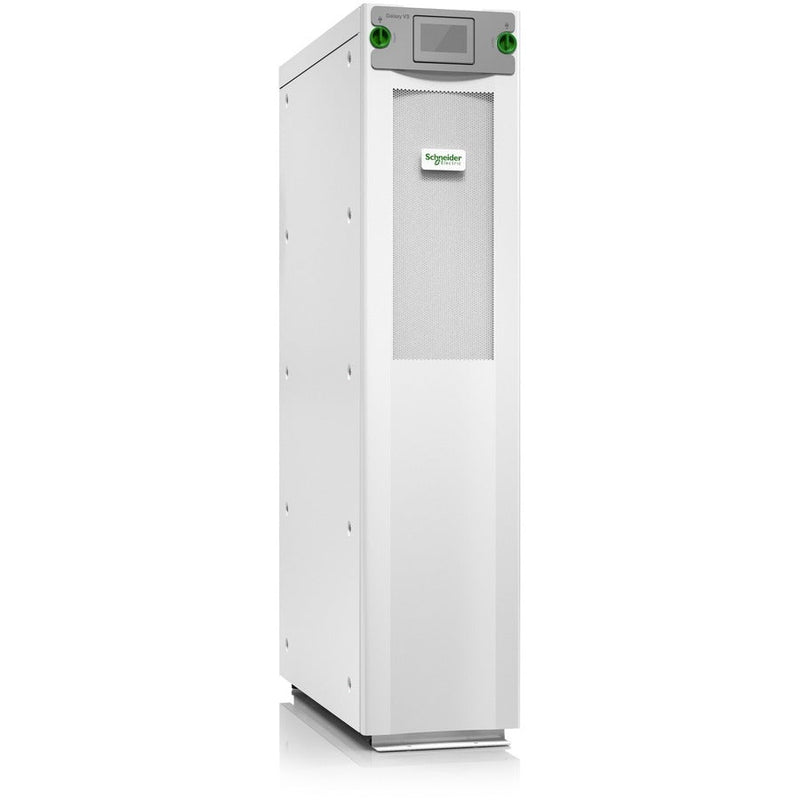

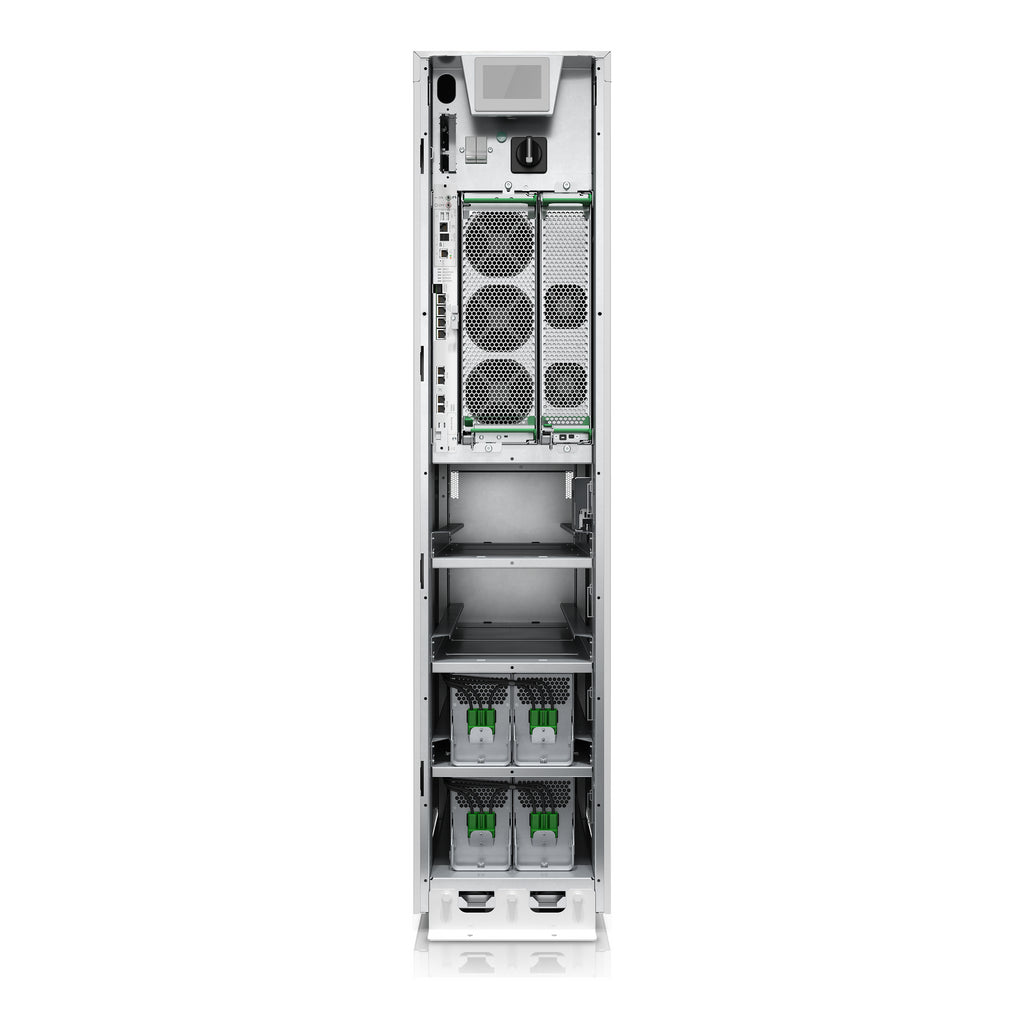

The Schneider Electric Galaxy VS GVSUPS10KB2FS is a compact, high-efficiency 10kW, 208V 3-phase UPS with one pre-installed 7Ah smart modular battery string, expandable to two for increased runtime. Designed for edge, small, and medium data centers, as well as critical infrastructure in commercial and industrial environments, this UPS integrates EcoStruxure-ready monitoring, high-performance power protection, and modular scalability. Includes 5x8 start-up service for optimal deployment.
| Specification | Details |
|---|---|
| Model Number | GVSUPS10KB2FS |
| Brand | Schneider Electric |
| Power Rating | 10 kW / 10 kVA |
| Input Voltage | 208 V 3-phase (also supports 200V, 220V) |
| Output Voltage | 208 V 3-phase (configurable to 200V, 220V) |
| Frequency | 40–70 Hz input; 50/60 Hz output (sync to mains) |
| Battery Type | VRLA, 7Ah Smart Modular |
| Battery Strings Installed | 1 (Expandable to 2) |
| Battery Voltage | 480 V (End of discharge: 384 V DC) |
| Bypass Type | Built-in Static Bypass |
| Waveform | Pure Sine Wave |
| Efficiency | Up to 97% normal, 99% in ECOnversion mode |
| Dimensions (H x W x D) | 58.46 x 13.11 x 33.35 in (148.5 x 33.3 x 84.7 cm) |
| Weight | 540.1 lb (245 kg) |
| User Interface | Touchscreen LCD |
| Communications | EcoStruxure IT Ready, Integrated network mgmt. |
| Environmental Ratings | Operating Temp: 0–40°C; Humidity: 0–95% |
| Certifications | UL 1778, CSA C22.2, IEC 62040-3, FCC Part 15 A |
| Included Accessories | Battery & power modules, dust filter, guide |
| Warranty | 1 Year On-site Repair (with Start-up 5x8) |
