Description

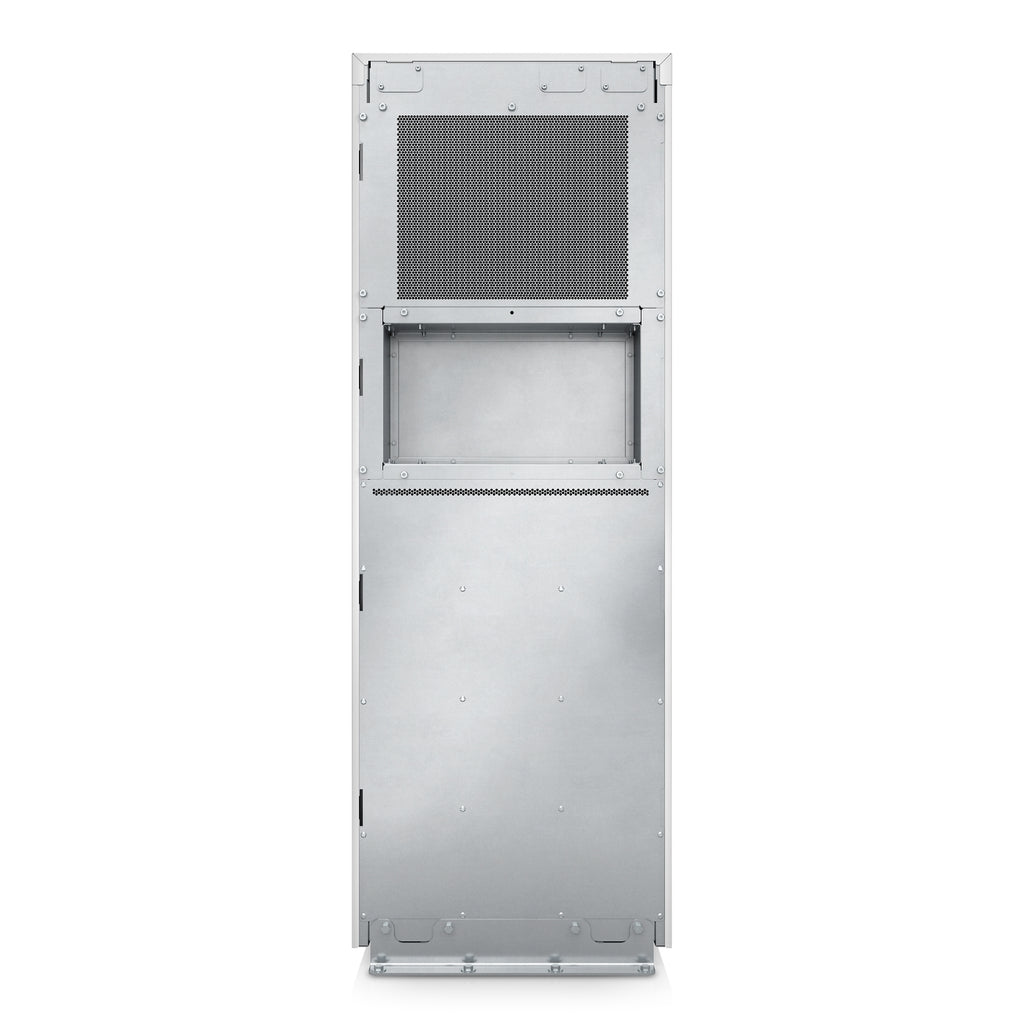

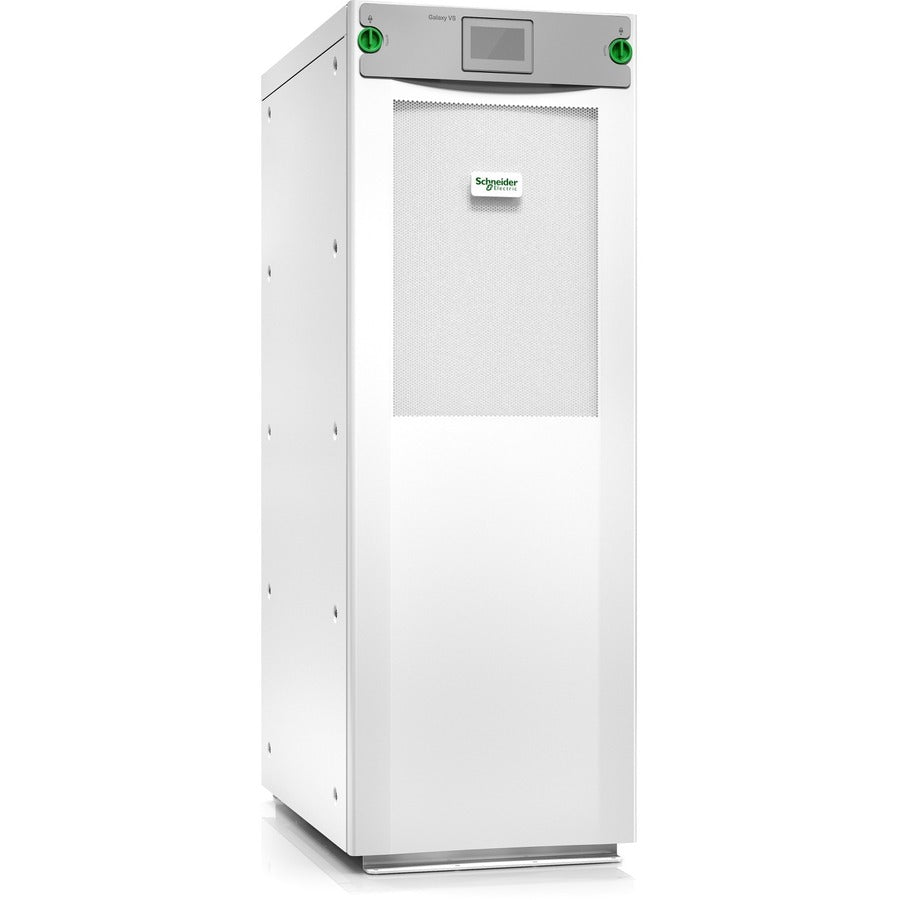

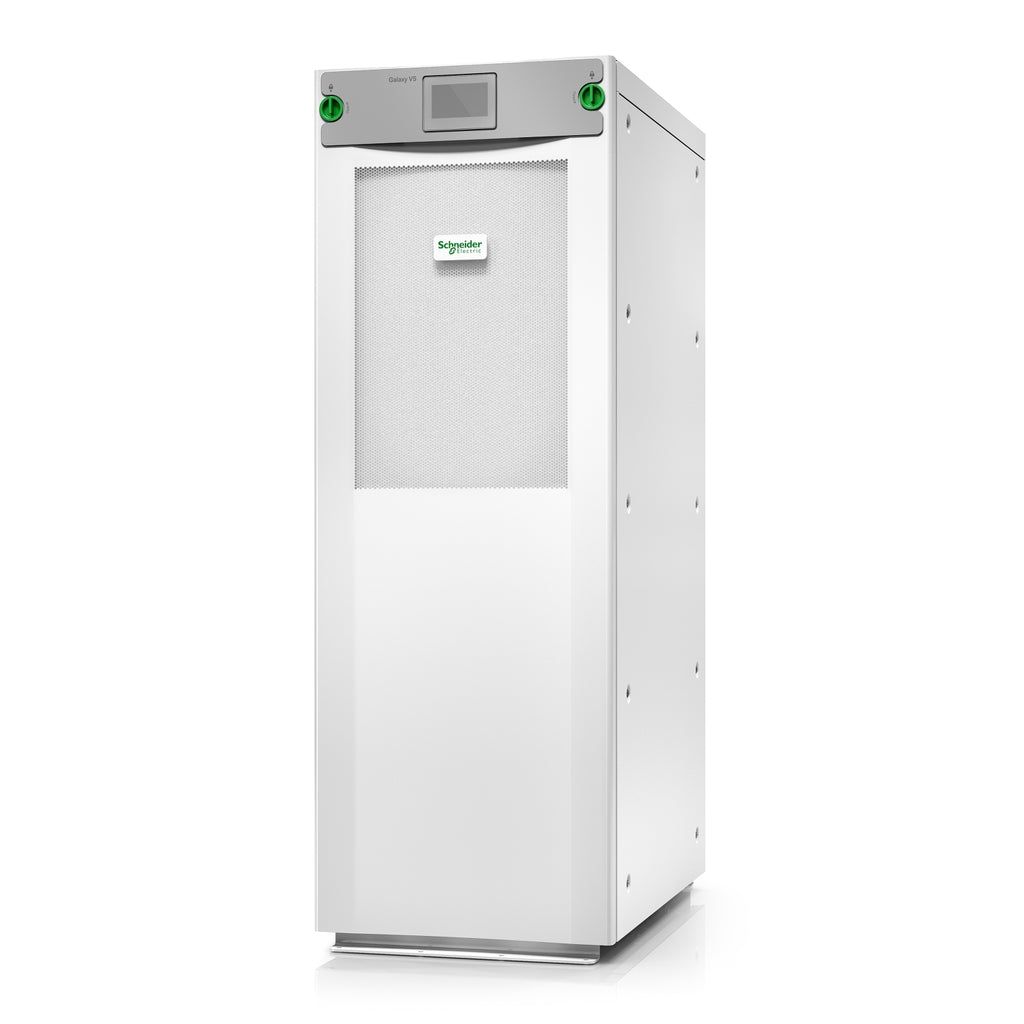

The Schneider Electric Galaxy VS GVSUPS15K0B4FS is a highly efficient, easy-to-deploy 15kW, 208V 3-phase uninterruptible power supply (UPS) that delivers best-in-class power protection for edge, small and medium data centers, and mission-critical infrastructure. Designed for up to four 9Ah smart modular battery strings (batteries sold separately), it enables customized runtime scalability. With advanced high-density technology, fault-tolerant architecture, and built-in static bypass, Galaxy VS ensures reliable performance while minimizing total cost of ownership. Includes 5x8 start-up service and EcoStruxure readiness for remote monitoring.
| Specification | Details |
|---|---|
| Model Number | GVSUPS15K0B4FS |
| Power Capacity | 15 kW / 15 kVA |
| Input Voltage | 208 V 3-phase (also supports 200/220 V) |
| Output Voltage | 208 V 3-phase (also supports 200/220 V) |
| Battery Support | Up to 4 internal 9Ah smart modular strings |
| Battery Type | VRLA (modular, not included) |
| Bypass | Built-in Static Bypass |
| Form Factor | Tower |
| Efficiency | Up to 97% (Normal), 99% (ECOnversion mode) |
| Output Waveform | Sine wave |
| Frequency | 50/60 Hz sync to mains |
| Redundancy | No |
| Display Interface | Touch Screen LCD |
| Communications | Integrated network management, EcoStruxure Ready |
| Input Power Factor | 0.99 |
| THD (Input/Output) | <3% (Input), <2%-5% (Output) |
| Overload Capability | 125% for 10 min, 150% for 60 sec |
| Dimensions (HxWxD) | 58.46 x 20.51 x 33.35 in (148.5 x 52.1 x 84.7 cm) |
| Weight | 440.9 lbs (200 kg) |
| Certifications | UL 1778, CSA C22.2, IEC 62040 series, FCC Part 15 Class A |
| Environmental | 0–40°C, 0–3300 ft, 0–95% RH non-condensing |
| Warranty | 1 year on-site repair with start-up service |
