Description

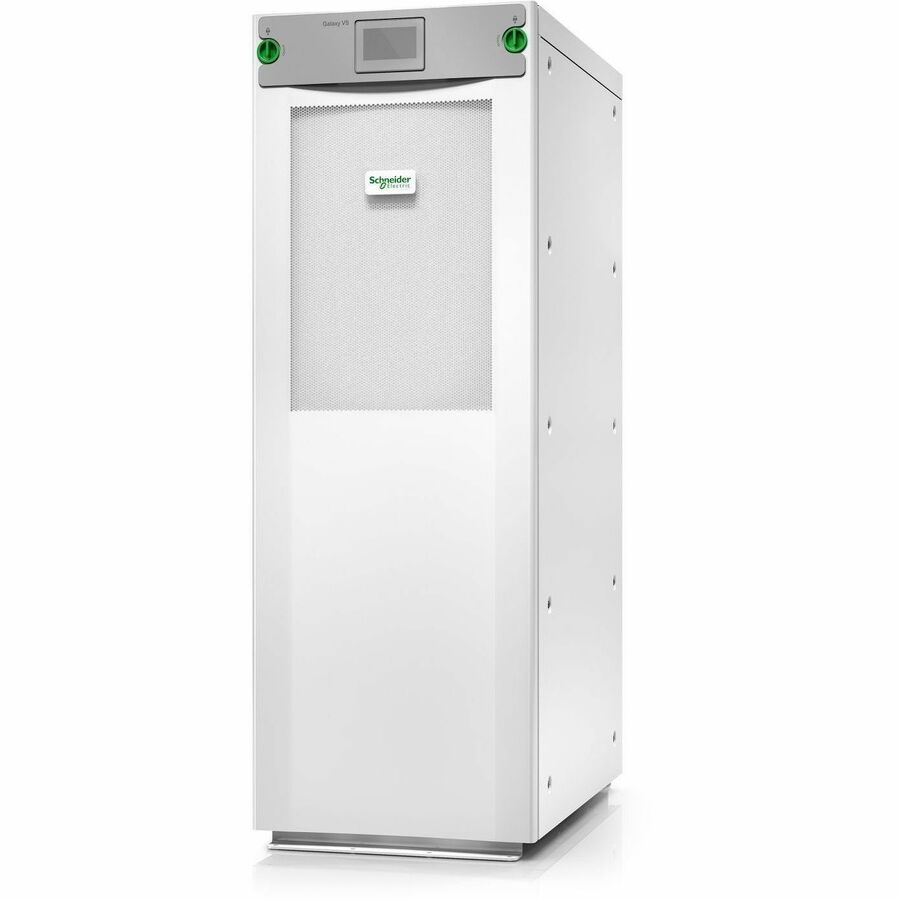

The Schneider Electric Galaxy VS 20kW UPS (GVSUPS20KRHS) is a high-efficiency, compact 3-phase uninterruptible power supply designed for edge, small, and medium data centers as well as critical commercial and industrial facilities. Operating at 400V, it supports external battery configurations and includes an extra power module for N+1 redundancy. With advanced features like a built-in static bypass, EcoStruxure IT readiness, and an integrated LCD touchscreen interface, this UPS ensures high availability, low total cost of ownership, and dependable protection for your critical systems. Start-up 5x8 service is included.
| Specification | Details |
|---|---|
| Model | GVSUPS20KRHS |
| Rated Power | 20 kW / 20 kVA |
| Input Voltage | 400V 3-phase (also supports 380V, 415V) |
| Input Frequency | 40–70 Hz |
| Output Voltage | 400V 3-phase (adjustable to 380V, 415V) |
| Output Frequency | 50/60 Hz (sync or not synced to mains) |
| Battery Type | External battery system (VRLA or Li-Ion) |
| Battery Voltage Range | 384–576 VDC |
| Redundancy | N+1 Power Module Redundancy |
| Bypass Type | Built-in Static Bypass |
| Efficiency | Up to 97% normal mode, up to 99% ECOnversion |
| Waveform Type | Pure Sine Wave |
| Crest Factor | 2.5 |
| Output Voltage THD | <1% (linear load), <5% (non-linear load) |
| Overload Capacity | 125% for 10 min; 150% for 60 sec |
| Communication Interface | LCD Touchscreen, EcoStruxure IT Ready |
| Included Accessories | Dust Filter, Installation Guide, Start-up 5x8 |
| Dimensions (H x W x D) | 148.5 x 52.1 x 84.7 cm (58.46 x 20.51 x 33.35 in) |
| Weight | 250 kg (551.2 lbs) |
| Noise Level | 68 dBA |
| IP Rating | IP21 |
| Certifications | EN/IEC 62040-1/2, UL 1778, FCC Part 15 Class A |
| Operating Temp | 0–40 °C (32–104 °F) |
| Altitude | Up to 1000 m (3300 ft) without derating |
| Warranty | 1 Year On-site Repair or Replace with Start-up |
