Description

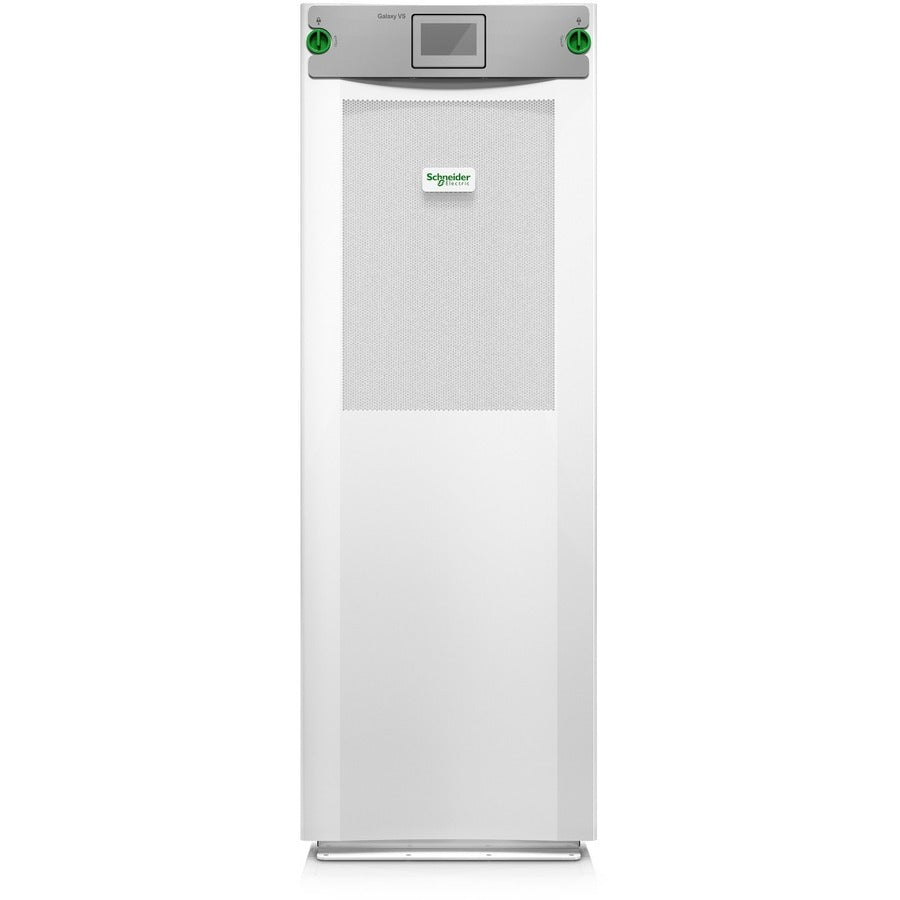

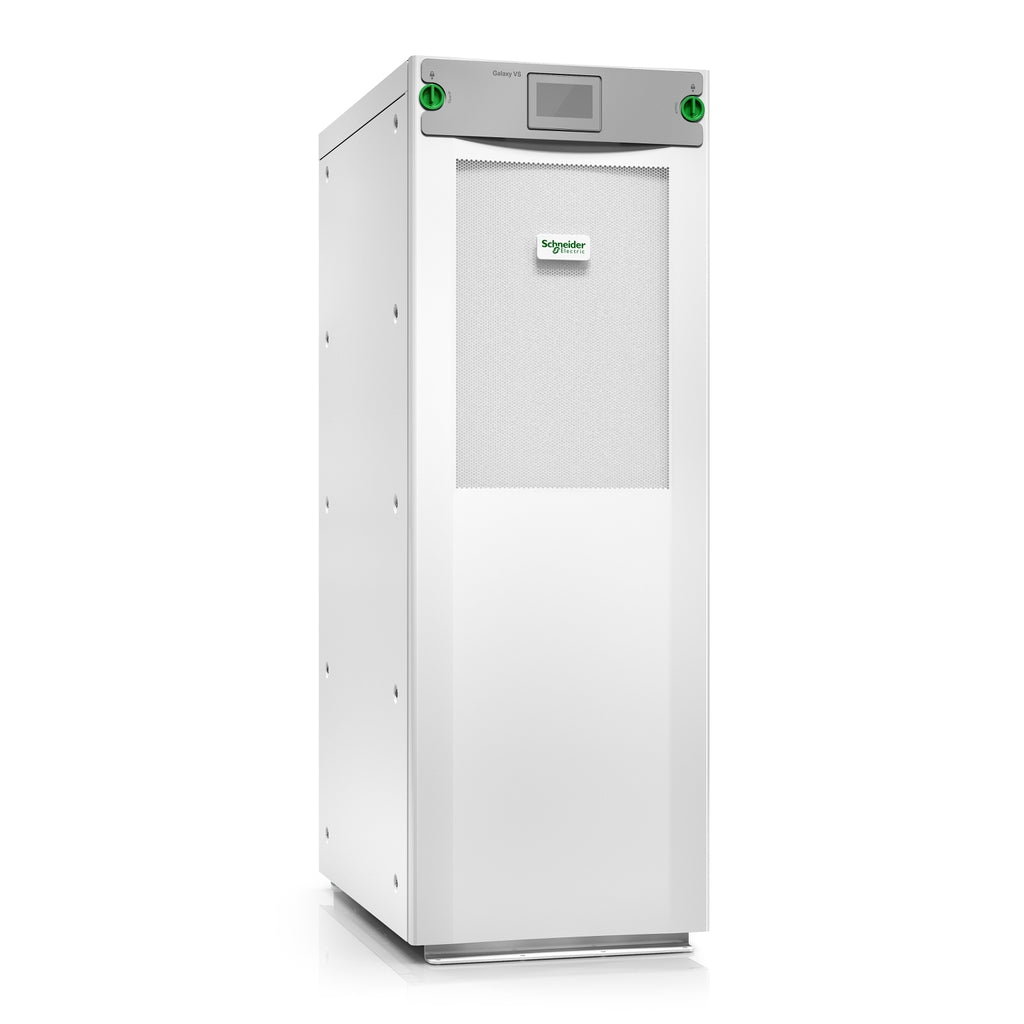

The Schneider Electric Galaxy VS GVSUPS20K0B4HS is a compact, high-efficiency 20kW 400V three-phase UPS engineered for edge, small, and medium data centers, as well as industrial and commercial critical infrastructure. It supports up to 4 internal 9Ah smart modular battery strings (batteries not included), allowing flexible runtime customization. This model includes a 5x8 Start-Up service and features EcoStruxure readiness, integrated network management, and a user-friendly touchscreen LCD interface—all within a space-saving form factor.
| Specification | Details |
|---|---|
| Model | GVSUPS20K0B4HS |
| Power Rating | 20 kW / 20 kVA |
| Input Voltage | 400V 3-phase (also supports 380V, 415V) |
| Output Voltage | 400V 3-phase (also supports 380V, 415V) |
| Frequency Range | 40–70 Hz |
| Battery Configuration | Supports up to 4 internal 9Ah smart modular battery strings (not included) |
| Battery Voltage | 480V (nominal), 384V (EOD) |
| Battery Type | VRLA (Valve-Regulated Lead Acid), modular |
| Efficiency | Up to 97% |
| Bypass Type | Built-in Static Bypass |
| Overload Capacity | 10 mins @ 125%, 60 sec @ 150% |
| Waveform | Pure Sine Wave |
| THD Output Voltage | <1% (linear), <3% (non-linear) |
| Control Panel | Touch Screen LCD |
| Network Management | Integrated |
| Form Factor | Tower |
| Dimensions (H x W x D) | 1485 x 521 x 847 mm (58.46 x 20.51 x 33.35 in) |
| Weight | 200 kg (440.9 lbs) |
| IP Rating | IP20 |
| Certifications | IEC 62040-1-1, IEC 62040-2, OSHPD |
| Startup Service | Included (5x8) |
| Warranty | 1-year on-site repair or replace |
| GTIN | 731304410041 |
