Description

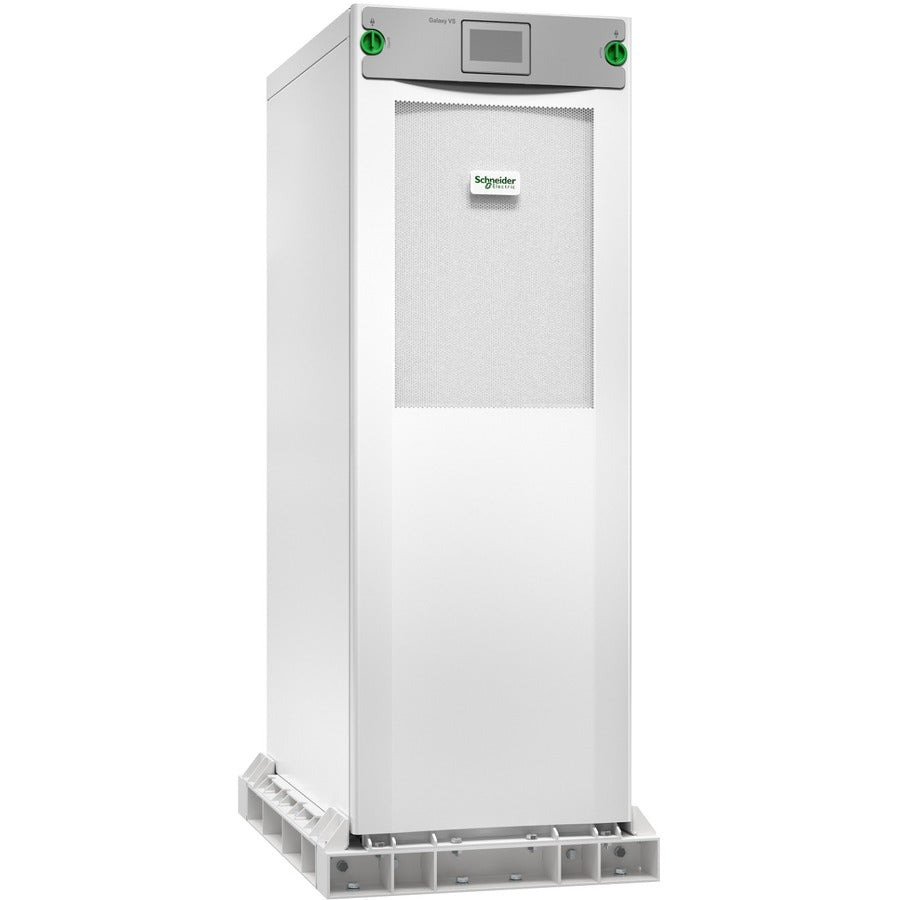

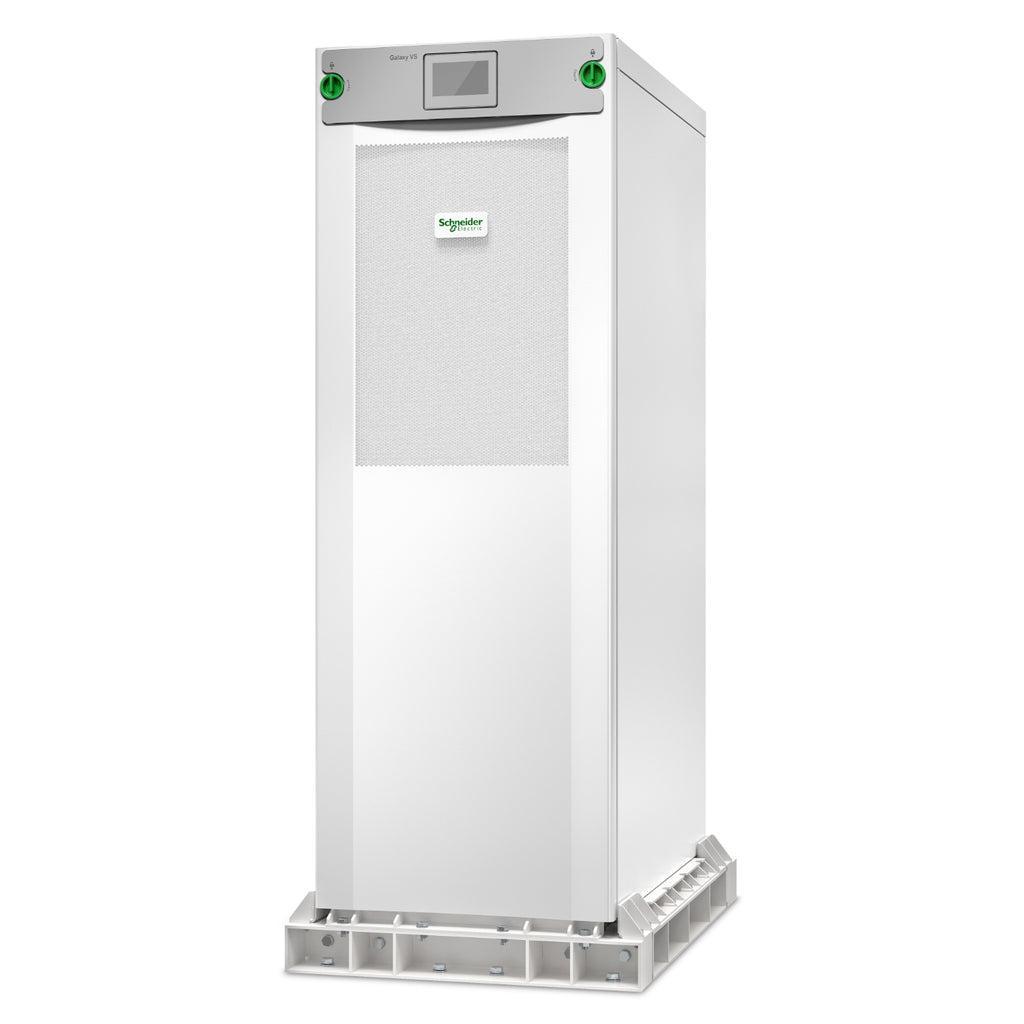

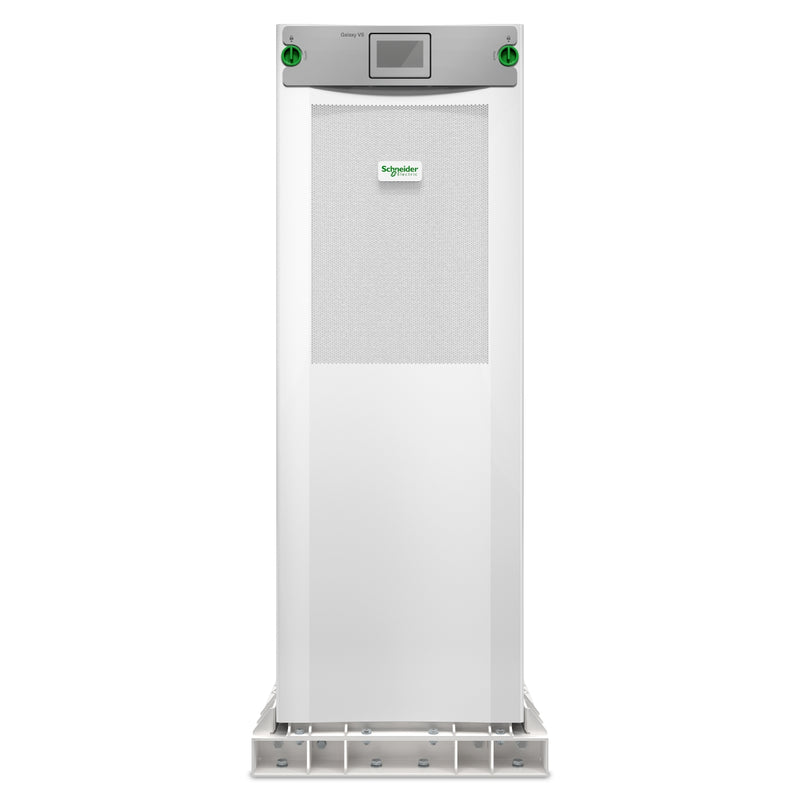

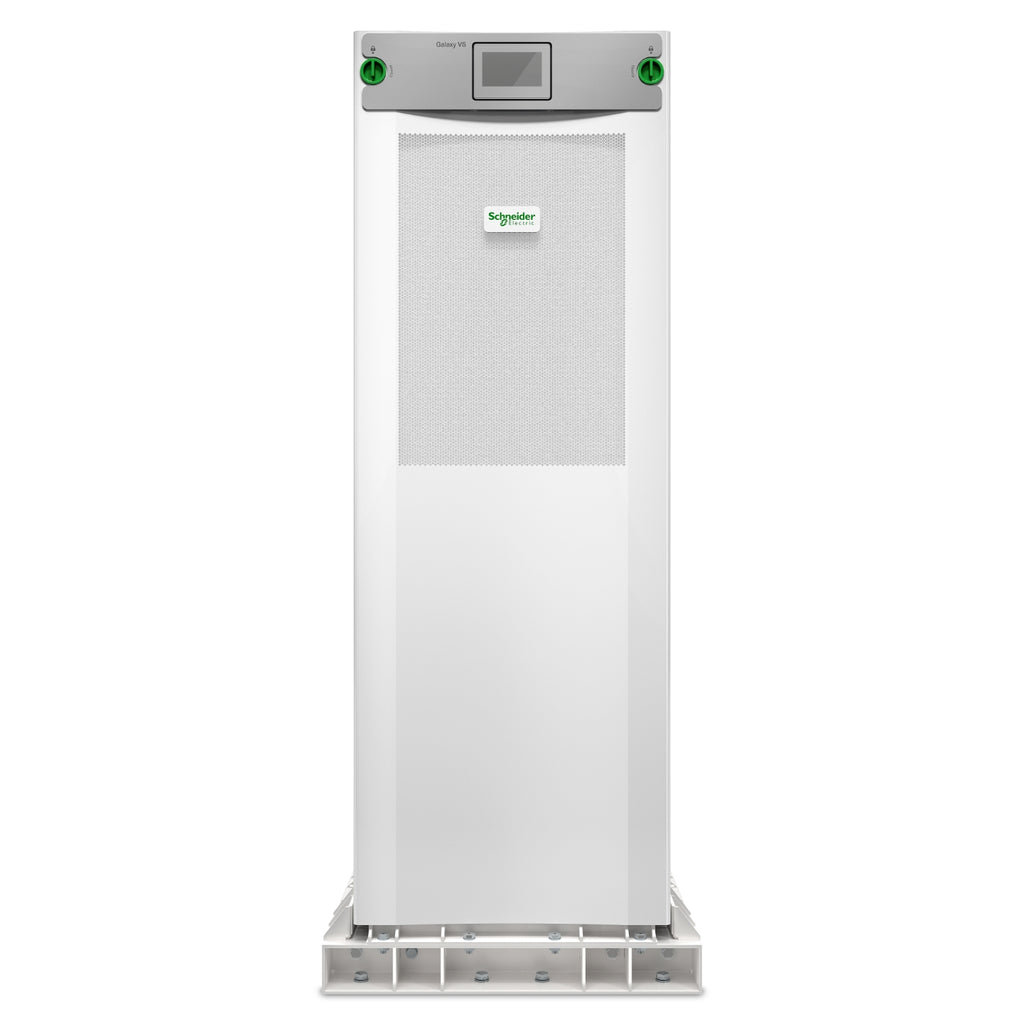

The Galaxy VS GVSUPS20KMHS is a highly efficient, easy-to-deploy 20kW 3-phase uninterruptible power supply (UPS) operating at 400V. Designed for edge, small, and medium data centers as well as critical commercial and industrial applications, it features halogen-free cables, external battery support, and marine certification. Its modular, scalable design ensures energy efficiency and reduced total cost of ownership. Includes 5x8 start-up service and EcoStruxure IT readiness for remote monitoring and management.
| Specification | Details |
|---|---|
| Model | GVSUPS20KMHS |
| Power Rating | 20 kW / 20 kVA |
| Input Voltage | 400V (3-phase), 380V, 415V |
| Output Voltage | 400V (3-phase) |
| Input Frequency | 40–70 Hz |
| Battery Type | External (Li-Ion, VRLA) |
| Battery Voltage Range | 480–576 VDC |
| End-of-Discharge Battery Voltage | 307 VDC |
| Max Battery Current | 68 A |
| Output Frequency | 50/60 Hz (sync or free-running) |
| Waveform Type | Sine wave |
| Efficiency (Full Load) | Up to 97% |
| Overload Capacity | 10 min @ 125%, 60 sec @ 150% |
| Bypass Type | Built-in Static Bypass |
| Certifications | Marine Certified, EN/IEC 62040-1 & -2, UL 1778 |
| Communication | Touchscreen LCD, EcoStruxure IT ready |
| Environmental Protection | IP21 |
| Operating Temp | 0°C to 40°C (32°F to 104°F) |
| Relative Humidity | 0–95% non-condensing |
| Noise Level | 68 dBA |
| Color / Material | White, Halogen-free cables |
| Physical Dimensions (HxWxD) | 148.5 x 52.1 x 84.7 cm |
| Weight | 206 kg |
| Startup Service Included | 5x8 Business Hours |
| Warranty | 1 year on-site repair or replace |
