Description

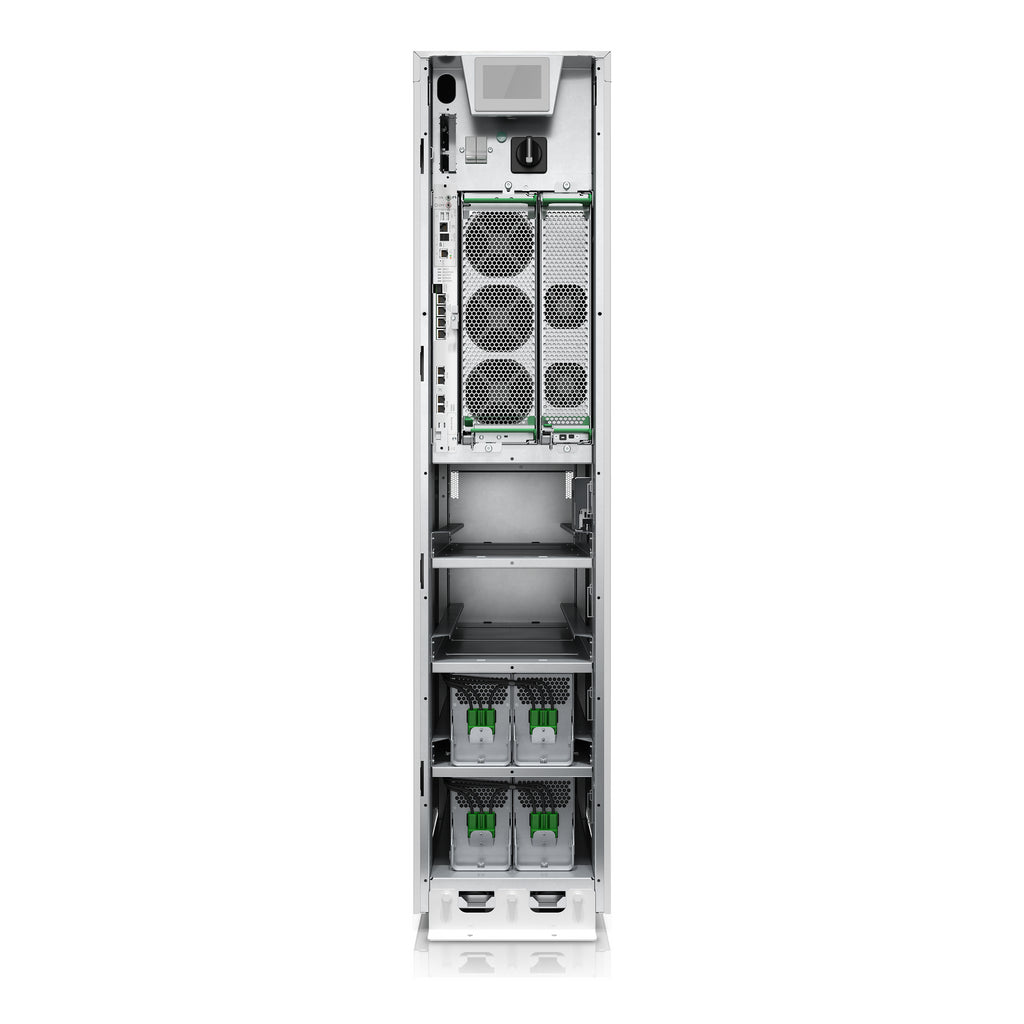

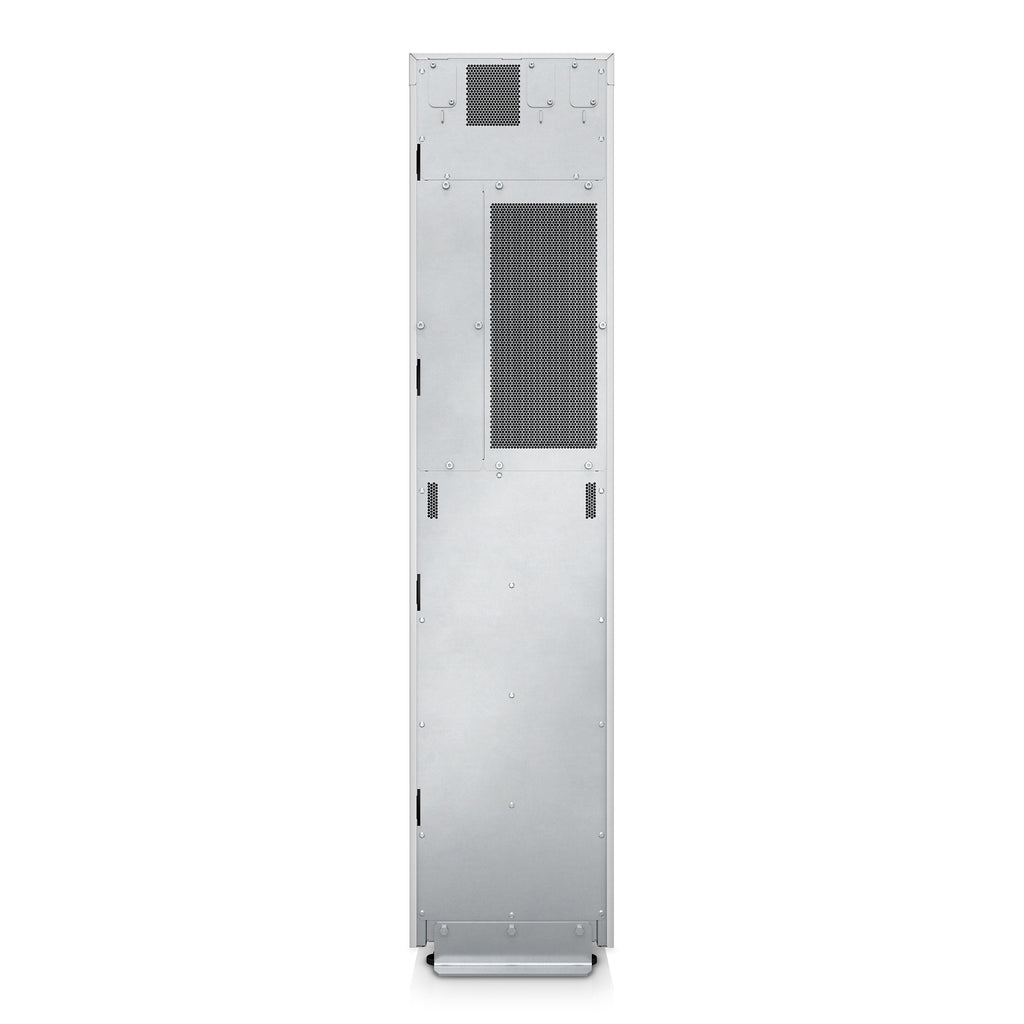

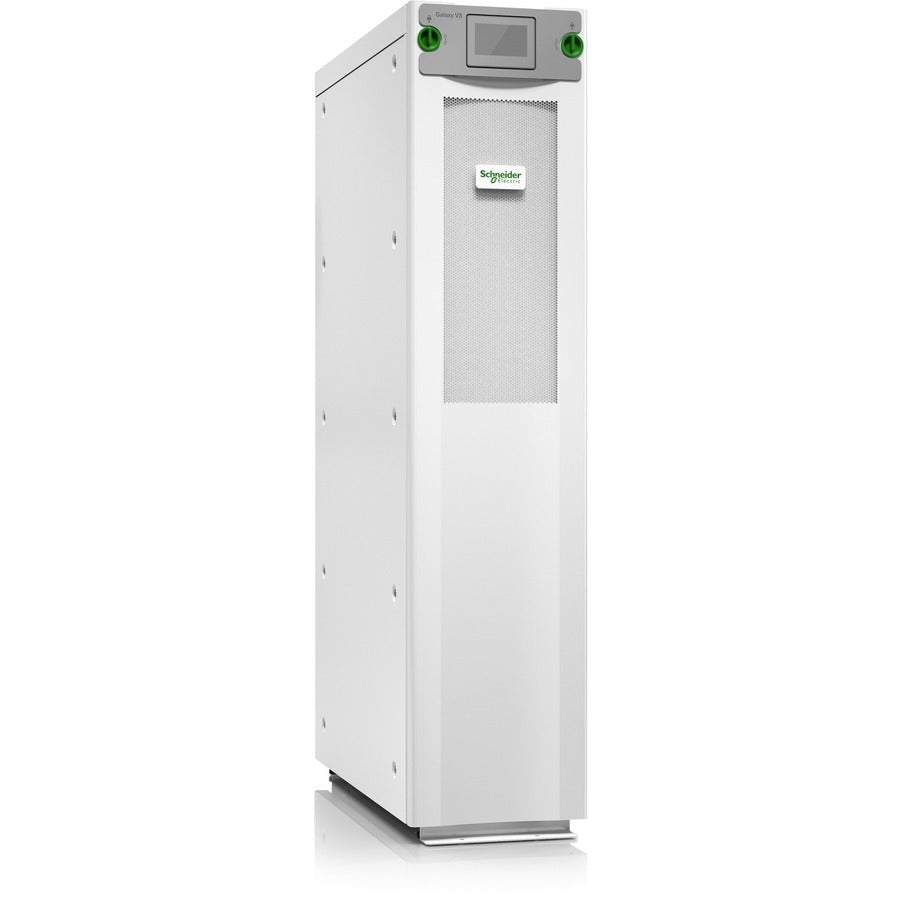

The Galaxy VS 20kW UPS from Schneider Electric delivers high-efficiency power protection for critical loads in edge, small, and medium data centers, and industrial applications. This 3-phase, 400V UPS includes one internal 7Ah smart modular battery string, expandable to two for extended runtime. Designed with EcoStruxure IT compatibility, N+1 redundancy, and 5x8 start-up service, it ensures reliable uptime, efficient operation, and peace of mind. Compact, scalable, and energy-efficient—with up to 97% efficiency in double-conversion and 99% in ECOnversion mode.
| Specification | Details |
|---|---|
| SKU | GVSUPS20KB2HS |
| Power Rating | 20 kW / 20 kVA |
| Input Voltage | 400V 3-phase (380V / 415V compatible) |
| Output Voltage | 400V 3-phase (adjustable to 380V / 415V) |
| Battery Type | Internal modular VRLA |
| Battery Configuration | 1x 7Ah Smart Modular Battery (expandable to 2) |
| Efficiency | Up to 97% (double-conversion), 99% (ECOnversion) |
| Input Power Factor | 0.99 |
| Input Frequency | 40–70 Hz |
| Output Waveform | Pure Sine Wave |
| Bypass Type | Built-in Static Bypass |
| Redundancy | N+1 Ready |
| Dimensions (H x W x D) | 148.5 x 33.3 x 84.7 cm |
| Weight | 245 kg (540.1 lbs) |
| Cooling | Forced air |
| User Interface | Touch Screen LCD |
| Certifications | UL 1778, IEC 62040-1/2/3, CSA C22.2 No 107.3 |
| Environmental Compliance | RoHS, REACh, Take-back Program |
| Included Services | Start-Up Service 5x8, Dust Filter, Network Management Card, Installation Guide |
| Warranty | 1-Year On-Site Repair/Replace with Factory Authorized Start-Up |
