Description

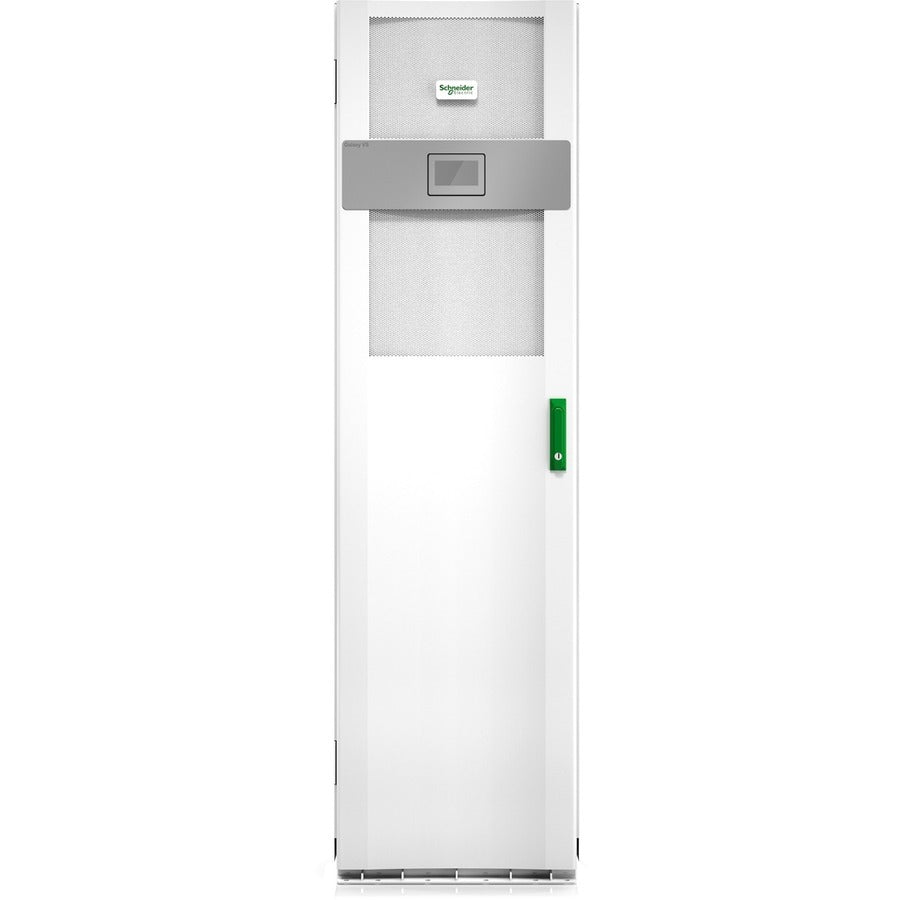

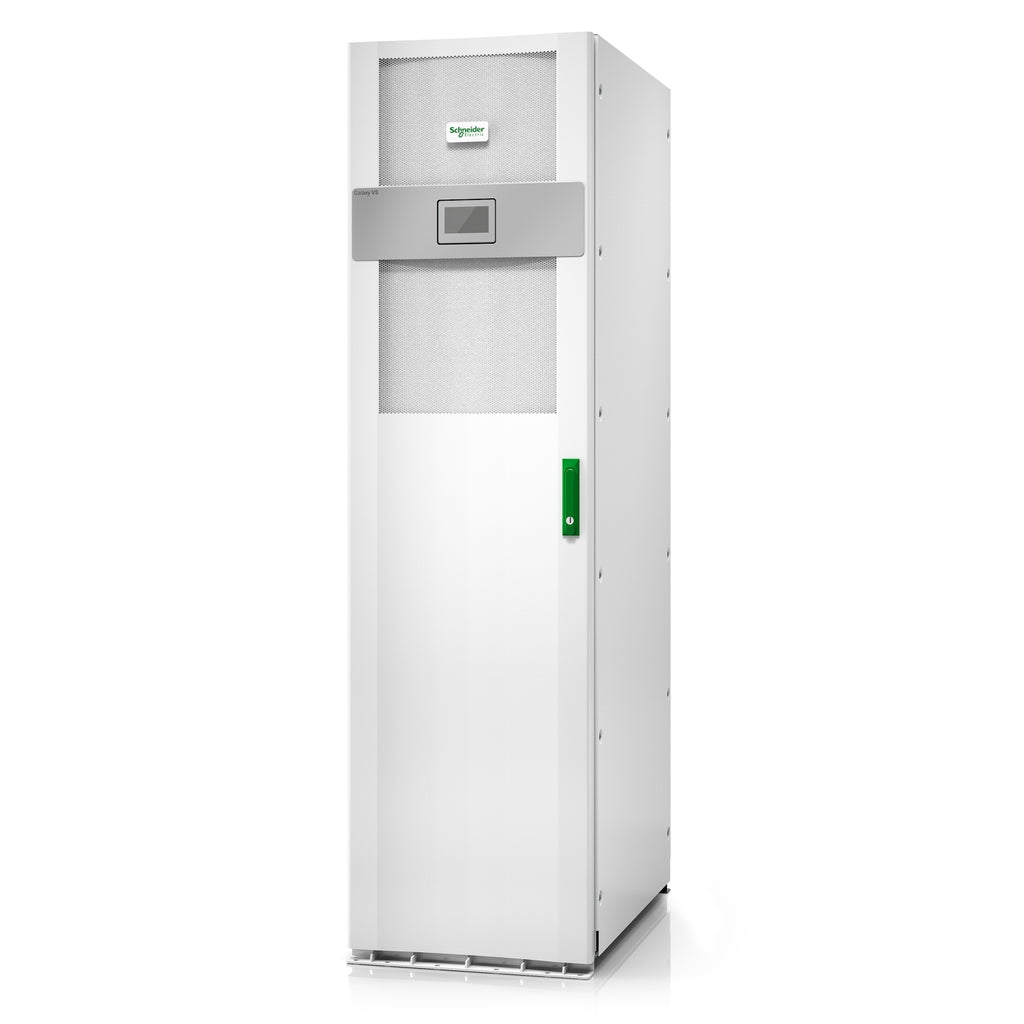

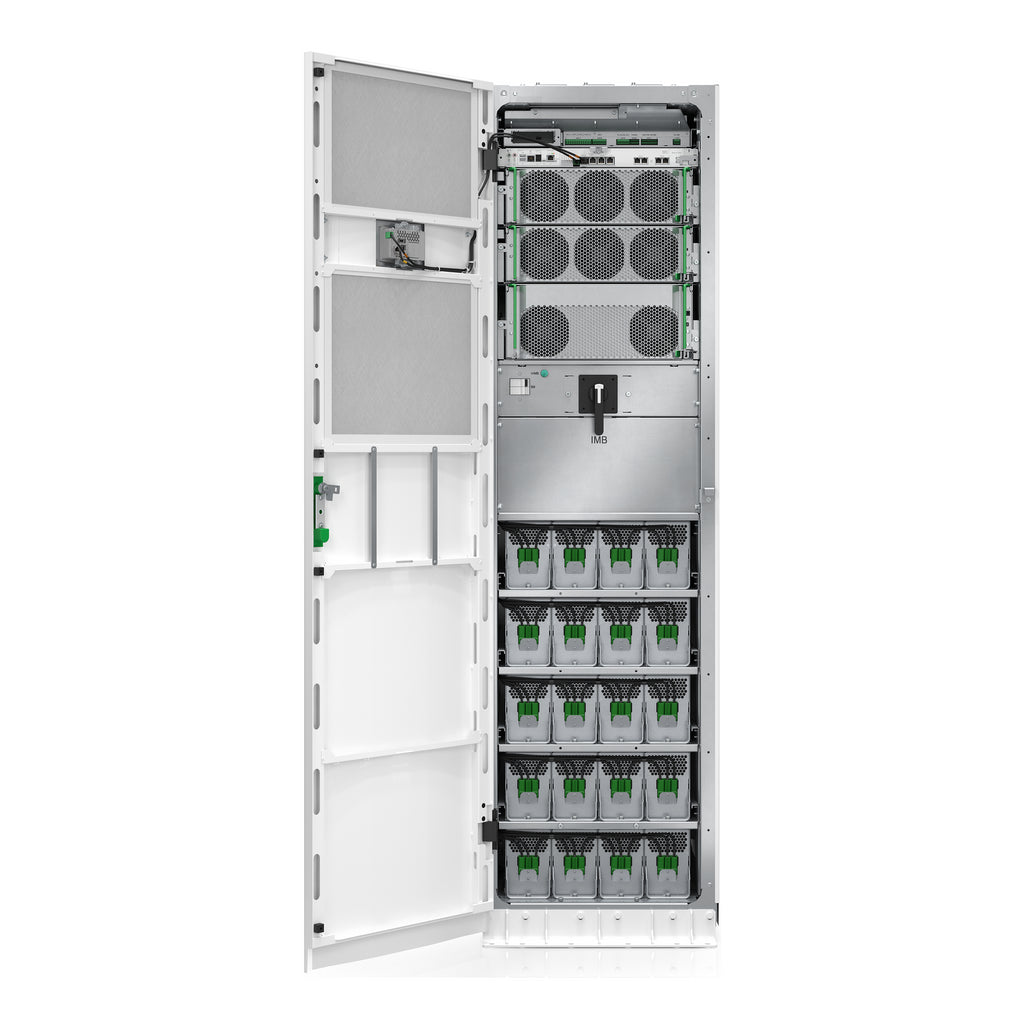

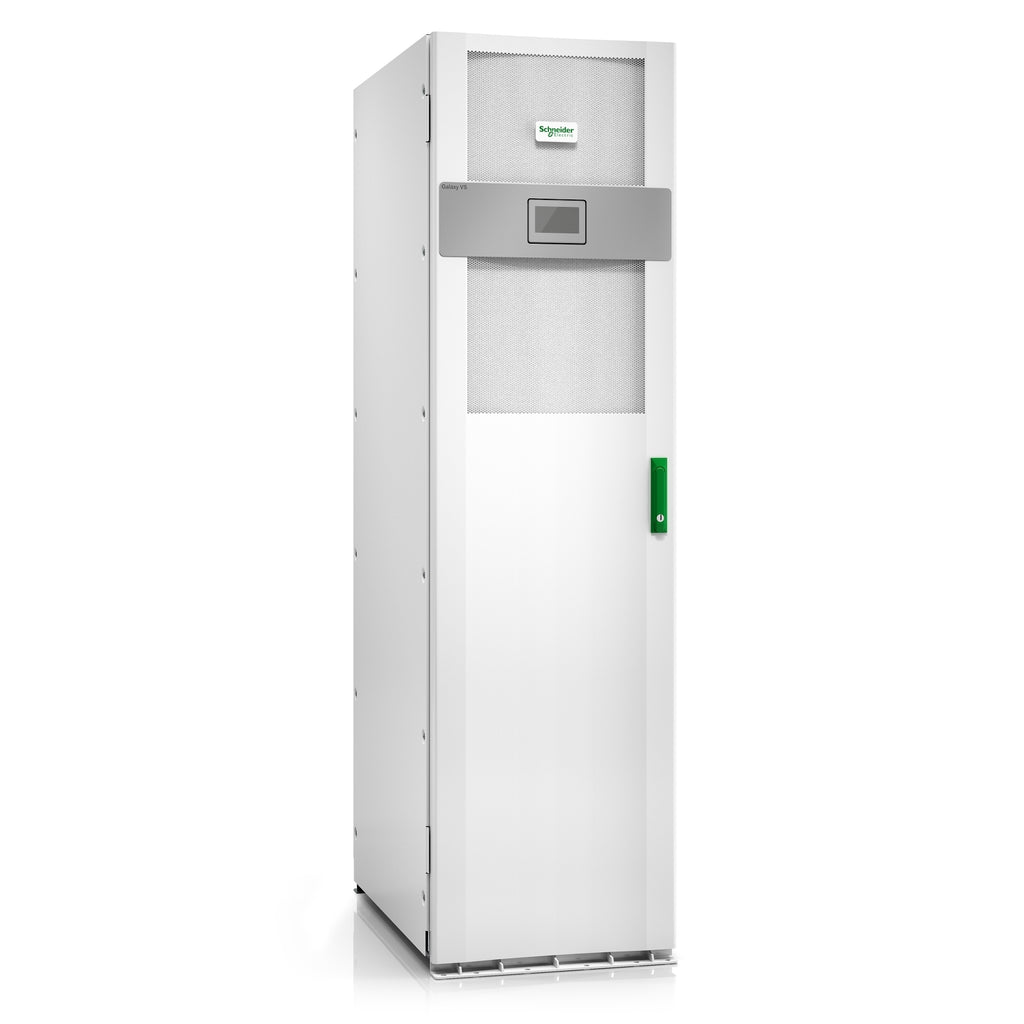

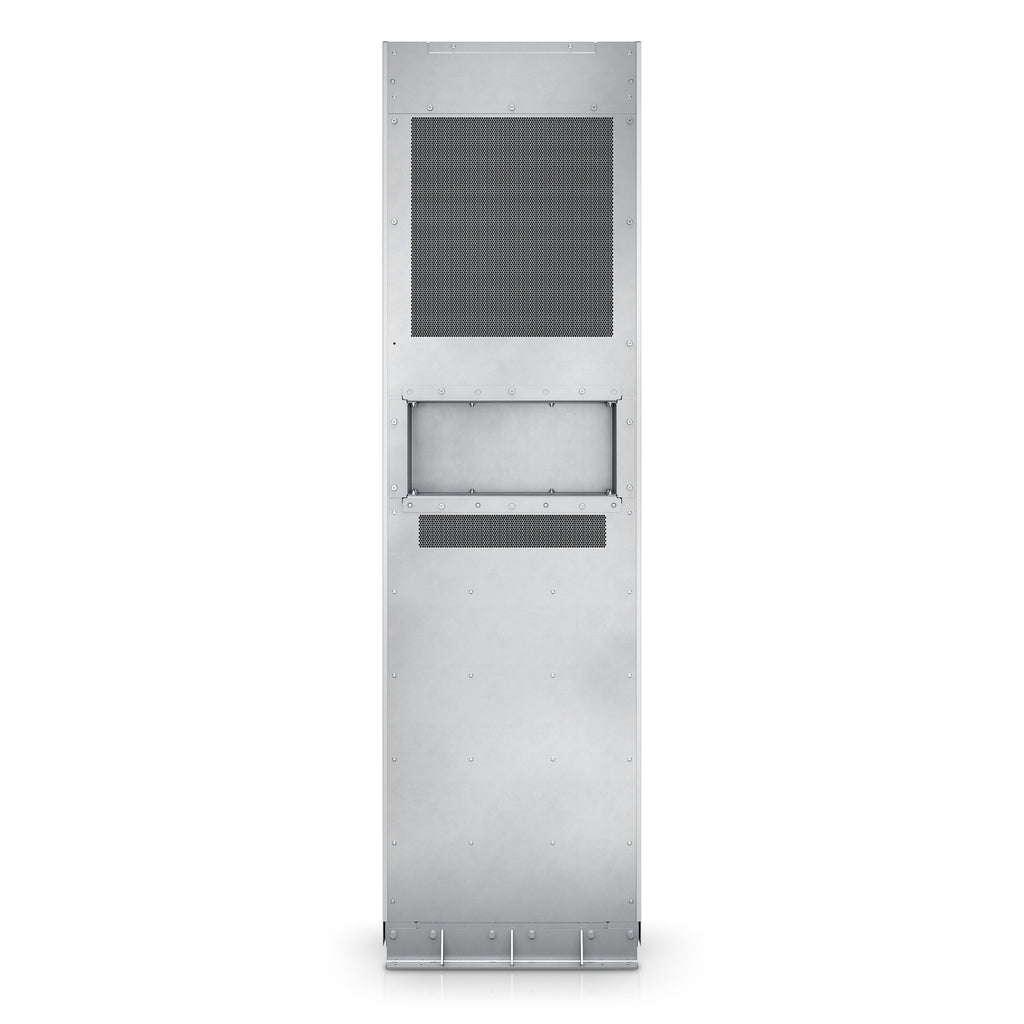

The Schneider Electric Galaxy VS GVSUPS20KR0B5HS is a high-efficiency, 20kW 3-phase UPS system designed for critical IT and industrial applications. Operating at 400V with built-in N+1 redundancy, this compact solution supports up to 5 smart modular 9Ah VRLA battery strings (batteries not included). With integrated network management and EcoStruxure-ready capabilities, it ensures uptime, flexibility, and sustainable performance for edge computing, small data centers, and commercial operations. Includes 5x8 Start-Up Service.
| Specification | Details |
|---|---|
| Model Number | GVSUPS20KR0B5HS |
| Power Rating | 20 kW / 20 kVA |
| Input Voltage | 400V 3-phase (380V/415V compatible) |
| Output Voltage | 400V 3-phase (380V/415V compatible) |
| Input Frequency | 40 – 70 Hz |
| Efficiency | High efficiency (Eco mode supported) |
| Battery Type | VRLA, Smart Modular (up to 5 strings) |
| Battery Voltage | 480V nominal, 384V EOD, 54A max current |
| Bypass | Built-in Static Bypass |
| Waveform Output | Pure Sine Wave |
| Redundancy | N+1 Power Module |
| Output Harmonic Distortion | <1% linear / <3% non-linear load |
| Overload Capacity | 125% for 10 min, 150% for 60 sec |
| Communications | Integrated Network Management, LCD UI |
| Form Factor | Tower |
| Dimensions (H x W x D) | 197 cm x 55 cm x 84.7 cm |
| Weight | 266 kg (586.4 lb) |
| Protection Rating | IP20 |
| Start-Up Service | Included (5x8) |
| Warranty | 1-Year On-Site Repair/Replace |
| Certifications | IEC 62040-1-1, IEC 62040-2, OSHPD |
| Environment | 0–40°C op. temp, 0–95% RH non-condensing |
