Description

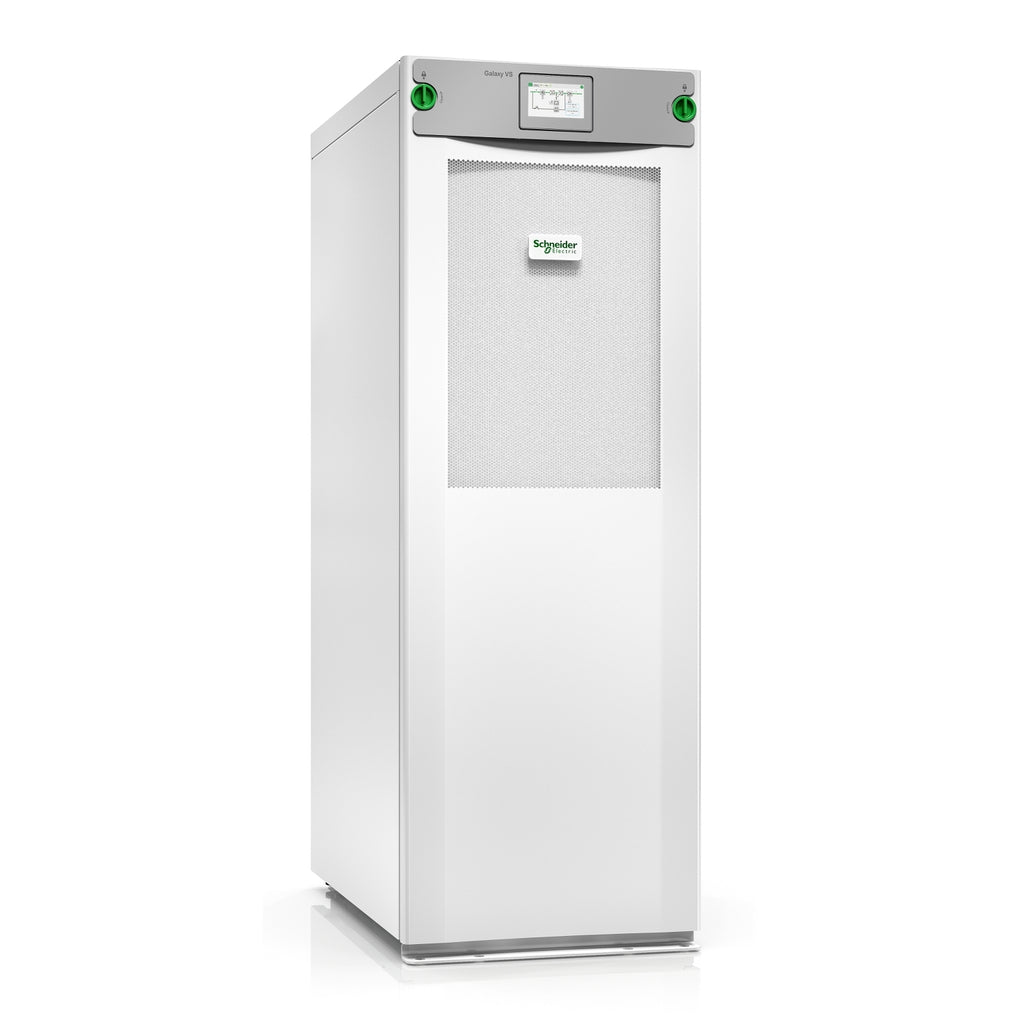

The Schneider Electric Galaxy VS GVSUPS20KHS is a compact, high-efficiency 20kW, 400V 3-phase uninterruptible power supply designed for small to medium data centers and critical infrastructure. Featuring external battery compatibility, modular architecture, and patented ECOnversion mode for up to 99% efficiency, this EcoStruxure-ready UPS offers industry-leading energy savings, reduced total cost of ownership, and remote cloud-based monitoring. Includes 5x8 start-up service.
| Specification | Details |
|---|---|
| Model Number | GVSUPS20KHS |
| Power Rating | 20 kW / 20 kVA |
| Input Voltage | 400V (3-phase), also supports 380V / 415V |
| Output Voltage | 400V (3-phase), also supports 380V / 415V |
| Efficiency (ECOnversion mode) | Up to 99% |
| Battery Type | External – Li-Ion or VRLA (not included) |
| Battery Voltage Range | 384–576 VDC |
| Bypass Type | Built-in Static Bypass |
| Input Power Factor | 0.99 |
| Output Frequency | 50/60 Hz (sync to mains or free-running ±0.1%) |
| Waveform Type | Sine wave |
| Communication Interface | Touchscreen LCD, 1 free communication slot |
| Dimensions (HxWxD) | 148.5 x 52.1 x 84.7 cm |
| Weight | 206 kg (454.2 lb) |
| Start-Up Service | Included (5x8) |
| Environmental Range | 0–40°C; 0–95% RH (non-condensing) |
| Certifications | UL 1778, IEC/EN 62040-1/2/3, CSA, FCC Class A |
| Protection Rating | IP21 |
| Warranty | 1 Year On-Site Repair or Replace |
