Description

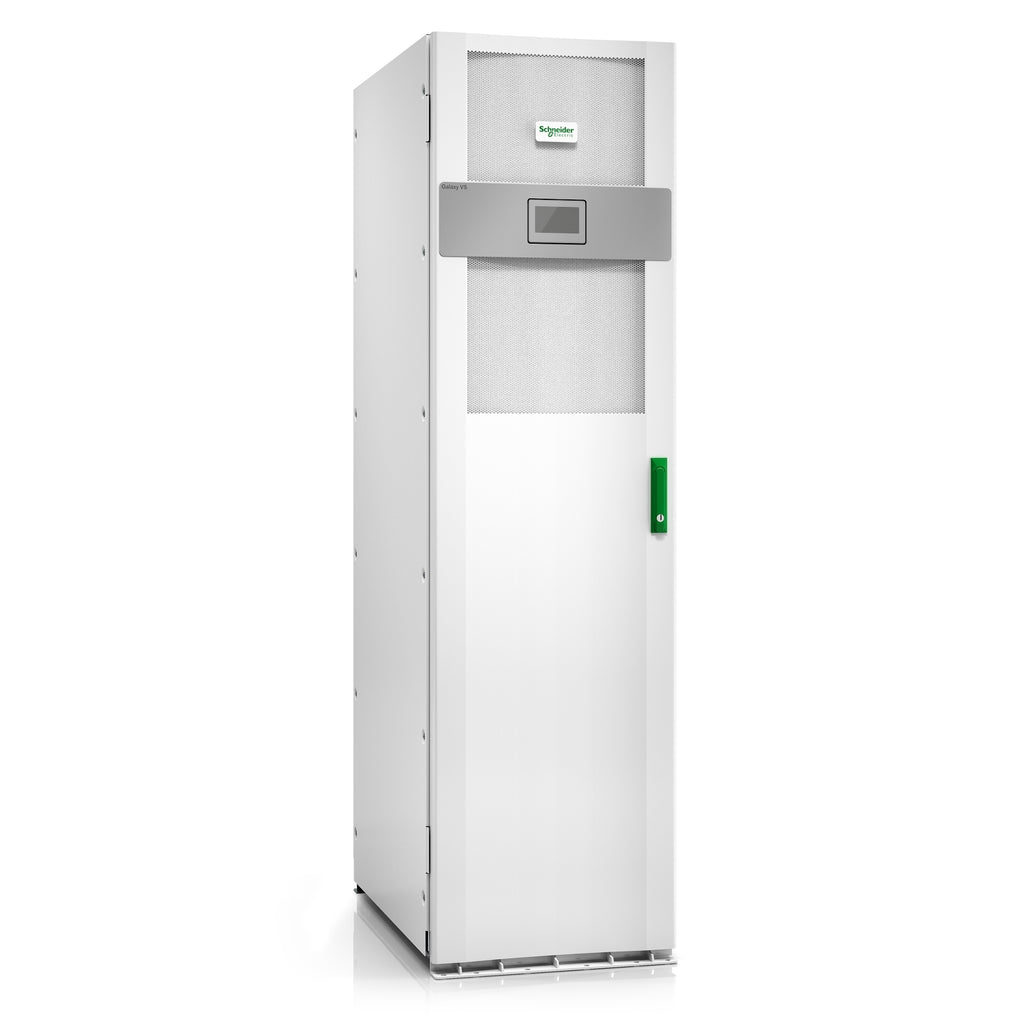

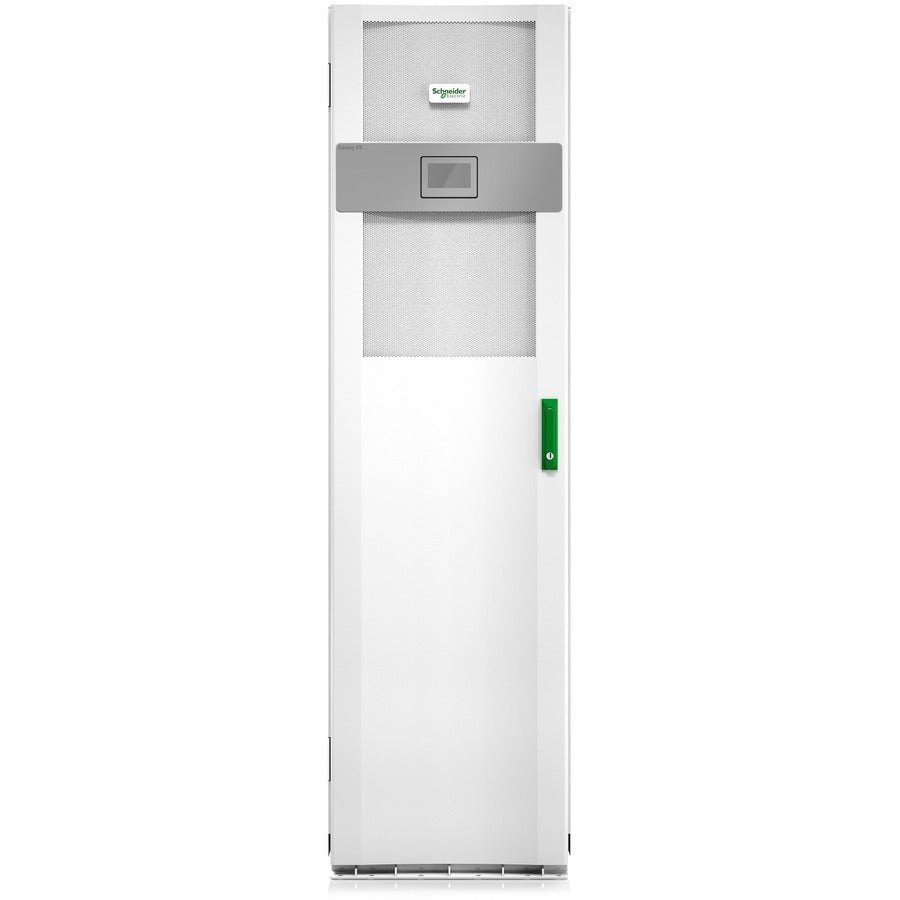

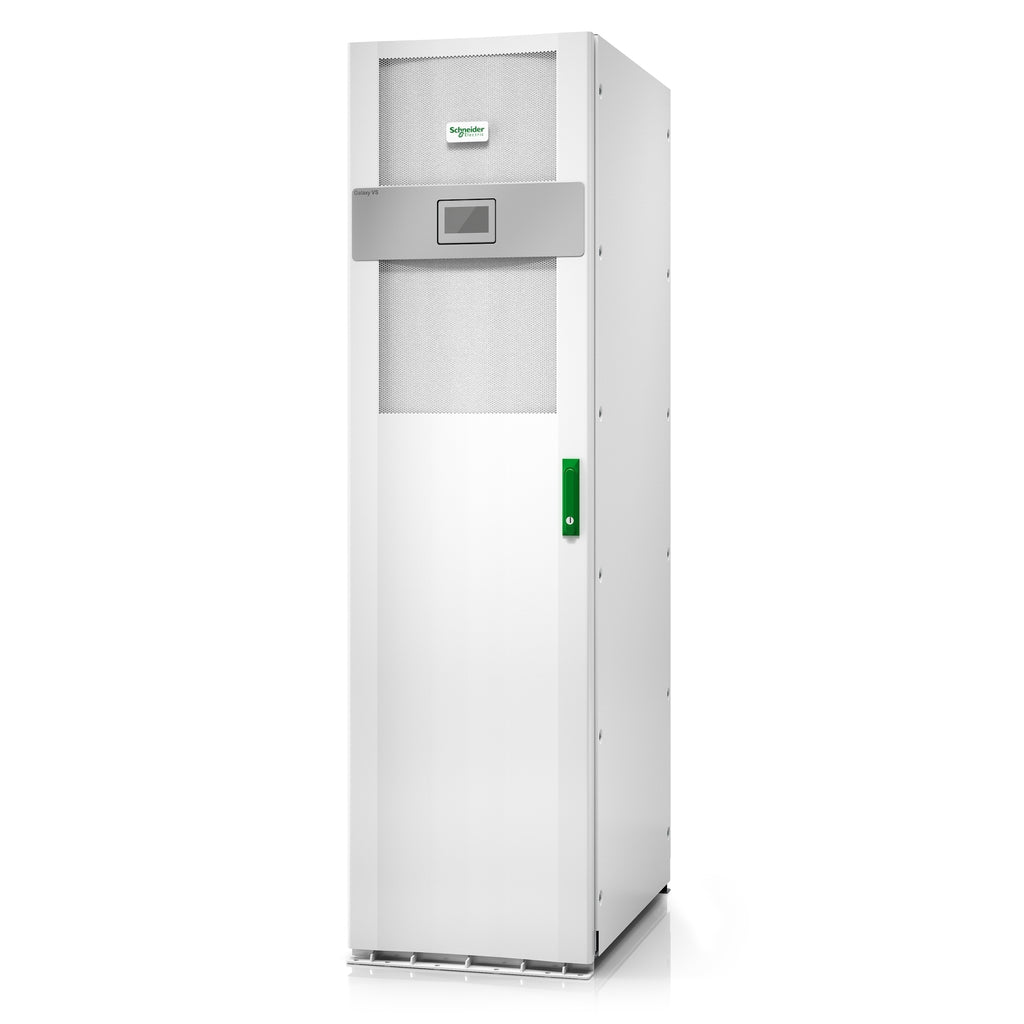

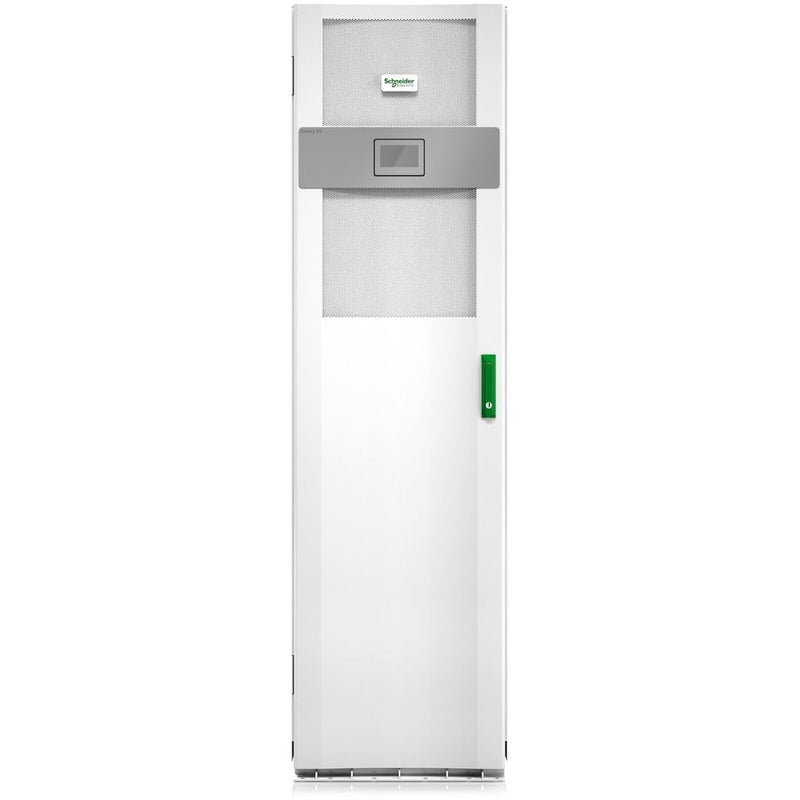

The Schneider Electric Galaxy VS UPS GVSUPS20KR0B5GS is a high-efficiency, 20kW three-phase uninterruptible power supply (UPS) built for maximum uptime and flexibility. Designed for edge computing, small to medium data centers, and mission-critical infrastructure, it includes one additional power module for N+1 redundancy and supports up to five smart modular 9Ah battery strings (batteries sold separately). With integrated EcoStruxure™ readiness, energy-saving eConversion mode, and built-in network management, this system minimizes TCO while maximizing availability. Includes 5x8 start-up service.
| Category | Details |
|---|---|
| Model | GVSUPS20KR0B5GS |
| Power Capacity | 20 kW / 20 kVA |
| Input Voltage | 480 V 3-phase |
| Output Voltage | 480 V 3-phase |

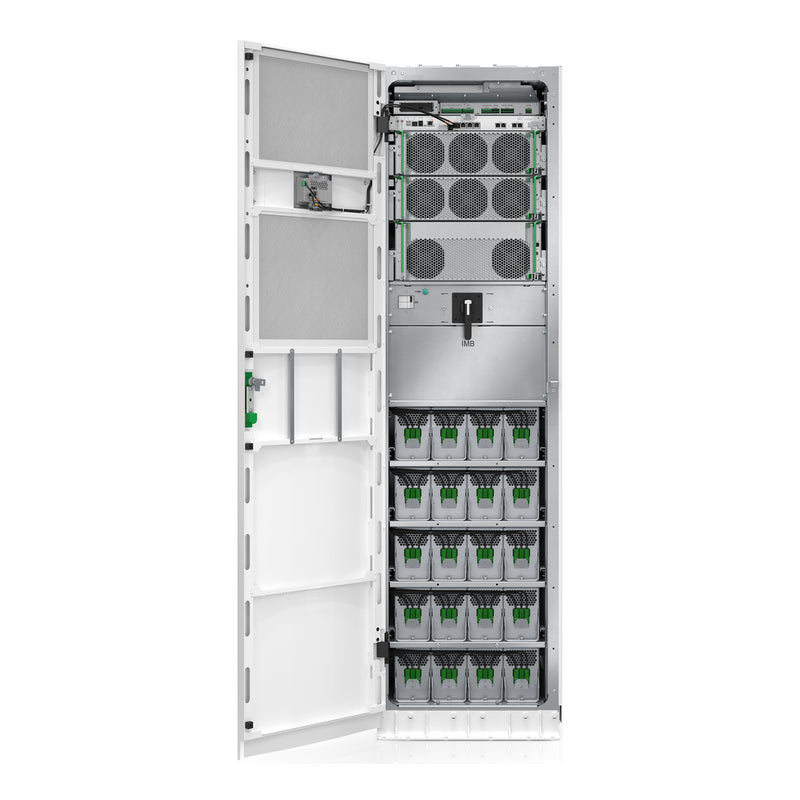

| Battery Support | Up to 5 smart modular 9Ah strings (VRLA), not included |
| Redundancy | N+1 Power Module Redundancy |
| Efficiency | Up to 97% (normal), up to 99% in eConversion mode |
| Output Waveform | Sine wave |
| Bypass | Built-in Static Bypass |
| Input Frequency | 40–70 Hz |
| Output Frequency | 50/60 Hz, sync to mains |
| Load Power Factor | 0.7 leading to 0.7 lagging without derating |
| Certifications | ENERGY STAR V2.0, UL 1778 5th Ed, FCC, CSA, IEC |
| Interface | Touchscreen LCD, Network Management Card |
| EcoStruxure Ready | Yes |
| Start-Up Service | Included (5x8) |
| Dimensions (HxWxD) | 77.56 x 21.65 x 33.35 in (197 x 55 x 84.7 cm) |
| Weight | 586.4 lb (266 kg) |
| IP Rating | IP20 |
| Noise Level | 54 dBA |
| Operating Temp. | 0°C to 40°C (32°F to 104°F) |
| Warranty | 1-Year On-Site Repair/Replace with Factory Start-Up |
