Description

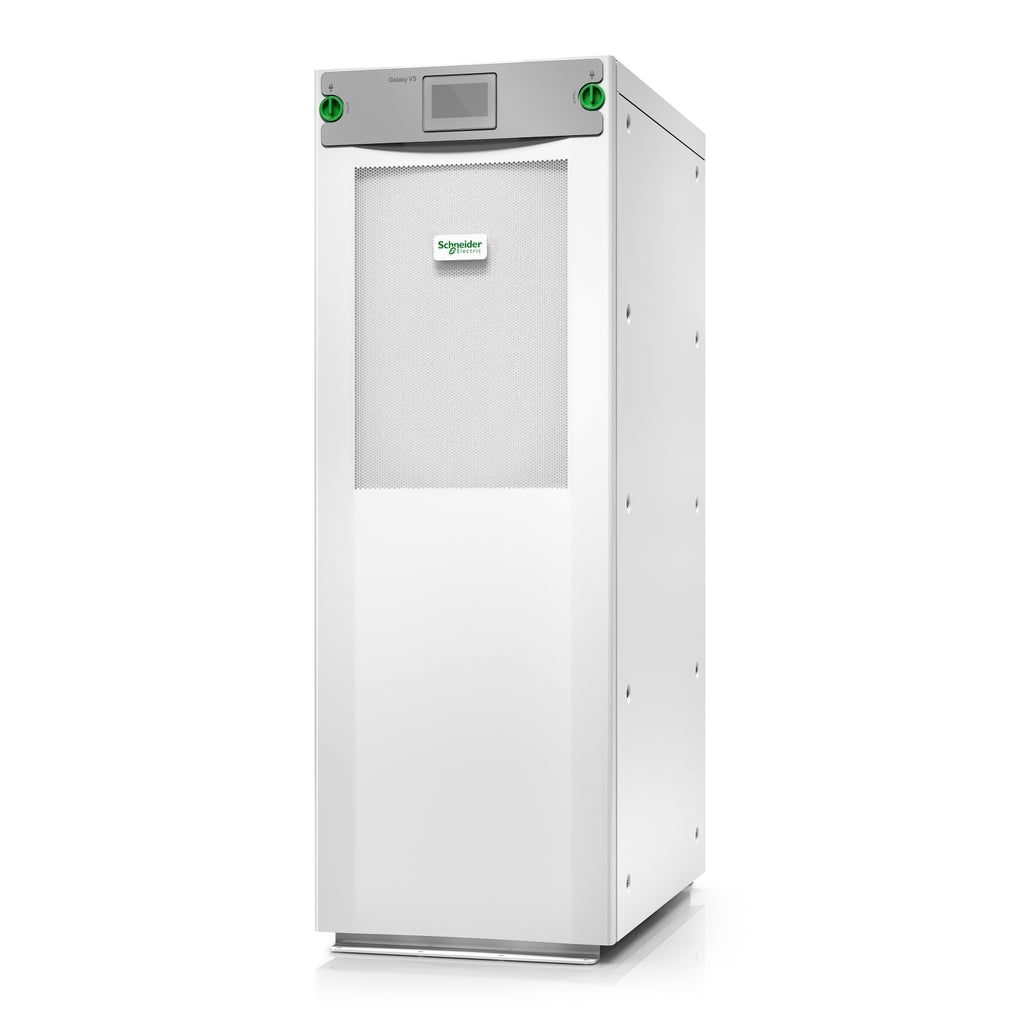

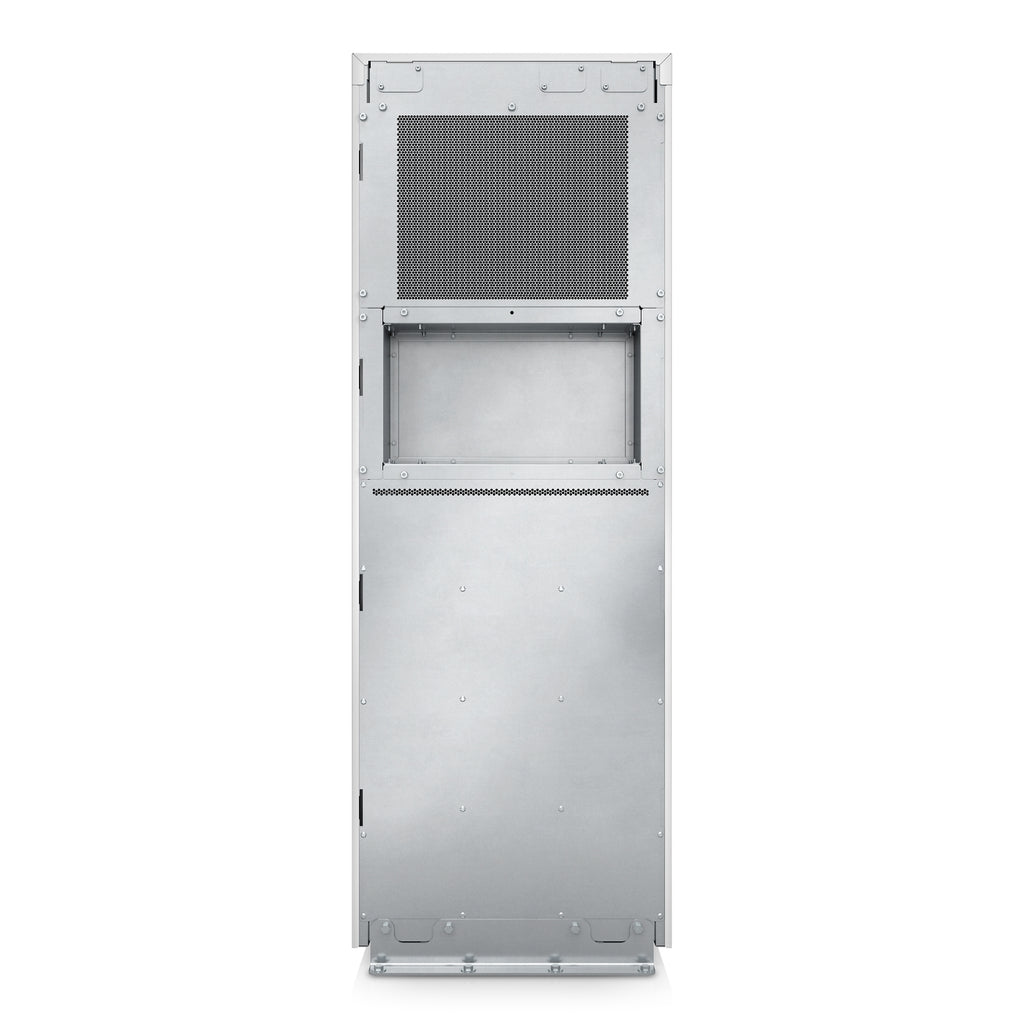

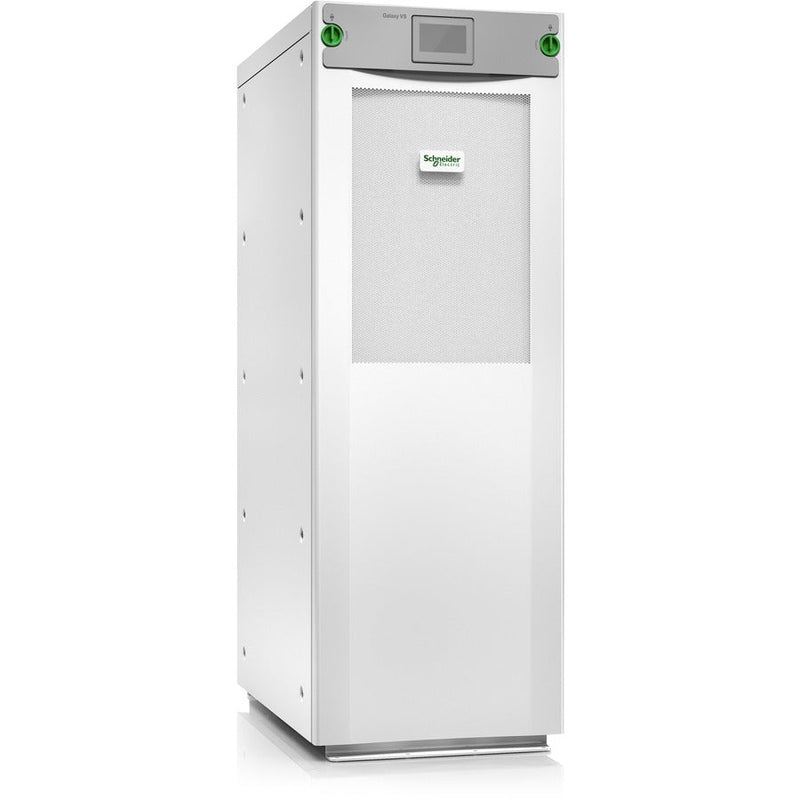

The Schneider Electric Galaxy VS GVSUPS20KB4GS is a highly efficient 20kW, 480V 3-phase uninterruptible power supply (UPS) designed to deliver reliable, scalable power protection for edge, small, and medium data centers, as well as critical infrastructure in commercial and industrial environments. It includes one internal 9Ah smart modular battery string (expandable up to 4), delivering flexible runtime options and simplified maintenance. Integrated EcoStruxure IT compatibility ensures remote monitoring and management. The system includes 5x8 start-up service for optimized performance and safety.
| Category | Details |
|---|---|
| Model | GVSUPS20KB4GS |
| Power Capacity | 20 kW / 20 kVA |
| Input Voltage | 480V 3-phase |
| Output Voltage | 480V 3-phase |
| Battery Type | Internal modular VRLA, 1 string included, expandable to 4 |
| Battery Voltage | 480V DC (384V end of discharge) |
| Battery Current Max | 54 A |
| Runtime Expandability | Yes (up to 4 battery strings) |
| Efficiency | Up to 97% (normal mode), up to 99% (ECOnversion) |
| Waveform | Sine wave |
| Output Frequency | 50/60 Hz (auto sync or +/- 0.1%) |
| Overload Capacity | 10 min @ 125%, 60 sec @ 150% |
| Bypass Type | Built-in static bypass |
| Input Power Factor | 0.99 |
| Input Frequency Range | 40 - 70 Hz |
| THD | <3% |
| Interface | Touch screen LCD, 1 communication slot |
| Dimensions (H x W x D) | 58.46 x 20.51 x 33.35 in (148.5 x 52.1 x 84.7 cm) |
| Weight | 705.5 lbs (320 kg) |
| Certifications | ENERGY STAR V2.0, UL 1778, CSA, FCC Class A |
| Protection Rating | IP20 |
| Included Services | 5x8 Start-Up Service, installed power & battery modules |
| Warranty | 1 year on-site repair/replacement with start-up |
