Description

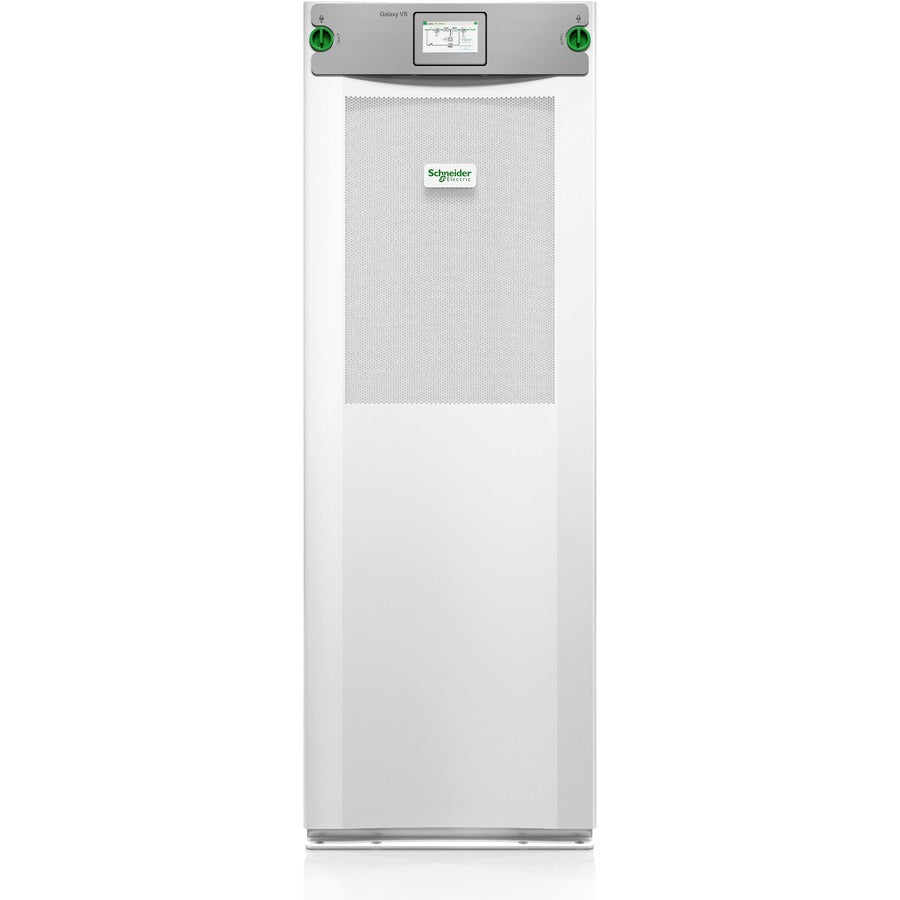

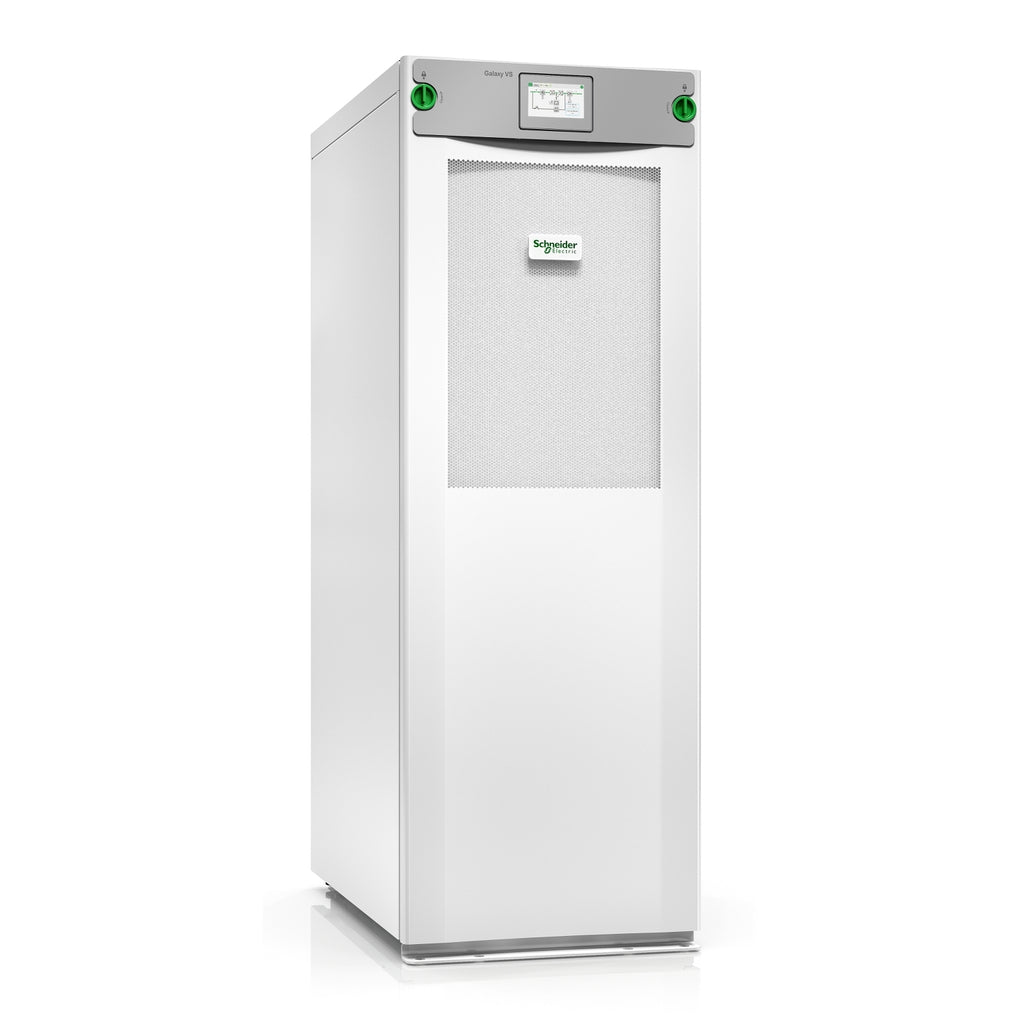

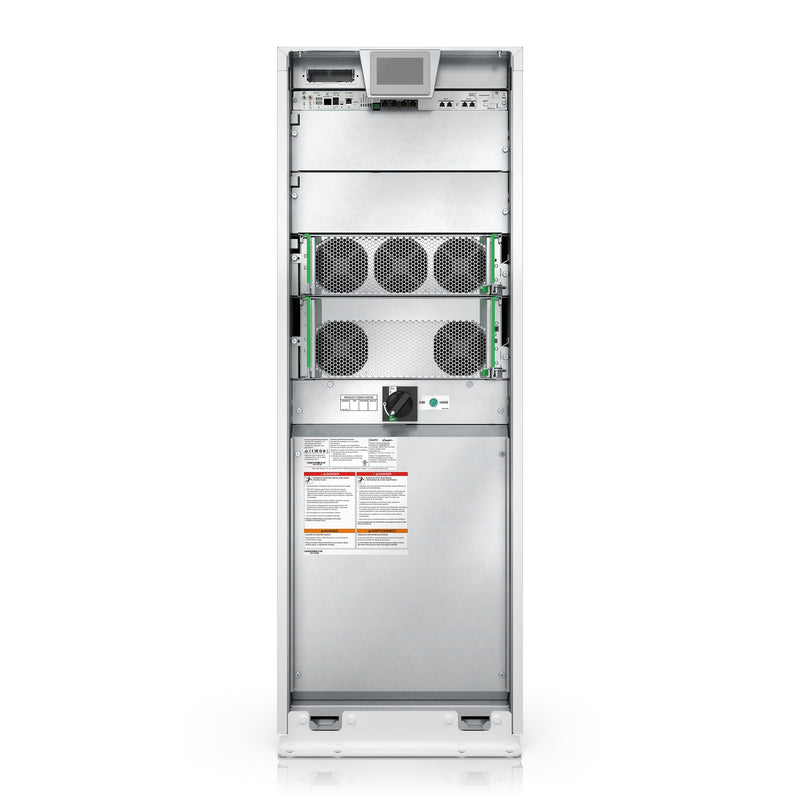

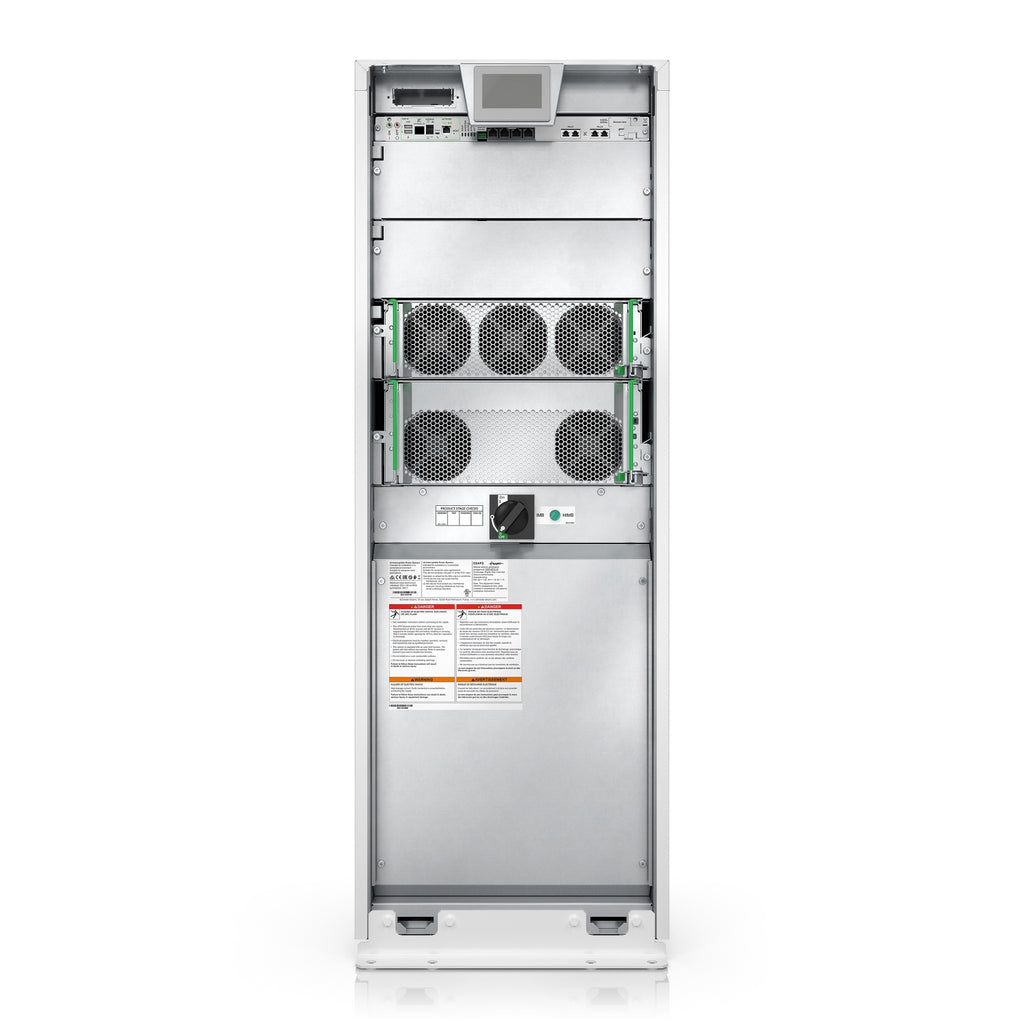

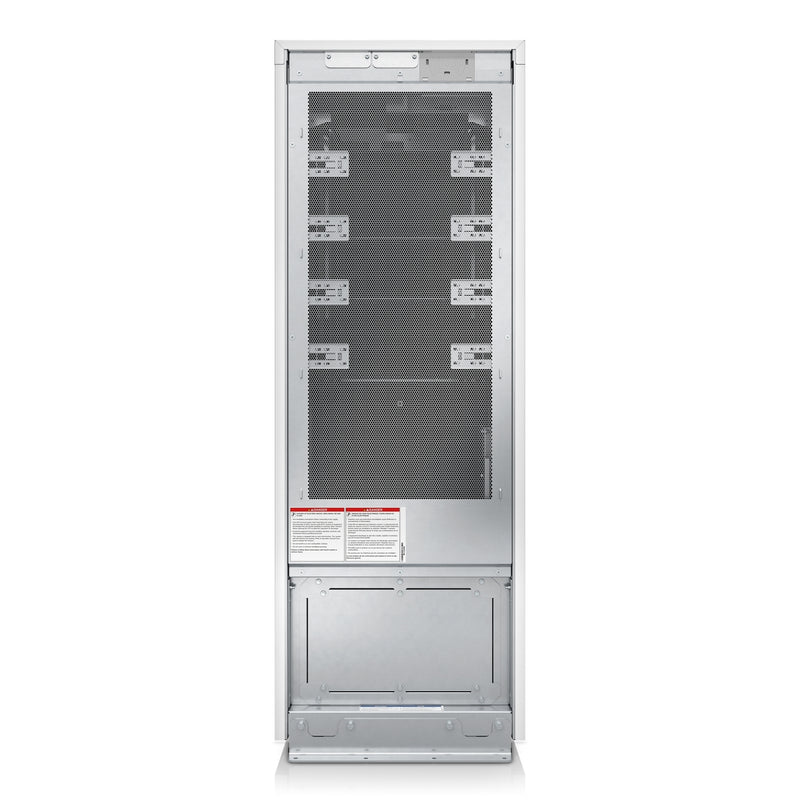

The Schneider Electric Galaxy VS GVSUPS30KHS is a compact, highly efficient 30kW 3-phase UPS (400V) designed for edge, small, and medium data centers and critical infrastructure in industrial and commercial applications. Featuring support for external batteries and advanced ECOnversion™ mode, this UPS achieves up to 99% energy efficiency, reducing energy losses by up to 66%. Its robust, modular design allows for top-tier performance and low total cost of ownership. With EcoStruxure™-ready monitoring, integrated network management, and included 5x8 start-up service, Galaxy VS ensures operational continuity and peace of mind.
| Attribute | Specification |
|---|---|
| Model | GVSUPS30KHS |
| Power Capacity | 30 kW / 30 kVA |
| Input Voltage | 400V 3-phase (Also supports 380V, 415V) |
| Output Voltage | 400V 3-phase (Also supports 380V, 415V) |
| Frequency | 40–70 Hz (Auto-sensing) |
| Battery Type | External Battery System (VRLA, Li-Ion compatible) |
| Battery Voltage Range | 384–576 VDC |
| Efficiency | Up to 97% (Normal), Up to 99% (ECOnversion™ Mode) |
| Form Factor | Tower |
| Bypass Type | Built-in Static Bypass |
| Overload Handling | 10 min @ 125%, 60 sec @ 150% |
| Communication | Touchscreen LCD, 1 Free Slot, Network Management |
| Dimensions (H x W x D) | 1485 x 521 x 847 mm (58.46 x 20.51 x 33.35 in) |
| Weight | 206 kg (454.2 lbs) |
| Environmental Rating | IP21, 0–40°C, 0–95% RH non-condensing |
| Certifications | UL 1778, EN/IEC 62040-1/2/3, FCC Part 15 Class A, CSA |
| Warranty | 1-Year On-Site Repair with Factory Authorized Start-up |
| Included Services | Start-Up Service (5x8), Dust Filter, Installation Guide |
