Description

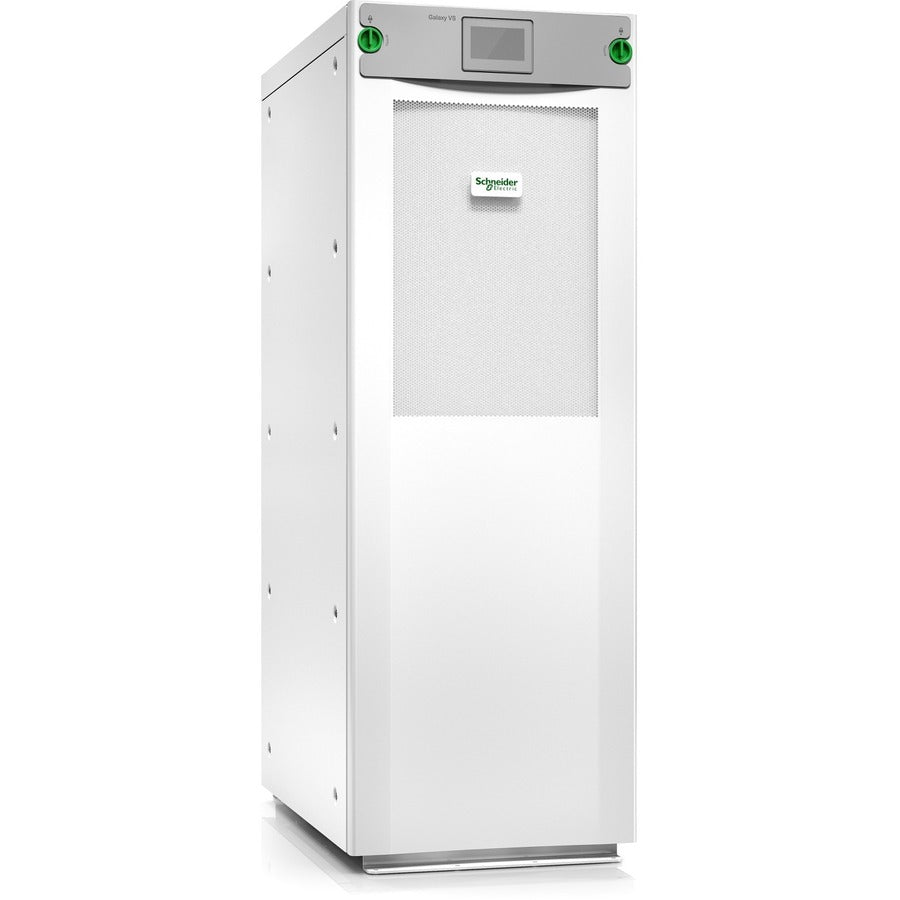

The Schneider Electric Galaxy VS GVSUPS30K0B4GS is a highly efficient, 30kW 480V 3-phase tower UPS, ideal for edge, small and medium data centers, as well as critical commercial and industrial applications. Designed to support up to 4 internal 9Ah smart modular battery strings (batteries sold separately), it provides scalable, best-in-class power protection and optimized runtime flexibility.
This model features advanced energy savings through ECOnversion (up to 99% efficiency), built-in network management, and EcoStruxure™ readiness for remote monitoring. Compact, modular, and easy to deploy, the Galaxy VS includes a 5x8 startup service for assured quality and safety on commissioning.
| Attribute | Specification |
|---|---|
| Model Number | GVSUPS30K0B4GS |
| Product Type | 3-Phase Tower UPS |
| Power Rating | 30kW / 30kVA |
| Input Voltage | 480V 3-phase |
| Output Voltage | 480V 3-phase |
| Battery Type | VRLA (external, up to 4 internal battery strings) |
| Battery Voltage | 480V DC |
| Efficiency | Up to 97% (double conversion), 99% (ECOnversion) |
| Redundancy | Not included (scalable design) |
| Bypass Type | Built-in Static Bypass |
| Waveform | Sine Wave |
| Harmonic Distortion (Output) | <1% (linear), <5% (non-linear) |
| Overload Capacity | 10 min @ 125%, 60 sec @ 150% |
| Control Panel | Touch Screen LCD |
| Form Factor | Tower |
| Dimensions (HxWxD) | 58.46 x 20.51 x 33.35 in (148.5 x 52.1 x 84.7 cm) |
| Weight | 440.9 lbs (200 kg) |
| Certifications | ENERGY STAR V2.0, UL 1778, IEC 62040, FCC Class A |
| Warranty | 1-Year On-site Repair (Factory Authorized Start-up) |
| Environmental Rating | IP20, 0–40°C, 0–95% RH (non-condensing) |
| Included Services | Dust Filter, Installation Manual, Network Management, Start-up Service |
| Compliance | RoHS (with exemptions), REACh |
