Description

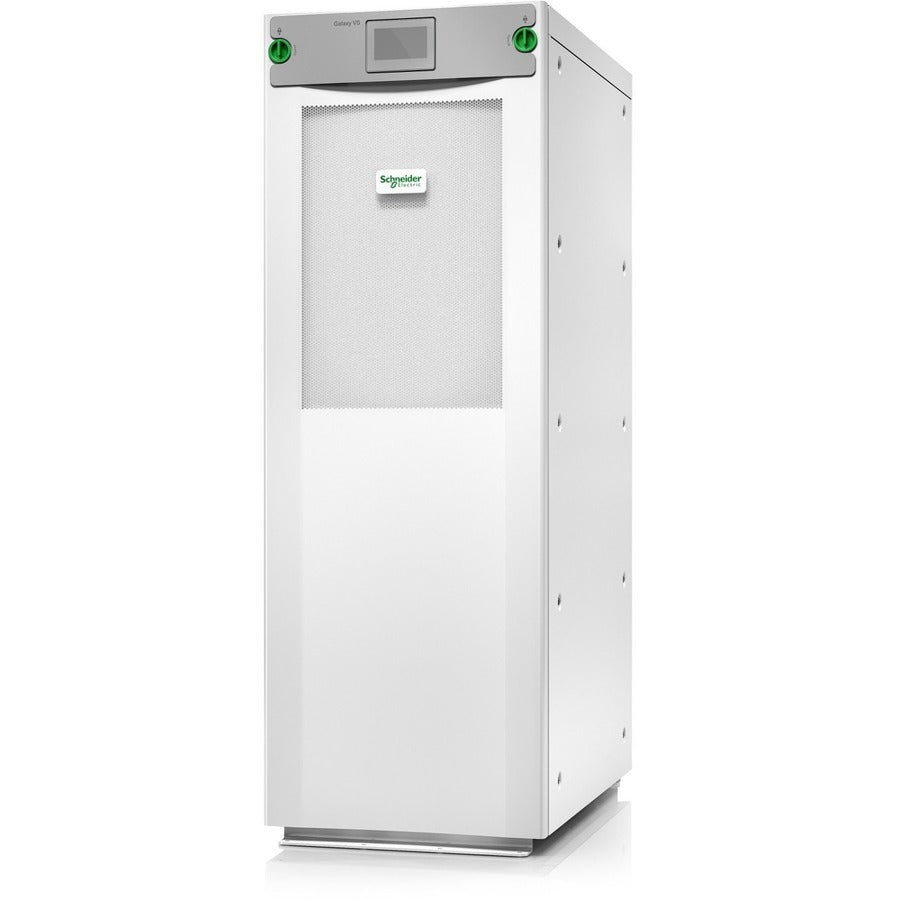

The Schneider Electric Galaxy VS GVSUPS30KR0B5GS is a compact, highly efficient 30kW 480V 3-phase uninterruptible power supply (UPS) designed for edge, small, and medium data centers and critical infrastructure. It includes an extra power module for N+1 redundancy and supports up to five smart modular 9Ah VRLA battery strings (not included) to meet your runtime customization needs.
With up to 97% online mode efficiency (99% in ECOnversion), integrated network management, and EcoStruxure™ readiness, Galaxy VS delivers best-in-class protection, uptime, and sustainability. The included 5x8 start-up service ensures optimal deployment performance.
| Specification | Details |
|---|---|
| Model Number | GVSUPS30KR0B5GS |
| Power Rating | 30 kW / 30 kVA |
| Input Voltage | 480V 3-phase |
| Output Voltage | 480V 3-phase |
| Input Frequency | 40 – 70 Hz |
| Efficiency (Online Mode) | Up to 97% |
| Efficiency (ECOnversion) | Up to 99% |
| Battery Compatibility | Up to 5 smart modular 9Ah strings (VRLA, not included) |
| Battery Voltage | 480V DC |
| Max Battery Current | 81 A |
| Redundancy | N+1 (with extra power module) |
| Bypass Type | Built-in Static Bypass |
| Form Factor | Tower |
| Color | White |
| Dimensions (HxWxD) | 77.56 x 21.65 x 33.35 in (197 x 55 x 84.7 cm) |
| Weight | 652.6 lbs (296 kg) |
| Acoustic Noise Level | 54 dBA |
| Interface | Touch Screen LCD |
| Communication | Integrated Network Management |
| Certifications | UL 1778, IEC 62040, FCC Part 15 Class A |
| Warranty | 1-Year On-Site Repair (Start-Up Included) |
| Environmental Compliance | RoHS, REACh, SCIP, Circular Take-back |
| EcoStruxure™ Ready | Yes |
