Description

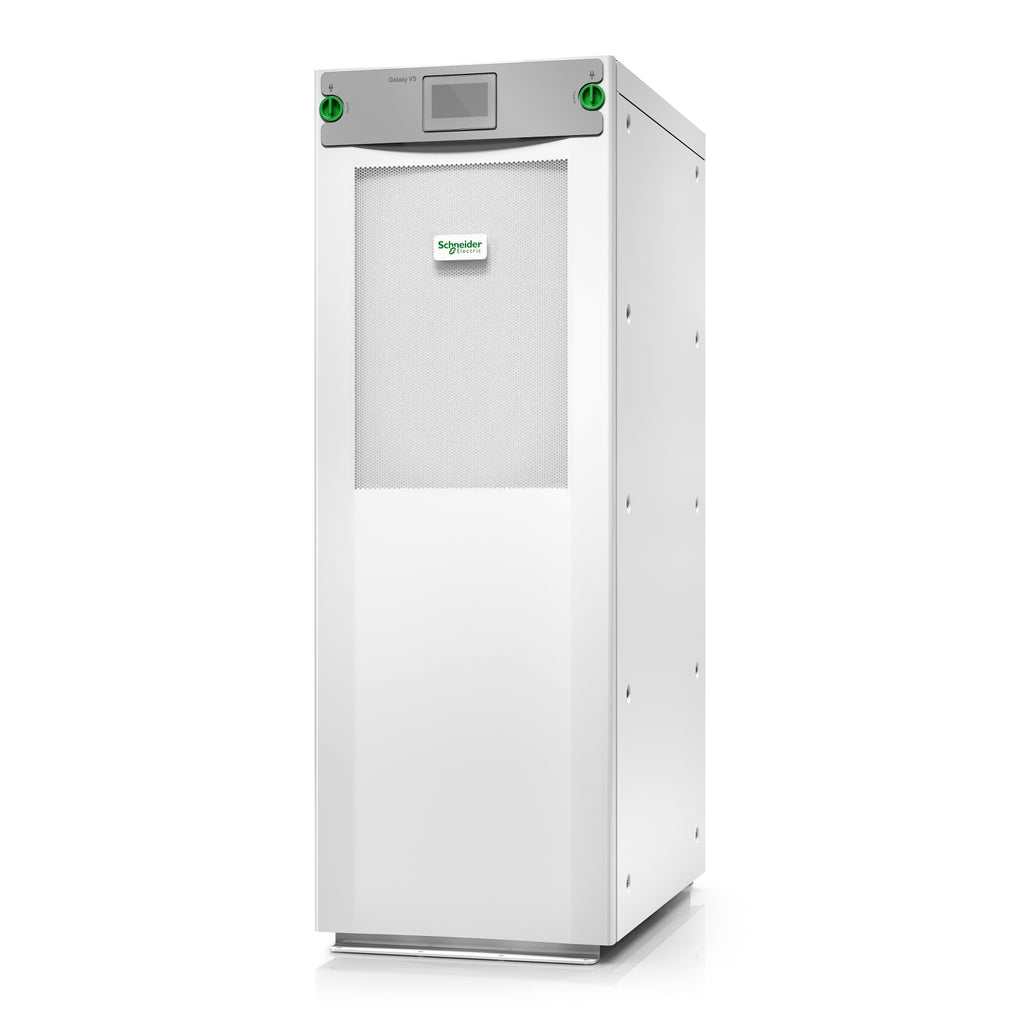

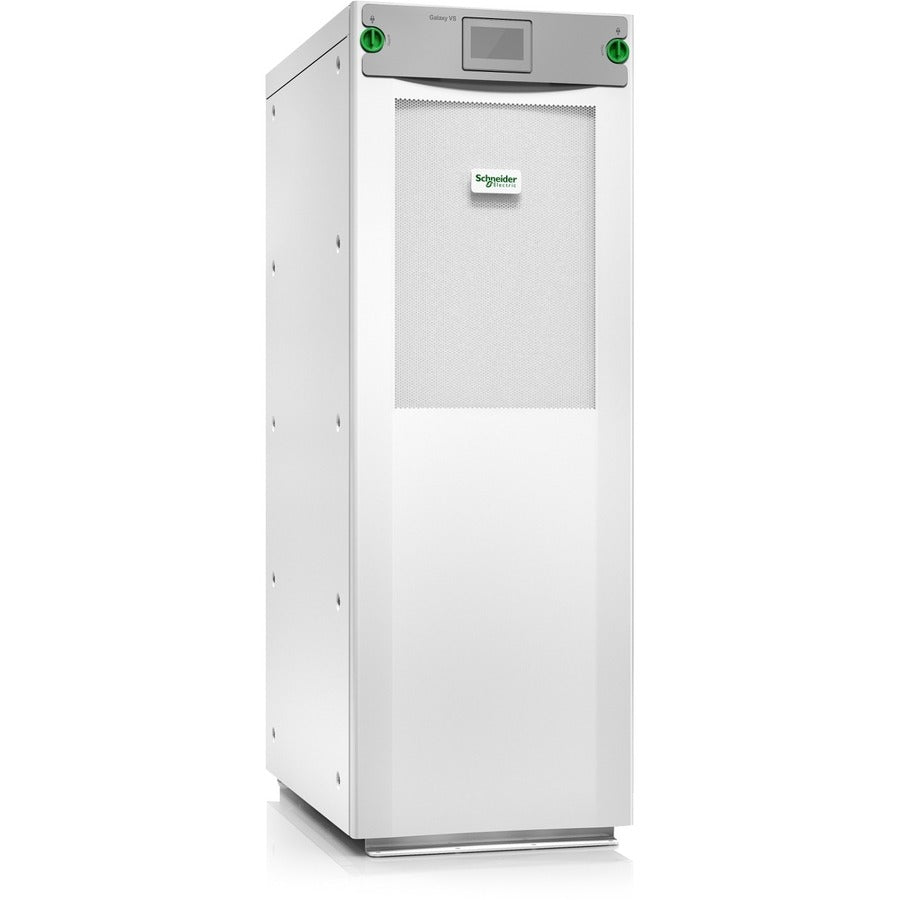

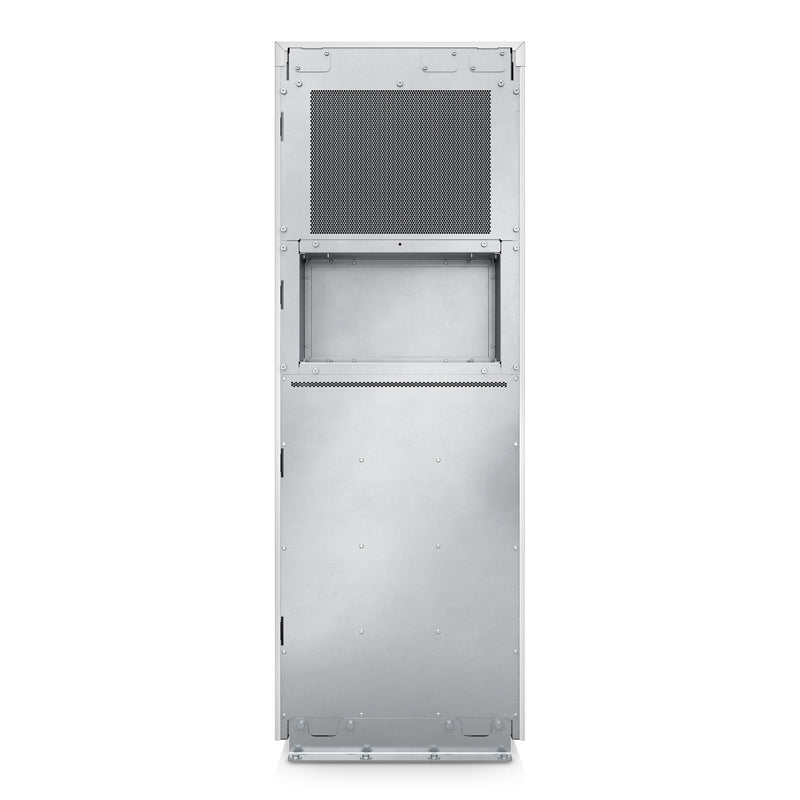

The Schneider Electric Galaxy VS GVSUPS30KB4HS is a highly efficient, modular 30kW 400V 3-phase UPS designed for edge, small, and medium data centers, as well as critical infrastructure in commercial and industrial environments. Featuring 2 internal high-capacity 9Ah smart modular battery strings (expandable to 4), this UPS ensures robust runtime scalability. Its compact design, fault-tolerant architecture, and energy efficiency (up to 97% in normal mode and 99% in ECOnversion mode) provide superior protection while reducing total cost of ownership. Includes 5x8 startup service and EcoStruxure™ IT compatibility for remote monitoring.
| Category | Specification |
|---|---|
| Model Number | GVSUPS30KB4HS |
| Power Capacity | 30kW / 30kVA |
| Input Voltage | 400V 3-phase (380V / 415V compatible) |
| Input Frequency | 40–70 Hz |
| Input Power Factor | 0.99 at full load |
| Input Voltage Range | 340–460V |
| Output Voltage | 400V 3-phase |
| Output Frequency | 50/60 Hz ±0.1% (unsynchronized) |
| Battery Type | Internal modular VRLA, 2 strings (expandable to 4) |
| Battery Voltage | 480V (384V discharge) |
| Max Battery Discharge | 81 A |
| Efficiency | Up to 97% (Normal), Up to 99% (ECOnversion) |
| Bypass | Built-in static bypass |
| Overload Capacity | 125% for 10 min; 150% for 60 sec |
| Certifications | UL 1778, CSA C22.2 No 107.3, EN/IEC 62040 series |
| Dimensions (HxWxD) | 148.5 x 52.1 x 84.7 cm |
| Weight | 460 kg |
| Environmental Rating | 0–40°C; 0–95% RH (non-condensing); IP20 |
| Noise Level | 61 dBA |
| Communication | Touchscreen LCD; 1 free communication slot |
| Warranty | 1-year on-site repair or replace with start-up |
