Description

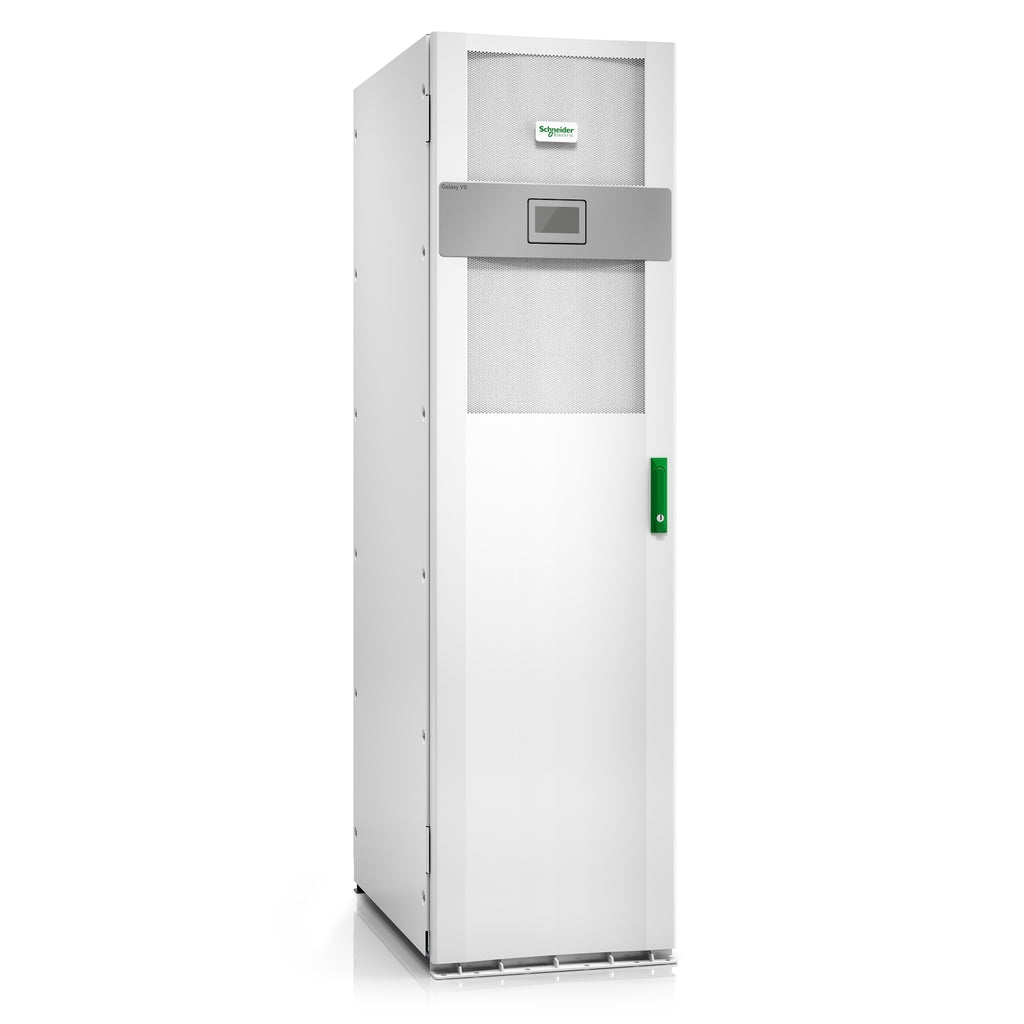

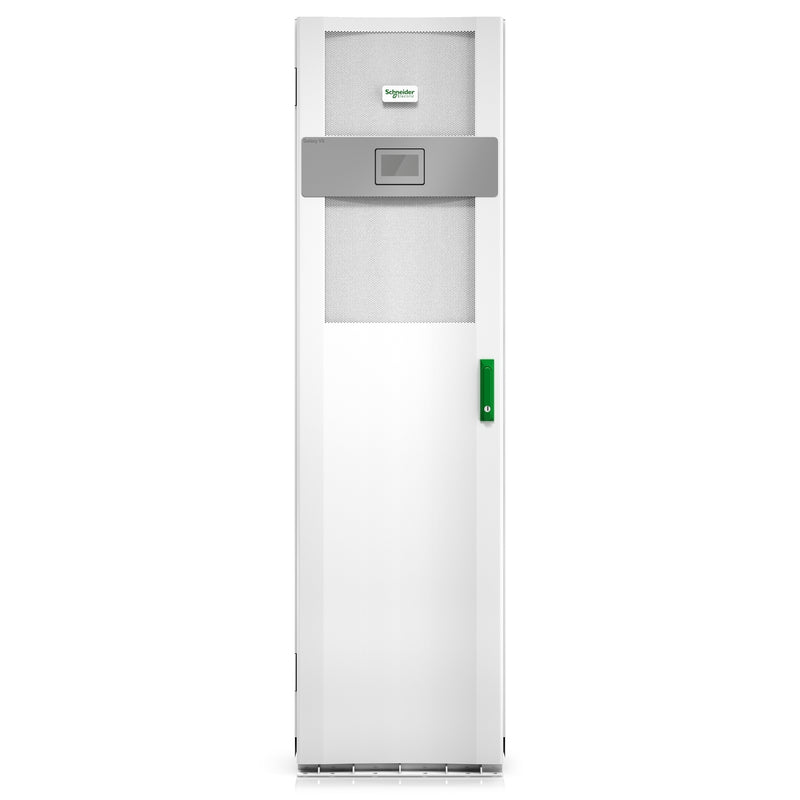

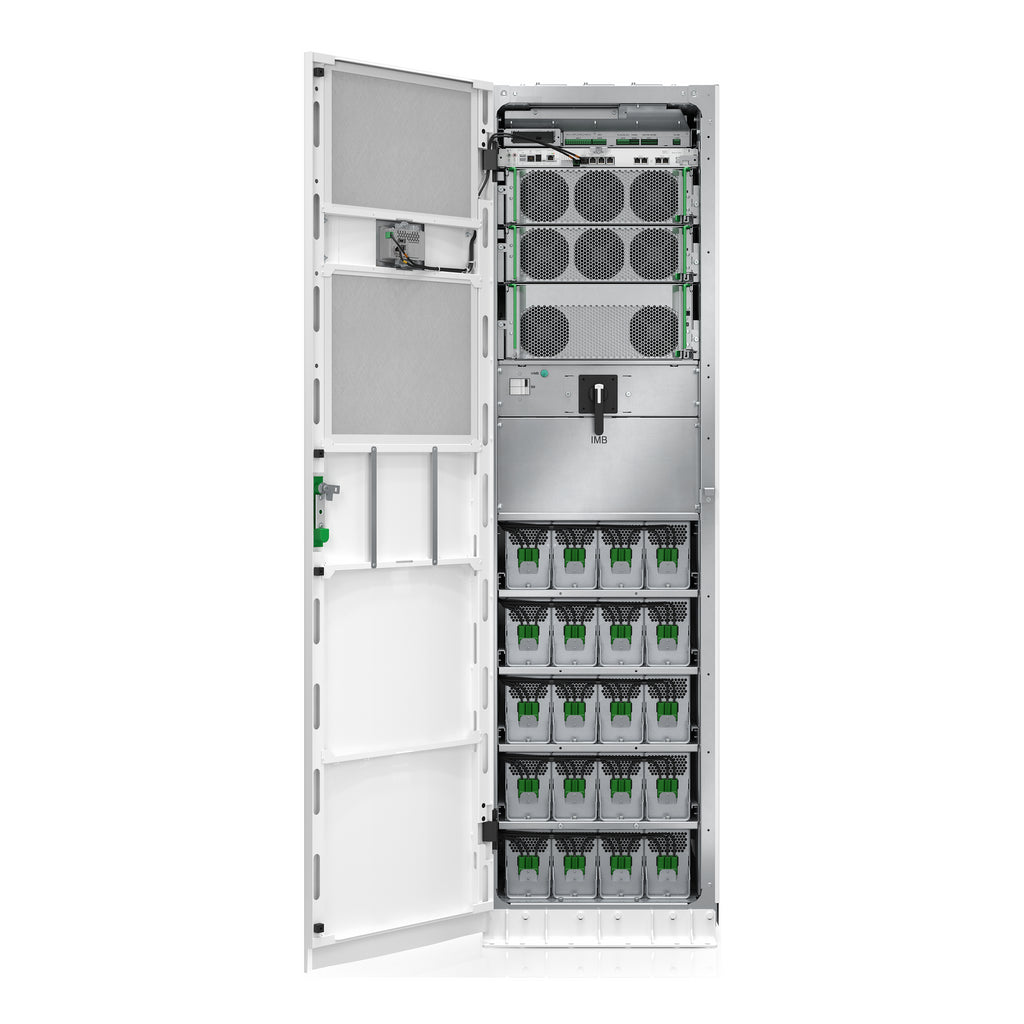

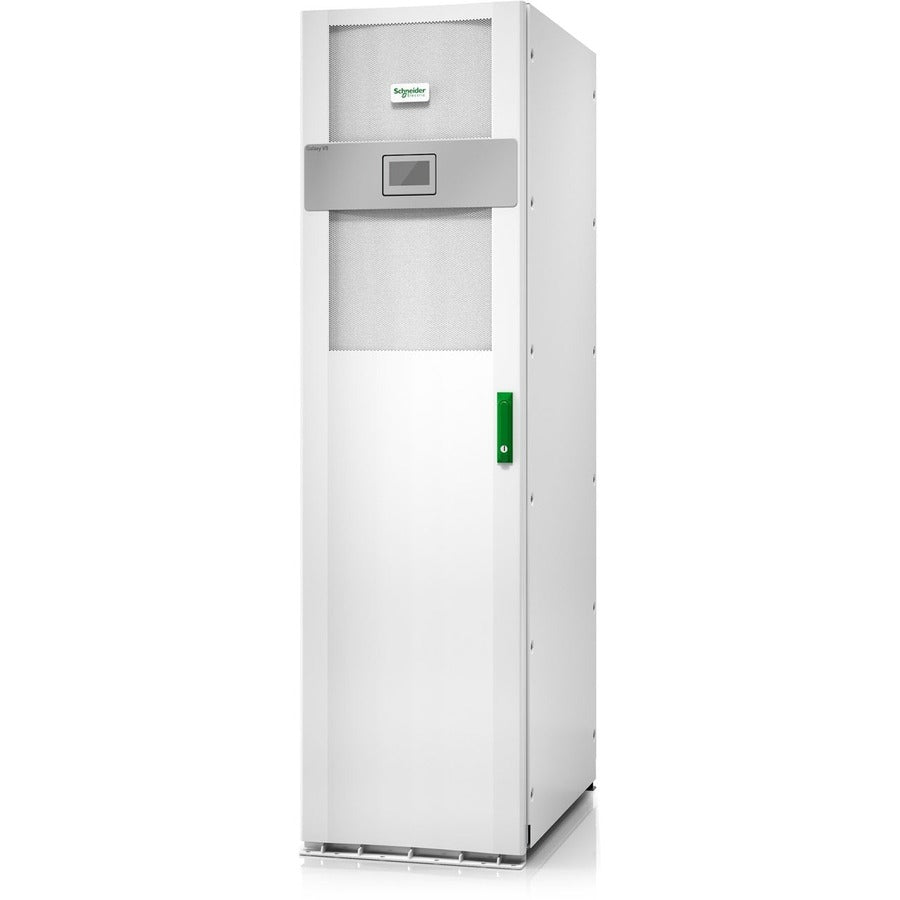

The Galaxy VS UPS 30kW 208V (GVSUPS30K0B5FS) by Schneider Electric is a high-performance, three-phase uninterruptible power supply designed for edge, small, and medium data centers, as well as commercial and industrial critical infrastructure. This compact, modular UPS supports up to five internal high-capacity 9Ah smart battery strings (batteries not included), giving you flexibility to tailor runtime to your needs. Featuring up to 97% operational efficiency and 99% in ECOnversion mode, it minimizes energy losses while maximizing availability. Comes with a 5x8 start-up service and EcoStruxure-ready remote monitoring.
| Specification | Details |
|---|---|
| Model Number | GVSUPS30K0B5FS |
| Power Rating | 30 kW / 30 kVA |
| Input Voltage | 208V 3-phase (200V / 220V compatible) |
| Output Voltage | 208V 3-phase (200V / 220V compatible) |
| Efficiency | Up to 97% (normal mode), 99% (ECOnversion) |
| Battery Slots | Supports up to 5 smart modular 9Ah strings |
| Battery Type | Internal VRLA, modular (not included) |
| Input Frequency | 40–70 Hz |
| Input Power Factor | 0.99 |
| Output Waveform | Sine wave |
| Output Frequency | 50/60 Hz (sync to mains) |
| Crest Factor | 2.5 |
| Overload Capacity | 125% for 10 min, 150% for 60 sec |
| Redundancy | No |
| Bypass | Built-in static bypass |
| Communication | Touchscreen LCD, EcoStruxure Ready |
| Dimensions (H x W x D) | 77.56 x 21.65 x 33.35 in (197 x 55 x 84.7 cm) |
| Weight | 586.4 lbs (266 kg) |
| Noise Level | 54 dBA |
| Operating Temp / Humidity | 0–40°C / 0–95% RH (non-condensing) |
| Altitude (operating) | Up to 3300 ft |
| IP Rating | IP20 |
| Warranty | 1 year on-site repair (with factory start-up) |
