Description

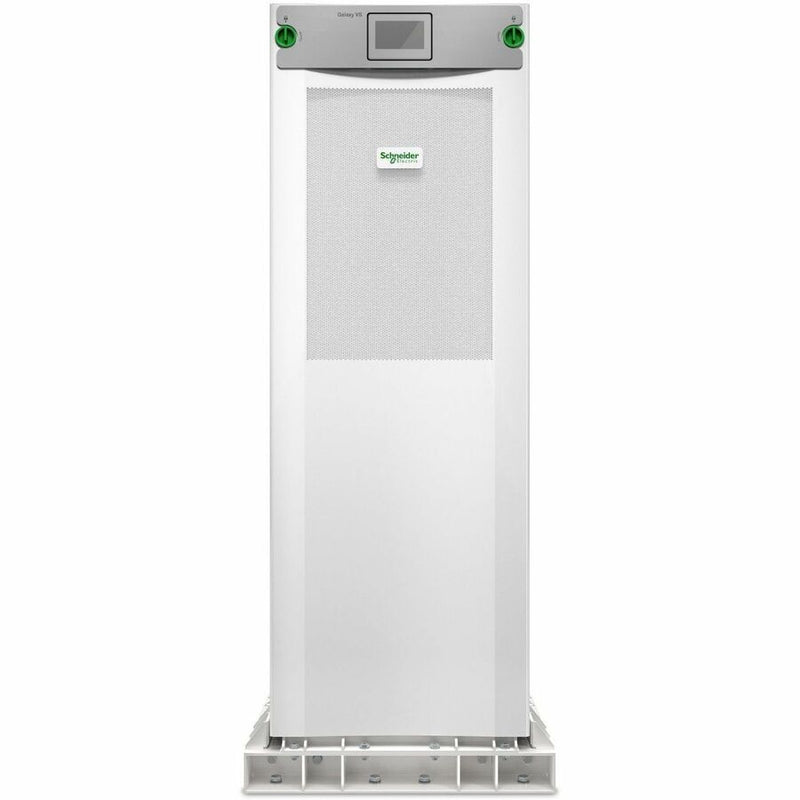

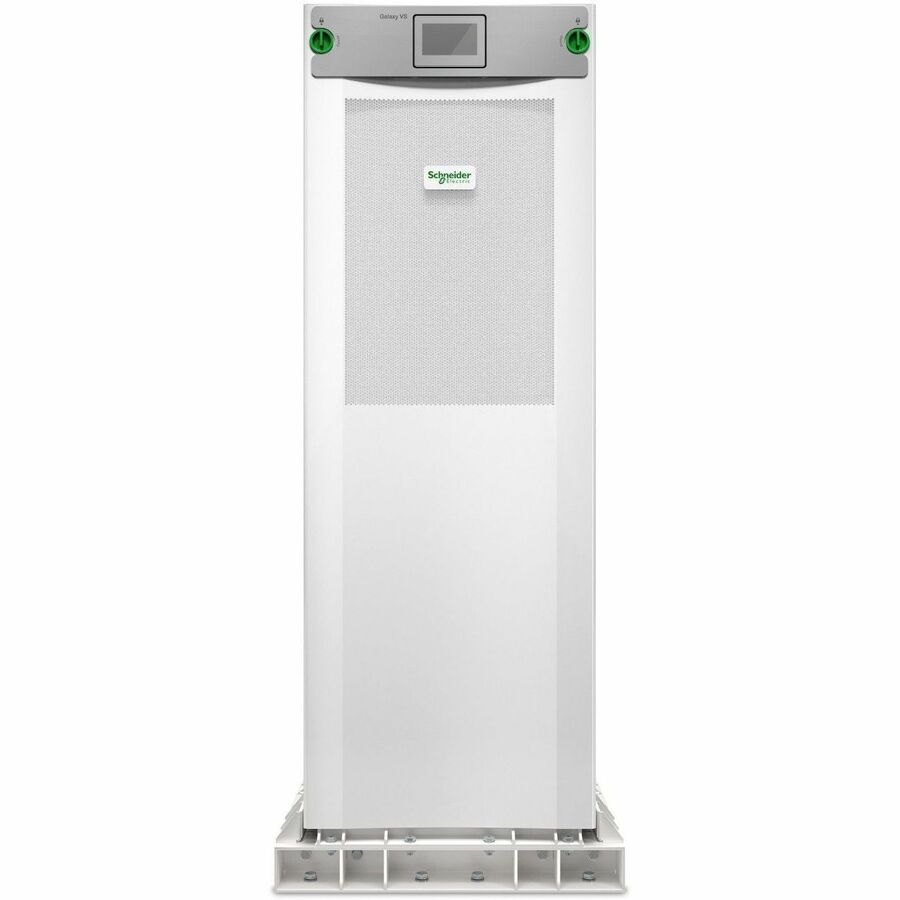

The Schneider Electric Galaxy VS UPS 30kW 400V (GVSUPS30KMHS) is a high-performance 3-phase uninterruptible power supply designed for edge, small and medium data centers, and mission-critical industrial facilities. This marine-certified unit features halogen-free cables, supports external VRLA or lithium-ion batteries, and ensures outstanding efficiency, flexibility, and availability. It includes integrated network management, a touchscreen LCD interface, and 5x8 start-up service for fast deployment and long-term reliability.
| Category | Details |
|---|---|
| Model | GVSUPS30KMHS |
| Power Rating | 30 kW / 30 kVA |
| Input Voltage | 400V 3-phase (also supports 380V, 415V) |
| Output Voltage | 400V 3-phase |
| Battery Type | External VRLA / Lithium-Ion |
| Battery Voltage Range | 480–576 VDC |
| Max Battery Current | 102 A |
| Frequency | 50/60 Hz (auto-sensing) |
| Efficiency | High efficiency with <3% input THD |
| Overload Capacity | 125% for 10 min, 150% for 60 sec |
| Output THD | <1% linear, <5% non-linear load |
| Crest Factor | 2.5 |
| Bypass | Built-in static bypass |
| Redundancy | Not included (non-redundant model) |
| IP Rating | IP21 |
| Dimensions (HxWxD) | 148.5 cm x 52.1 mm x 84.7 cm |
| Weight | 206 kg (454.2 lb) |
| Color | White |
| Interface | Touch Screen LCD |
| Certifications | Marine certified, EN/IEC 62040-1/-2, UL 1778 |
| Included Accessories | Start-Up Service 5x8, Dust Filter, Installation Guide |
| Operating Temp | 0°C to 40°C (32°F to 104°F) |
| Relative Humidity | 0–95% non-condensing |
| Altitude Limit | Up to 3300 ft (1000 m) |
| Warranty | 1-year on-site repair or replacement |
