Description

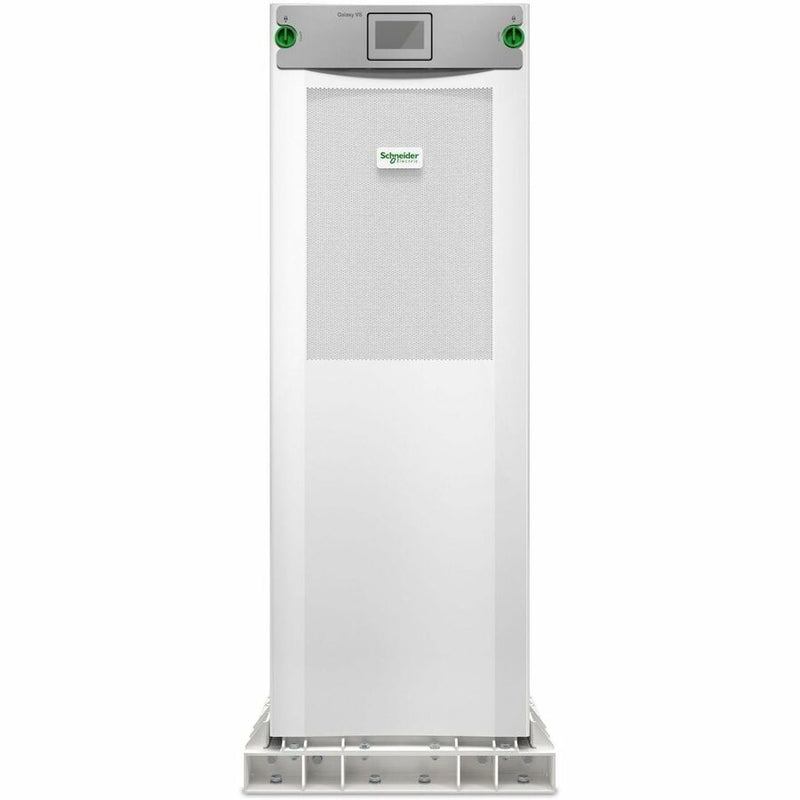

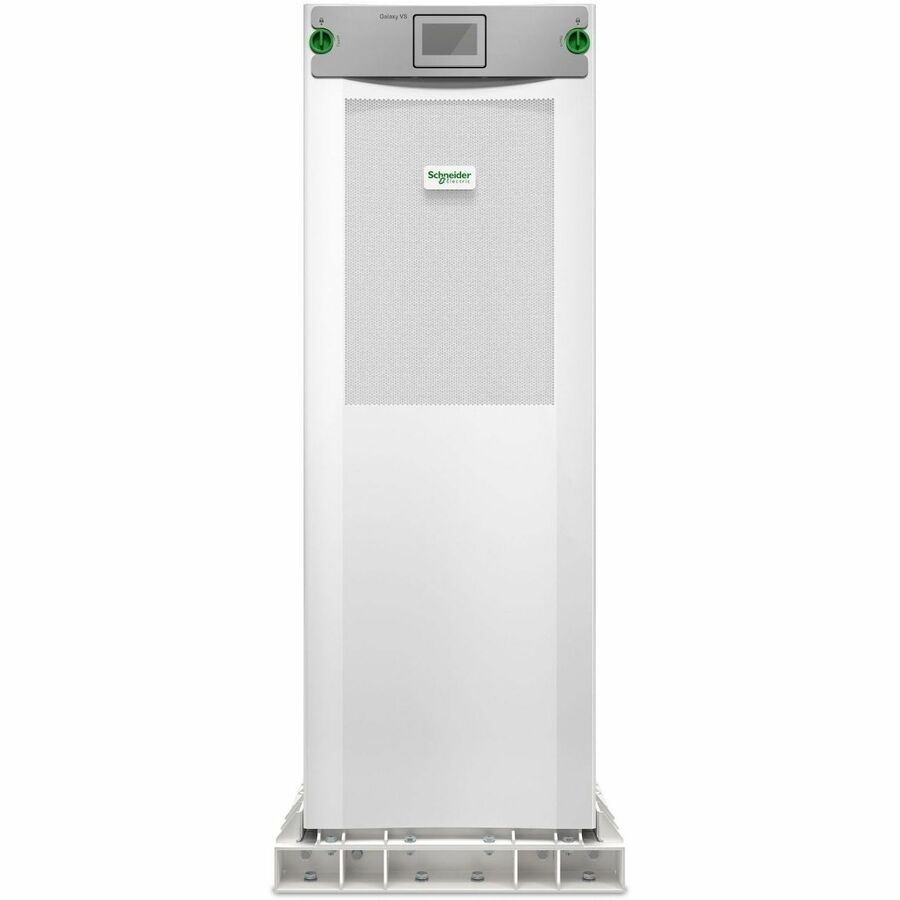

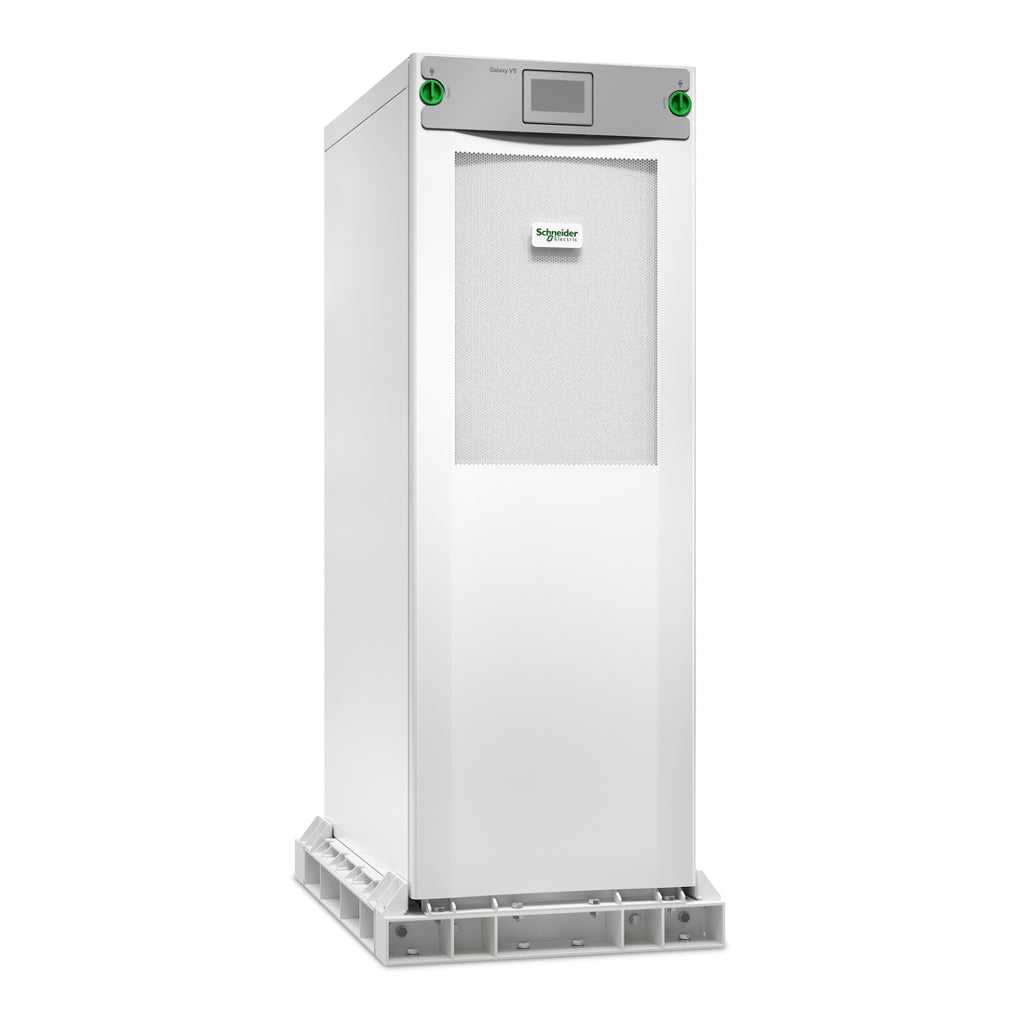

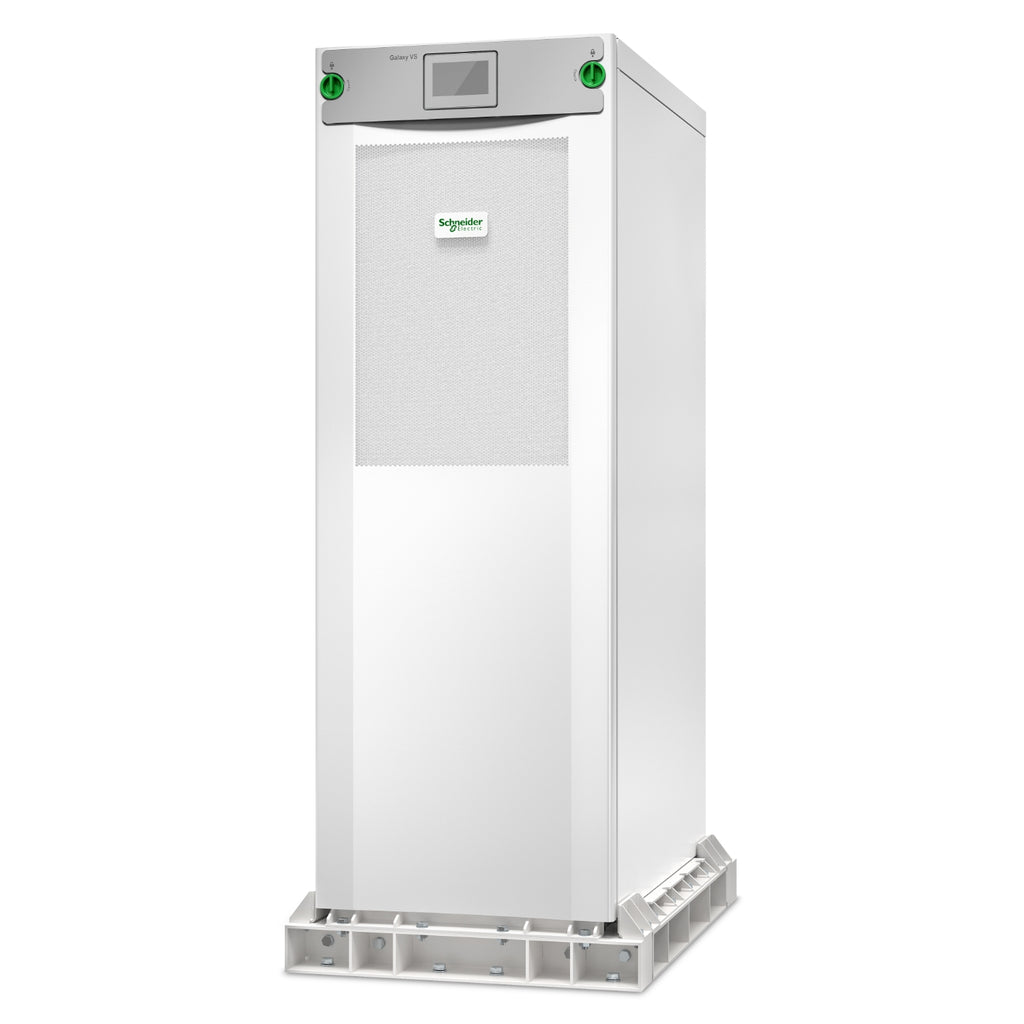

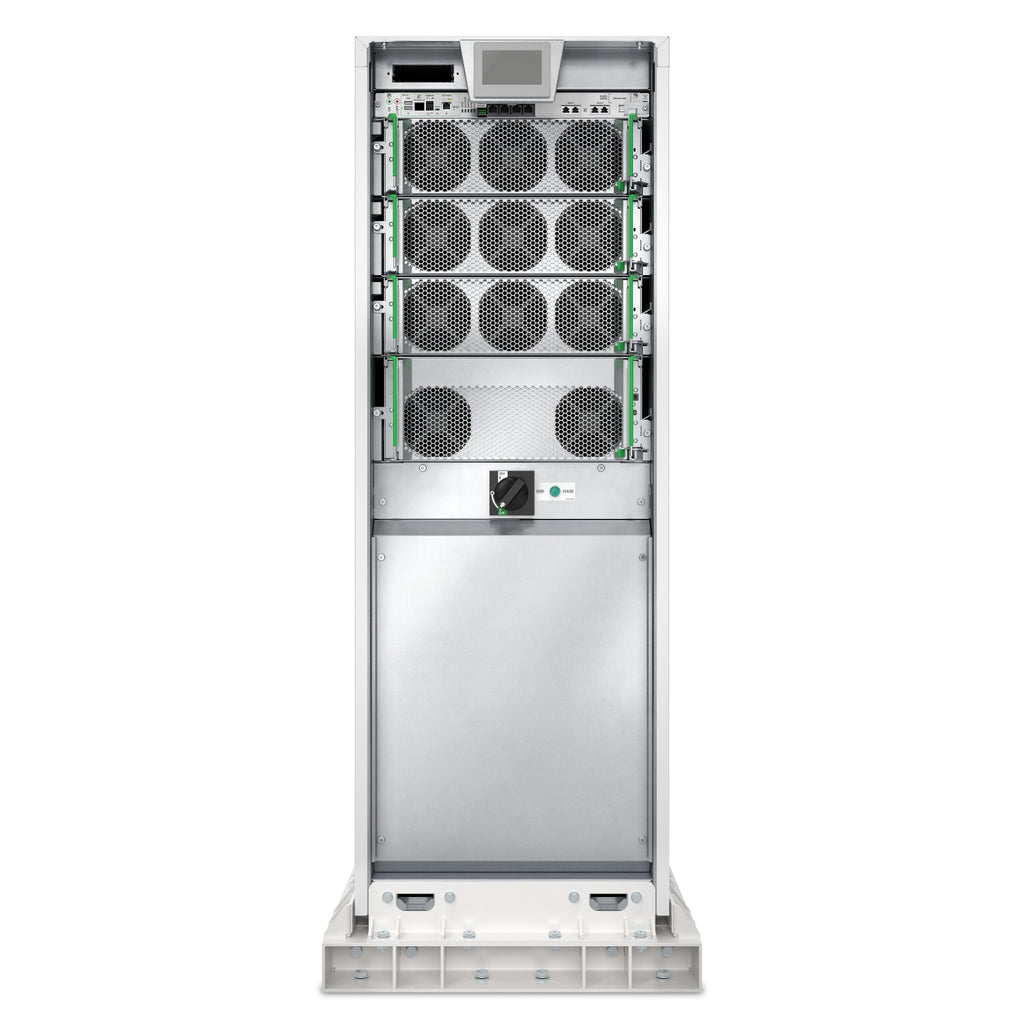

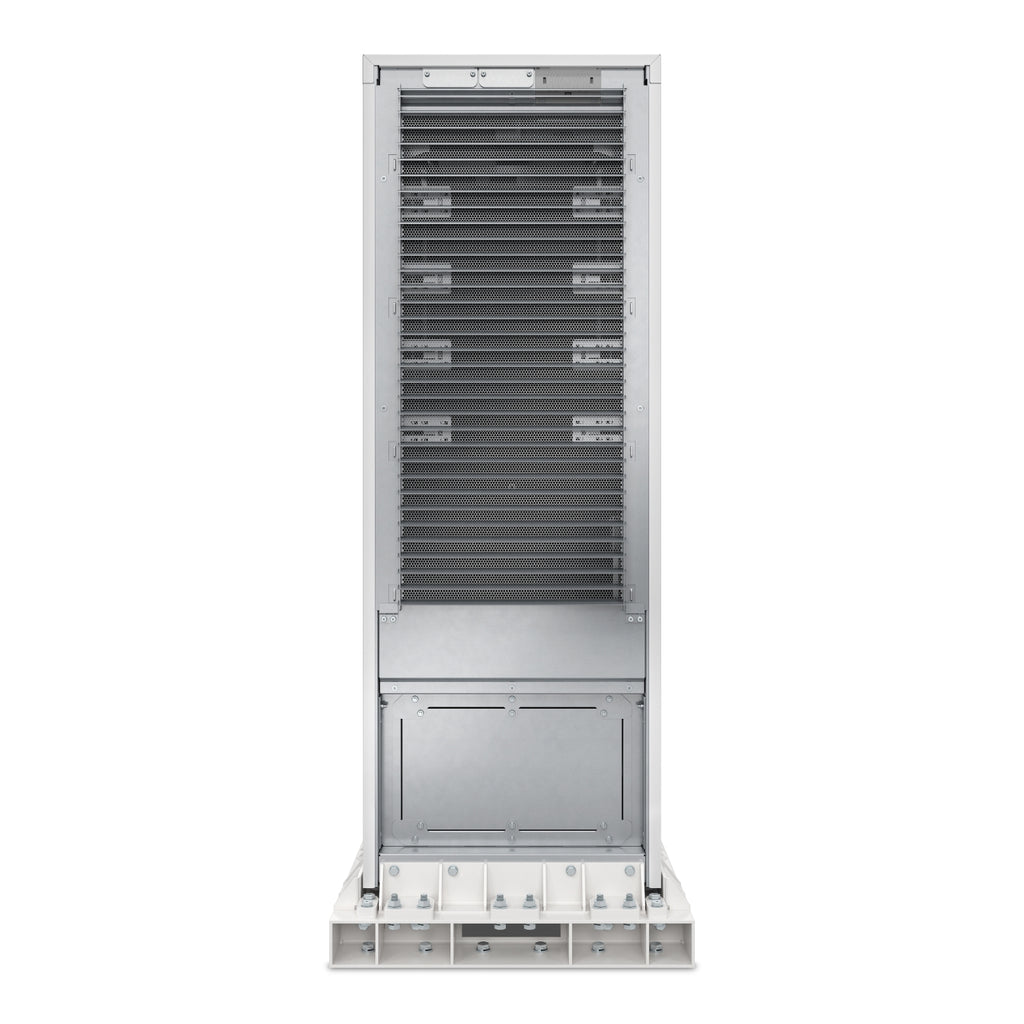

The Schneider Electric Galaxy VS UPS 40kW 400V (GVSUPS40KMHS) is a highly efficient, compact three-phase UPS engineered for business-critical applications in commercial, industrial, and marine environments. Designed for external battery systems, it features halogen-free cables, marine certification, and integrated network management. Its modular design and EcoStruxure™ IT readiness ensure seamless scalability, operational visibility, and reliability. Includes 5x8 Start-Up Service.
| Category | Details |
|---|---|
| Model | GVSUPS40KMHS |
| Power Rating | 40 kW / 40 kVA |
| Input Voltage | 400V 3-phase (also supports 380V, 415V) |
| Output Voltage | 400V 3-phase |
| Battery Type | External batteries (Li-Ion, VRLA compatible) |
| Battery Voltage Range | 480–576 VDC |
| End of Discharge Voltage | 307 VDC |
| Max Battery Current | 136 A |
| Bypass Type | Built-in Static Bypass |
| Load Power Factor | 0.7 leading to 0.7 lagging (no derating) |
| Efficiency | Up to 97% |
| Output Waveform | Pure sine wave |
| Output Frequency | 50/60 Hz (synchronized or fixed) |
| Output THD | <1% (linear), <5% (non-linear) |
| Overload Capability | 10 mins @ 125%, 60 secs @ 150% |
| Form Factor | Tower UPS |
| Dimensions (HxWxD) | 58.46 in x 2.05 in x 33.35 in (148.5 x 5.21 x 84.7 cm) |
| Weight | 206 kg (454.2 lbs) |
| Certifications | Marine certified, EN/IEC 62040-1/-2, UL 1778, FCC Part 15 Class A |
| Environmental Rating | IP21, 0–40 °C operating temp, up to 95% RH (non-condensing) |
| Included Accessories | Dust filter, installation guide, network management, EcoStruxure™ IT ready |
| Warranty | 1-year on-site repair/replacement with factory-authorized Start-Up |
| Special Features | Halogen-free cables, marine certification, EcoStruxure™ monitoring support |
