Description

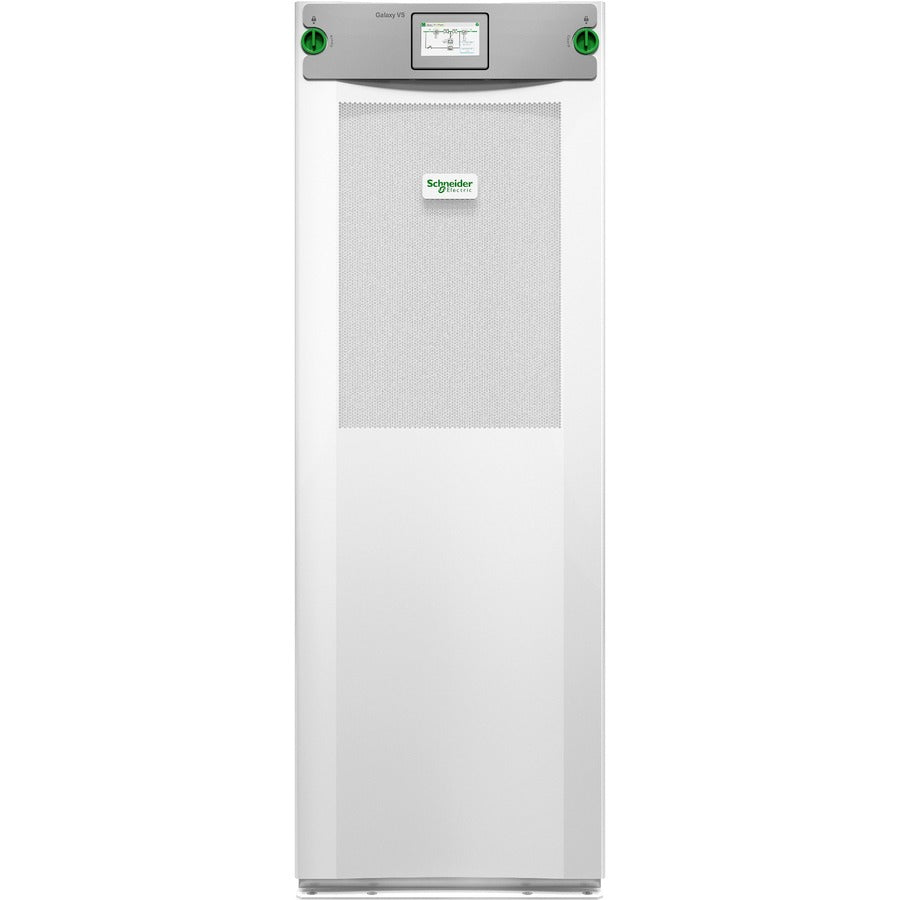

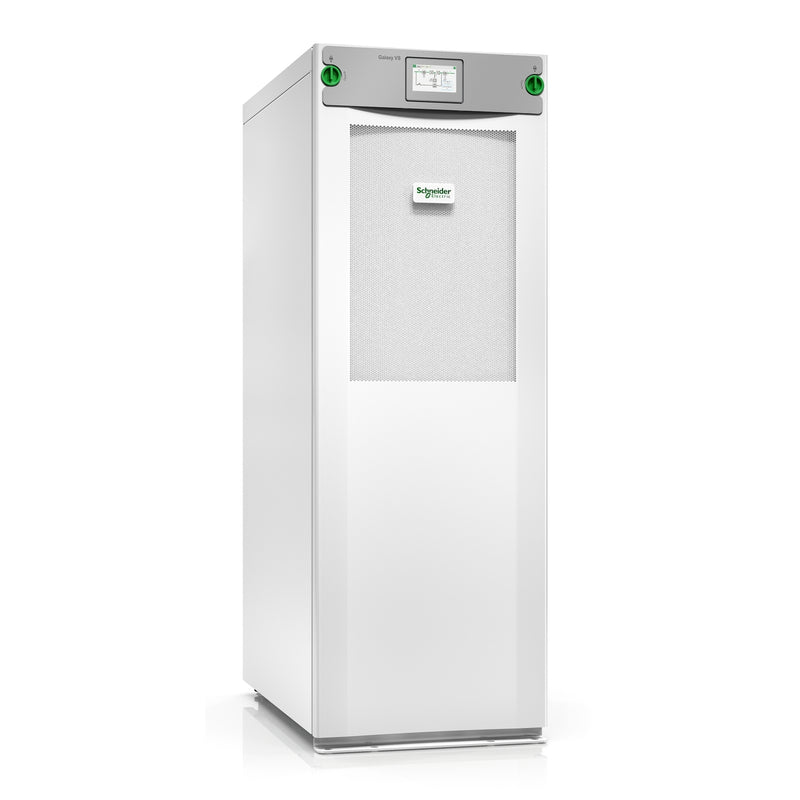

The Galaxy VS GVSUPS40KHS from Schneider Electric is a highly efficient, compact 40kW (40kVA) 3-phase UPS designed for critical infrastructure in data centers, commercial, and industrial applications. Operating at 400V with support for external batteries, it features patented ECOnversion technology, delivering up to 99% efficiency to reduce energy losses by up to 66%. Its robust architecture, integrated network management, and EcoStruxure-ready platform ensure dependable uptime and lower total cost of ownership. Includes 5x8 start-up service for optimal deployment and performance.
| Specification | Details |
|---|---|
| Model Number | GVSUPS40KHS |
| Power Capacity | 40 kW / 40 kVA |
| Input Voltage | 400V 3-phase (Also supports 380V & 415V) |
| Output Voltage | 400V 3-phase (Also supports 380V & 415V) |
| Input Frequency | 40–70 Hz |
| Efficiency | Up to 97% (Normal Mode), Up to 99% (ECOnversion Mode) |
| Bypass Type | Built-in Static Bypass |
| Battery Type | External (VRLA or Li-Ion supported) |
| Battery Voltage Range | 384–576 VDC |
| Output Waveform | Pure Sine Wave |
| Output THD | <1% linear load, <3% non-linear load |
| Load Power Factor Range | 0.7 leading to 0.7 lagging |
| Control Panel | Touch Screen LCD Interface |
| Form Factor | Tower |
| Dimensions (H x W x D) | 1485 x 521 x 847 mm (58.46 x 20.51 x 33.35 in) |
| Weight | 206 kg (454.2 lb) |
| Protection Rating | IP21 |
| Certifications | UL 1778, EN/IEC 62040-1/2/3, FCC Part 15 Class A |
| Warranty | 1-Year On-Site Repair with Factory Authorized Start-Up |
