Description

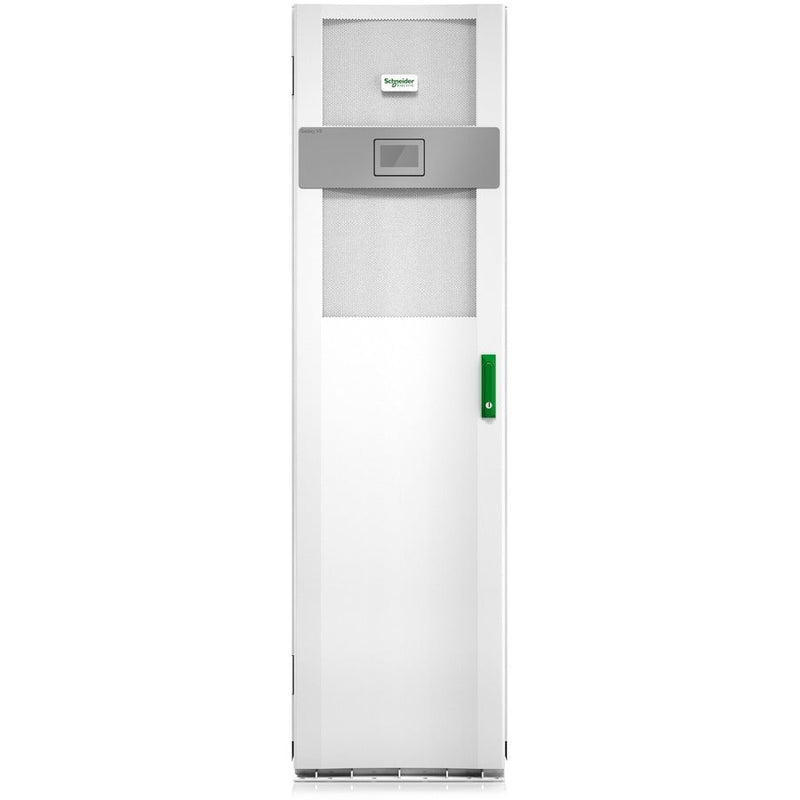

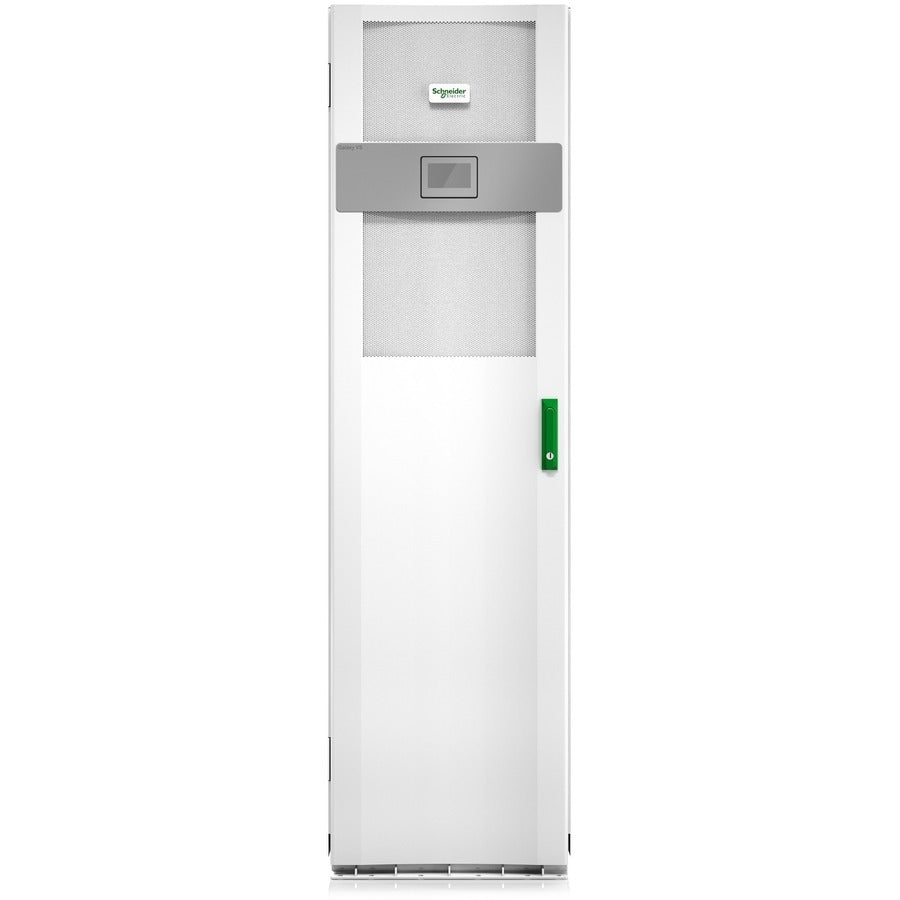

The Schneider Electric Galaxy VS GVSUPS40KR0B5HS is a compact, high-efficiency 40kW 3-phase UPS designed for 400V applications. Ideal for edge, small, and medium data centers, this UPS supports up to 5 internal smart modular 9Ah battery strings (batteries not included) and includes an N+1 power module for built-in redundancy. Engineered for seamless deployment, it features a static bypass switch, network management, and comes with a factory-authorized 5x8 start-up service for peace of mind.
| Specification | Details |
|---|---|
| Model | GVSUPS40KR0B5HS |
| Power Capacity | 40 kW / 40 kVA |
| Input Voltage | 400V 3-phase (380/415V compatible) |
| Output Voltage | 400V 3-phase (380/415V compatible) |
| Input Frequency | 40–70 Hz |
| Efficiency | Up to 97% |
| Battery Configuration | Supports up to 5 smart modular 9Ah strings |
| Battery Type | VRLA, Internal Modular (Not Included) |
| Redundancy | N+1 Power Module Included |
| Bypass | Built-in Static Bypass |
| Form Factor | Tower |
| Dimensions (HxWxD) | 1970 x 550 x 847 mm (77.56 x 21.65 x 33.35 in) |
| Weight | 296 kg (652.6 lbs) |
| Cooling | Air-cooled |
| Noise Level | 54 dBA |
| Display | Touchscreen LCD User Interface |
| Certifications | IEC 62040-1-1, IEC 62040-2, OSHPD |
| Environmental Rating | IP20, 0–40°C, 0–95% RH non-condensing |
| Warranty | 1-Year On-Site Repair or Replace |
| Included Services | Start-Up Service (5x8), Installation Manual, EcoStruxure Ready |
