Description

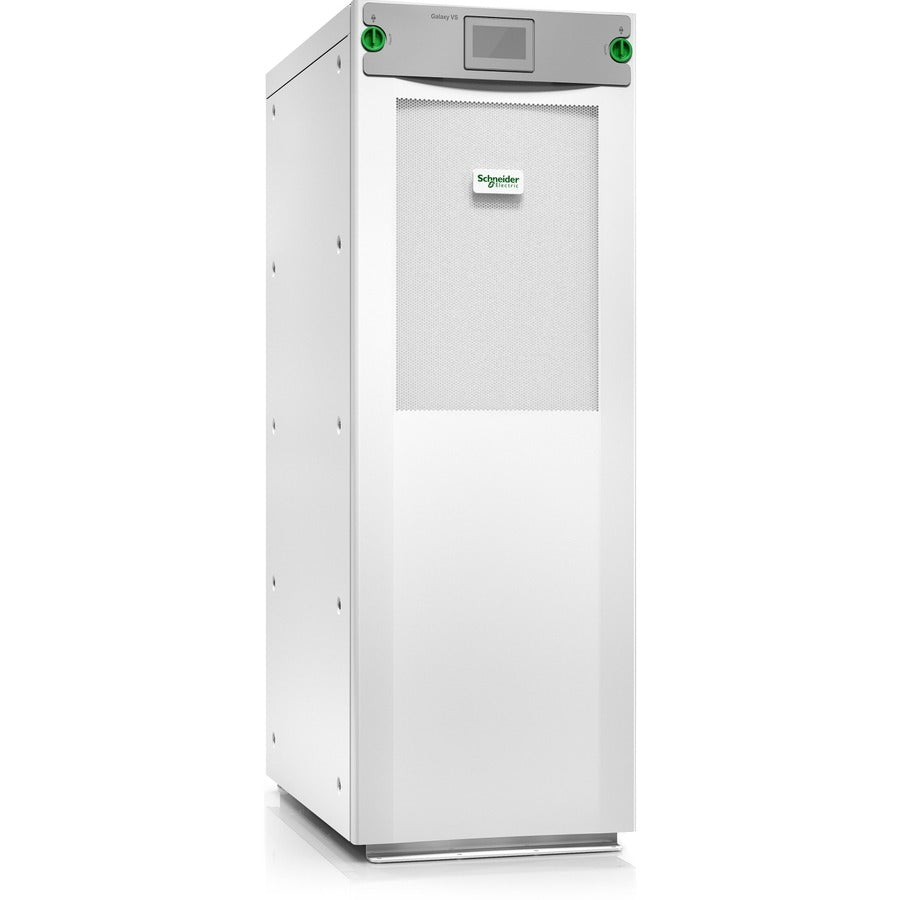

The Schneider Electric Galaxy VS GVSUPS40KB4HS is a highly efficient and scalable 40kW 3-phase uninterruptible power supply (UPS) system designed for edge, small, and medium data centers as well as mission-critical industrial environments. Operating at 400V, it features two internal 9Ah smart modular battery strings, expandable to four, offering runtime flexibility and future-proof capacity. With EcoStruxure™ IT readiness and integrated network management, it provides intelligent monitoring and enhanced control. Includes factory-authorized 5x8 Start-up service for hassle-free deployment.
| Specification | Details |
|---|---|
| Model Number | GVSUPS40KB4HS |
| Power Rating | 40 kW / 40 kVA |
| Input Voltage | 400V 3-phase (compatible: 380V, 415V) |
| Output Voltage | 400V 3-phase (compatible: 380V, 415V) |
| Input Frequency | 40–70 Hz |
| Output Frequency | 50/60 Hz ±0.1% (sync or not synced to mains) |
| Battery Type | Internal modular VRLA |
| Battery Strings | 2x 9Ah smart modular (expandable to 4) |
| Efficiency | Up to 97% |
| Form Factor | Tower |
| Bypass Type | Built-in Static Bypass |
| Waveform Output | Pure Sine Wave |
| Harmonic Distortion | <5% THD |
| Redundancy | Not redundant |
| Interfaces | Touchscreen LCD, 1 Free Slot, EcoStruxure™ IT Ready |
| Dimensions (HxWxD) | 148.5 cm x 52.1 cm x 84.7 cm (58.46 x 20.51 x 33.35 in) |
| Weight | 460 kg (1014.1 lbs) |
| Environmental Operating Range | 0 to 40°C, 0–95% RH (non-condensing) |
| Certifications | UL 1778, CSA C22.2 No 107.3, EN/IEC 62040-1/2/3, IEC 60721-4-2 Level 2M2 |
| IP Rating | IP20 |
| Warranty | 1-year on-site repair or replace, with factory Start-Up (5x8) |
| GTIN | 731304406778 |
