Description

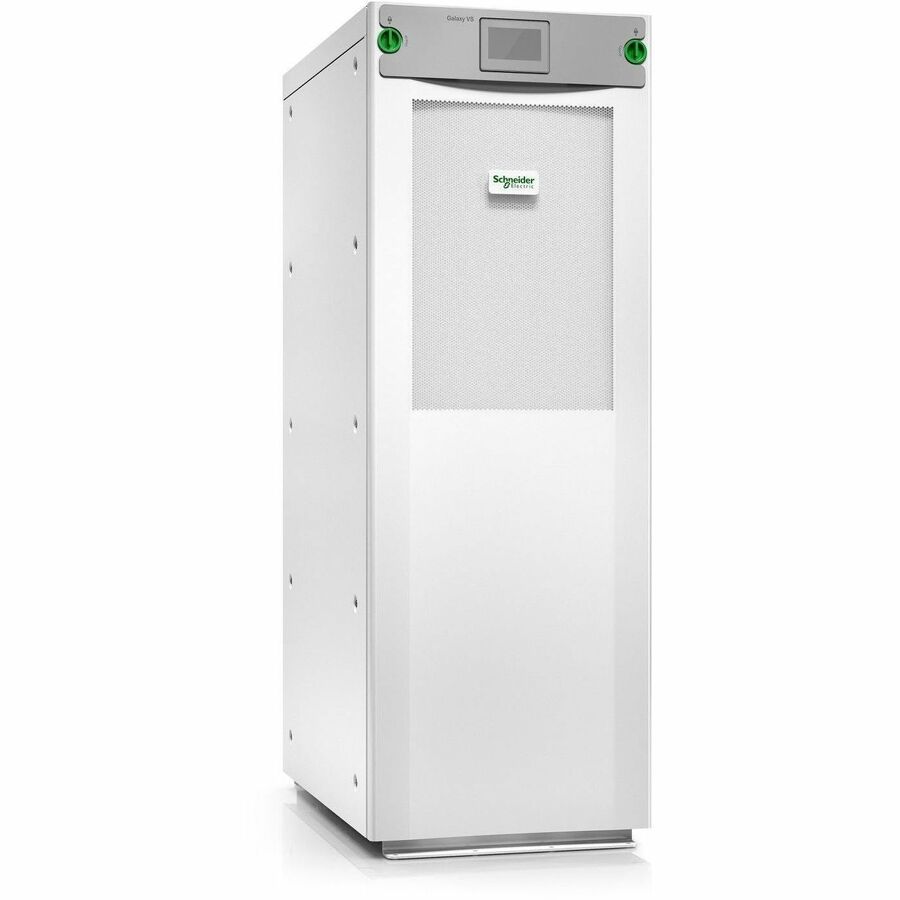

The Schneider Electric Galaxy VS GVSUPS50KRHS is a compact, high-efficiency 50kW three-phase uninterruptible power supply (UPS) designed for edge, small, and medium data centers, as well as mission-critical commercial and industrial environments. This configuration includes an additional power module for N+1 redundancy, supporting external battery systems (VRLA or Li-Ion). It ensures reliable power protection, low total cost of ownership, and is ready for EcoStruxure IT integration. Includes 5x8 start-up service.
| Key Specifications | Details |
|---|---|
| Model Number | GVSUPS50KRHS |
| Power Capacity | 50 kW / 50 kVA |
| Input Voltage | 400V (3-phase) |
| Input Frequency | 40 – 70 Hz |
| Output Voltage | 400V (3-phase) |
| Output Frequency | 50/60 Hz (sync or ±0.1% free run) |
| Battery Type | External VRLA or Li-Ion |
| Redundancy | N+1 Power Module |
| Efficiency | Up to 97% |
| Output Waveform | Pure Sine Wave |
| Output THD | <1% (linear load), <5% (non-linear) |
| Overload Capacity | 10 min @ 125%; 60 sec @ 150% |
| Bypass | Built-in Static Bypass |
| Display | Touchscreen LCD |
| Dimensions (HxWxD) | 148.5 x 52.1 x 84.7 cm |
| Weight | 250 kg (551.2 lbs) |
| Environmental Rating | IP21 |
| Operating Temperature | 0 – 40°C (32 – 104°F) |
| Certifications | EN/IEC 62040-1/2, UL 1778, FCC Class A |
| Included Services | Start-Up 5x8, Network Management, Dust Filter |
| EcoStruxure Ready | Yes |
| Warranty | 1-Year On-Site with Authorized Start-Up |
