Description

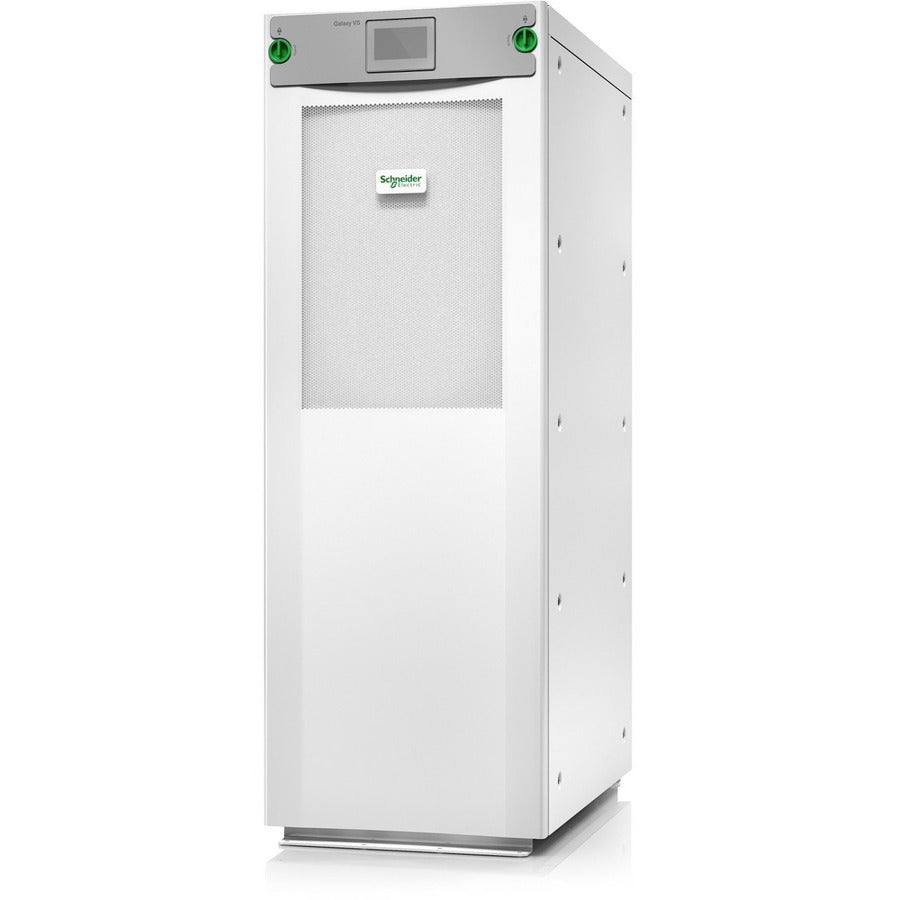

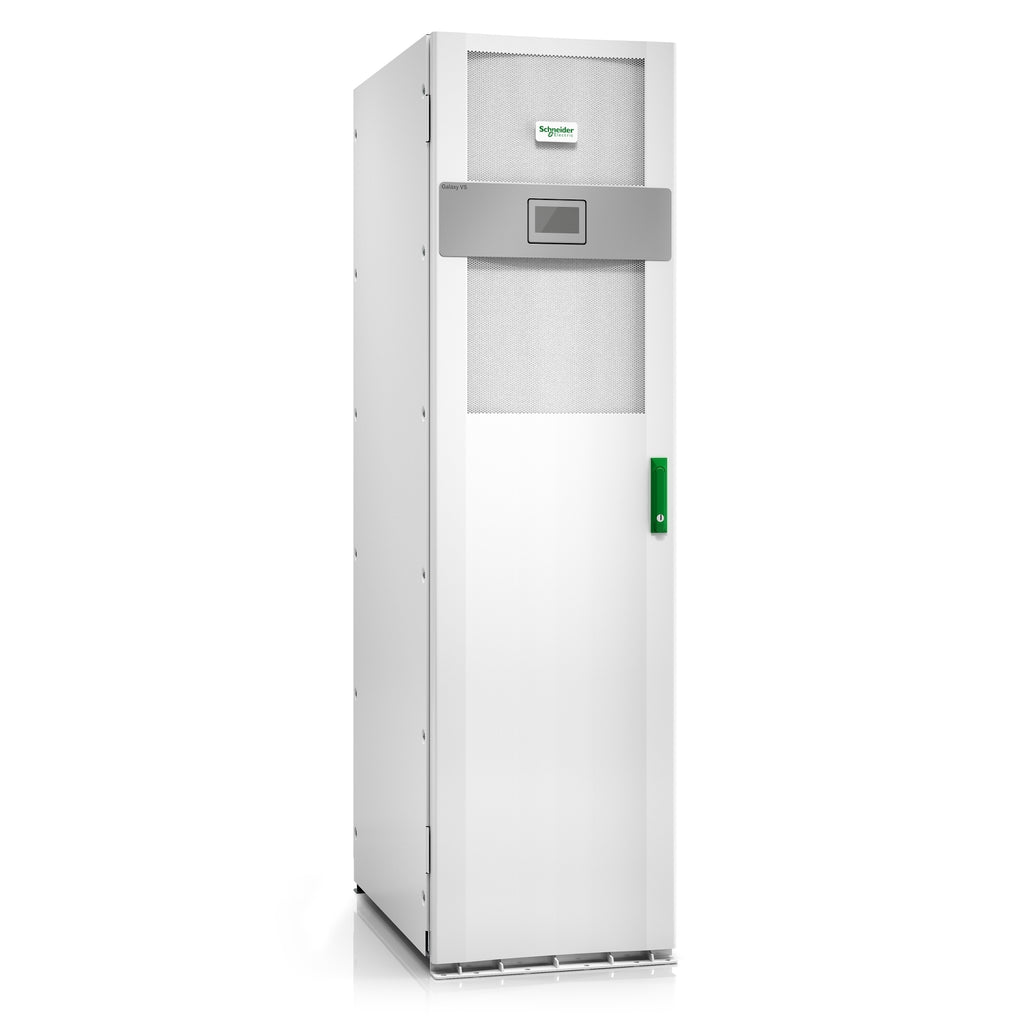

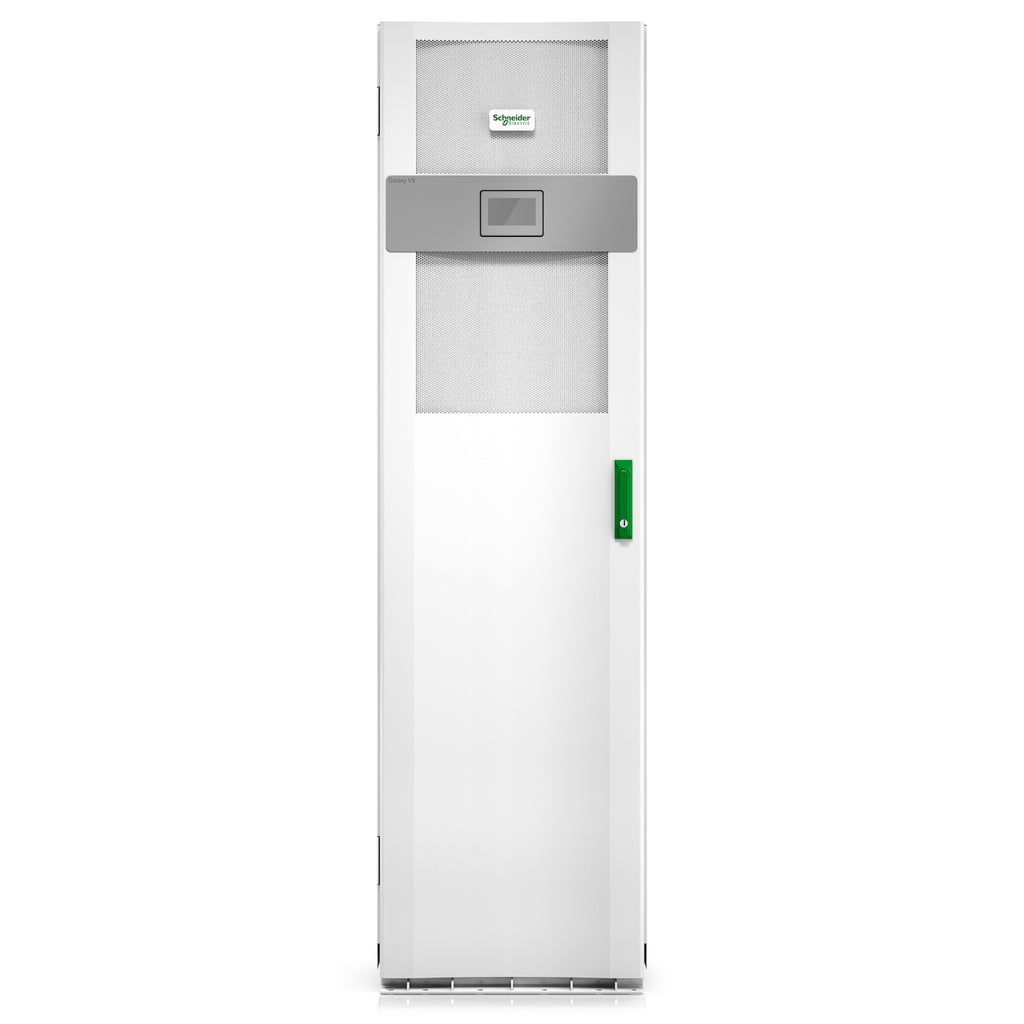

The Galaxy VS GVSUPS50KR0B5GS is a 50kW, 480V 3-phase uninterruptible power supply designed for edge, small, and medium data centers as well as commercial and industrial critical infrastructure. This model includes an N+1 redundant power module for enhanced system availability and supports up to 5 internal modular 9Ah battery strings (batteries not included), allowing runtime customization. Pre-installed with integrated network management and delivered with Schneider’s 5x8 Start-Up service, this UPS ensures operational efficiency and low total cost of ownership. EcoStruxure™ Ready and ENERGY STAR® certified for optimized performance and sustainability.
| Specification | Details |
|---|---|
| Model | GVSUPS50KR0B5GS |
| Power Capacity | 50 kW / 50 kVA |
| Input Voltage | 480V 3-phase |
| Output Voltage | 480V 3-phase |

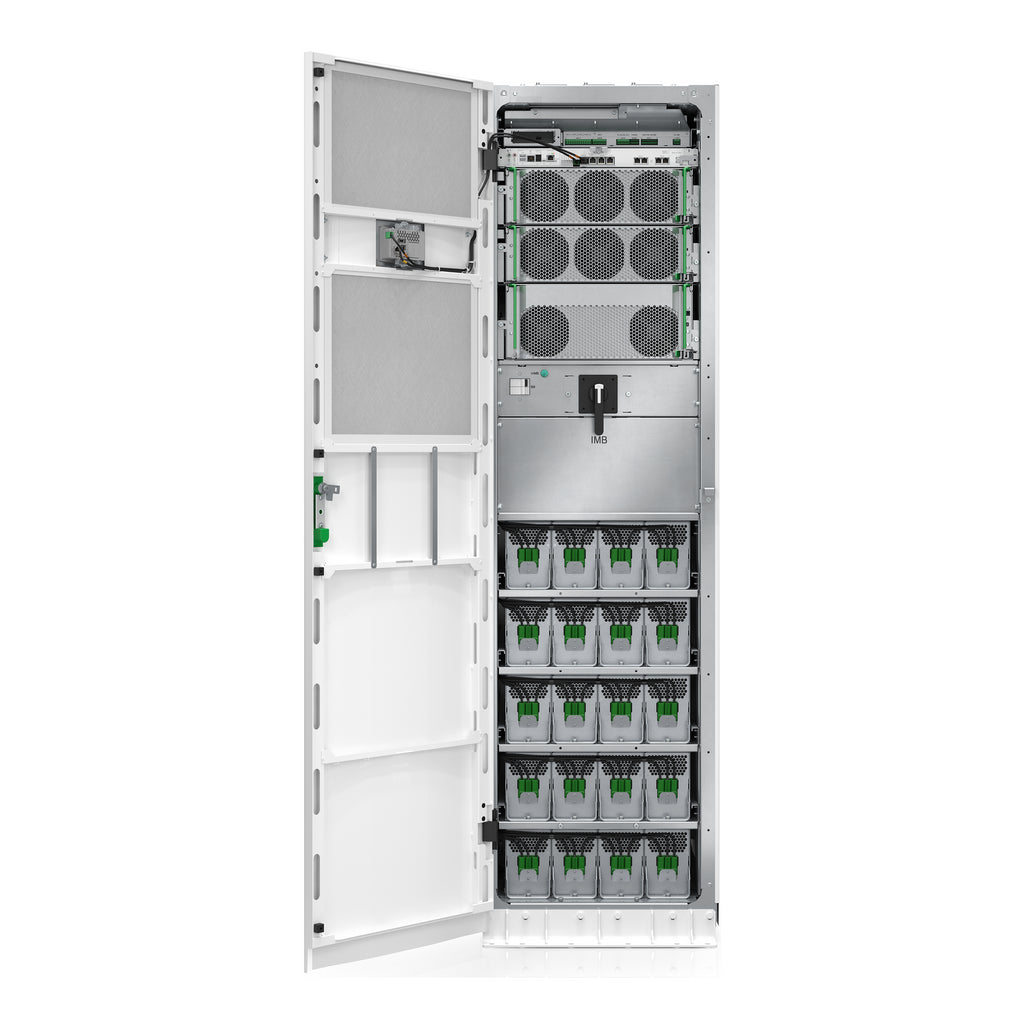

| Battery Slots | Supports up to 5 smart modular 9Ah strings |
| Battery Type | Internal modular VRLA (batteries not included) |
| Redundancy | N+1 power module |
| Efficiency | ENERGY STAR® V2.0 certified |
| Form Factor | Tower |
| Dimensions (HxWxD) | 1970 x 550 x 847 mm |
| Weight | 296 kg |
| Input Frequency | 40–70 Hz |
| Output Frequency | 50/60 Hz sync to mains |
| Harmonic Distortion (Input) | < 6% at full load |
| Harmonic Distortion (Output) | < 1% linear / < 3% non-linear load |
| Bypass Type | Built-in Static Bypass |
| Control Panel | Touch Screen LCD |
| Network Management | Integrated |
| Protection Class | IP20 |
| Startup Service | Included (5x8 business hours) |
| Certifications | UL 1778, CSA, IEC 62040 series, OSHPD, FCC Class A |
| Environmental Compliance | RoHS, REACh, Circularity Profile compliant |
| Warranty | 1 year on-site repair or replace w/ startup |
