Description

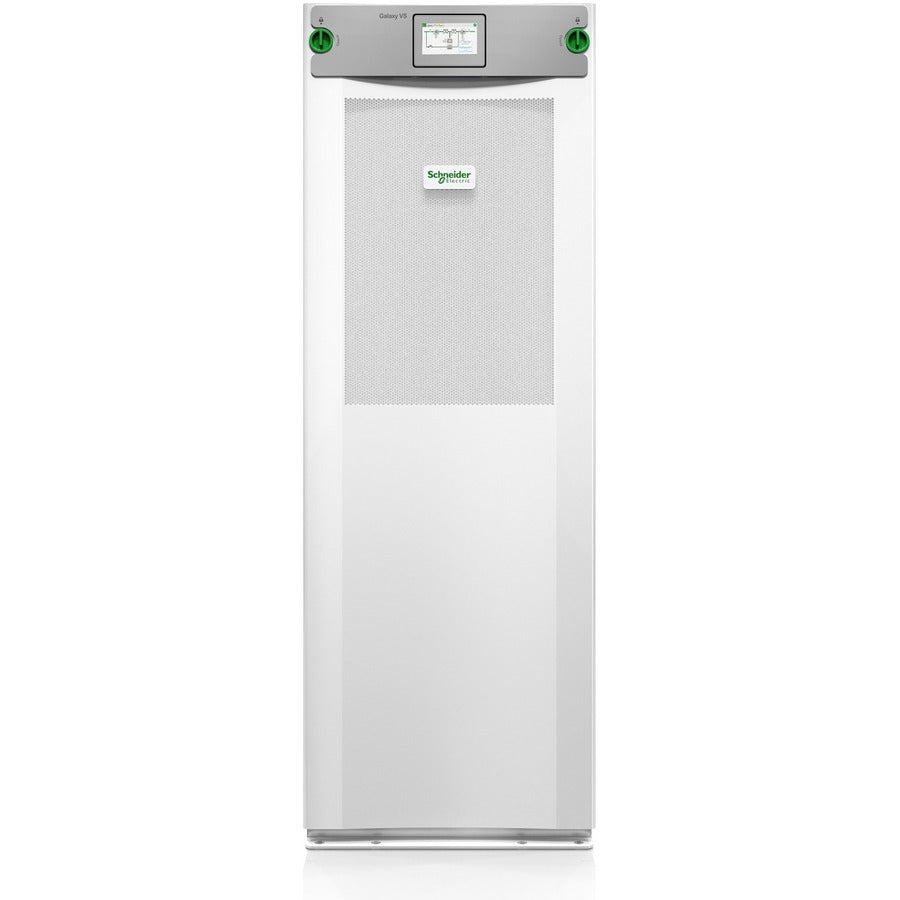

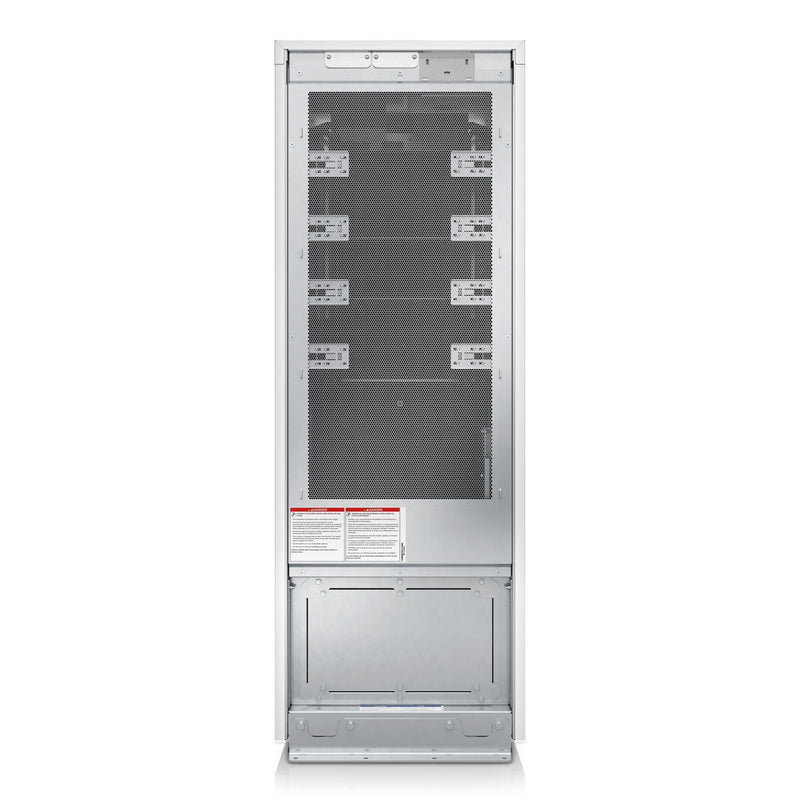

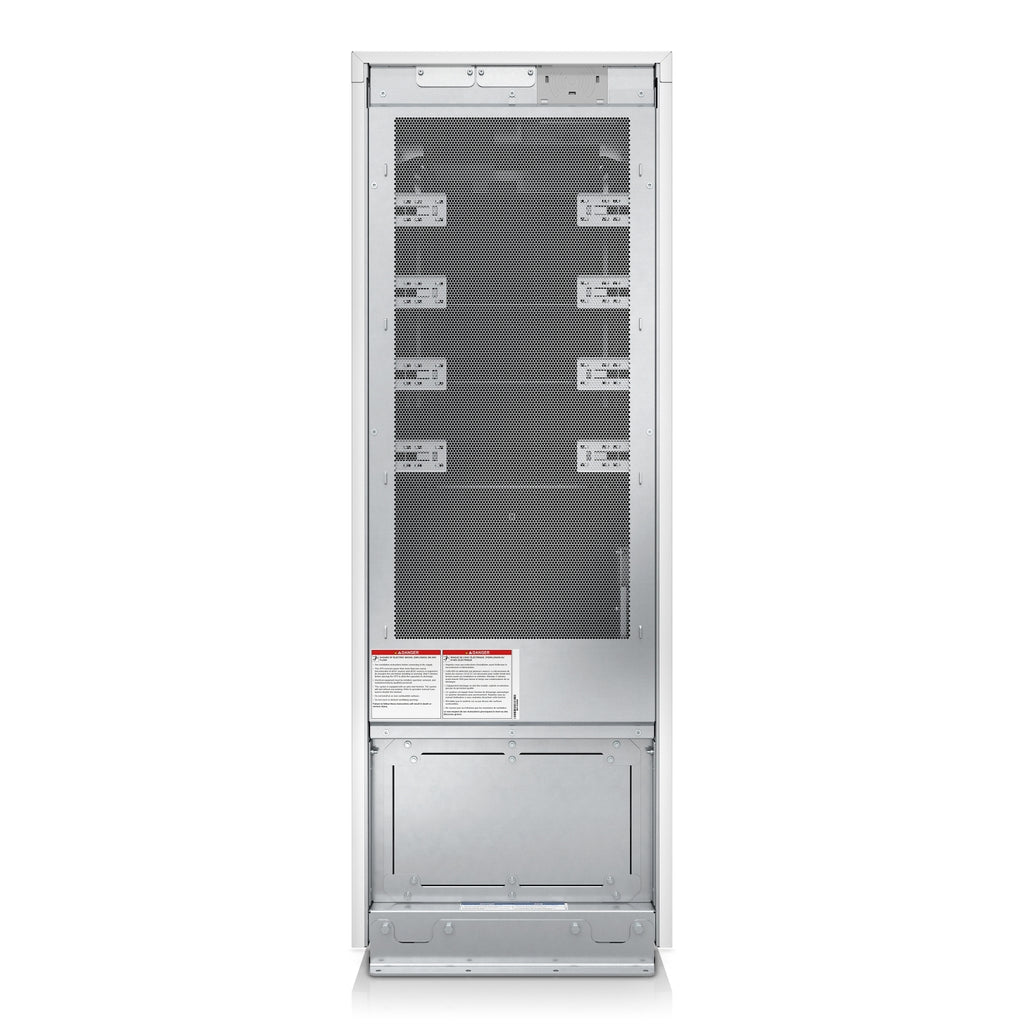

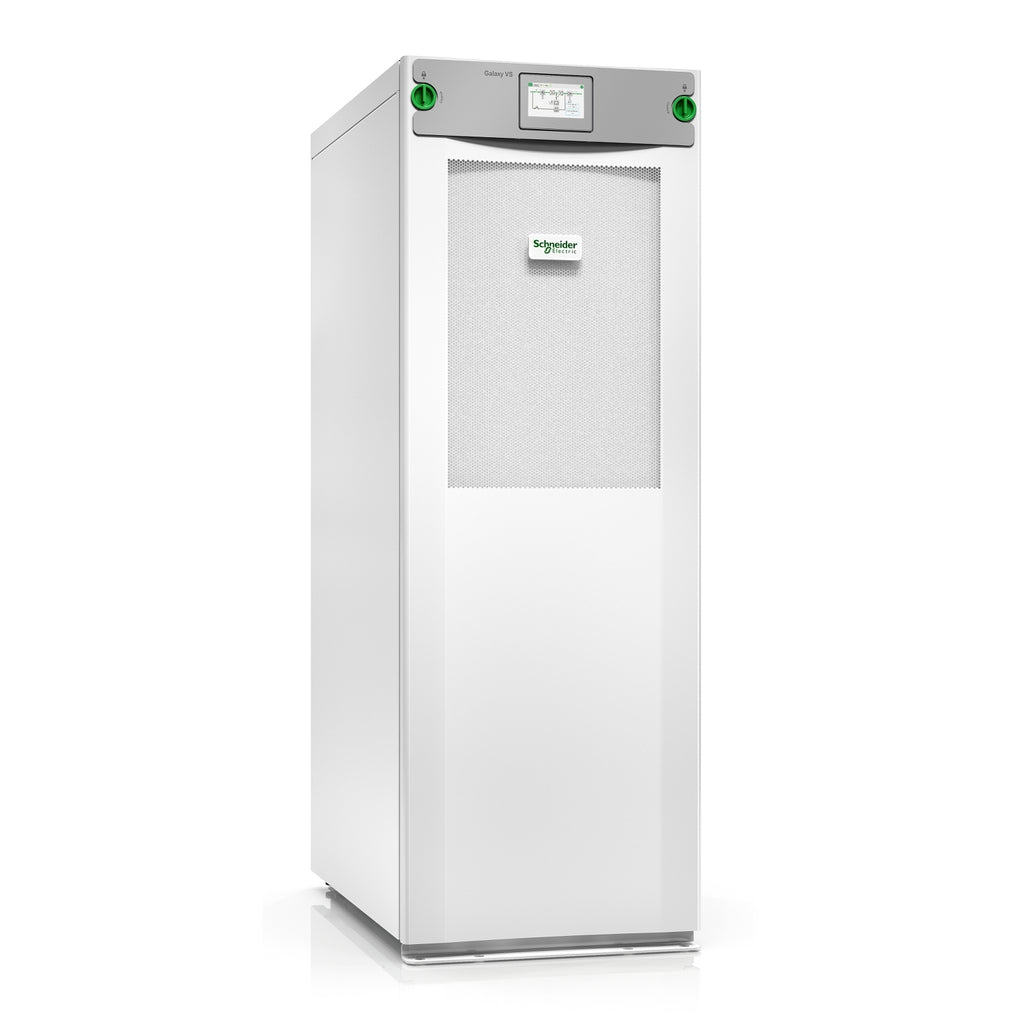

The Schneider Electric Galaxy VS GVSUPS50K0B4GS is a highly efficient, modular 50kW 480V 3-phase uninterruptible power supply designed for edge, small, and medium data centers and critical infrastructure. This compact unit supports up to four internal 9Ah smart modular VRLA battery strings (batteries sold separately), enabling runtime customization. It includes integrated network management, a touch-screen LCD interface, and is EcoStruxure™ Ready for remote monitoring. With ENERGY STAR® V2.0 certification, this UPS ensures high performance and energy savings. Includes 5x8 Start-Up service.
| Specification | Details |
|---|---|
| SKU | GVSUPS50K0B4GS |
| Power Rating | 50 kW / 50 kVA |
| Input Voltage | 480V 3-phase |
| Output Voltage | 480V 3-phase |
| Input Frequency | 40–70 Hz |
| Output Frequency | 50/60 Hz (sync to mains) |
| Battery Type | VRLA, internal smart modular (up to 4x 9Ah) |
| Battery Voltage | 480V DC |
| Bypass Type | Built-in Static Bypass |
| Efficiency | ENERGY STAR V2.0 compliant |
| Input Power Factor at Full Load | 0.99 |
| Output Voltage Tolerance | ±1% after 50ms |
| THD (Input / Output) | <3% / <5% |
| Overload Handling | 10 min @ 125%, 60 sec @ 150% |
| Control Panel | Touch Screen LCD Interface |
| Dimensions (H x W x D) | 148.5 x 52.1 x 84.7 cm |
| Weight | 200 kg (440.9 lbs) |
| Communications | 1 Free Slot, Integrated Network Management |
| Protection Rating | IP20 |
| Ambient Operating Temp | 0 to 40°C (32 to 104°F) |
| Certifications | ENERGY STAR V2.0, UL 1778, CSA, IEC, FCC |
| Start-Up Service | Included (5x8) |
| Warranty | 1-Year On-Site Repair or Replace |
