Description

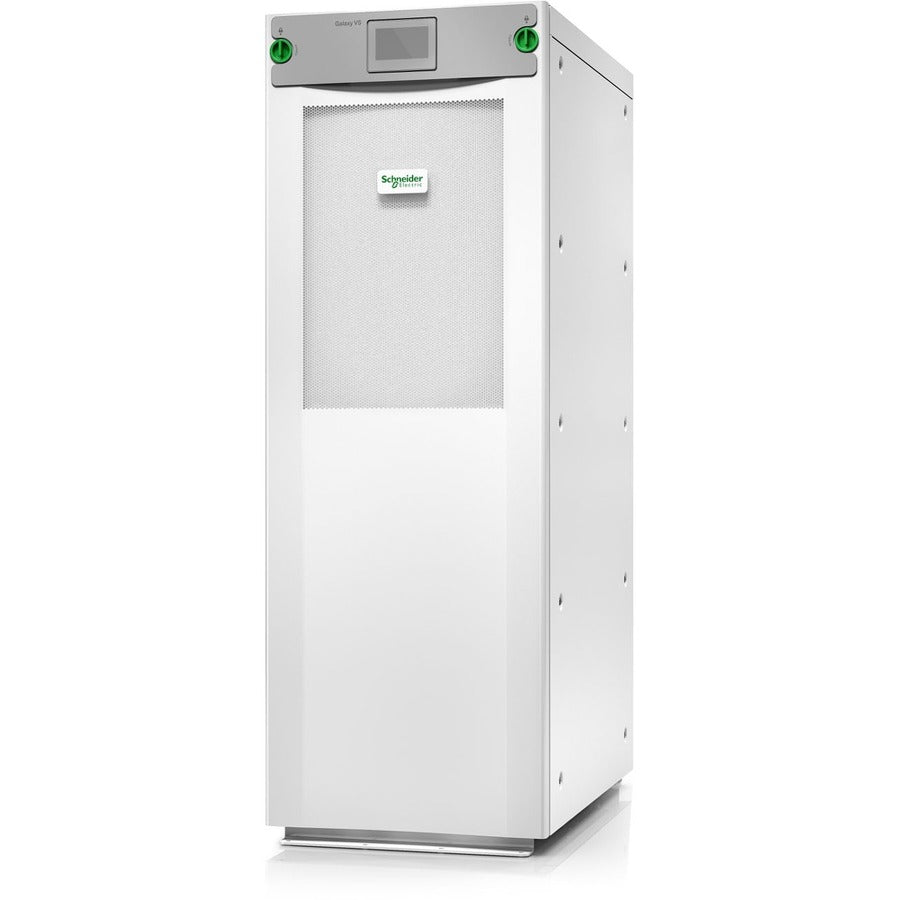

The Schneider Electric Galaxy VS GVSUPS50K0B4HS is a high-performance 50kW, 400V 3-phase uninterruptible power supply (UPS) tailored for edge, small, and medium data centers, as well as mission-critical commercial and industrial applications. It supports up to 4 internal 9Ah smart modular battery strings (batteries not included), enabling customizable runtime configurations. With up to 97% efficiency in double conversion and 99% in ECOnversion mode, it delivers maximum energy savings and reliability. Start-up 5x8 service is included to ensure optimal performance and safe deployment.
| Attribute | Specification |
|---|---|
| Model Number | GVSUPS50K0B4HS |
| Power Capacity | 50 kW / 50 kVA |
| Input Voltage | 400V 3-phase (also supports 380V / 415V) |
| Output Voltage | 400V 3-phase (also supports 380V / 415V) |
| Battery Type | Internal Modular VRLA (up to 4 x 9Ah strings supported) |
| Battery Voltage | 480V |
| Efficiency (Normal/ECOnversion) | Up to 97% / 99% |
| Waveform Type | Pure Sine Wave |
| Output Frequency | 50/60 Hz (sync to mains) |
| Output Voltage THD | <1% linear / <3% non-linear load |
| Overload Capacity | 125% for 10 min, 150% for 60 sec |
| Bypass Type | Built-in Static Bypass |
| Communication Interface | LCD Touchscreen, Network Management |
| Dimensions (HxWxD) | 148.5 cm x 52.1 cm x 84.7 cm (58.46" x 20.51" x 33.35") |
| Weight | 200 kg (440.9 lbs) |
| IP Rating | IP20 |
| Noise Level | 61 dBA |
| Operating Temp / Humidity | 0–40°C / 0–95% RH (non-condensing) |
| Compliance | IEC 62040-1-1, IEC 62040-2, OSHPD |
| Warranty | 1 Year On-site Repair/Replace (with Start-up) |
| Included Accessories | Dust Filter, Manual, EcoStruxure Ready, Start-up 5x8 |
