Description

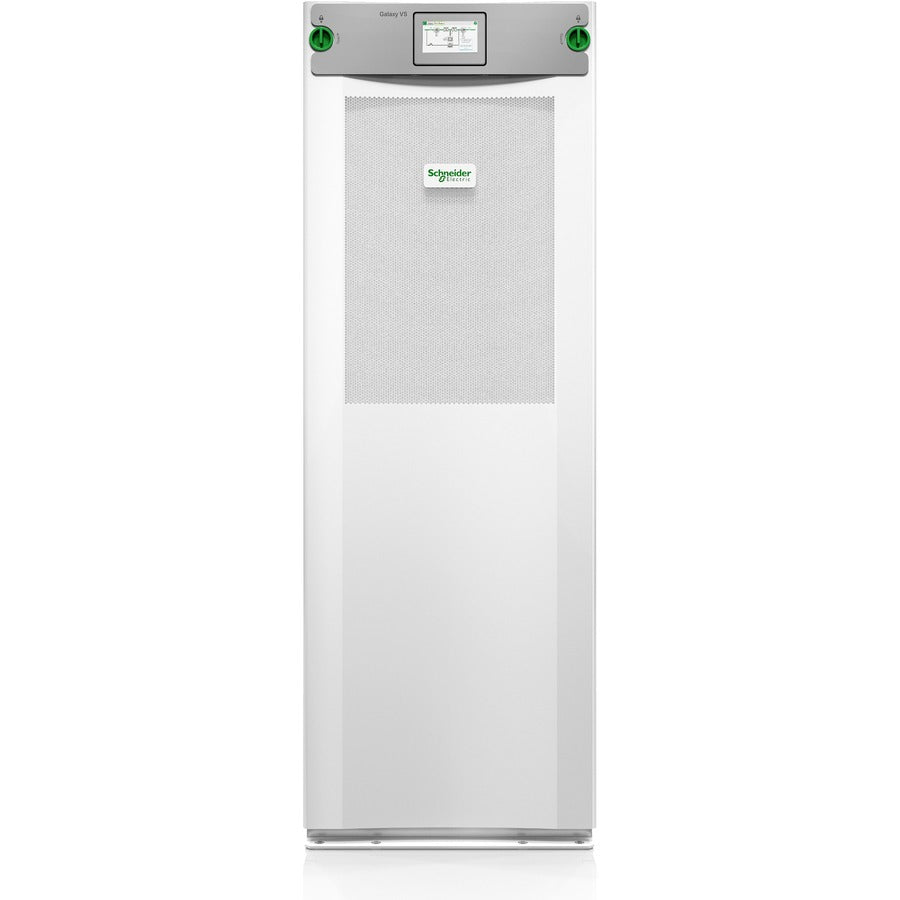

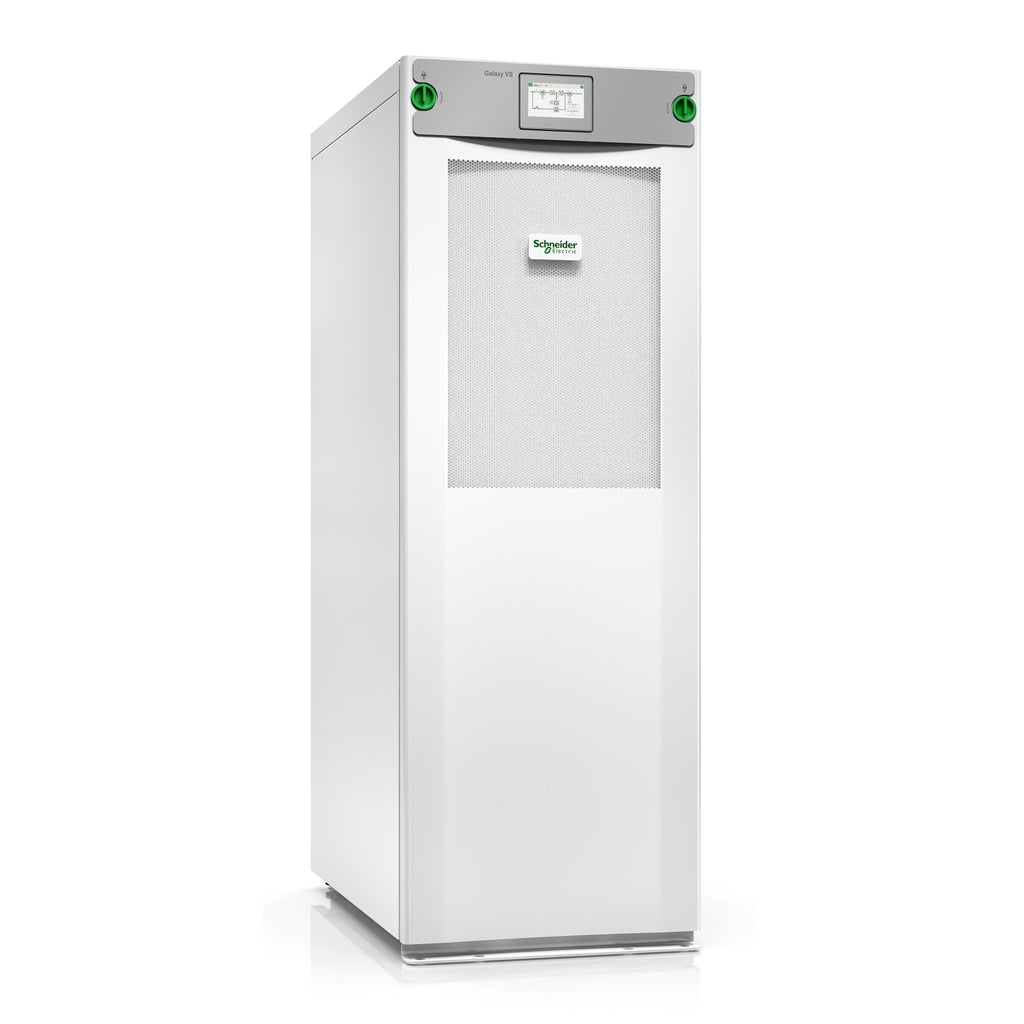

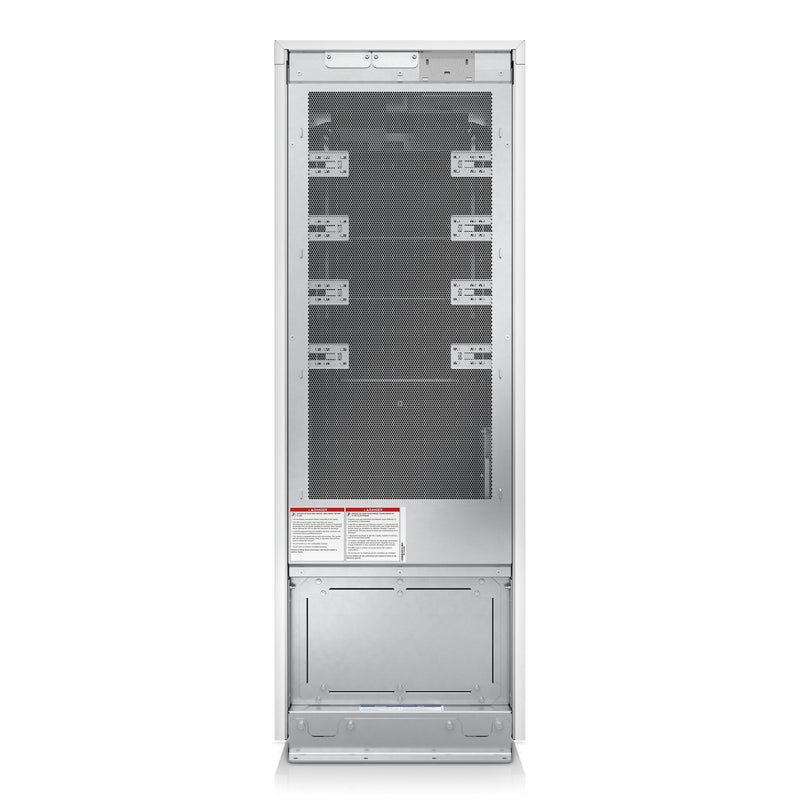

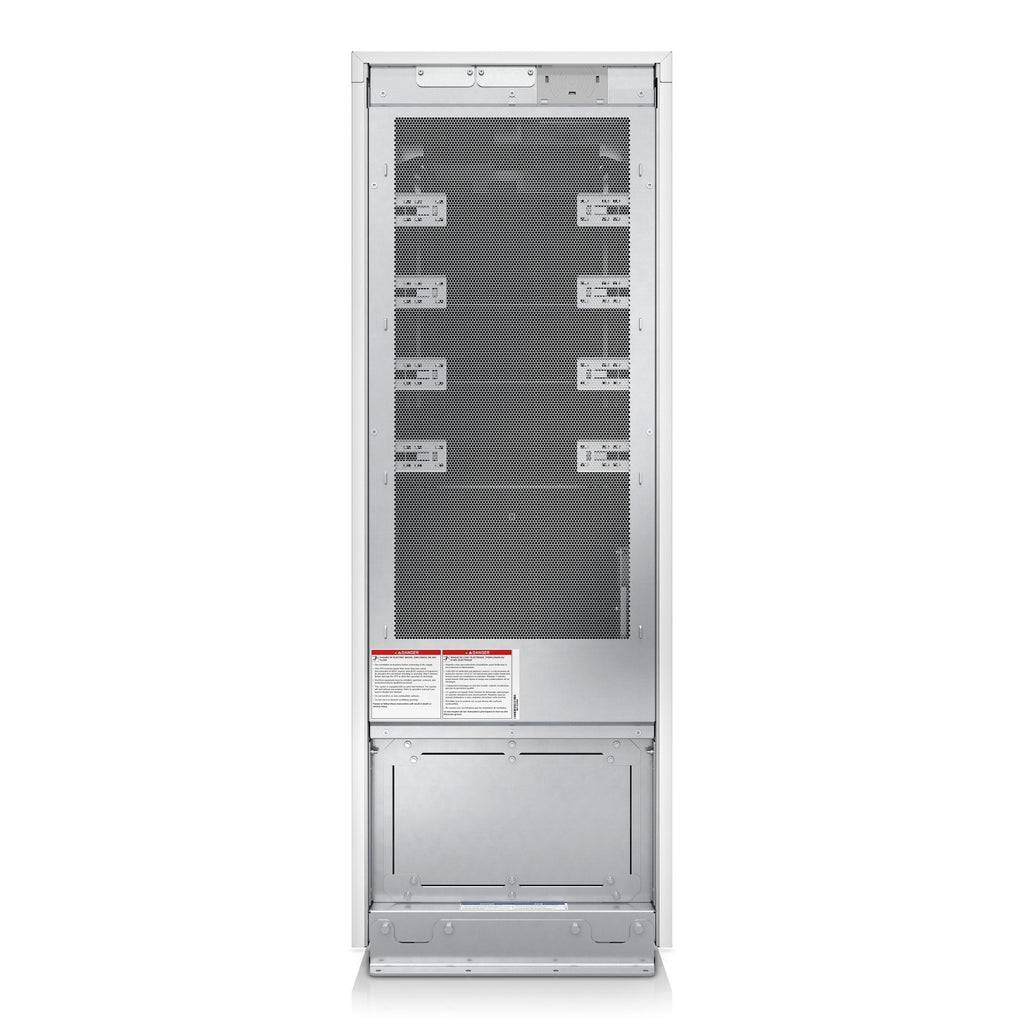

The APC Galaxy VS 60kW UPS is a highly efficient, modular, and scalable 3-phase uninterruptible power supply designed to protect critical infrastructure in data centers, commercial buildings, and industrial environments. Supporting external batteries and running at 400V, it delivers up to 97% efficiency in normal mode and up to 99% in ECOnversion mode, significantly reducing energy losses. With compact form factor, EcoStruxure™ compatibility, and included 5x8 Start-Up Service, it ensures optimal performance, space savings, and remote monitoring. The Galaxy VS is engineered for unmatched availability, robust fault tolerance, and cost-effective operation.
| Category | Details |
|---|---|
| Model | GVSUPS60KHS |
| Rated Power | 60 kW / 60 kVA |
| Input Voltage | 400V (3-phase), also supports 380V / 415V |
| Output Voltage | 400V (3-phase), adjustable to 380V / 415V |
| Efficiency | Up to 97% (double conversion), 99% (ECOnversion mode) |
| Battery Type | External (VRLA or Lithium-ion supported) |
| Battery Voltage Range | 384–576 V DC |
| Dimensions (HxWxD) | 148.5 x 52.1 x 84.7 cm |
| Weight | 238 kg (unit), 275 kg (packaged) |
| Form Factor | Tower |
| Display | Touch screen LCD user interface |
| Bypass | Internal static bypass |
| Certifications | UL 1778, EN/IEC 62040-1/2/3, CSA C22.2, FCC Part 15 Class A |
| Operating Temp | 0 to 40°C |
| Relative Humidity | 0 to 95% non-condensing |
| Protection Rating | IP21 |
| Communications | Integrated network management, 1 free slot |
| Startup Service | 5x8 Start-up service included |
| EcoStruxure Ready | Yes (cloud-based monitoring and control) |
