Description

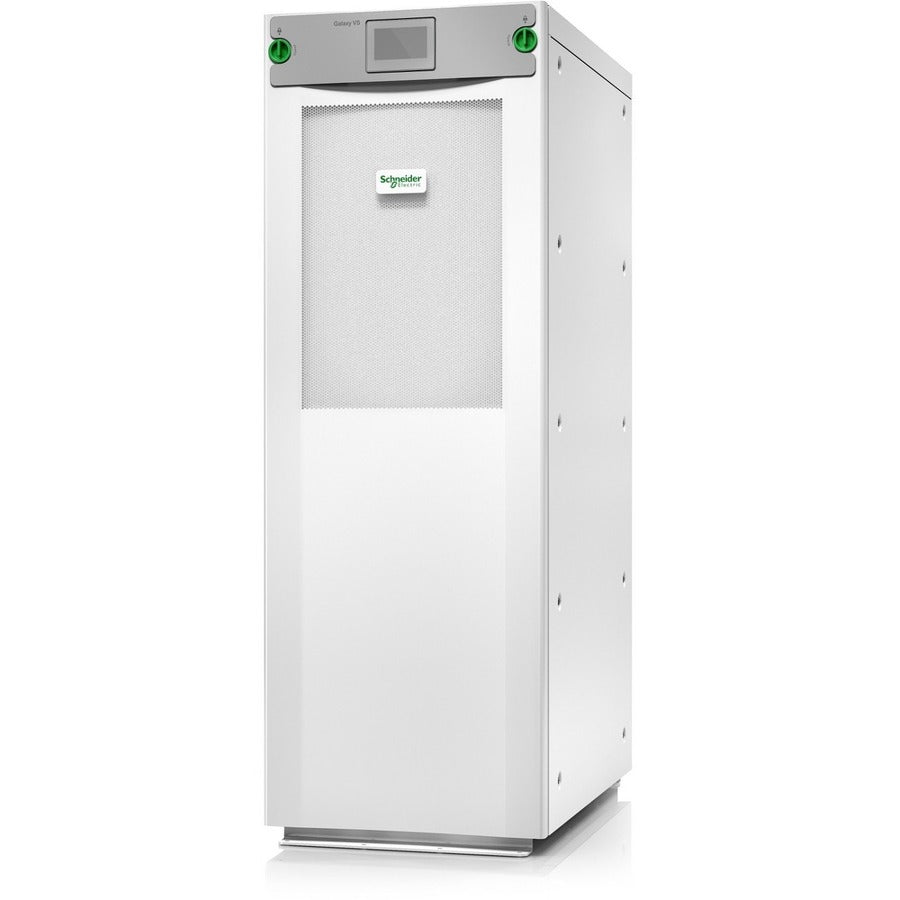

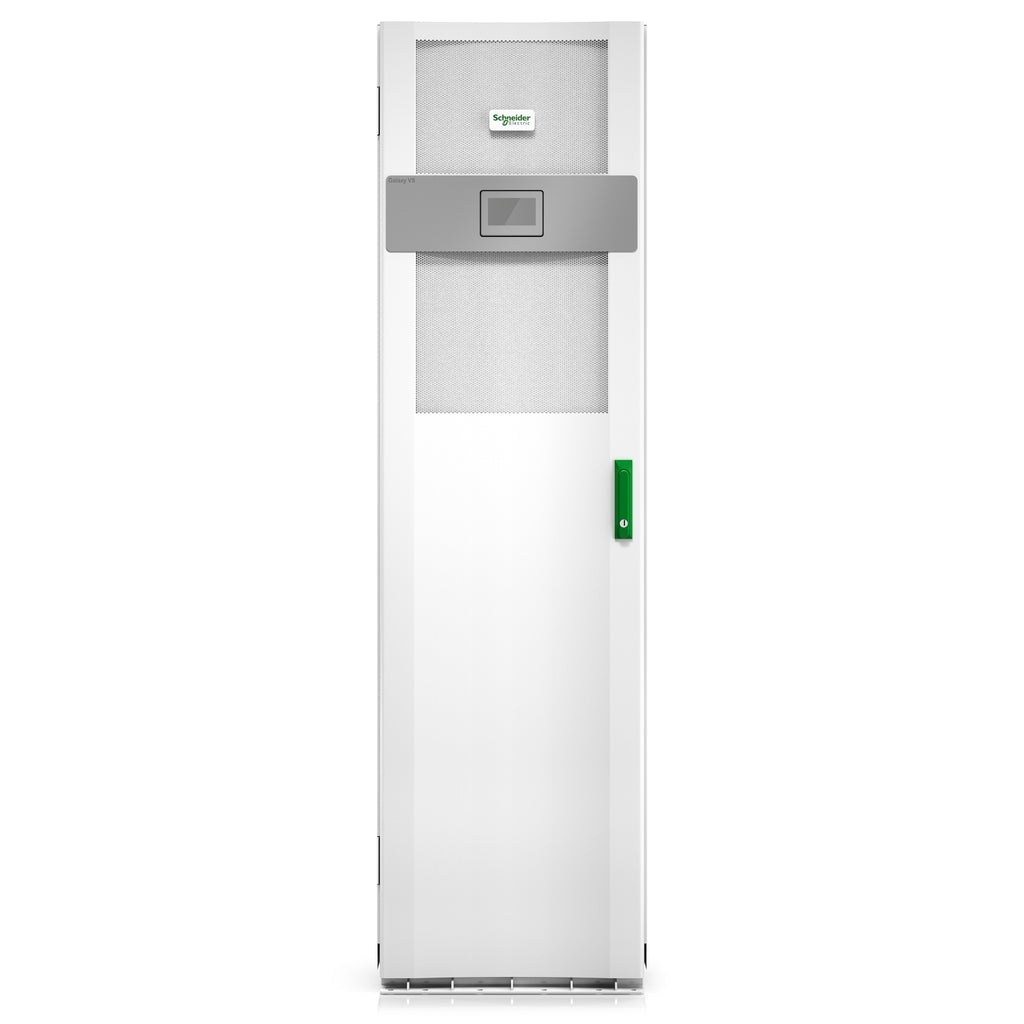

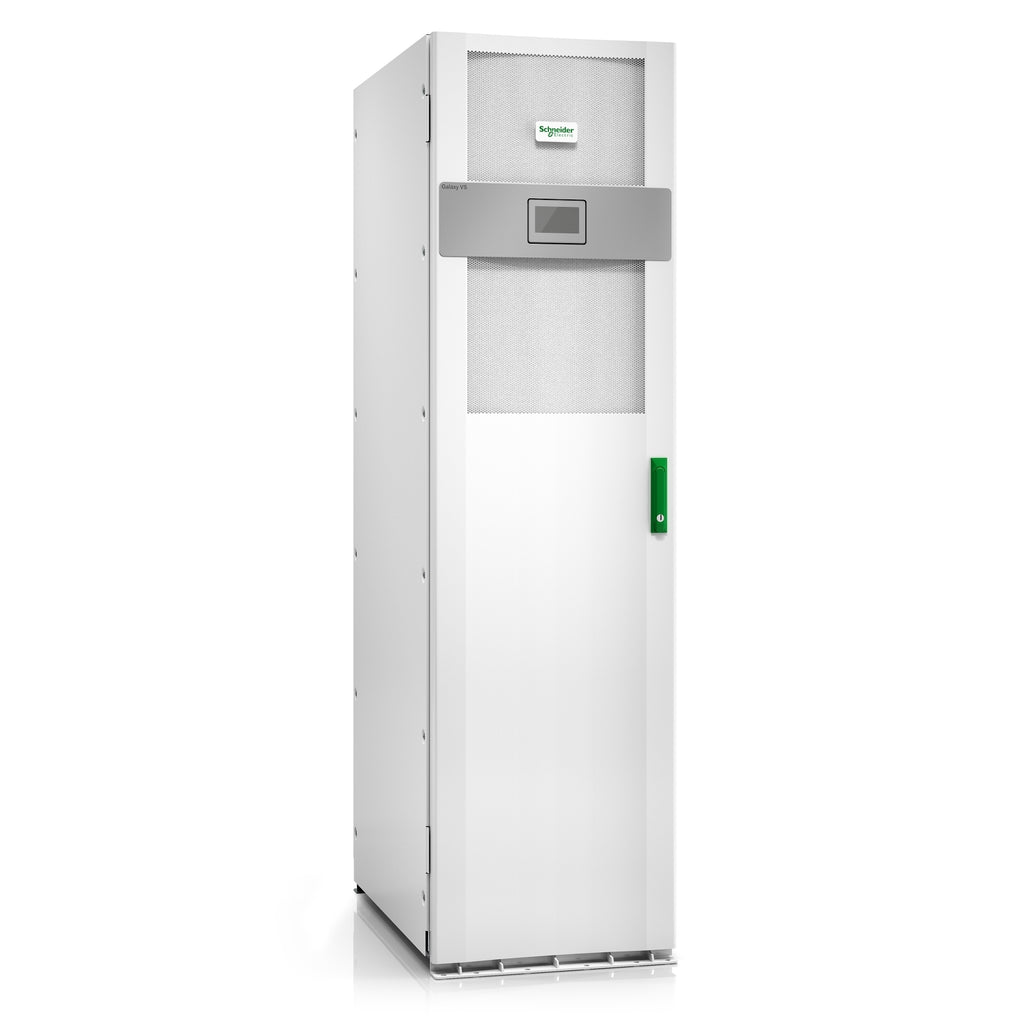

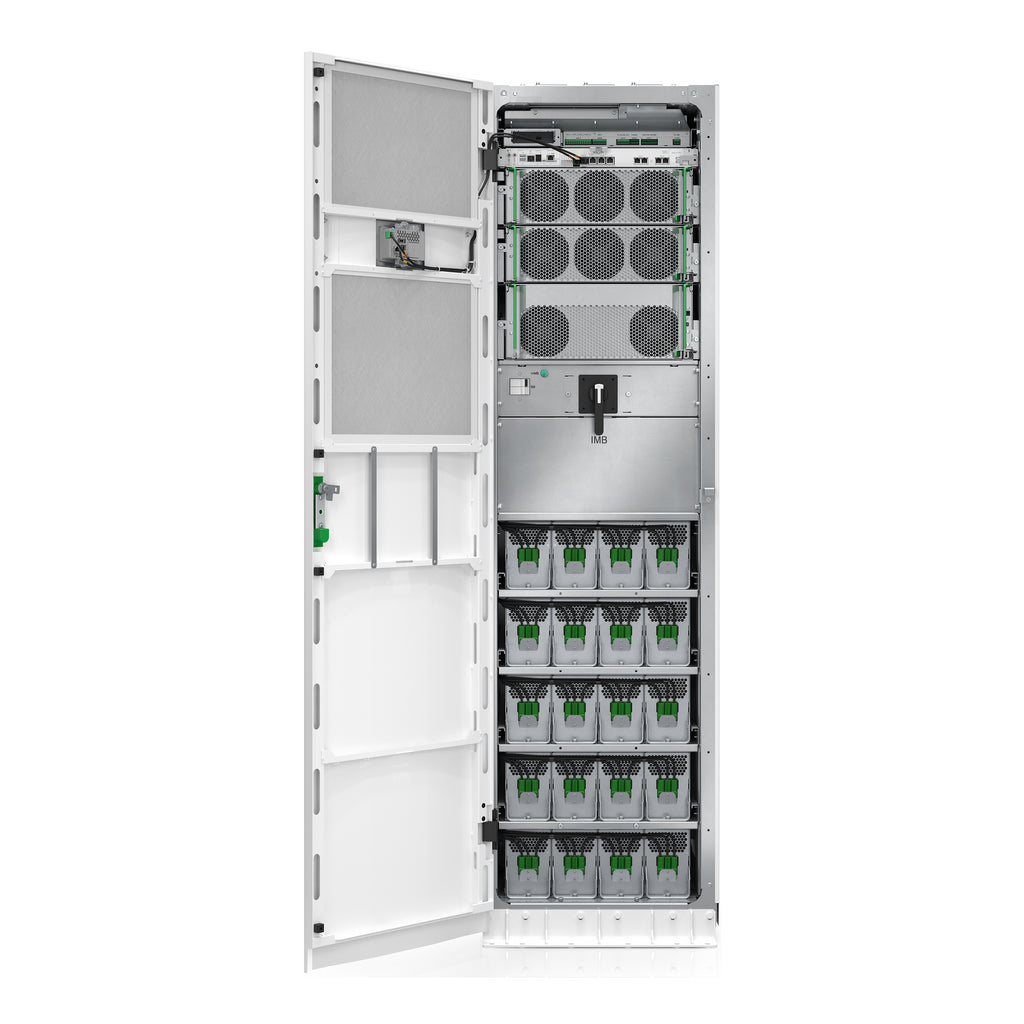

The Schneider Electric Galaxy VS GVSUPS60KB5HS is a compact, high-efficiency 60kW 3-phase UPS system designed for edge, small, and medium data centers and mission-critical infrastructures. Operating at 400V, it comes with three internal 9Ah smart modular battery strings (expandable to five), delivering scalable runtime and reduced total cost of ownership. This model includes 5x8 start-up service and features EcoStruxure™ connectivity, a touchscreen LCD interface, and integrated network management for streamlined deployment and monitoring.
| Specification | Details |
|---|---|
| SKU | GVSUPS60KB5HS |
| Power Capacity | 60 kW / 60 kVA |
| Input Voltage | 400V (380V / 415V supported) |
| Output Voltage | 400V (380V / 415V supported) |
| Input Frequency | 40 – 70 Hz |
| Efficiency | Up to 97% (online mode) |
| Battery Type | Internal Modular VRLA |
| Included Battery Strings | 3 x 9Ah Smart Modular (expandable to 5) |
| Bypass Type | Built-in Static Bypass |
| Communication | LCD Touchscreen, Network Management |
| Form Factor | Tower |
| Color | White |
| Dimensions (H x W x D) | 1970 x 550 x 847 mm |
| Weight | 665 kg |
| Redundancy | Not configured with redundancy |
| Overload Capability | 10 min @125%, 60 sec @150% |
| Certifications | IEC 62040-1-1, IEC 62040-2, OSHPD |
| Protection Rating | IP20 |
| Acoustic Noise Level | 54 dBA |
| Startup Service | Included (5x8) |
| Warranty | 1-Year On-Site Repair/Replace |
