Description

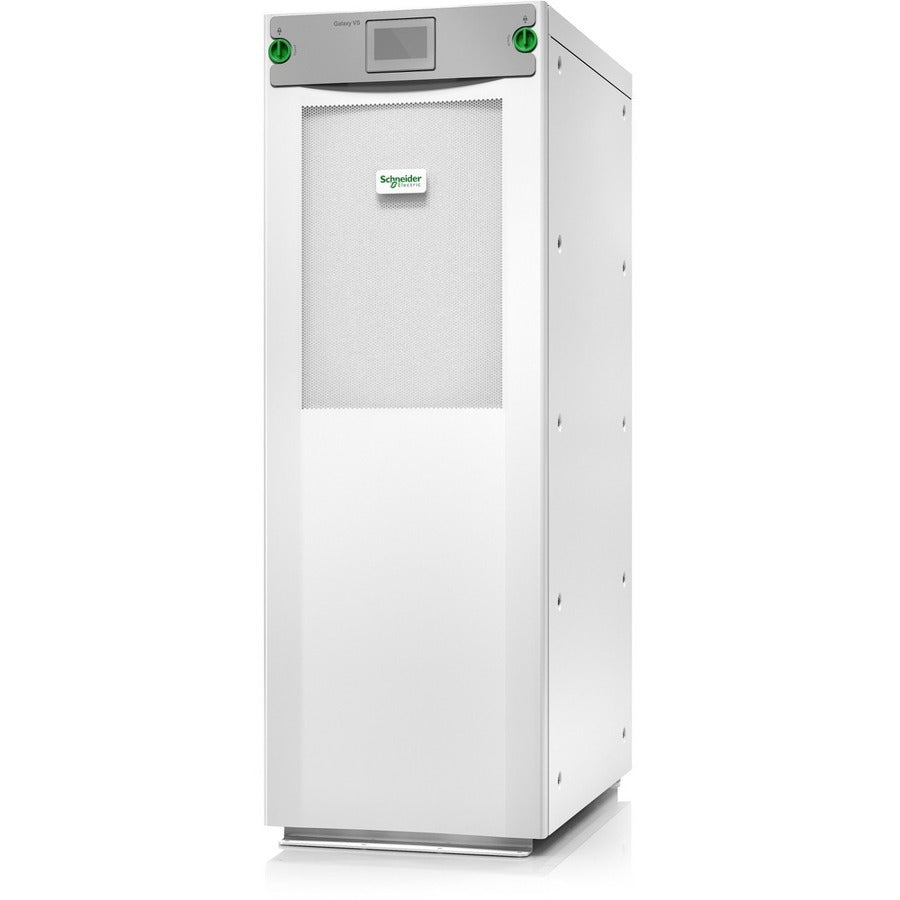

The Galaxy VS GVSUPS60K0B5GS by Schneider Electric is a highly efficient, compact, and modular 60kW 3-phase UPS system designed for edge, small, and medium data centers as well as critical commercial and industrial infrastructure. Operating at 480V, it supports up to five 9Ah internal smart modular battery strings (not included) for customizable runtime and high-density power protection.
Featuring up to 97% efficiency in standard mode and 99% in ECOnversion mode, it ensures superior energy savings and reduced total cost of ownership. It comes EcoStruxure™ Ready, includes integrated network management, and features a built-in static bypass and a touch-screen LCD interface. Includes factory-authorized 5x8 Start-up Service.
| Specification | Details |
|---|---|
| Model Number | GVSUPS60K0B5GS |
| Power Capacity | 60 kW / 60 kVA |
| Input Voltage | 480V 3-phase |
| Output Voltage | 480V 3-phase |
| Battery Support | Up to 5 internal 9Ah modular VRLA strings (batteries not included) |
| Battery Voltage | 480V DC |
| Efficiency | Up to 97% (normal); 99% (ECOnversion) |
| Input Frequency | 40–70 Hz |
| Output Frequency | 50/60 Hz (sync to mains) |
| Bypass | Built-in static bypass |
| Certifications | ENERGY STAR V2.0, UL 1778, IEC, FCC, CSA |
| Redundancy | Not included |
| User Interface | Touch Screen LCD |
| Network Management | Integrated |
| Enclosure Protection | IP20 |
| Operating Temp Range | 0–40°C (32–104°F) |
| Humidity | 0–95% non-condensing |
| Dimensions (H x W x D) | 77.56 x 21.65 x 33.35 in (197 x 55 x 84.7 cm) |
| Weight | 619.5 lbs (281 kg) |
| Acoustic Level | 54 dBA |
| Warranty | 1-year on-site repair/replacement with Start-up Service |
