Description

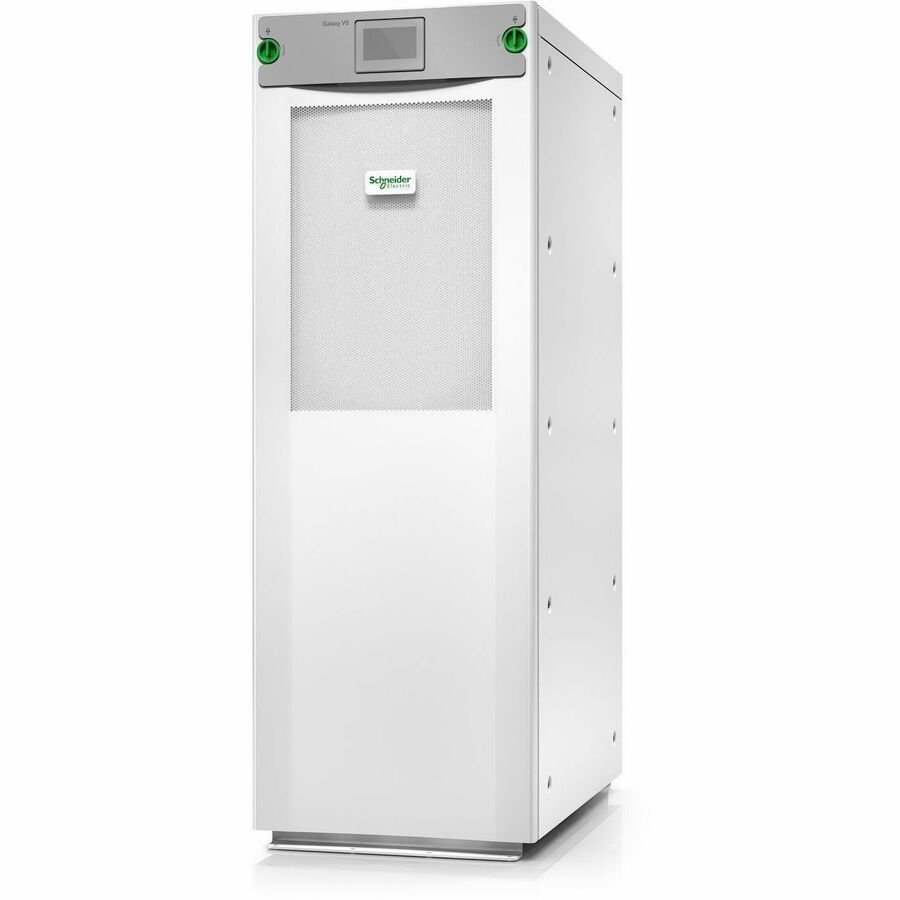

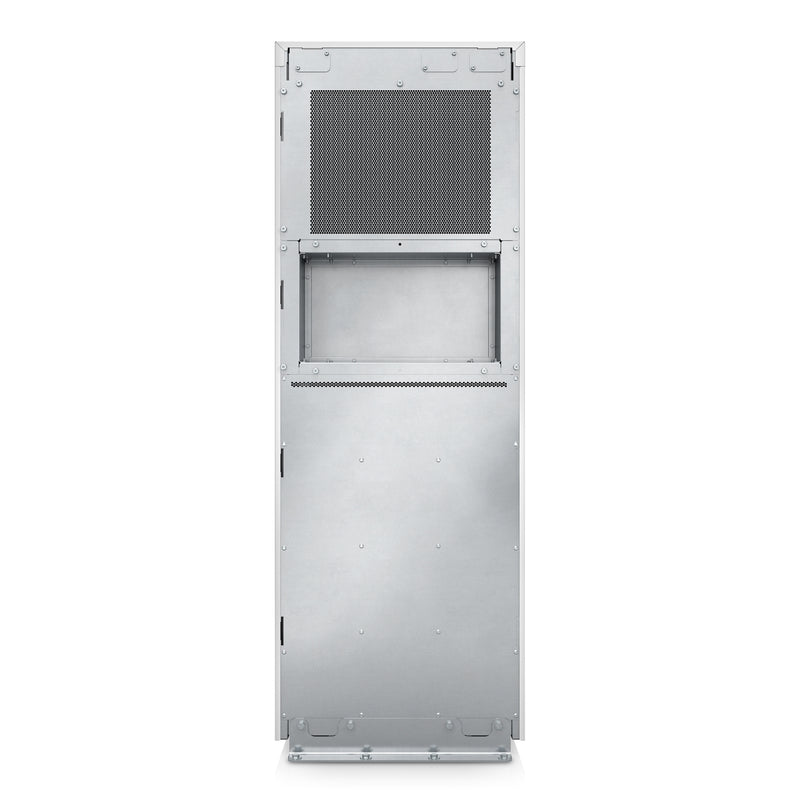

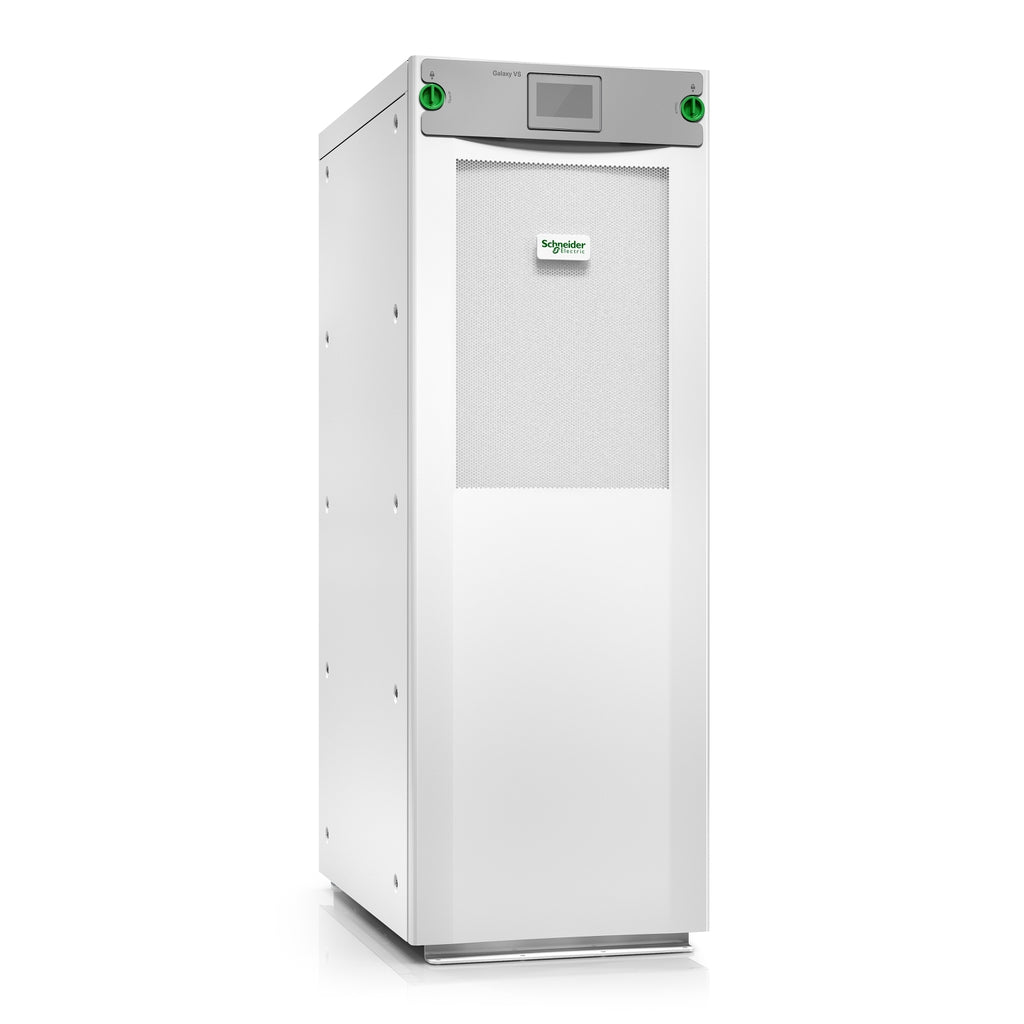

The Schneider Electric Galaxy VS UPS GVSUPS60KRHS is a high-efficiency, 60kW 400V 3-phase uninterruptible power supply designed for critical power protection in data centers and industrial applications. Featuring N+1 power module redundancy and external battery compatibility, it ensures uptime, scalability, and energy savings. Includes 5x8 Start-Up service, EcoStruxure IT readiness, and a compact footprint for easy deployment in edge and medium-size environments.
| Attribute | Details |
|---|---|
| Model Number | GVSUPS60KRHS |
| Power Capacity | 60 kW / 60 kVA |
| Input Voltage | 400V 3-phase (also supports 380V, 415V) |
| Input Frequency | 40–70 Hz |
| Max Input Current / Phase | 108 A |
| Input THD | < 3% at full load |
| Output Voltage | 400V 3-phase |
| Output Frequency | 50/60 Hz (sync to mains) |
| Output Voltage Tolerance | ±1% after 50 ms |
| Waveform Type | Sine wave |
| Output THD | < 1% linear load, < 5% non-linear load |
| Battery Type | External (Li-Ion, VRLA) |
| Redundancy | N+1 Power Module |
| Overload Capacity | 10 min @ 125%, 60 sec @ 150% |
| Bypass Type | Built-in Static Bypass |
| Efficiency | Optimized for energy efficiency |
| Communication Interface | Touchscreen LCD, Network Management |
| Dimensions (H x W x D) | 148.5 x 52.1 x 84.7 cm |
| Weight | 290 kg (639.3 lbs) |
| IP Rating | IP21 |
| Noise Level | 68 dBA |
| Operating Temp | 0 to 40 °C (32 to 104 °F) |
| Certifications | EN/IEC 62040-1, UL 1778, FCC Part 15, etc. |
| Included Services | Start-Up 5x8, EcoStruxure Ready, Dust Filter |
| Warranty | 1-Year On-site Repair or Replace |
