Description

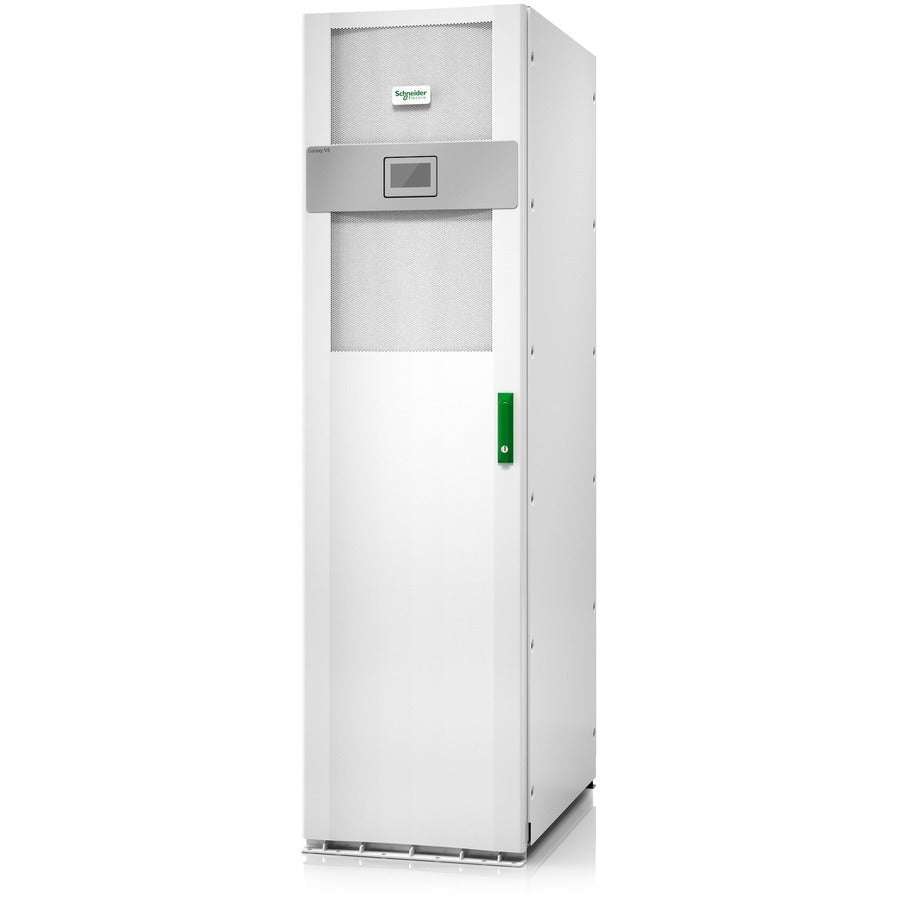

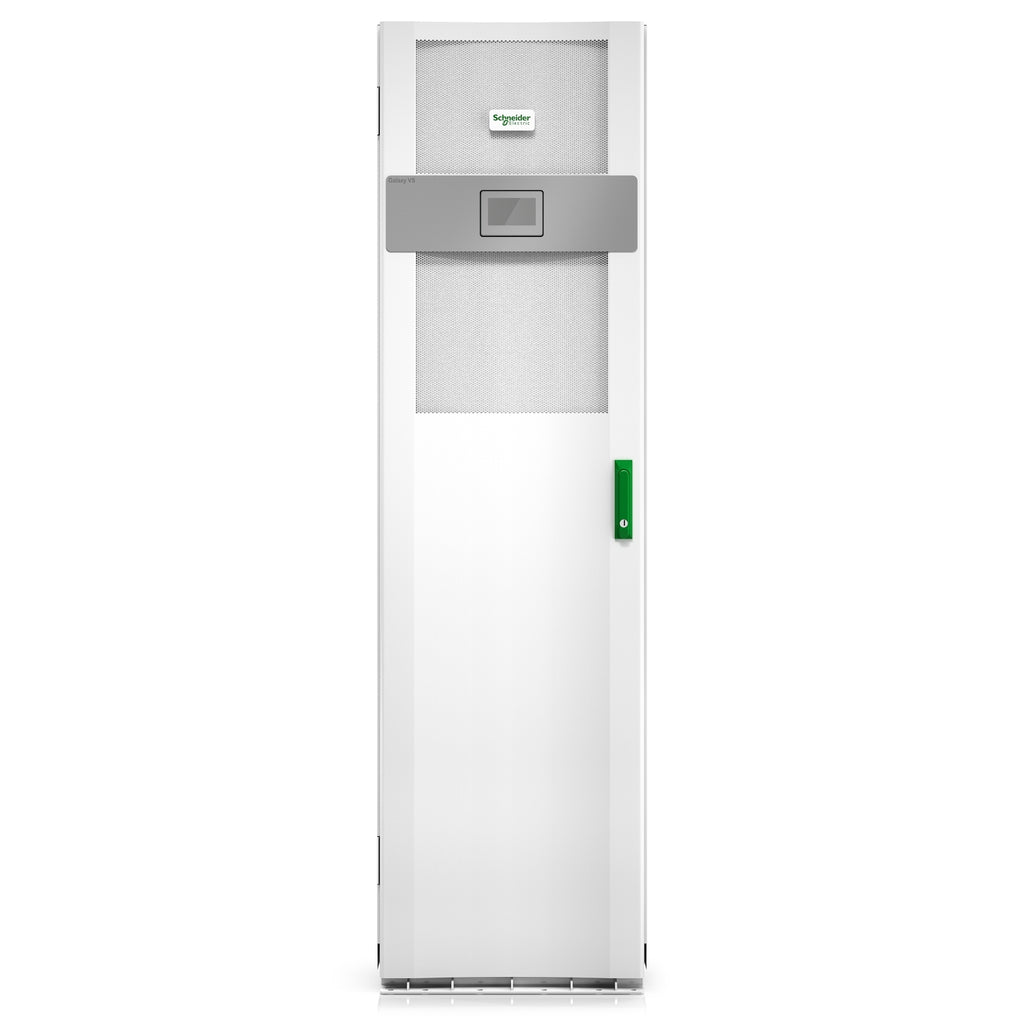

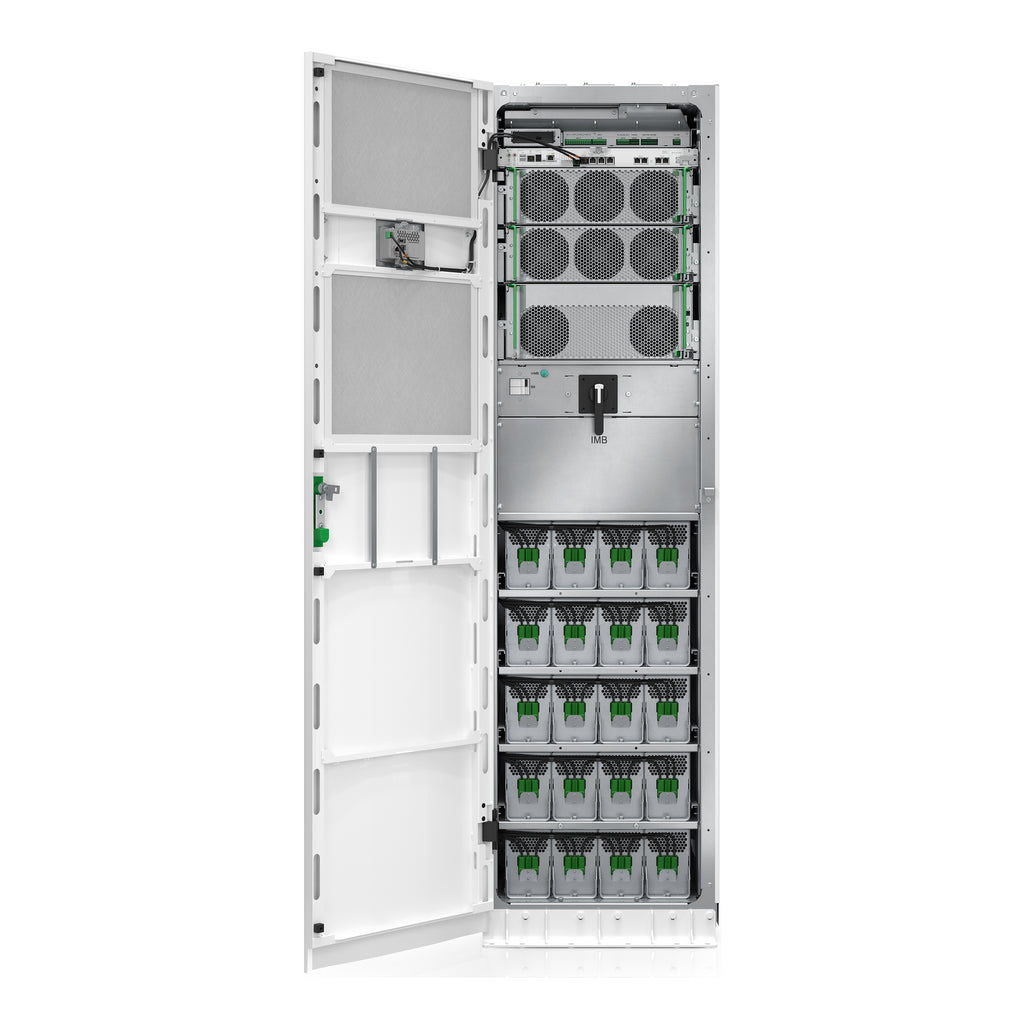

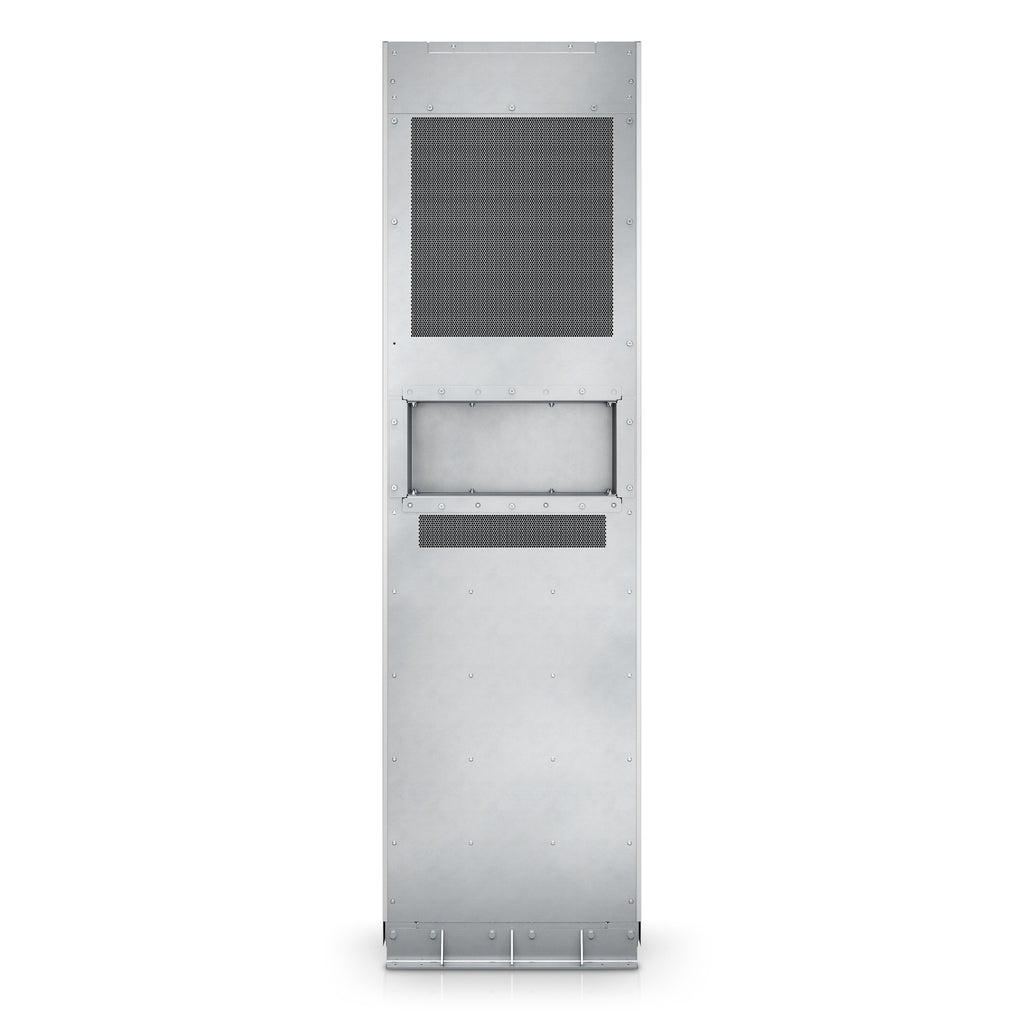

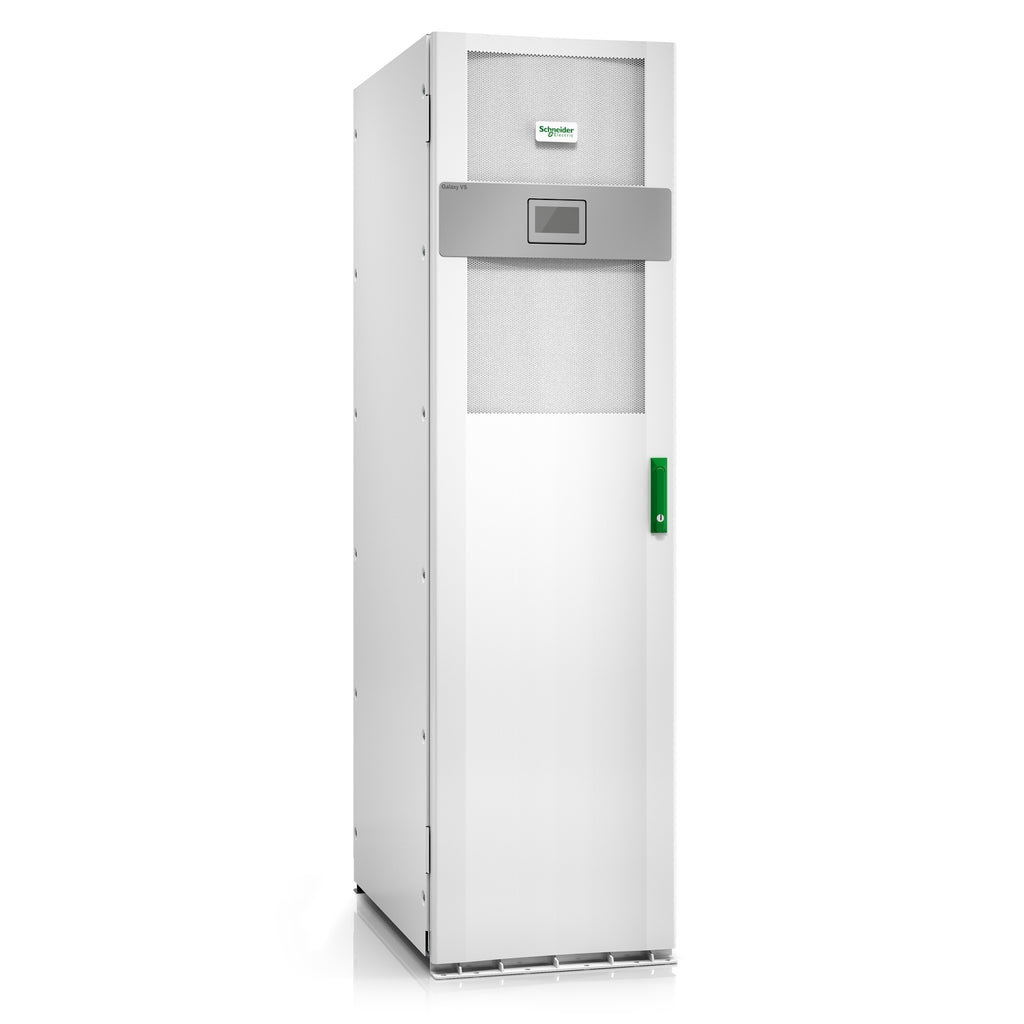

The Schneider Electric Galaxy VS GVSUPS60KB5GS is a compact, high-efficiency 3-phase UPS delivering 60kW / 60kVA of power at 480V. It includes three internal 9Ah smart modular battery strings, expandable to five, offering scalable runtime and reliable backup for edge, small, and medium data centers, or critical infrastructure environments. Features built-in network management, static bypass, and touch-screen LCD for intuitive operation. Ships with factory-installed batteries and includes 5x8 start-up service for streamlined deployment.
| Attribute | Details |
|---|---|
| Product Code | GVSUPS60KB5GS |
| Power Rating | 60 kW / 60 kVA |
| Input Voltage | 480V 3-phase |
| Output Voltage | 480V 3-phase |
| Battery Type | VRLA – Smart Modular Batteries |
| Included Batteries | 3x 9Ah internal strings |
| Expandable Up To | 5x battery strings |
| Efficiency | Up to 97% in double conversion mode |
| Input Frequency | 40–70 Hz |
| Power Factor (Full Load) | 0.99 |
| THD (Input/Output) | <3% (input), <1% linear load / <3% nonlinear |
| Bypass | Integrated Static Bypass |
| Redundancy | No (Single system) |
| Cooling Method | Forced air (fan) |
| Form Factor | Tower |
| Interface | Touchscreen LCD |
| EcoStruxure Ready | Yes |
| Certifications | ENERGY STAR V2.0, UL 1778, IEC 62040 |
| Included Accessories | Dust filter, install manual, battery pre-installed |
| Dimensions (HxWxD) | 197 x 55 x 84.7 cm (77.56 x 21.65 x 33.35 in) |
| Weight | 665 kg (1466.08 lbs) |
| Operating Temp Range | 0°C to 40°C (32°F to 104°F) |
| Humidity (non-condensing) | 0–95% |
| Warranty | 1 year on-site repair with start-up |
| Lead Time | Usually ships within 2 weeks |
