Description

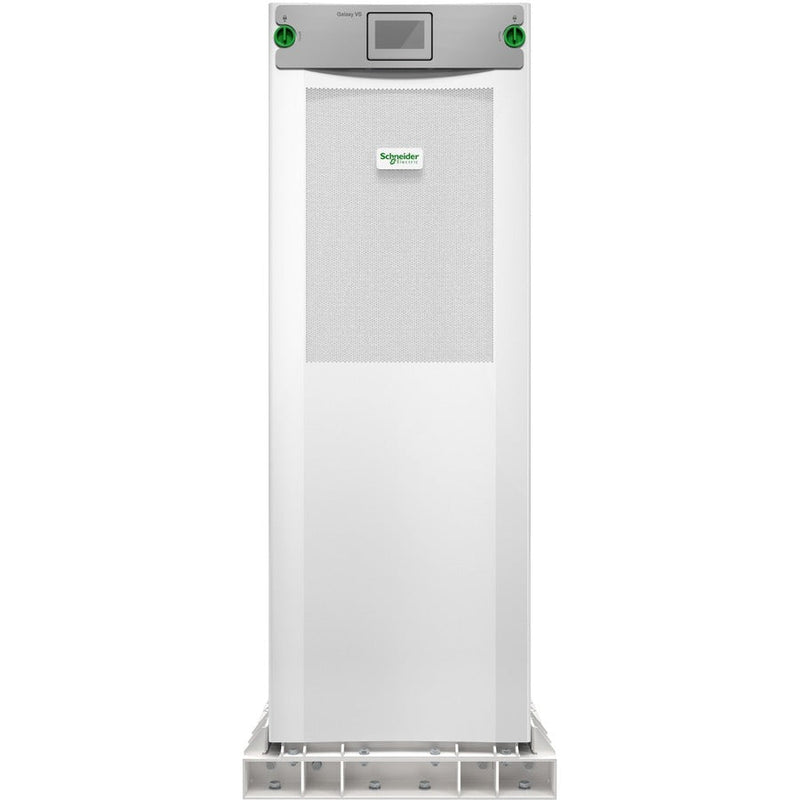

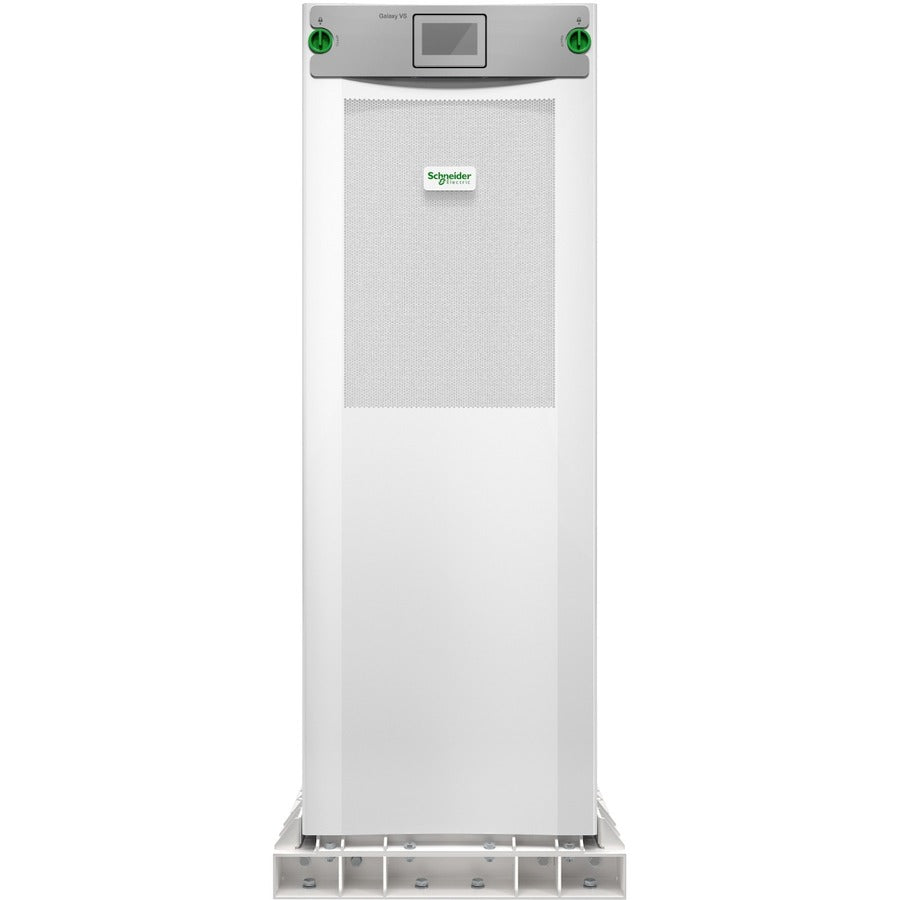

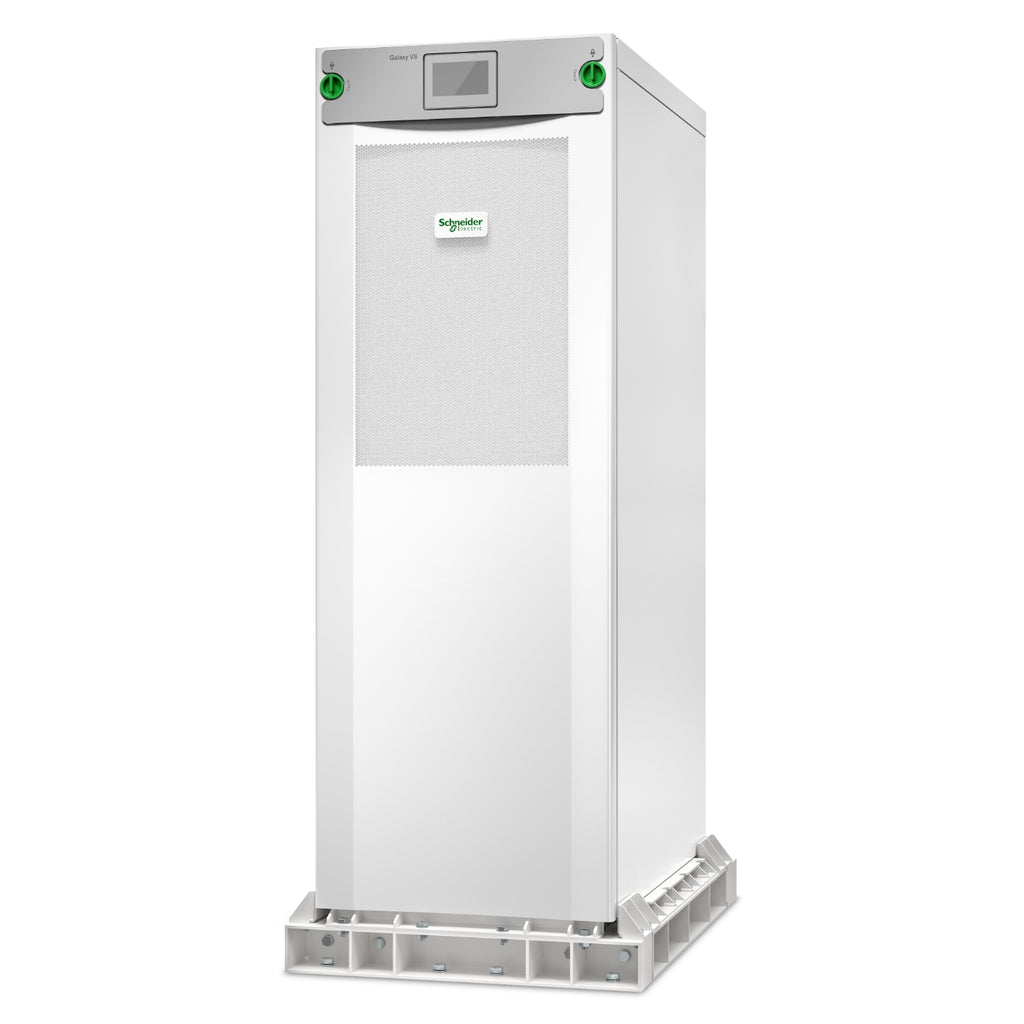

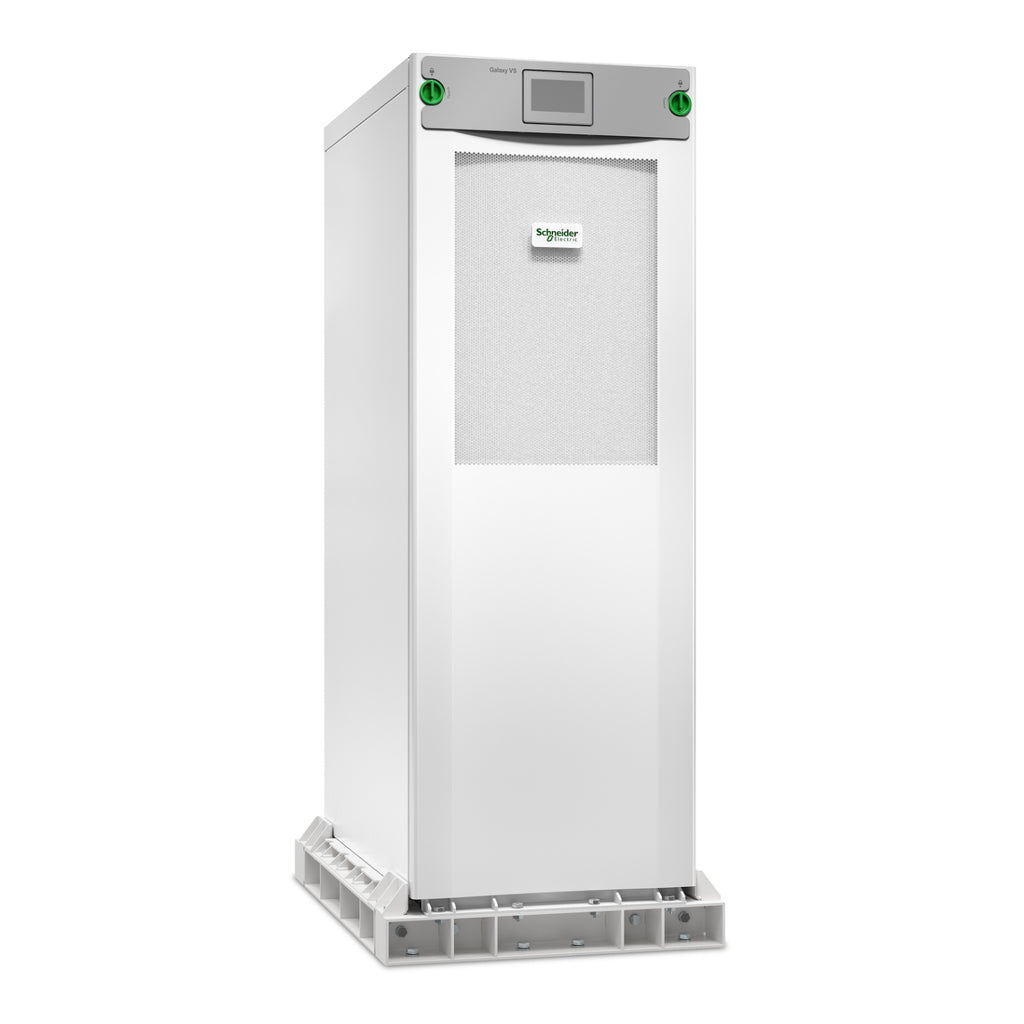

The Schneider Electric Galaxy VS UPS GVSUPS80KMHS is an 80kW, 400V 3-phase uninterruptible power supply designed for high-performance energy protection in edge, commercial, and industrial applications. With external battery support, halogen-free cables, and marine certification, it ensures compliance, reliability, and reduced total cost of ownership. Includes a factory-authorized 5x8 start-up service for seamless deployment.
| Specification | Details |
|---|---|
| Model | GVSUPS80KMHS |
| Power Rating | 80 kW / 80 kVA |
| Input Voltage Range | 380 V / 400 V / 415 V (3-phase) |
| Output Voltage | 400 V (3-phase) |
| Battery Type | External (VRLA / Lithium-Ion) |
| Battery Voltage Range | 384–576 VDC |
| End of Discharge Voltage | 307 VDC |
| Max Battery Current | 217 A |
| Bypass Type | Built-in Static Bypass |
| Efficiency | High-efficiency, <3% input THD |
| Output THD | <1% (linear load), <5% (non-linear) |
| Load Power Factor | 0.7 lead to 0.7 lagging (no derating) |
| Overload Capacity | 10 min @ 125%, 60 sec @ 150% |
| Communication Interface | Touch Screen LCD, EcoStruxure™ IT Ready |
| Certifications | EN/IEC 62040, UL 1778 5th Ed., Marine |
| Environmental Protection | IP21 |
| Dimensions (H x W x D) | 1485 x 52.1 x 847 mm (58.46 x 2.05 x 33.35 in) |
| Weight | 250 kg (551.2 lbs) |
| Startup Service | Included (5x8) |
| Warranty | 1 Year On-site Repair/Replace |
