Description

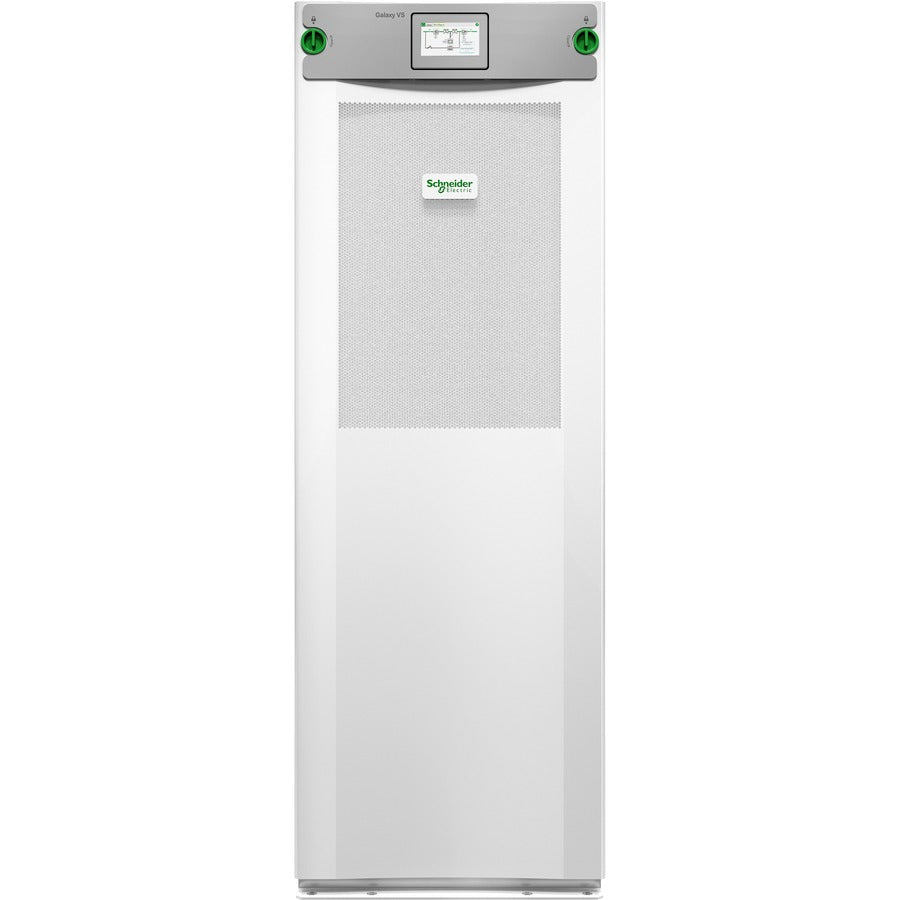

The Schneider Electric Galaxy VS GVSUPS80KHS is a high-efficiency, modular 3-phase UPS system delivering 80kW/80kVA at 400V, designed for edge, small, and medium data centers or critical infrastructure. Engineered with advanced ECOnversion mode, it achieves up to 99% efficiency for substantial energy savings. This compact and scalable system supports external batteries, integrates seamlessly with EcoStruxure for remote monitoring, and includes factory-authorized 5x8 start-up service. Ideal for facilities demanding reliability, flexibility, and lower total cost of ownership.
| Category | Details |
|---|---|
| Model | GVSUPS80KHS |
| Power Capacity | 80kW / 80kVA |
| Input Voltage | 400V (3-phase), also supports 380V / 415V |
| Output Voltage | 400V (3-phase), also supports 380V / 415V |
| Input Frequency | 40–70 Hz |
| Input Power Factor | 0.99 |
| Output Frequency | 50/60 Hz (auto-sensing or sync to mains) |
| Efficiency | Up to 97% (double conversion), 99% (ECOnversion) |
| Battery Type | External VRLA or Li-Ion |
| Battery Voltage Range | 384–576V DC |
| Max Battery Current | 217 A |
| Redundancy | Not Redundant (N) |
| Bypass Type | Built-in Static Bypass |
| Certifications | UL 1778, CSA, IEC/EN 62040-1/2/3, FCC Class A |
| Connectivity | LCD Touchscreen, Integrated Network Management |
| EcoStruxure Ready | Yes |
| Dimensions (HxWxD) | 1485 x 521 x 847 mm (58.46 x 20.51 x 33.35 in) |
| Weight | 250 kg (551.2 lb) |
| Operating Temp | 0–40°C (32–104°F) |
| Humidity | 0–95% RH (non-condensing) |
| Warranty | 1-Year On-Site Repair or Replace with Start-up Included |
